Rounded Corner 3.5 Inch Hinge Shim

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 809 views

3D model description

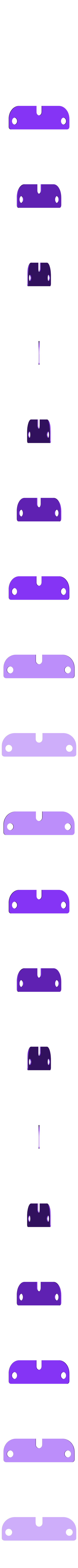

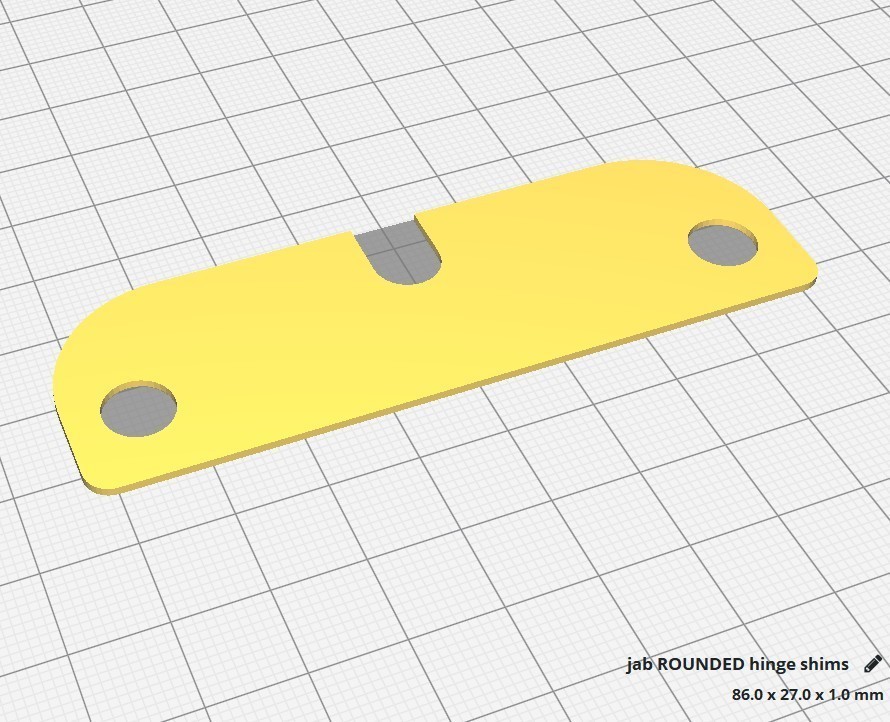

For rounded corner 3.5 Inch hinges with 3 holes.

Insert one or more of these, between door frame and hinge, to reduce gap between strike plate and latch bolt. Can also be used to re-align sagging doors where the bolt does not settle in strike plate because it is too high (add to upper hinge only) or too low (add to lower hinge only).

These can also help with doors that bind on last few inches of closure because the hinge mortises were cut too deep.

The shim is 1mm thick. Use multiples or scale Z axis for other thicknesses.

Installation: Remove upper and lower hinge screws. Loosen the center screw enough so the shim can be inserted. Retighten all 3 screws.


3D printing settings

100% infill. No supports.
