Rotating Base

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 2 likes

3D model description

With the Rotating Base, you will be able to:

-Photos and videos for presenting your work.
By dragging the object from all sides (360 °), (at least 60
photos), the gallery can be converted using the program into a
spatial object, which can be printed after retrofitting.
-3D Scanning

The stand is designed for fast printing and simple composition.
It consists of three parts.

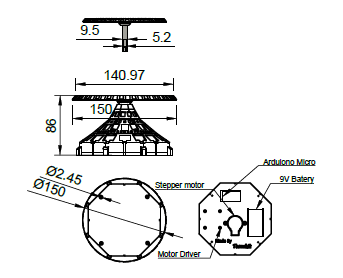

Basic parameters in the image. In millimeters (mm).

The rotation drive is provided by:
-1xArduino (Uno, Micro)
1x Stepper Motor 28BYJ-48
1x Driver module with ULN2003
1X Power supply: 9V Battery

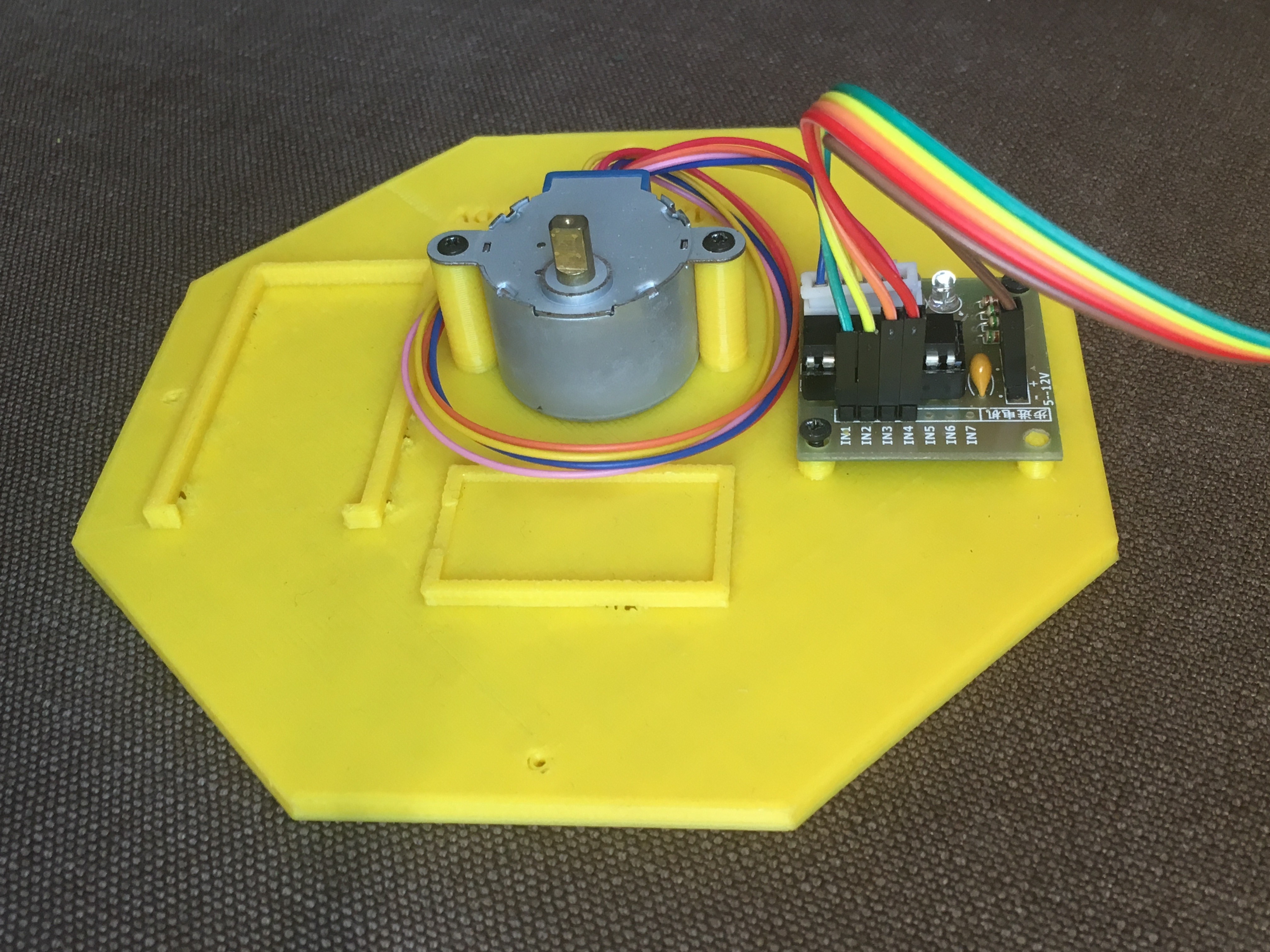

The 28BYJ-48 Stepper Motor with the ULN2003 Motor Drive is screwed into the pedestal by small screws with Ø = 1.5mm, Length = 2-3mm)
Slots for precise placement of electronic components are prepared in the pedestal.
  Arduino Micro and 9V batteries are inserted or glued with double-sided foam
Speed ​​is adjustable in firmware.

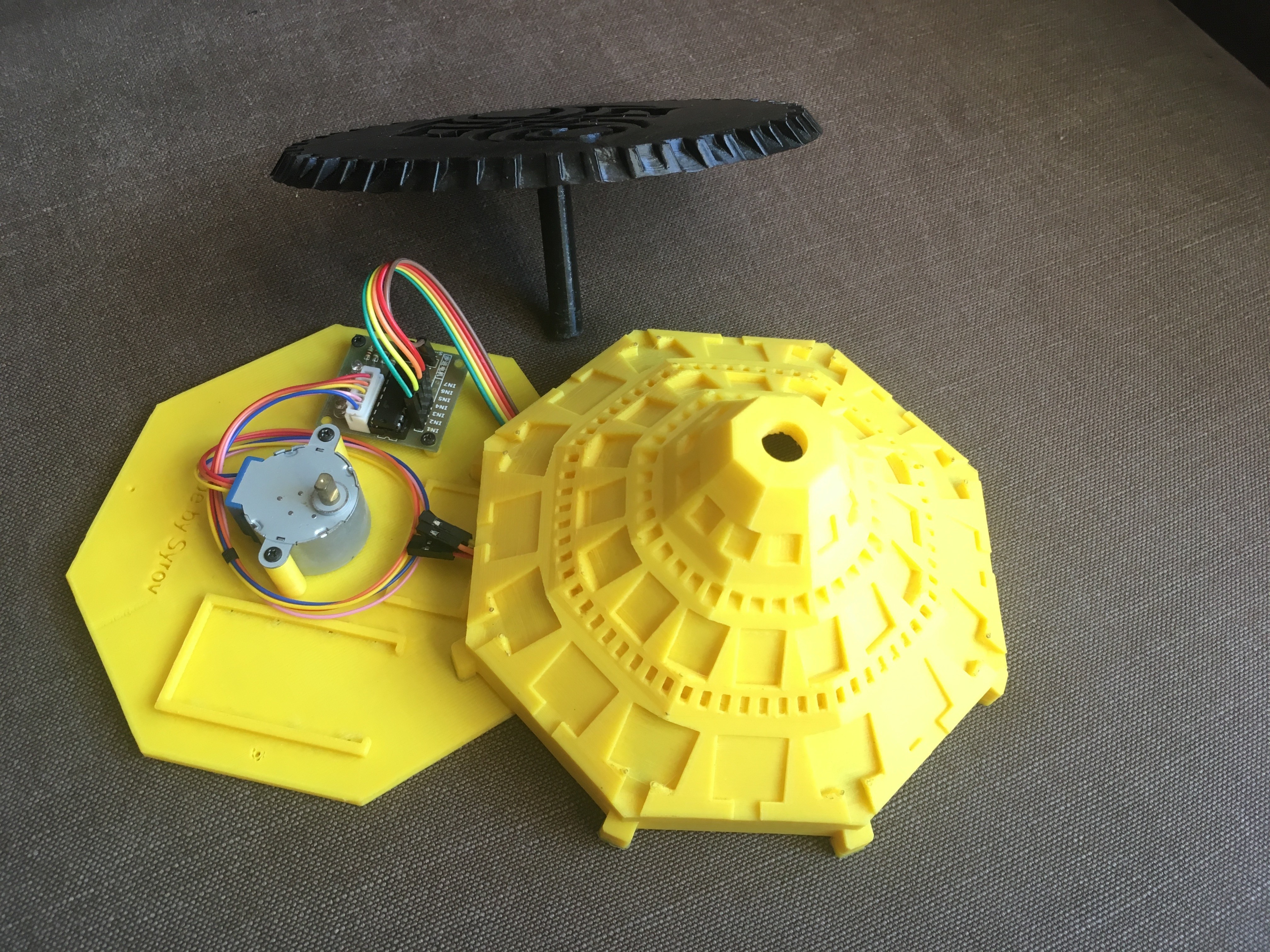

The base body and the bottom cover are connected by screws (Ø = 1.5mm with a length of 5-7mm) or by glue.
After the base body has been assembled, the stand is inserted and attached to the engine shaft.

Programing and code i study from video: https://www.youtube.com/watch?v=B86nqDRskVU

Video from application Rotationg Base:
https://www.youtube.com/watch?v=2hGTTXekqMM

More Photos and my Designs here: https://tomshik3d.wixsite.com/tomshik3d

Price for model = contribution to improving future projects.
Laptop isn´t a performance. :D

3D printing settings

print speed: 40mm/s
layer height: 0,2mm
Infill: Body:10%
Pedeste: 40%

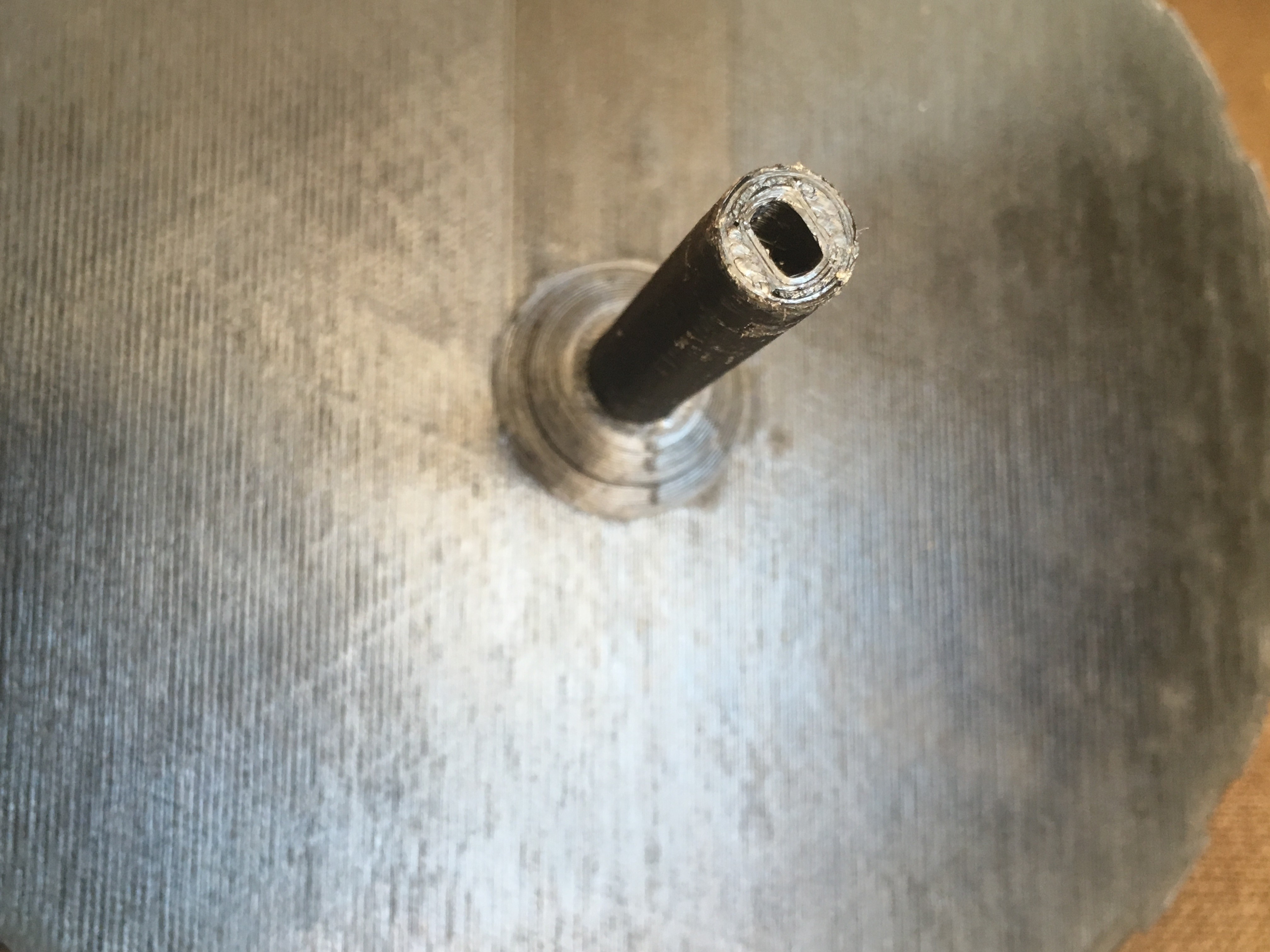

Table: 40-70% Join between axis and the plate offten
broken. Use 3 perim. shell and 40% infil and slower
layer. Good setting
