RERF R_E_R_F for Anycubic MonoX

Creation quality: 1.5/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

27nov2020 - Sequenced corrected. Exposure matrix thickened.

###A couple RERF tests for the Anycubic MonoX resin printer.
The pre-sliced files have a base time of .8seconds.
When the printer runs these, printer firmware will add .4seconds for each object

1 = .8 seconds
2 = 1.2 seconds
3 = 1.6 seconds

and so on.
Read the PDF that came on the USB for a full explanation of how the MonoX firmware handles RERF files special.

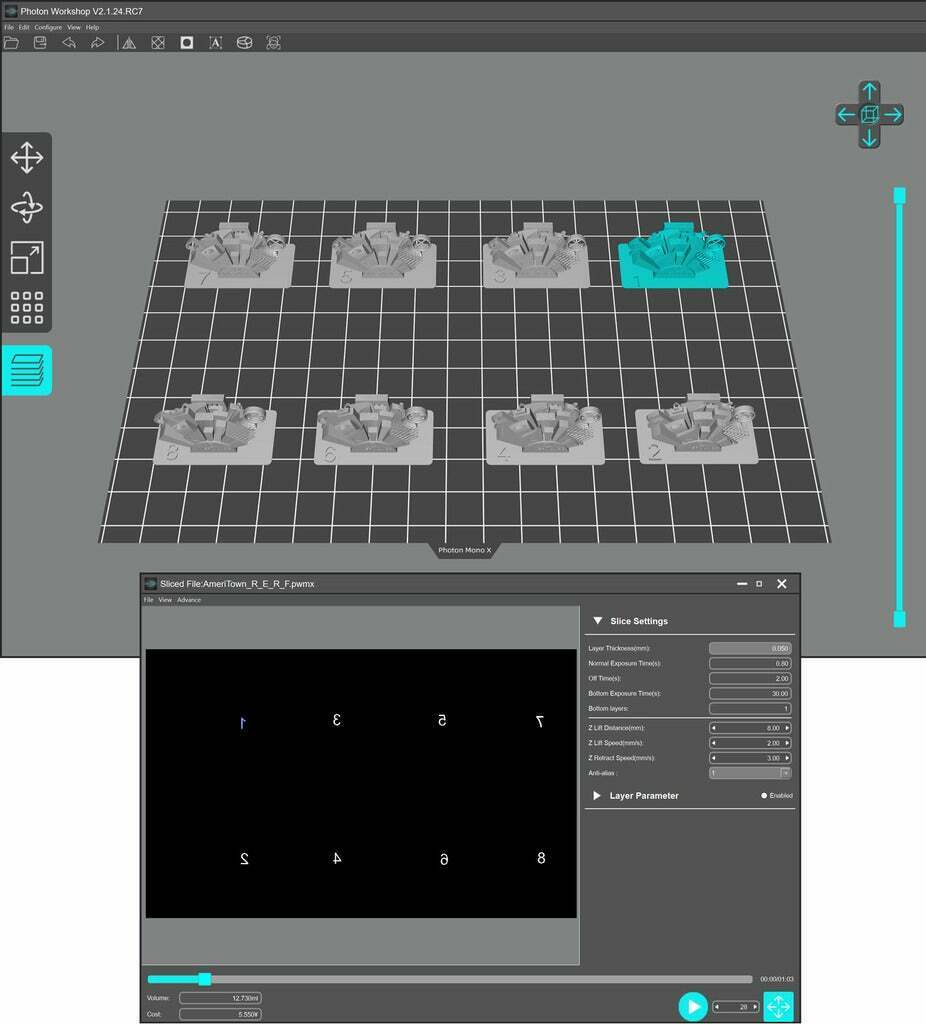

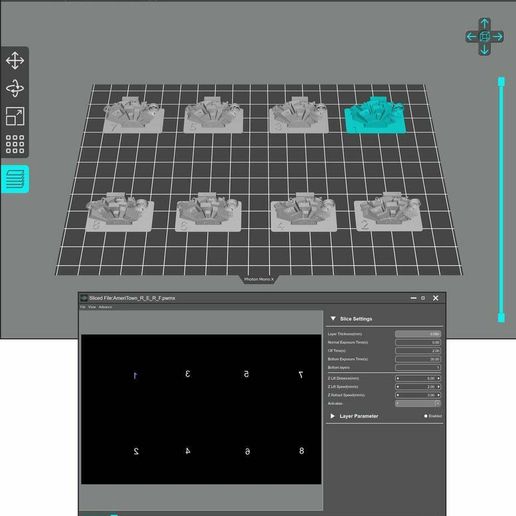

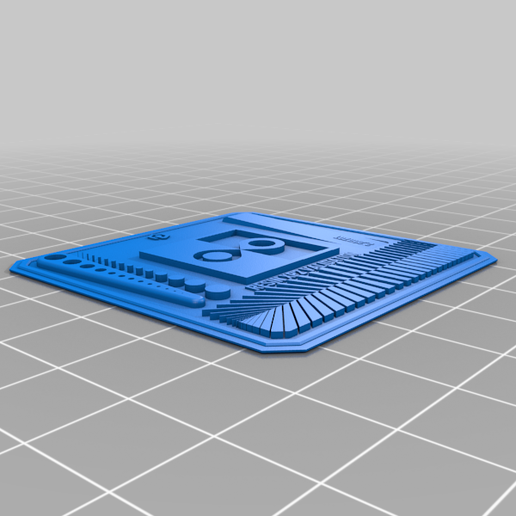

One of the tests is the familiar Amerilabs town. The other is an exposure matrix.

The .scene files for both are included so you can make your own adjustments for base time and layer height.

The file name on the USB must be "R_E_R_F.pwmx" in order for the printer firmware to treat it special. That means you can only have one at a time on the root level of the USB. So you'll have to play with the names, taking "Ameritown" off of one to run it and so on.

3D printing settings


3D printer file information

  • 3D design format: STL Folder details Close
    • ResinXP2-ValidationMatrix_200701.stl

    Learn more about the formats

  • 3D model size: X 50 × Y 50 × Z 1.4 mm
  • Publication date: 2021-02-25 at 00:09
    Published to Thingiverse on: 2020-11-17 at 13:55
