RepRapDiscount Full Graphic Smart Controller Case

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5.8k views
  • 20 likes
  • 453 downloads

3D model description

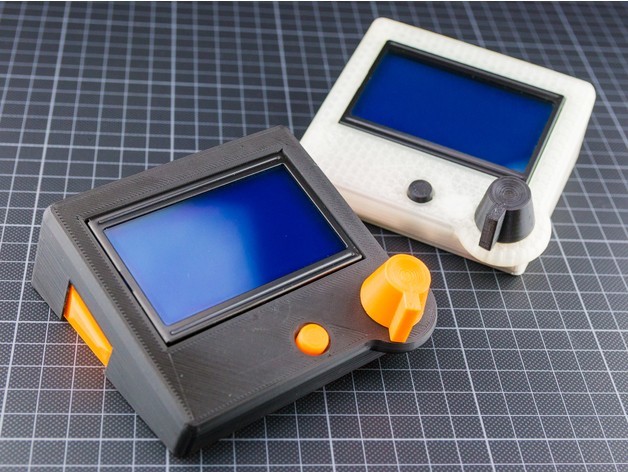

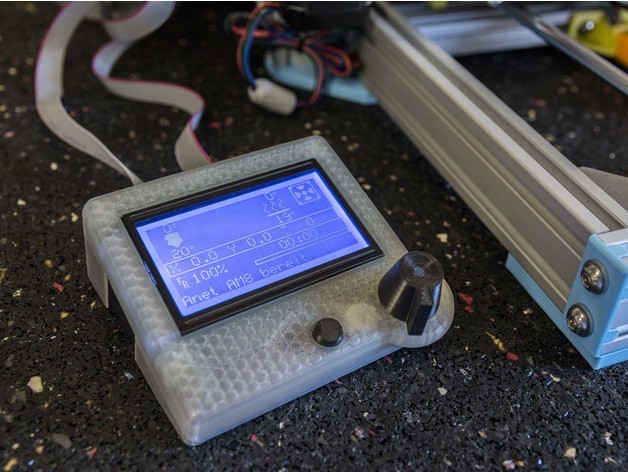

This is yet another case for the common RepRapDiscount Full Graphic Smart Controller. I wanted a 0.48mm line size (0.4mm nozzle * 1.2) optimized and small angled standalone case without mounting options.

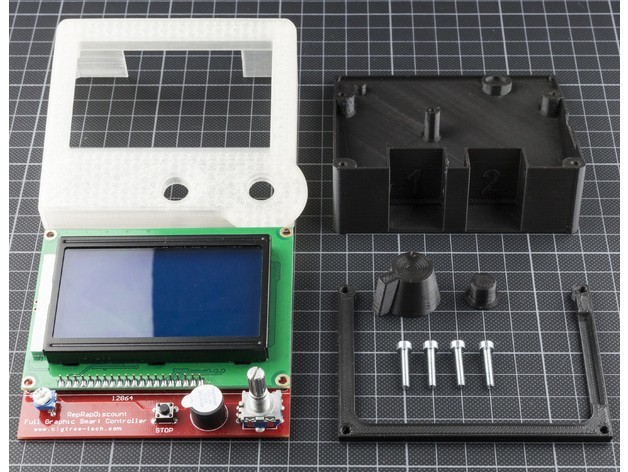

Needed parts
RepRapDiscount Full Graphic Smart Controller
Printed parts
4pcs M3 16mm screws
How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Printer:

Anet AM8

Rafts:

No

Supports:

No

Resolution:

0.12-0.20

Infill:

30%

Post-Printing

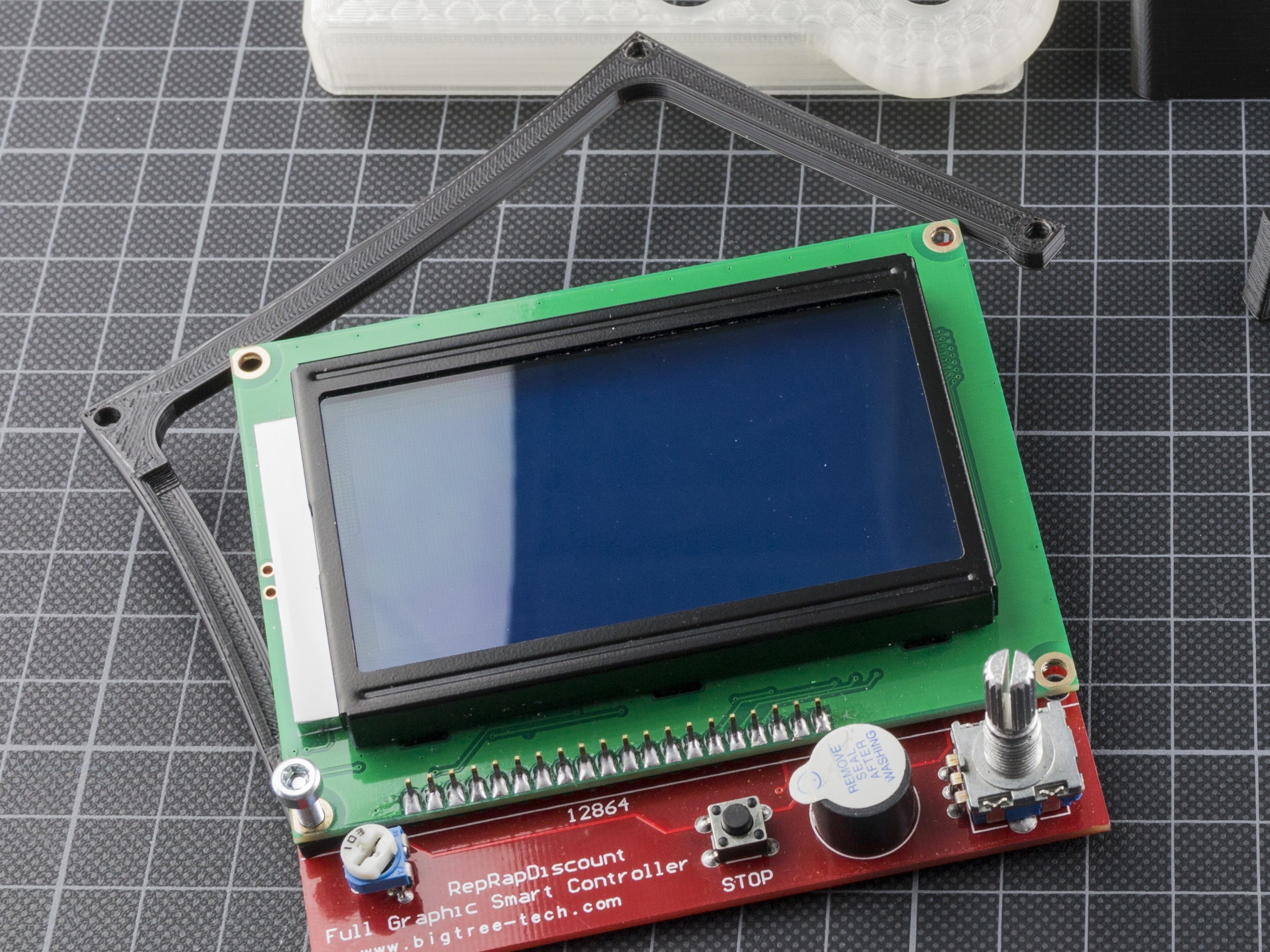

Step 1 - Mount support frame

Put the support frame between the two PCBs. You don't wanna destroy the SMD parts under the screen PCB. Orient the support frame as shown in the pictures

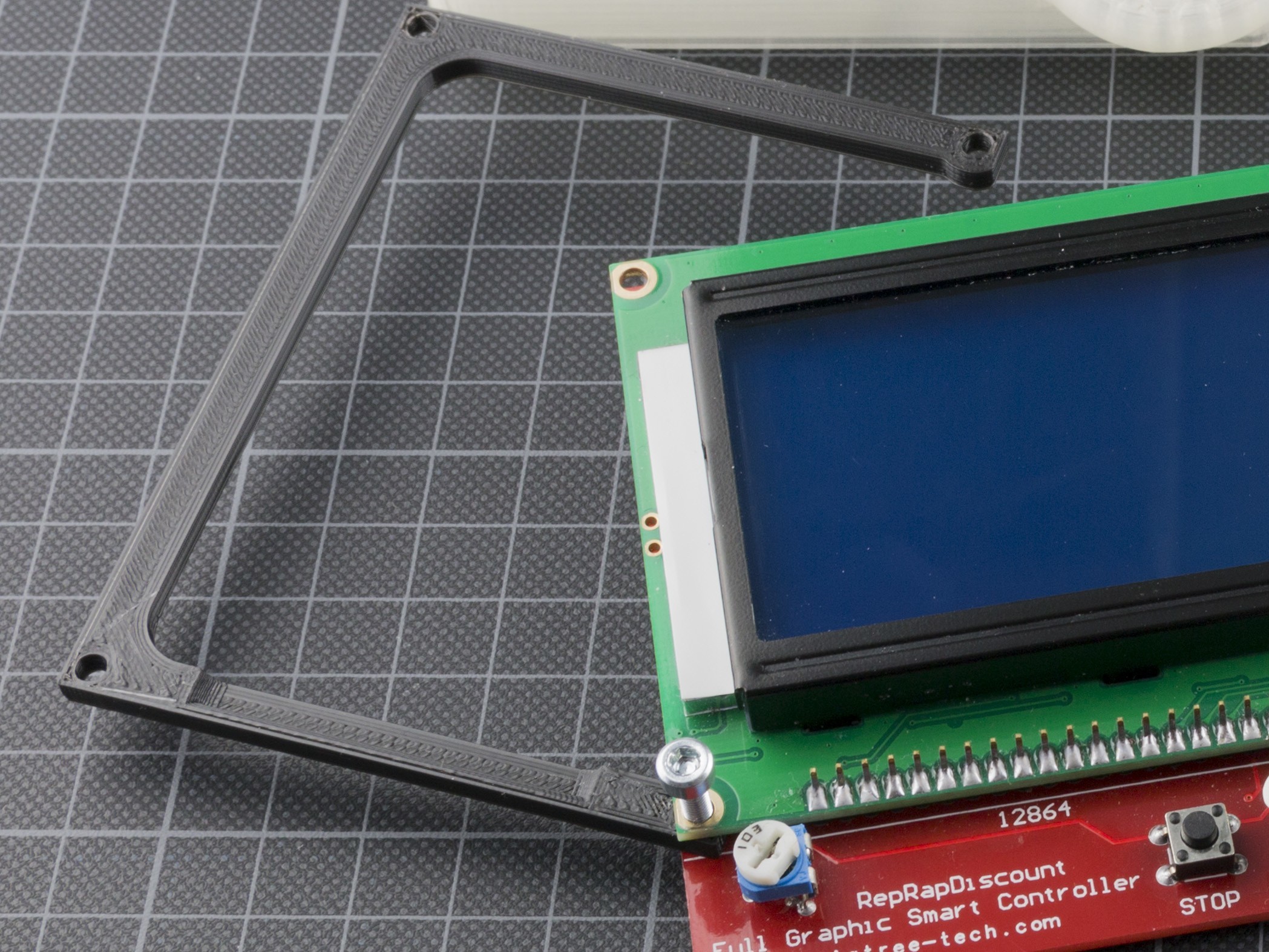

Begin with the bottom left hole and use a screw to fix the frame
Rotate the frame around the Display until all holes are in aligned and in sync between support frame and display. You need to bend the frame a little bit.

Step 2 - Prepare the bottom shell

Take a screwdriver and remove the support of the holes. Apply all four screws as shown in the pictures.

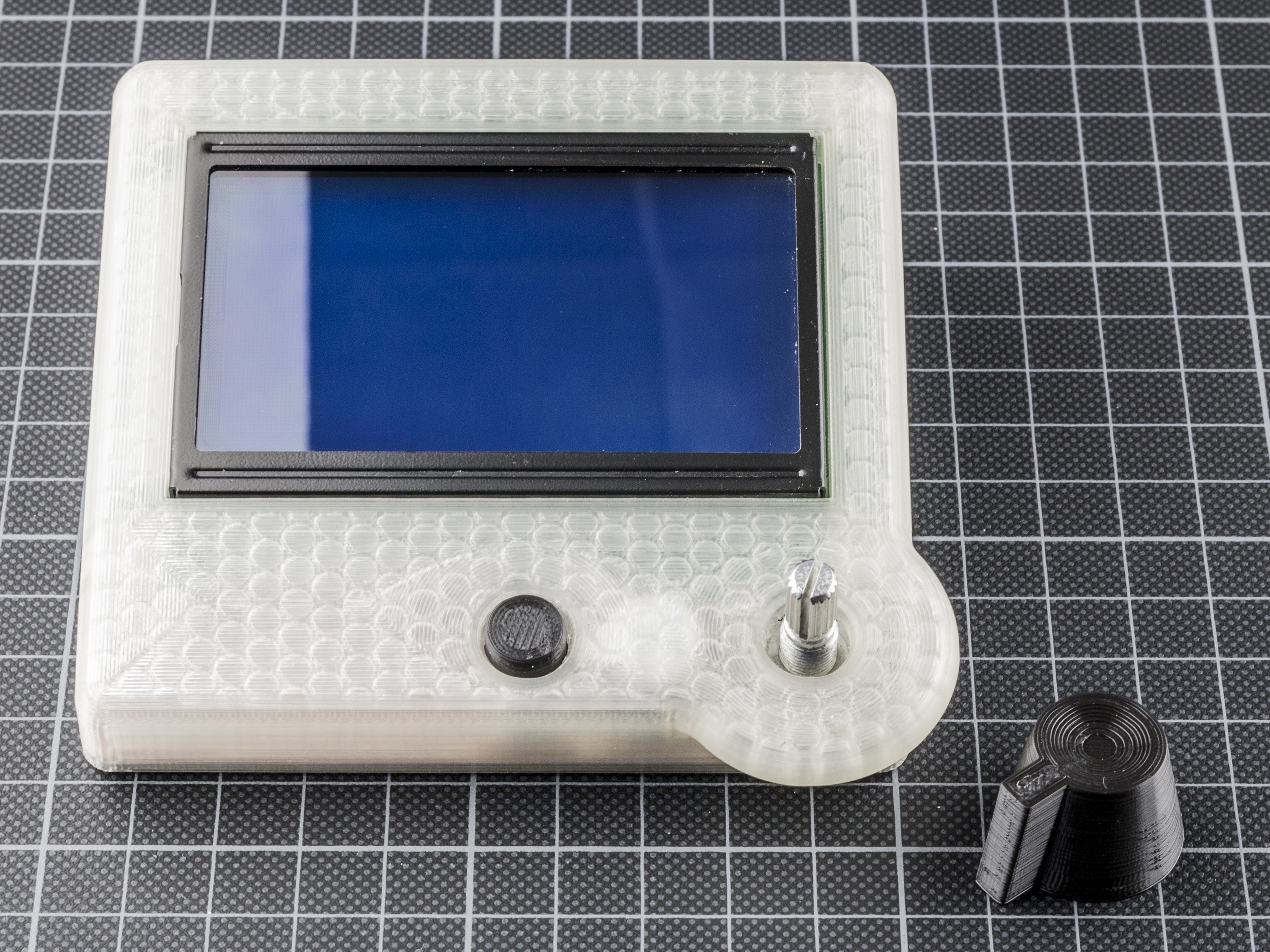

Step 3 - Prepare the top shell

Put the reset knob in the the middle hole of the top case and put the display into the top shell.

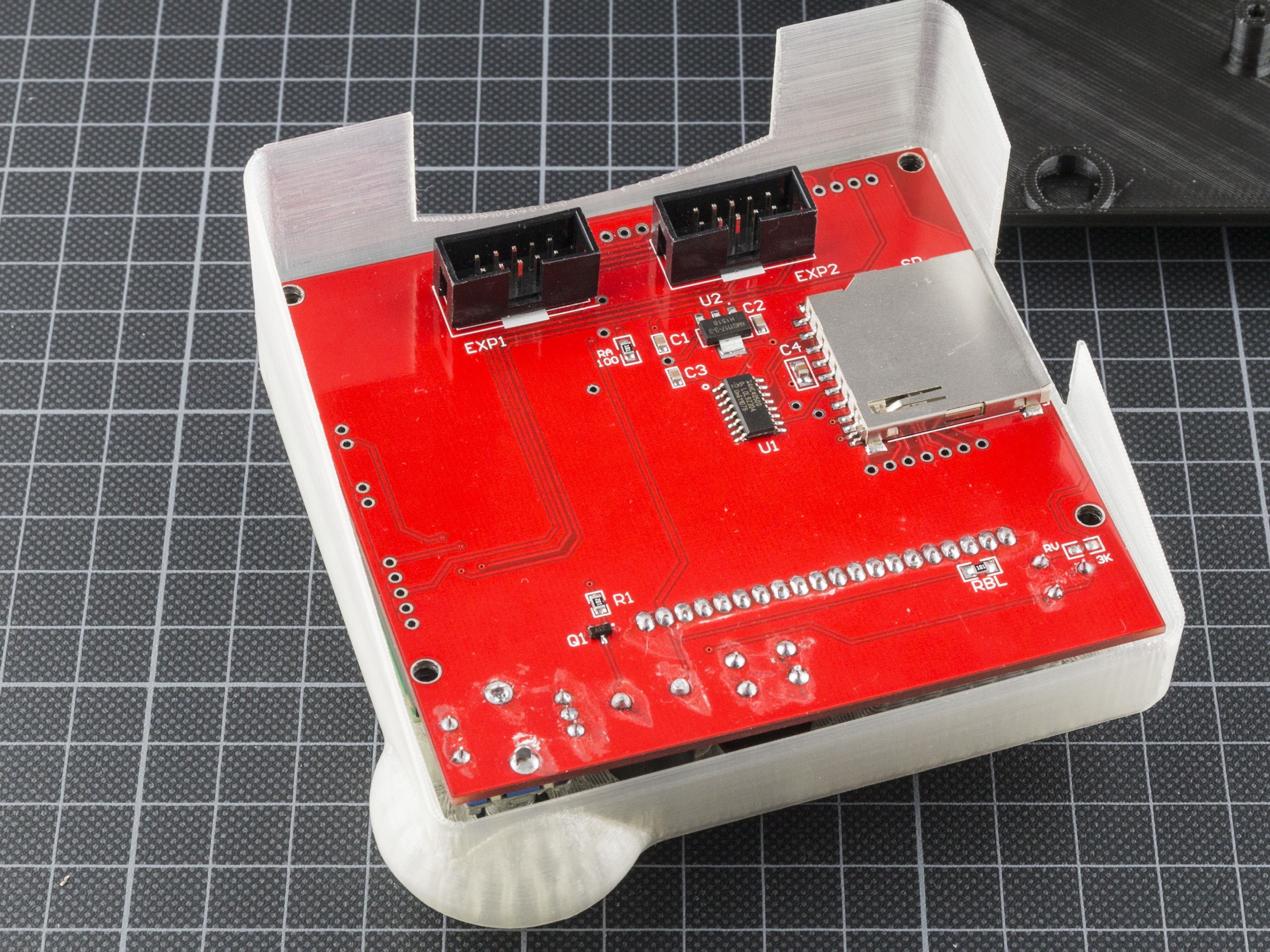

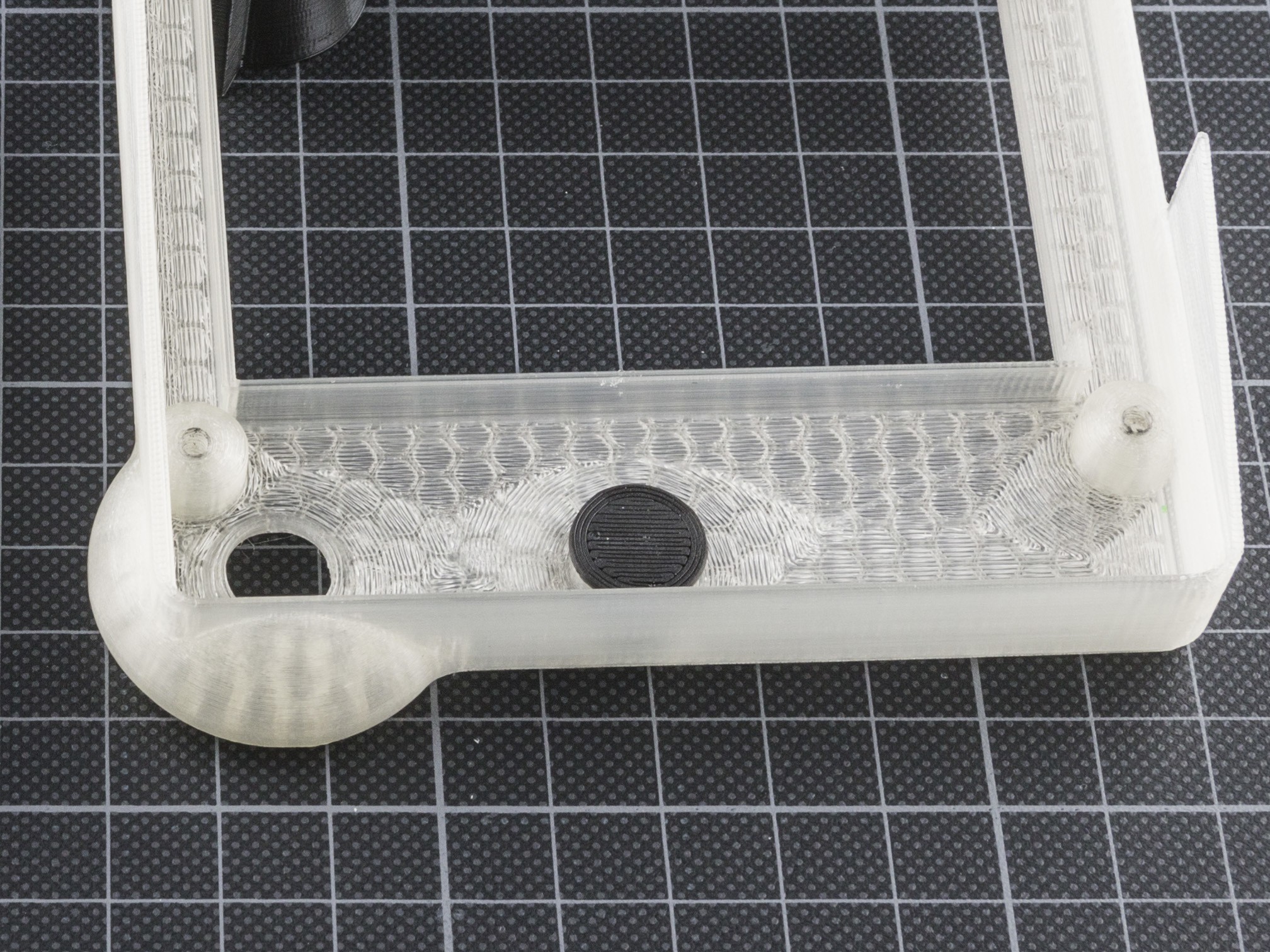

Step 4 - Connect the top and bottom shell

Put the bottom shell into the top shell and fasten the screws. The holes in the top shell are already threaded!

  • 3D file format: STL
  • Publication date: 2018/03/05 at 12:28

Tags

Creator

Designs 136
Downloads 28k
Followers 302

I like to create things to save money and time. Wherever possible, I try to use aspects of ecological design. As a full-time software developer and pragmatic solution designer my focus is on the creation of customizable things.

License

CC BY NC SA
