RepRap Smart Display Controller Stand

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 216 views
  • 3 downloads

3D model description

APOLOGIES....

Turns out the source model for the 12864 display was garbage. A redesign with a more accurate source model is incoming.

V2 IS NOW UPLOADED. Please be aware that I'm working from imported models of the screen. To the best of my ability I verify them, but unfortunately not everything on the internet is correct!

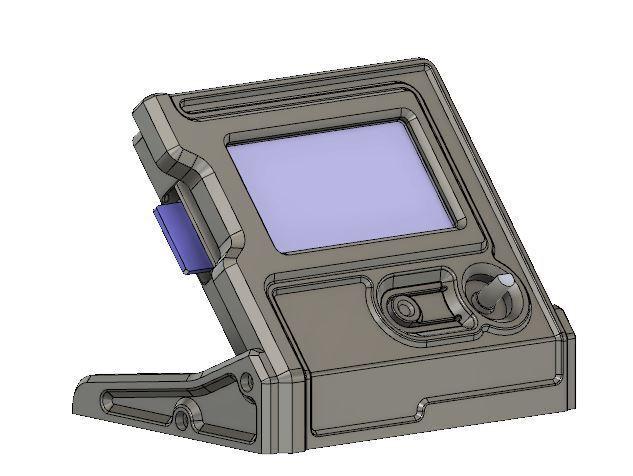

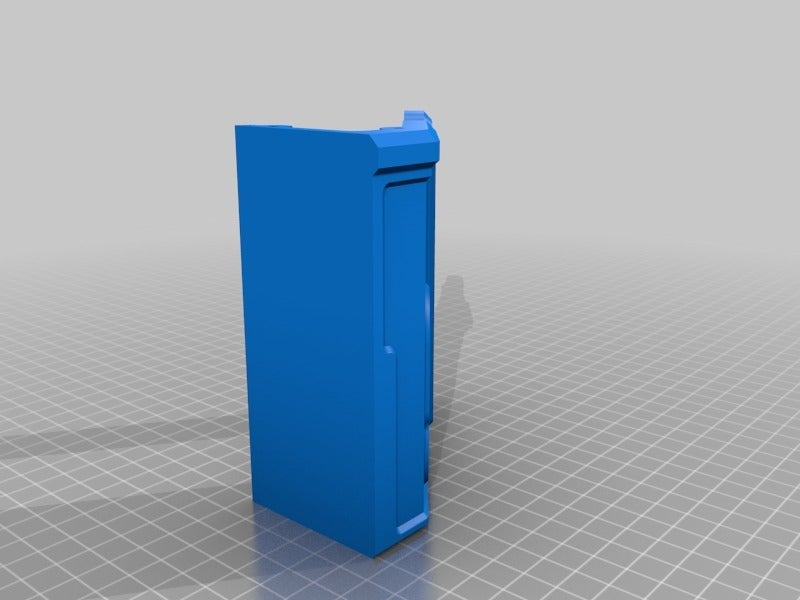

A first draft stand for the ReprRap smart display/controller. Requires 4x M3 x 8mm, and 4x M3 x 16mm socket heat bolts.
The parts are already oriented for printing. Only the main body will require supports in the window, unless your printer is really good with bridging!

22-3-19: Cutaway to clear the board solder connections below the screen added to the Main Body.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

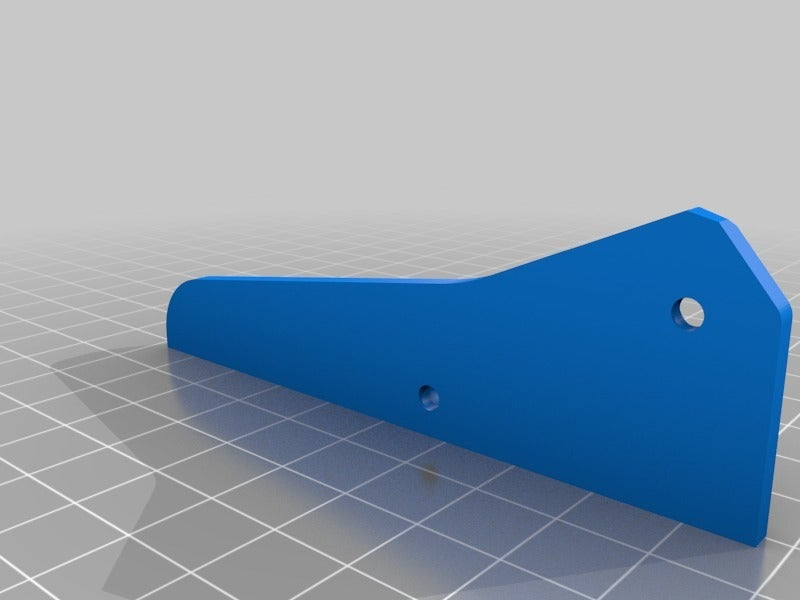

    • LH_Leg.stl
    • Main_Body_V2.stl

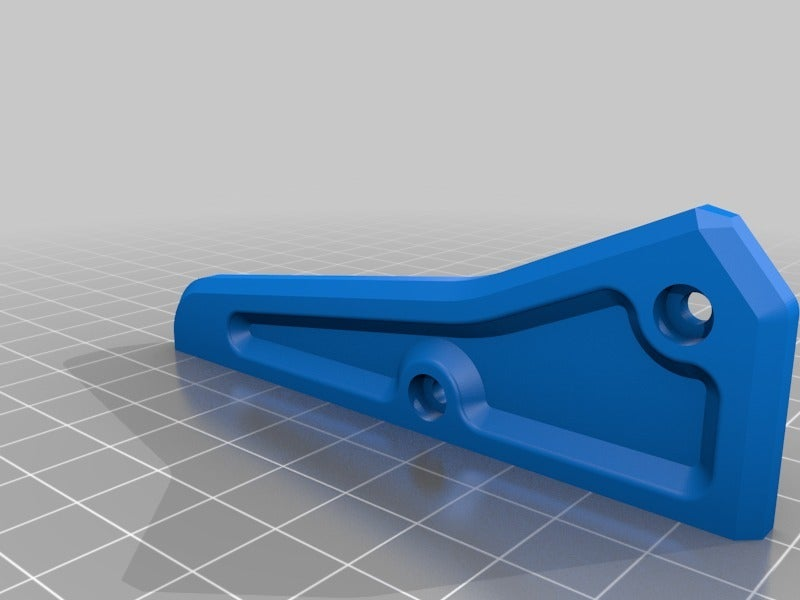

    • RH_Leg.stl

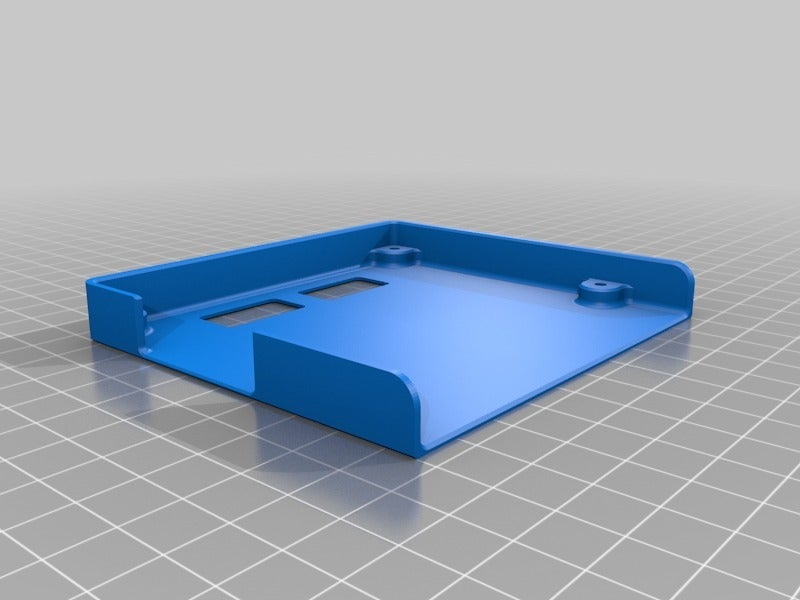

    • Rear_Cover_V2.stl
  • Publication date: 2021/05/07 at 01:09

License

CC BY NC
