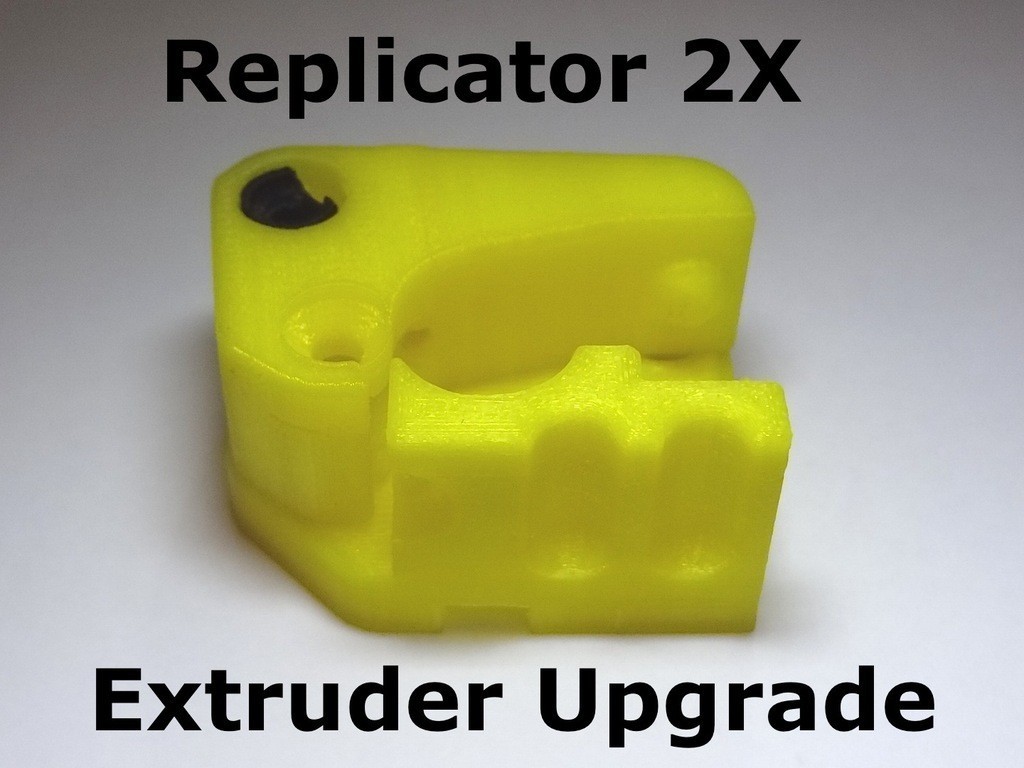

Replicator 2X Extruder Upgrade

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 752 views
  • 1 like
  • 23 downloads

3D model description

This is essentially the same design as my popular Replicator 2 Mk8 extruder upgrade its just been adjusted to fit the geometry of the Replicator 2X - so the instructions are basically the same. You will just need to use one of the long countersunk 3M screws from the 2X extruder to mount the arm, you also re-use the bearings, all you need is a countersunk M3 x 10mm and a countersunk M4 x 15 for each extruder.

###UPDATE V2 (April 28th 2013)

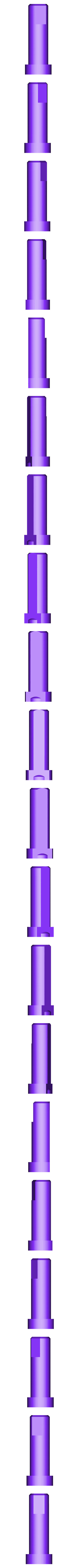

I have added a filament feed tube connector to the top of the arm, and a few other requested refinements.

3D printing settings

Print, install and enjoy!

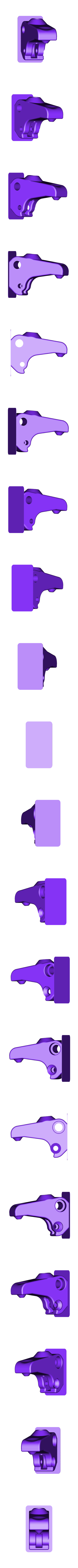

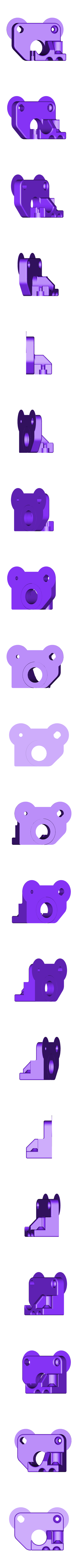

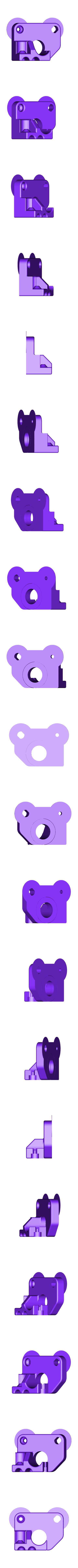

I have uploaded Lefthand (L) and Righthand versions.

  • 3D file format: STL and ZIP

Tags

Creator

License

CC BY
