Replicator 2 T-Slot Frame

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 889 views
  • 2 likes
  • 4 downloads

3D model description

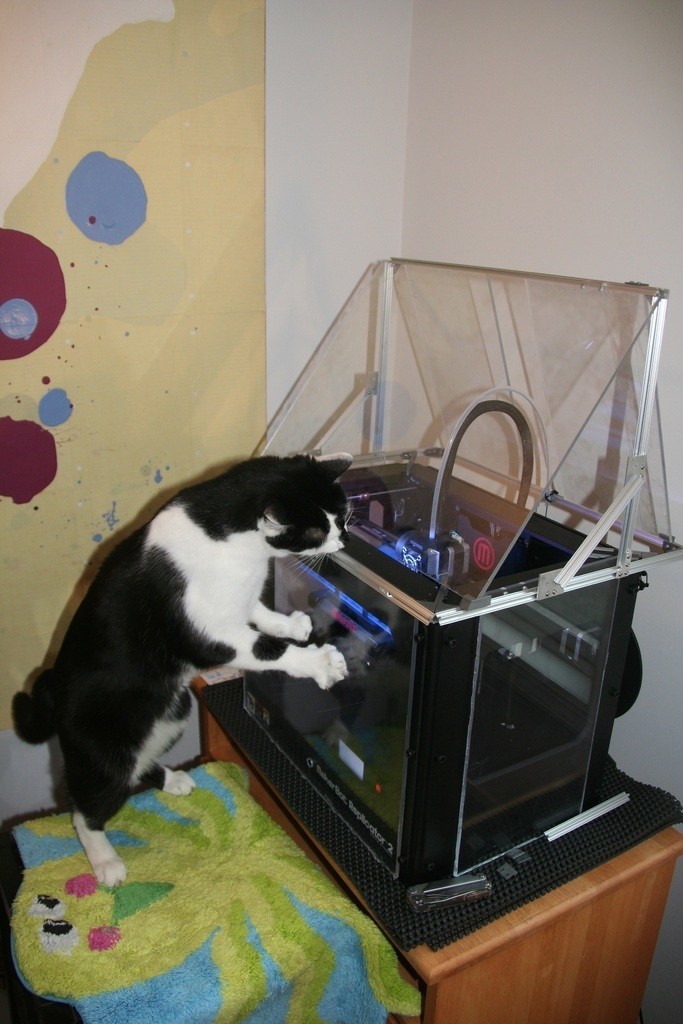

These 10mm Aluminum extrusion mounts are snapped onto the metal top of the Replicator2 frame. The extrusions are mounted all the way around the perimiter. Using more mini t-slots I can now bolt whatever I want to the printer conveniently.

As my design develops I will probably remove older files to add more current ones, I have done this several times already and several of my photos reflect old designs... but you'll get the idea.

All of the acrylic pieces are expected to change demensions as I work out the details... but the snap on replicator mounts are complete.

3D printing settings

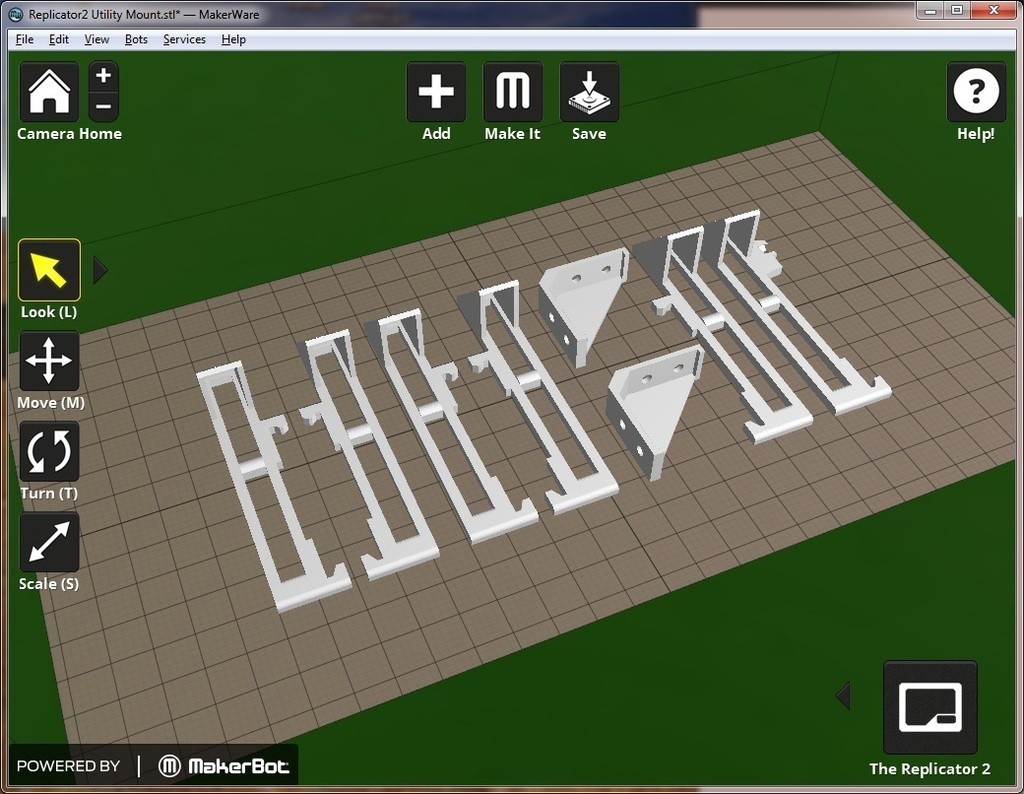

Print Replicator2 Utility Mount plate.
Add screws to each hole, start t-slots on each screw
Snap each piece into place indevidually, then zip tie together
Slide extruded aluminum beams onto t-slots and tighten
Design and mount your add-ons

**The back right corner is a different design (V-cut out), it only rests on the corner. This needs to be zip tied to the 2 bolt heads below it.

  • 3D file format: STL
  • Publication date: 2018/11/14 at 14:40

License

CC BY
