Repetier Server Monitor for 3D printer

3D model description

Modified version of great Qrome's Octoprint Monitor (https://github.com/Qrome/printer-monitor)

Modifications:
- ported to Repetier Server monitoring

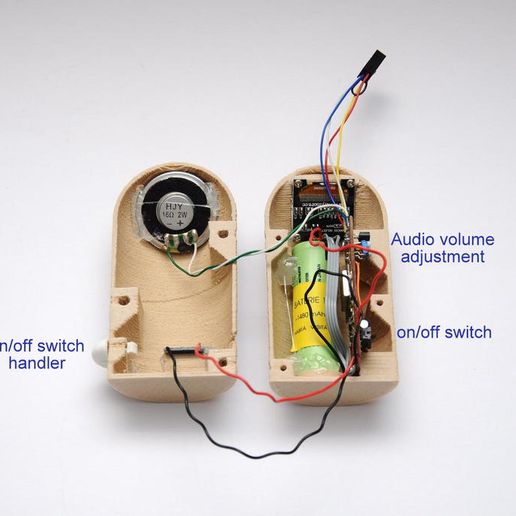

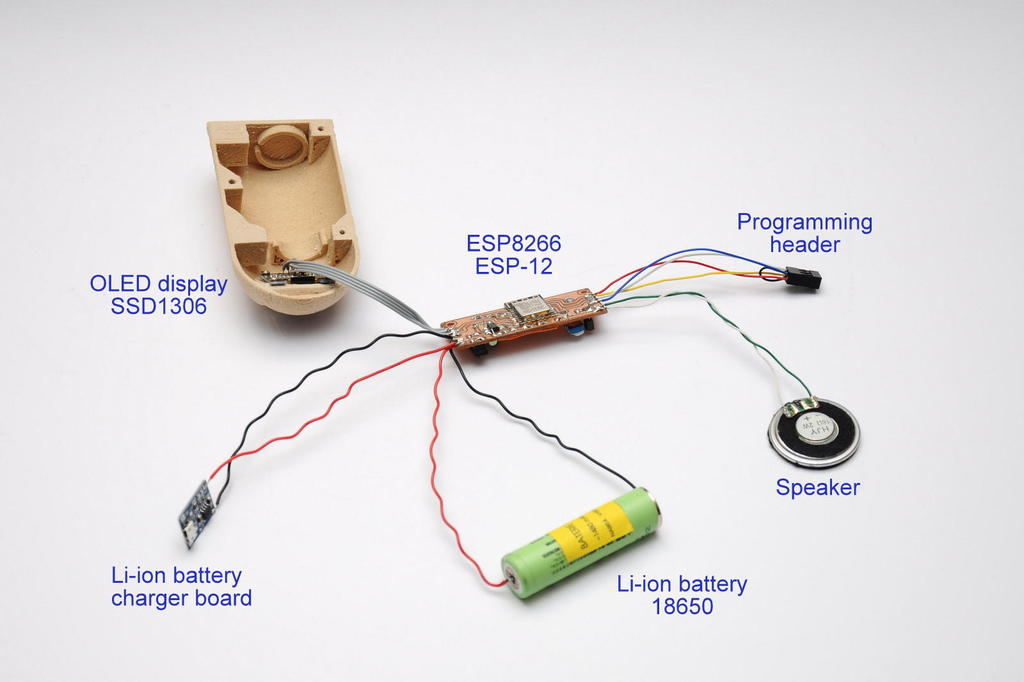

- different hardware - ESP-12 board, USB & Li-ion battery powered
- added speaker for acoustic notification of finished print
- different 3D printed box

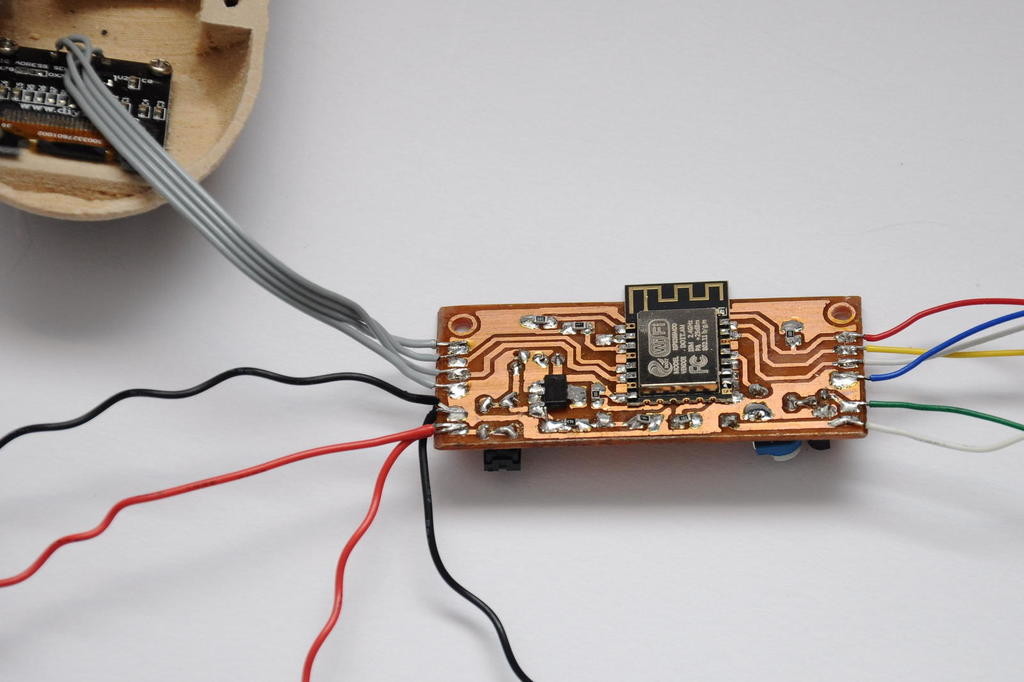

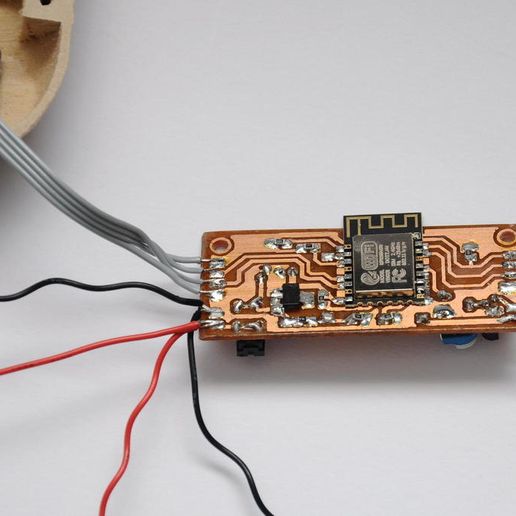

Source Arduino code, Eagle PCB design and Inventor model attached for further improvements.

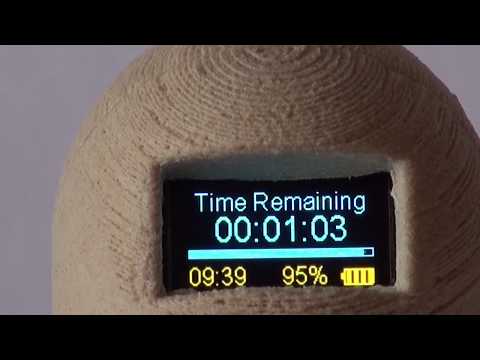

Youtube video: https://youtu.be/Qzp1GBK4jTI

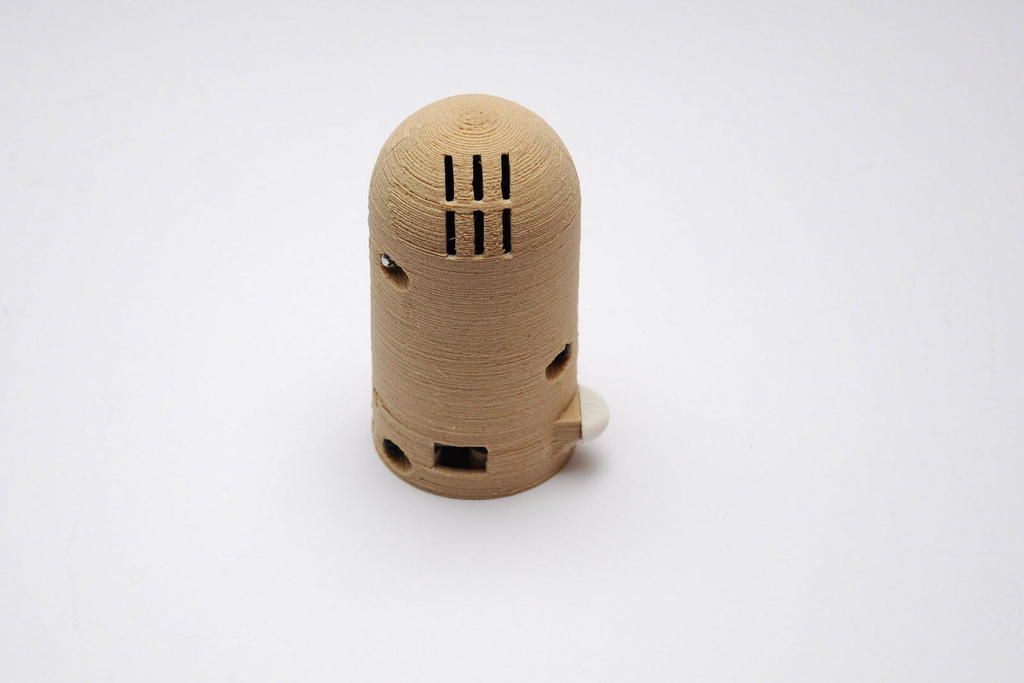

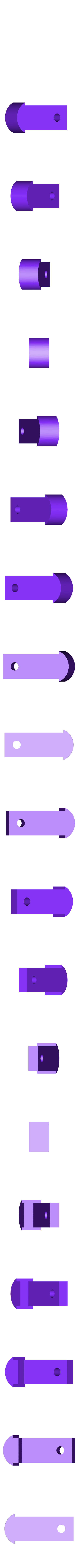

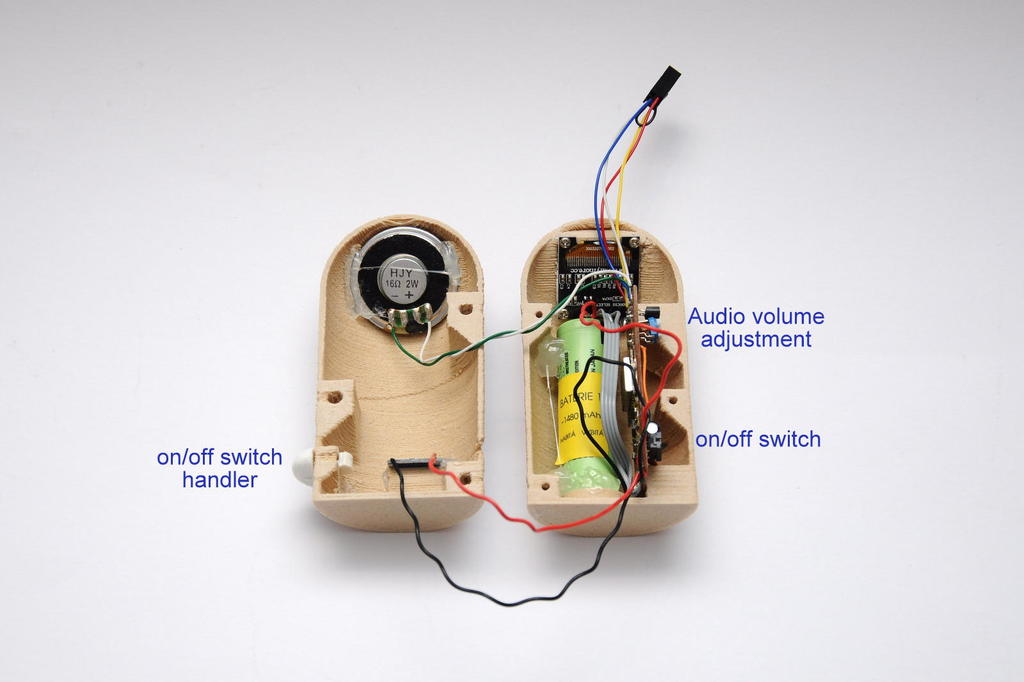

The box is designed to be able to print without supports. Lock1 and Lock2 parts are fixed together using a small piece of 1.75mm filament. The lock is used to push on/off push button. There definitely can be a better design for on/off switch but I just did not have self locking pushbutton by hand.

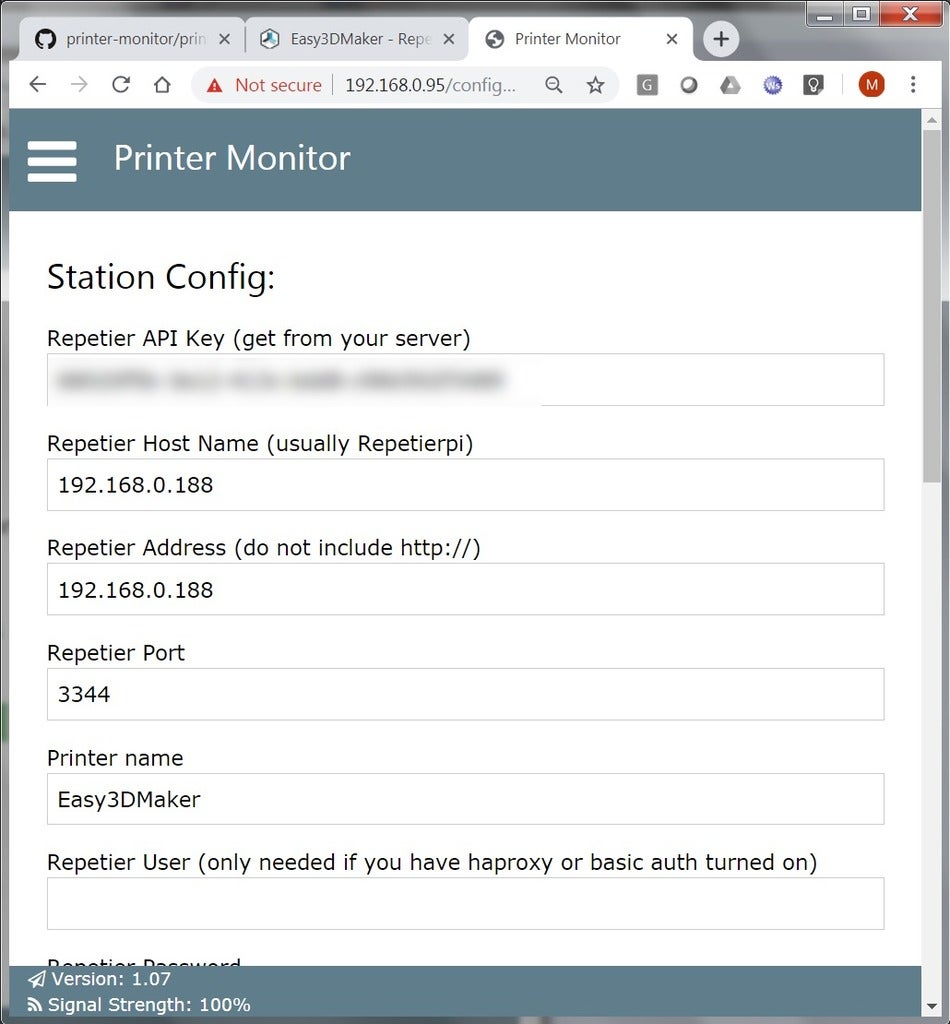

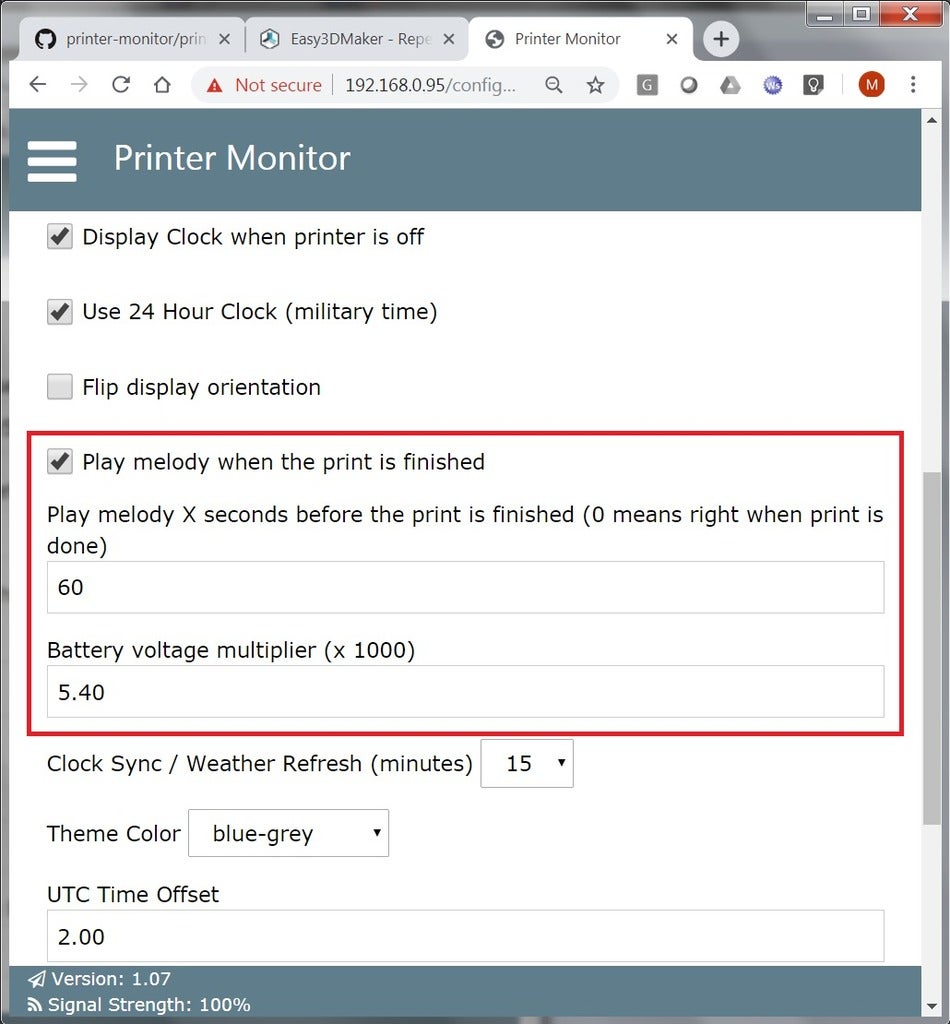

New configuration menu items:
- Play melody when print is finished - on/off checkbox
- Play melody X seconds before the print is finished - how many seconds before the print is finished the melody is played. Value 0 means right when print is finished.

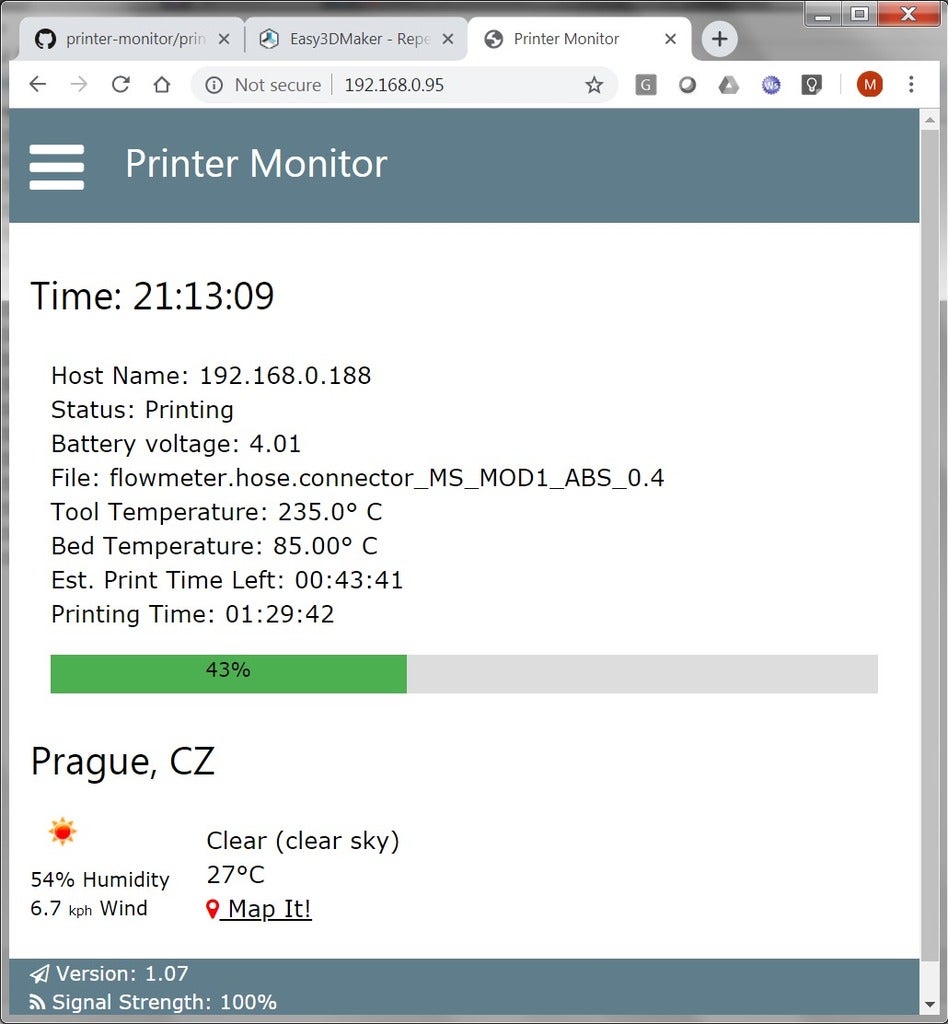

- Battery voltage multiplier - battery voltage is measured using ADC pin and voltage divider. Measured value (0 - 1024) is multiplied by this constant and divided by 1000. The value is displayed at home page and it is used for battery gauge.

Battery charging board:
https://www.ebay.com/sch/i.html?_from=R40&_trksid=m570.l1313&_nkw=5V+1A+1S+3.7V+Li-ion+18650+Lithium+Lipo+Battery+Charging+Module+Charger+Board&_sacat=0

  • 3D model format: STL and ZIP
