µdelta rework pulley reinforcement

IMG_20180509_205217.jpg µdelta rework pulley reinforcement
IMG_20180509_205230.jpg µdelta rework pulley reinforcement
1.jpg µdelta rework pulley reinforcement
equerreµdeltarework.STL µdelta rework pulley reinforcement
gabaritequerredeltasup.STL µdelta rework pulley reinforcement
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 1 like
  • 71 downloads
Licence CULTS - Private Use
Last update 2018-07-21 at 10:30
Publication date 2018-05-11 at 19:48
Design number 25169
3D design format
STL Folder details Close
  • equerreµdeltarework.STL
  • gabaritequerredeltasup.STL

Learn more about the formats
robroy

robroy

3D printer file info

3D model description

greeting

attention all the same I had put toothed pulleys

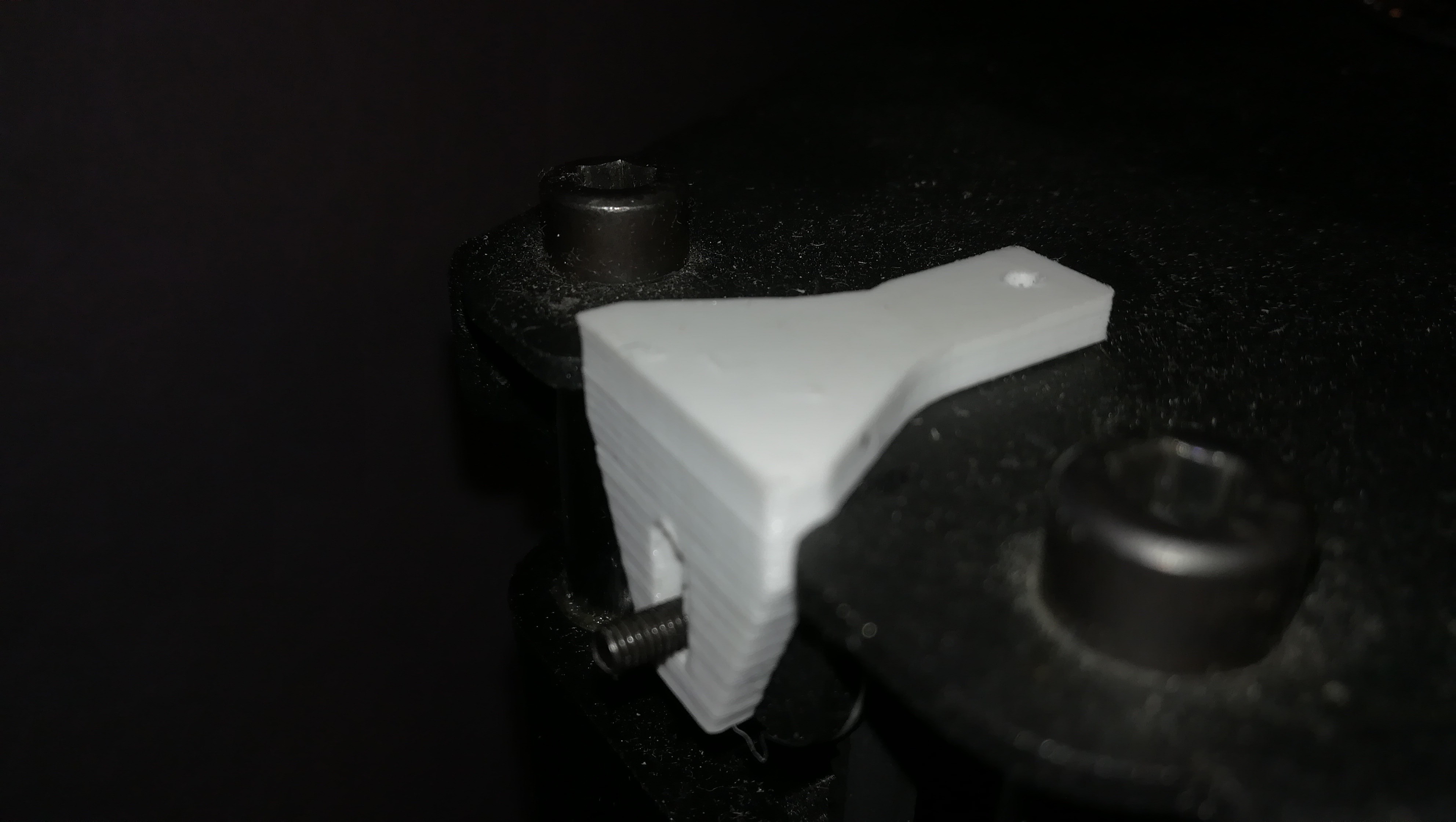

reinforcement pulley axis on µdelta with the jig for the upper drilling see picture n°1, place the jig well before drilling. hole of the upper drilling in 2 mm for centering then drilling 2.5 then tapping at 3mm; for the upper screw I put a traditional split head because not easy installation in spite of everything: first pulley well screwed then upper screw

3D printing settings

resolution 0.15mm, 45% filling

print speed42, ext speed 24, fill speed 38, approx. 21 min print speed
