Remix of Anet A8 Jan 2017 model Prusa X carriage remix

3D model description

I'm using the X-idler http://www.thingiverse.com/thing:1919544 from Leo_N and want to upgrade the Anet A8 to a E3D bowden setup. I used this X carriage http://www.thingiverse.com/thing:2166790 from HipoxiK, but had a few problems.

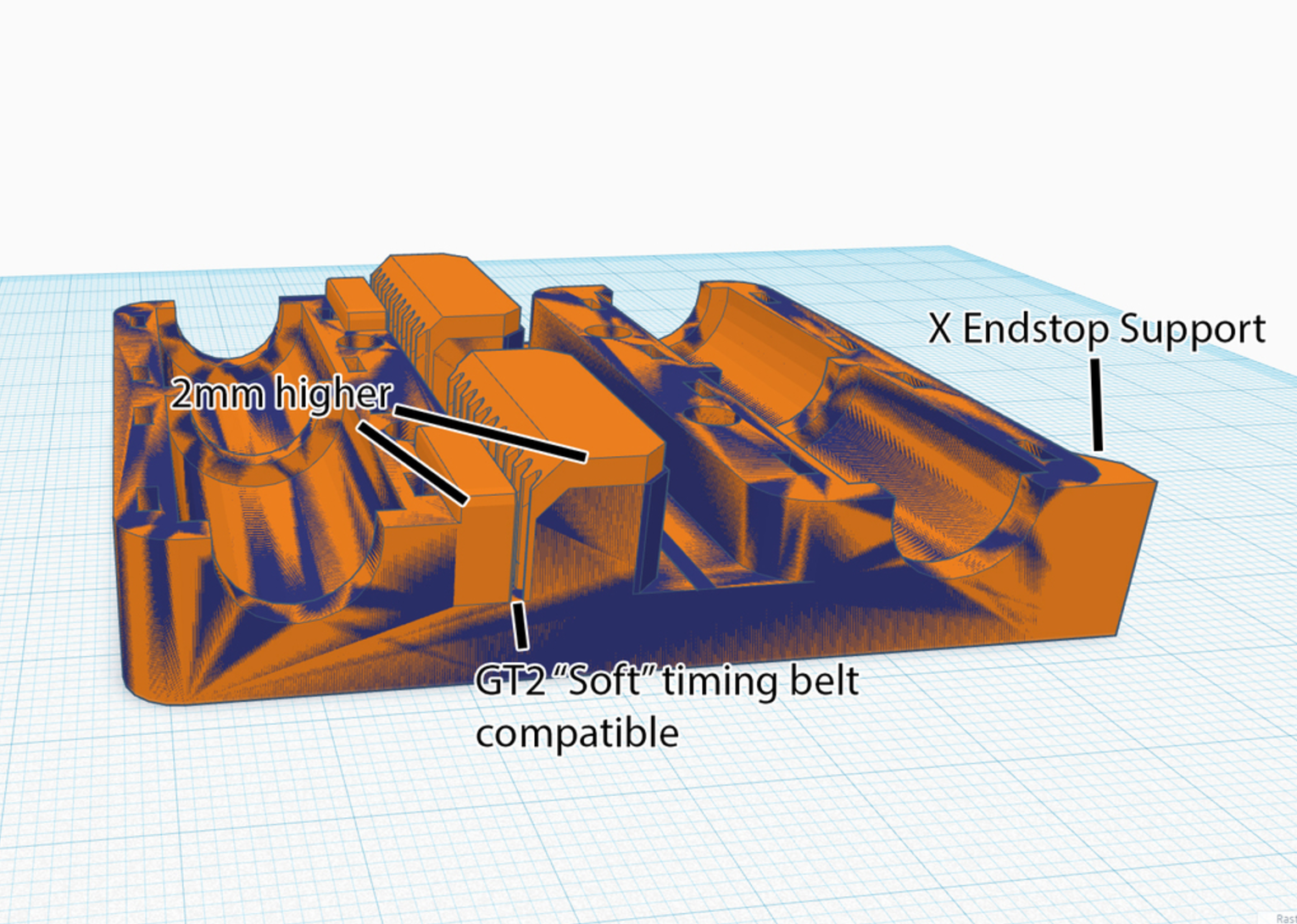

The changes I've made (as you can see in the 3rd picture):

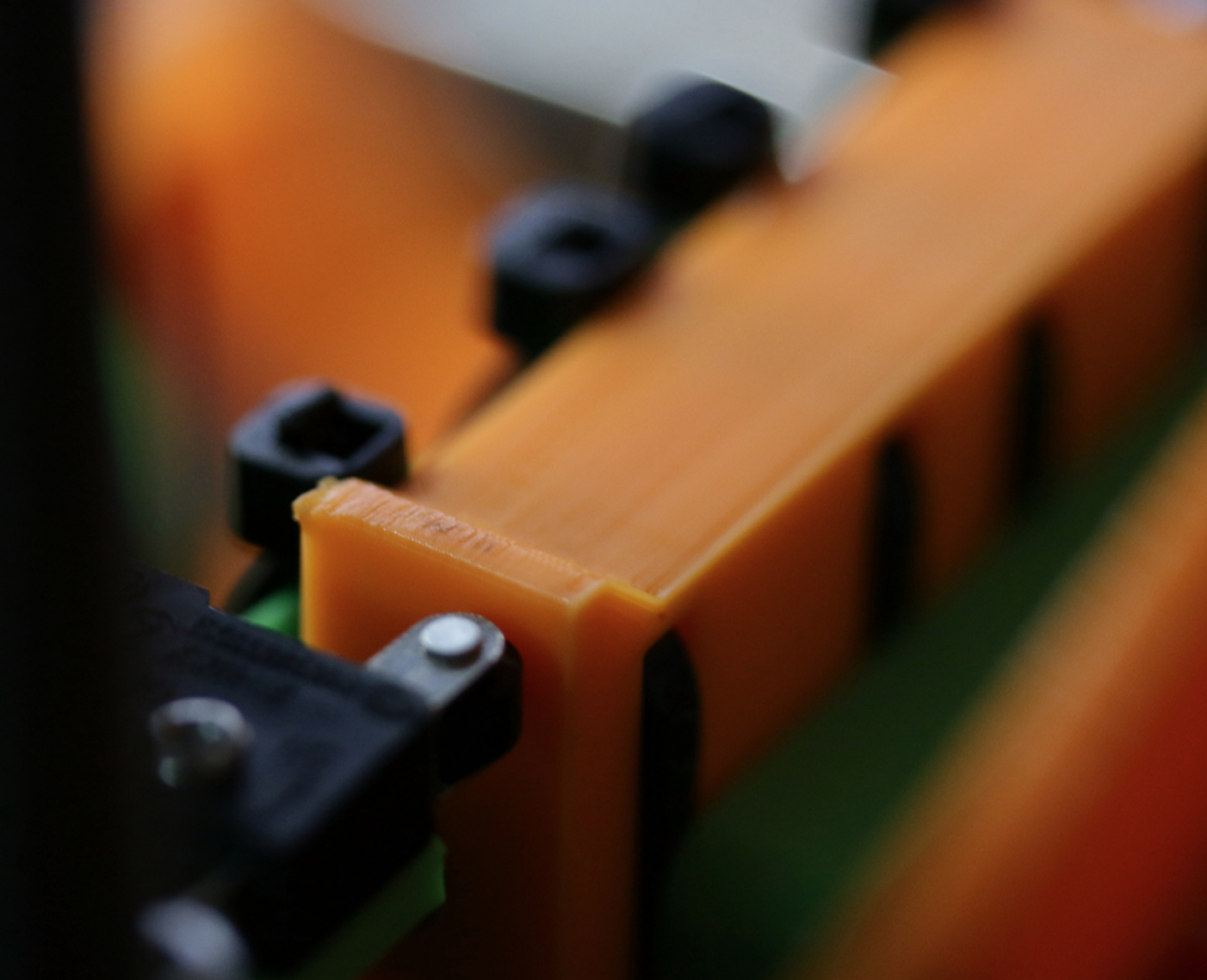

Add a X Endstop support, because it didn't always switch and the x-carriage crashed several times against the X-Idler.
Another problem was the belt holder. It didn't hold the "softer" GT2 belt, neither the original Anet A8 belt. So I reduced the distance. Don't know, if the original belt fit into the belt holder.
The belt holder has not the correct height for the X-Idler from Leo_N. I increased it by 2mm.
This is the belt I'm using with much better results: https://goo.gl/yXBLgi

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Printer:
Anet A8

Rafts:
No

Supports:
No

Resolution:
0.16

Infill:
30%

Notes:
Printed with 4 perimeter.

Custom Section

Website
https://mightynozzle.com

  • 3D model format: STL
