Remix of the Raspberry Pi 4B box314

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 429 views
  • 1 like
  • 14 downloads

3D model description

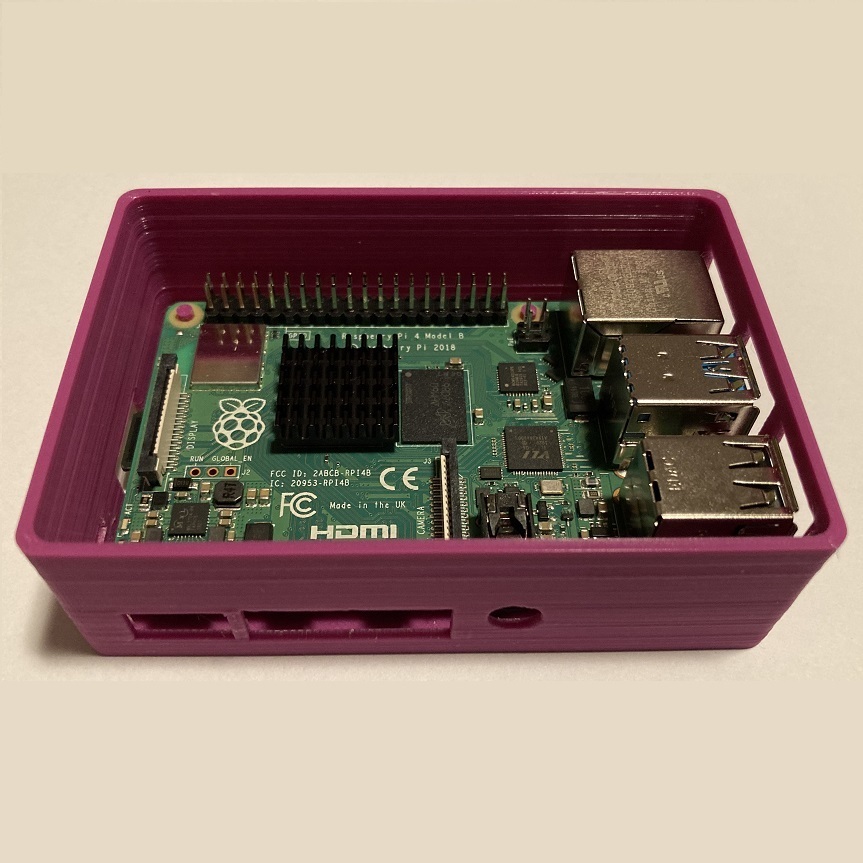

A modification of the Raspberry Pi 4B box proposed by François Mocq for his FreeCAD tutorial on Raspberry314.

Compared to the original this version has :

  • larger pimples to perfectly fix the Raspberry Pi

  • A microSD card slot repositioned at the correct height, allowing easy insertion and removal of microSD cards.

  • a place to see the LED in front

  • Slots for USB-C, HDMI, audio, USB2, USB3 and Ethernet cables scaled as needed

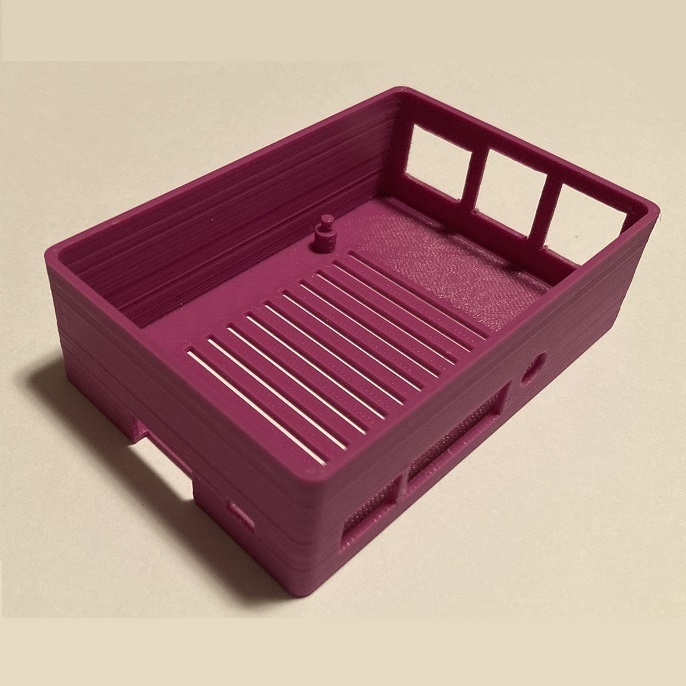

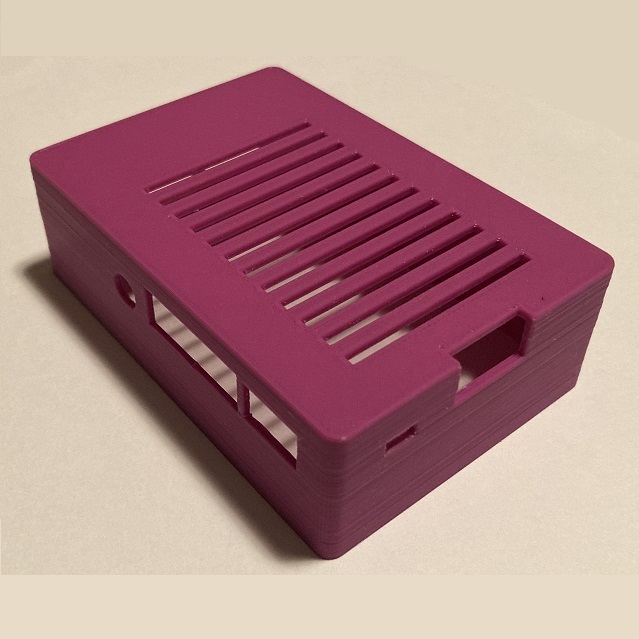

  • a lower ventilation grid with more slots, for optimal ventilation by placing the Raspberry on the edge

The Raspberry Pi computer is to be purchased separately :-)

You have to complete this box with one of the 2 lids that I propose on this site.

https://www.framboise314.fr/un-boitier-de-raspberry-pi-4-avec-freecad/

https://www.thingiverse.com/thing:4041825

3D printing settings

Die-cut with PrusaSlicer 2.3.0 and printed in PLA with "Print settings = 0.15mm QUALITY", "Media = Anywhere" and "Fill = 20%".

  • 3D file format: STL
  • 3D model size: X 94 × Y 64 × Z 29 mm
  • Last update: 2021/02/16 at 21:19
  • Publication date: 2021/01/25 at 21:20
