Reference for CAD: Thickness, Hole diameter and Pillar

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 5 likes
  • 43 downloads

3D model description

SubSite posted a Thickness Test and Design Reference. He designed this as reference when design something in CAD to get a better understanding / feeling for the actual thickness in real life.

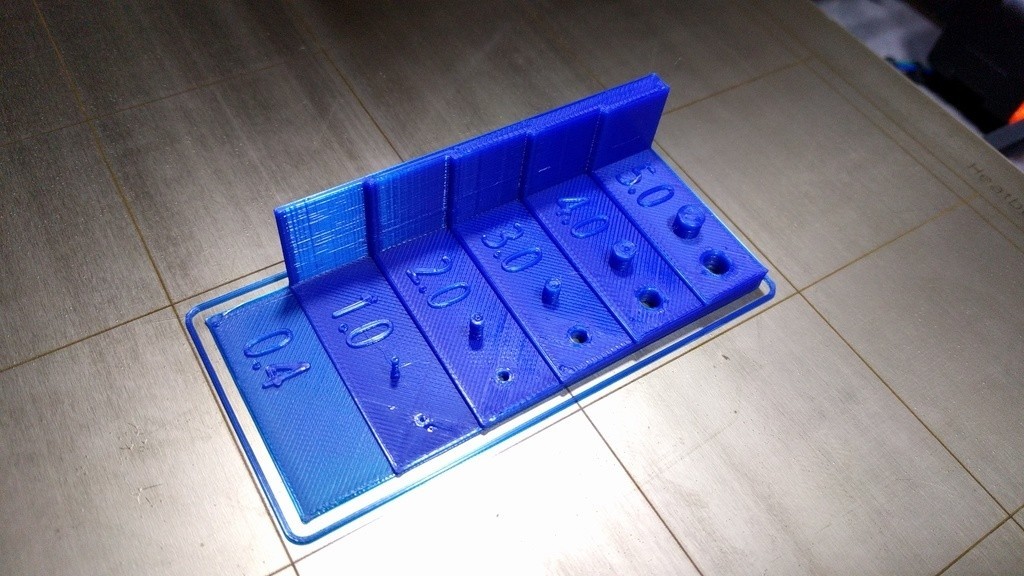

I liked the idea and made a version that has 0.2mm layer height multiples, being 0.4, 1.0, 2.0, 3.0, 4.0 and 5.0 mm. Also added a few pillars and holes as additional references in the range of 1.0 till 5.0 mm.

Handy to have lying around near your PC as a reference when drawing something.

  • 3D file format: STL
  • Publication date: 2019/01/15 at 15:11

Tags

Creator

License

CC BY
