RC CAR SETUP 1/8, 1/10, Camber, Caster, Toe-in / Toe Out

Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 11.8k views
  • 26 likes
  • 75 downloads
Licence CULTS - Private Use
Last update 2022-01-03 at 00:34
Publication date 2021-12-17 at 17:47
Design number 586965
3D design format
STL Folder details Close
  • adapter_m3.stl
  • adapter_m4.stl
  • adapter_m5.stl
  • adapter_m6.stl
  • gora lustro.stl
  • gora.stl
  • mocowanie kola lustro.stl
  • mocowanie kola.stl
  • podstawa.stl
  • srodek.stl
  • wskazowka duza m3.stl
  • wskazowka duza m4.stl
  • wskazowka duza m5.stl
  • wskazowka duza m6.stl
  • wskazowka duza.stl
  • wskazowka mala.stl
  • wspornik.stl

Learn more about the formats
piotrbiendar

piotrbiendar

3D printer file info

3D model description

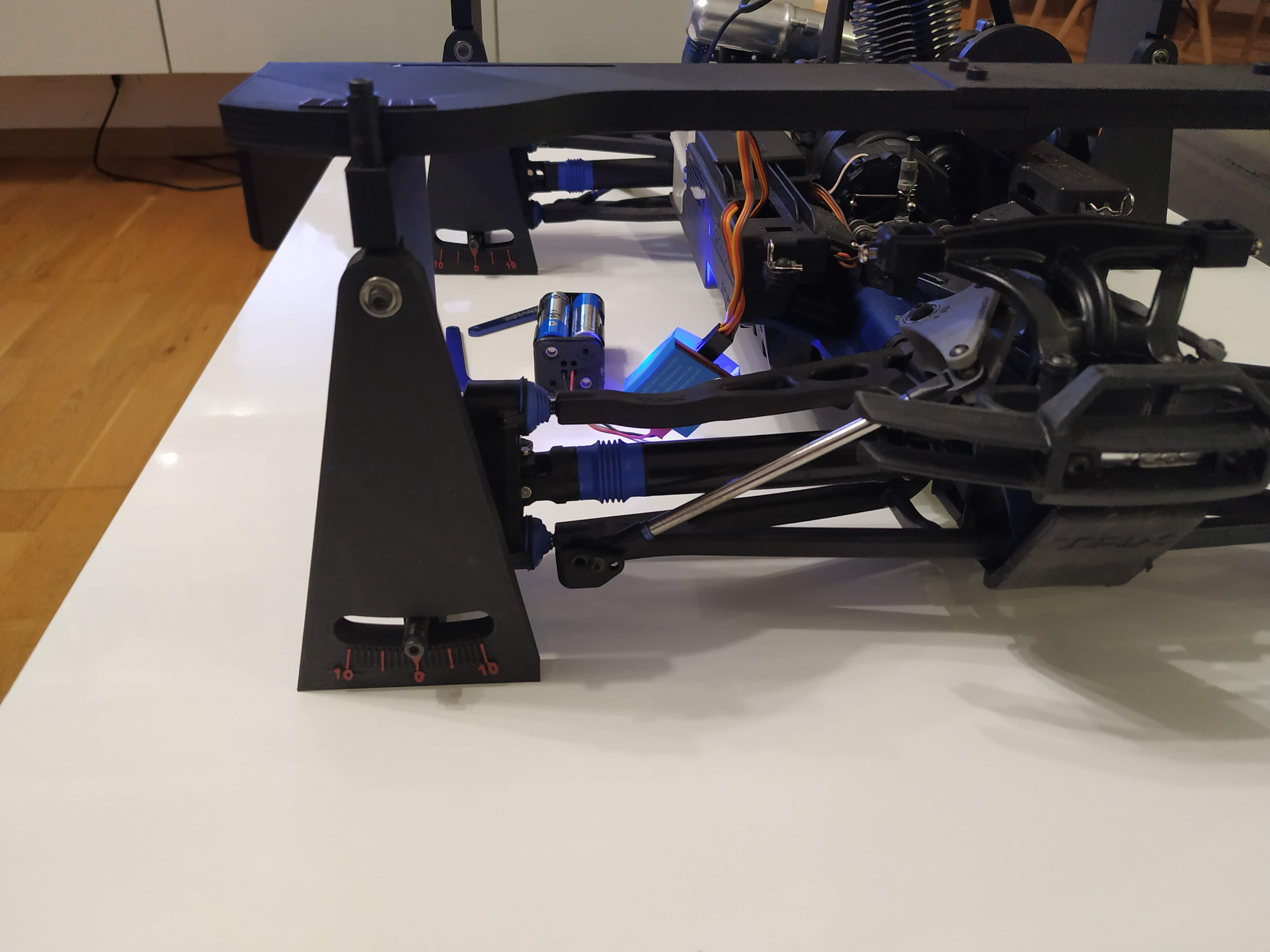

The design was made for Traxass Revo 3.3 on Hex 17 axle 12mm. Certainly, it can be used for models of similar and similar dimensions. The set consists of only plastics printed in 3D technology. You need to buy 8 3x10x4 bearings, 20 m3x25 screws, of which 4 must be removed from the head and 4 m3x10.
The files contain mounting adapters and tips for m3, m4, m5 and m6.

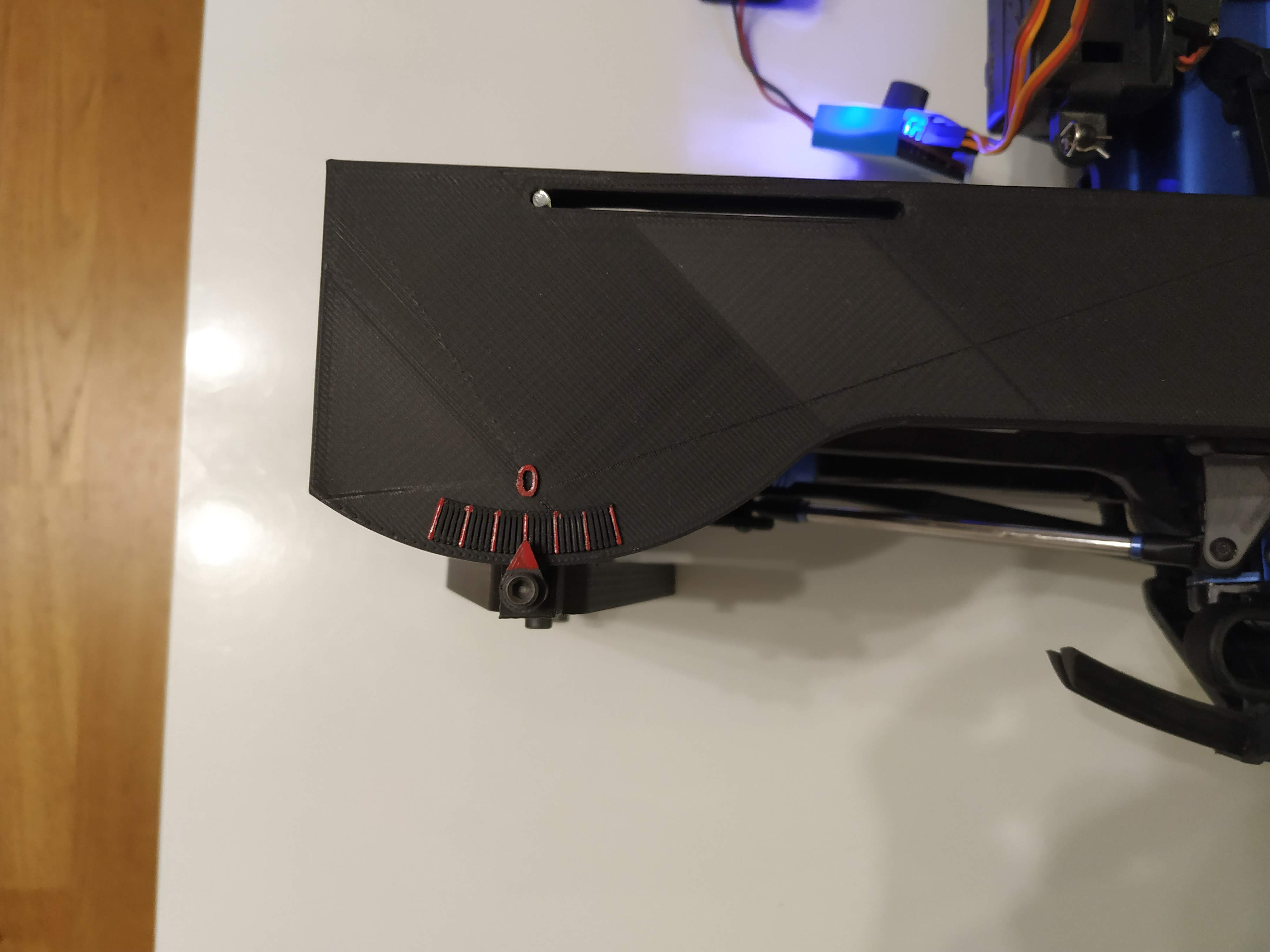

After the suggestions of people from the forum, I changed the mounting of the crossover to the device a bit, adding a pointer to the angle reading.

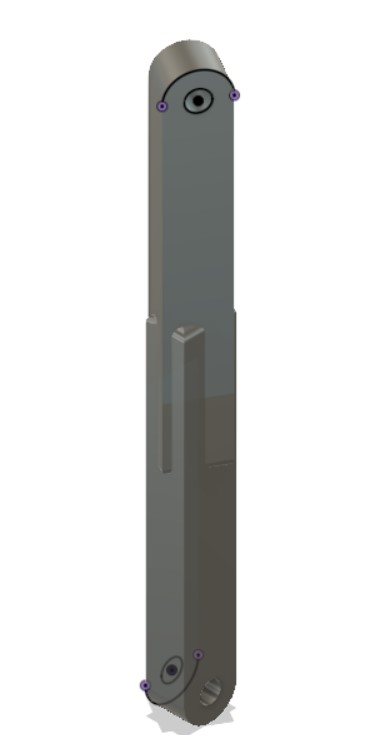

I added stiff shock absorbers. They help when setting the geometry of the model. Once installed, the control arms are parallel to the ground. (make a mirror image when printing).

take a look at my other projects:
https://cults3d.com/en/users/piotrbiendar/creations

3D printing settings

The holes for m3 screws must be tapped with a tap
