Ratchet magnetic organization stand

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Edit 2/19/22 - User request for wide versions of the 3/8 and 1/2 for coated ratchets. 20mm and 27mm space between the walls.

Cleaned up naming convention for all files - embedded and flush versions of all variations notated.

1/2" - embedded and flush mounting for magnets. Wide and normal width - 4 options

3/8" - embedded and flush mounting for magnets. Wide and normal width - 4 options

1/4" embedded and flush mounting for magnets - 2 options

Edit 1/30/2022 - Per user request for stronger magnetic hold through tool box liner material.
Loaded 1/2" with 4 flush mount magnets
Loaded 3/8" with 3 flush mount magnets
Loaded 1/4" with 2 flush mount magnets
Magnets are flush mount/glue in for strong hold through drawer liner material

*** Original Listing***

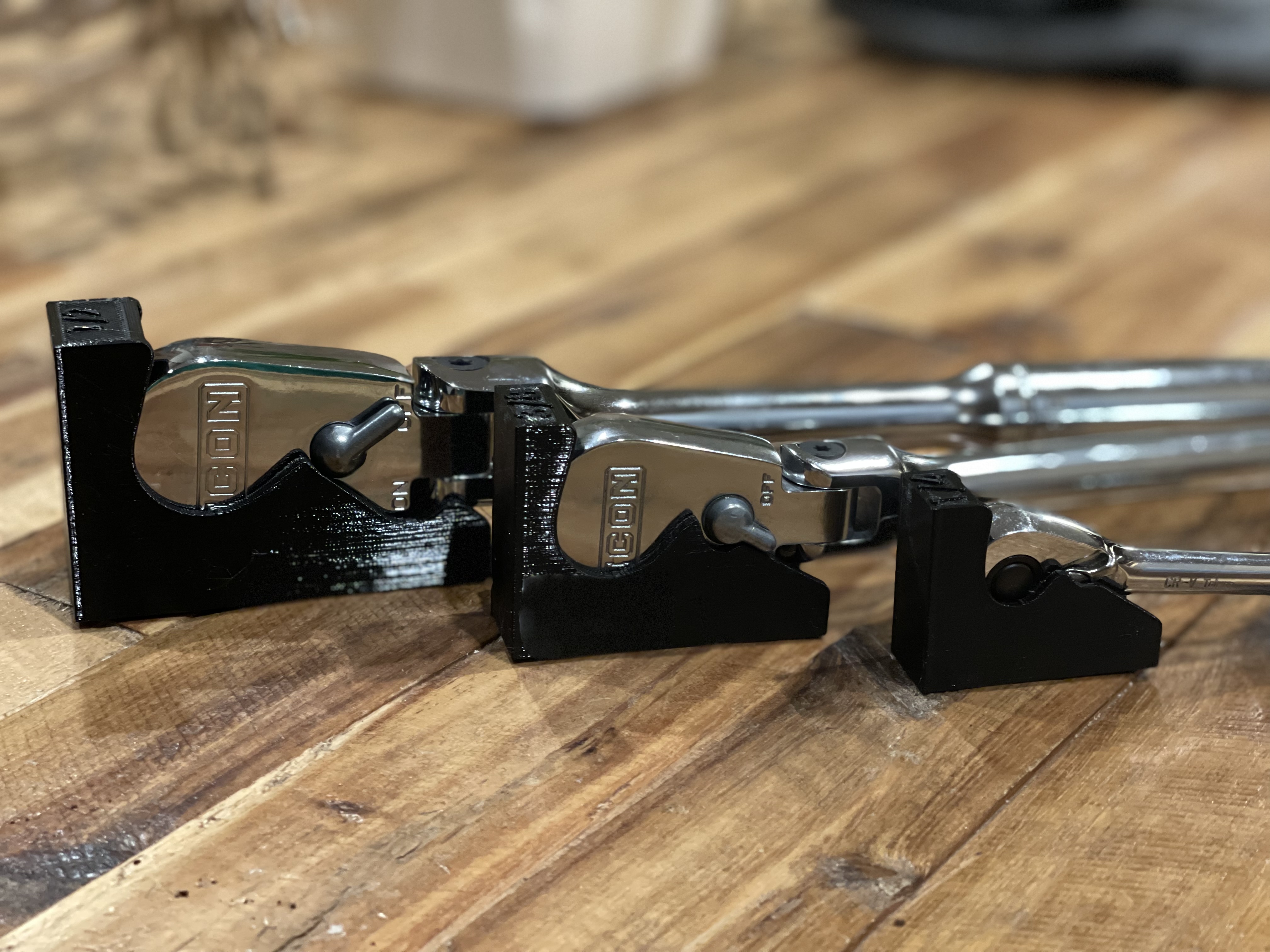

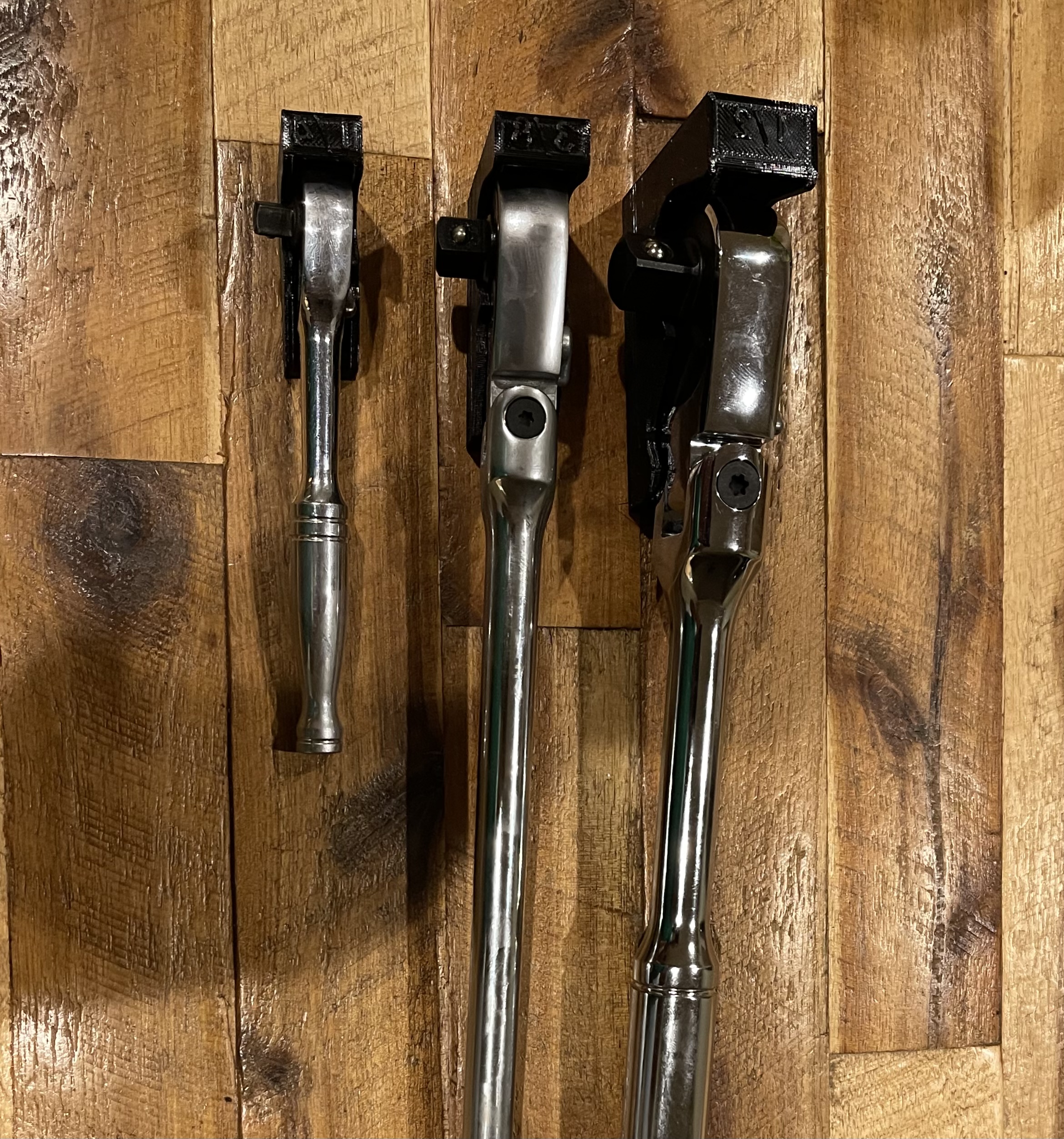

Magnetic drawer stands for your metal ratchets. Fits most major brand metal body ratchets including snapon, Matco, Icon, Pittsburgh, craftsman and others.

Purchasers will receive improvements/updates if any are needed.

Recommended to use 2 harbor freight 5/16 x 1/8" rare earth magnets per item. When slicing, program a pause print just before the slicer bridges over the magnet hole. Using 0.2mm suggest layers you should pause at the beginning of layer 19. Verify this in the slicer preview as I’ve only slicer in cura and Prusa.

Link to magnets. If you are unable to obtain these and need something special designed let me know by leaving a comment, message or emailing me at atabor@gmail.com

https://www.harborfreight.com/10-piece-rare-earth-magnets-67488.html


3D printing settings

0.2mm layer height. 10-20% infill. Any filament is fine - PLA recommended for ease of printing. Support is not needed - the 0.32" diameter hole for the magnets is easy for any printer to bridge.

If using the embedded magnet version pause print at layer 19 to insert magnets then resume. Magnets will not stick normal brass nozzles. If you are running a hardened steel nozzle please use the glue in flush mount files.
