Ratchet for socket wrench

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 537 views
  • 4 likes
  • 1 download

3D model description

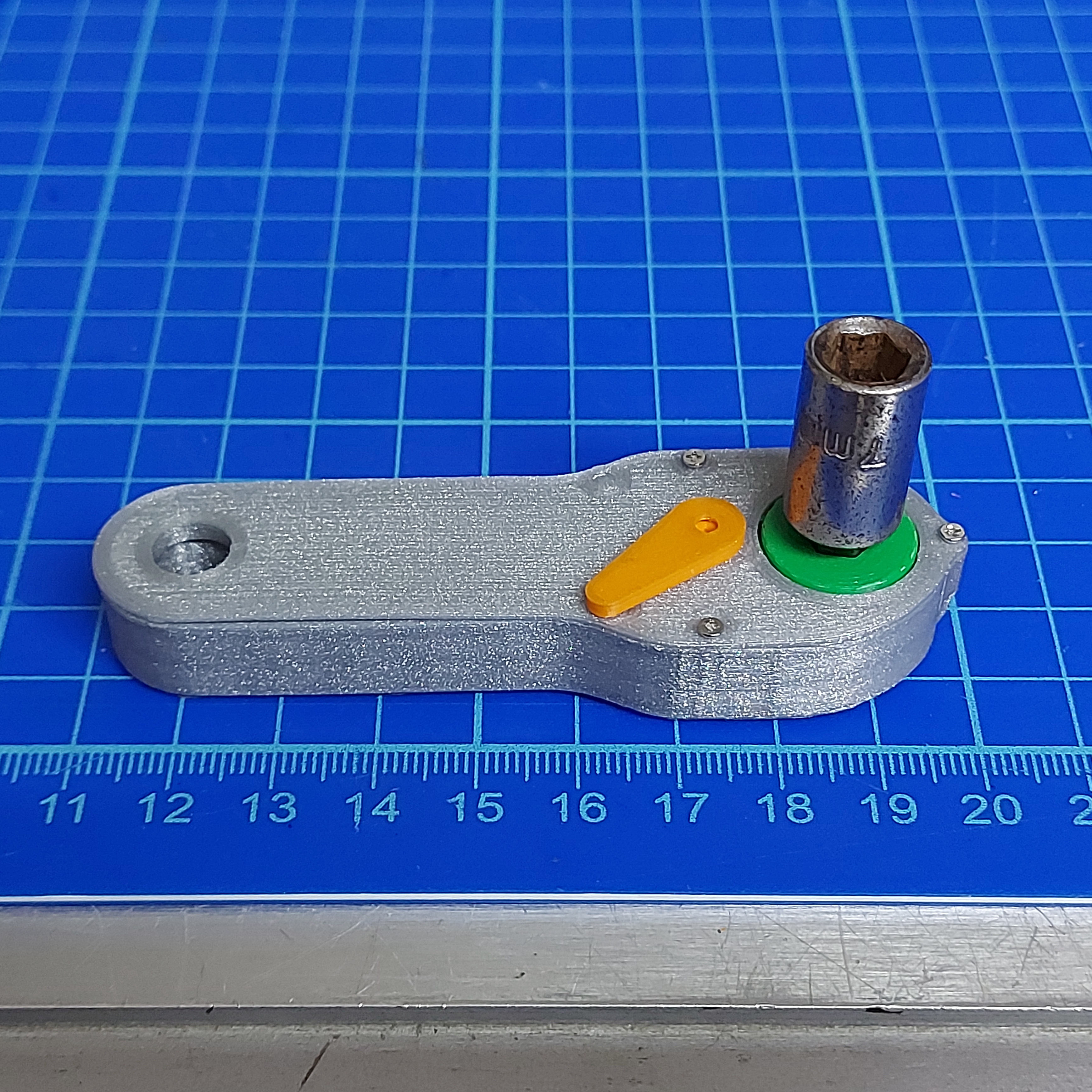

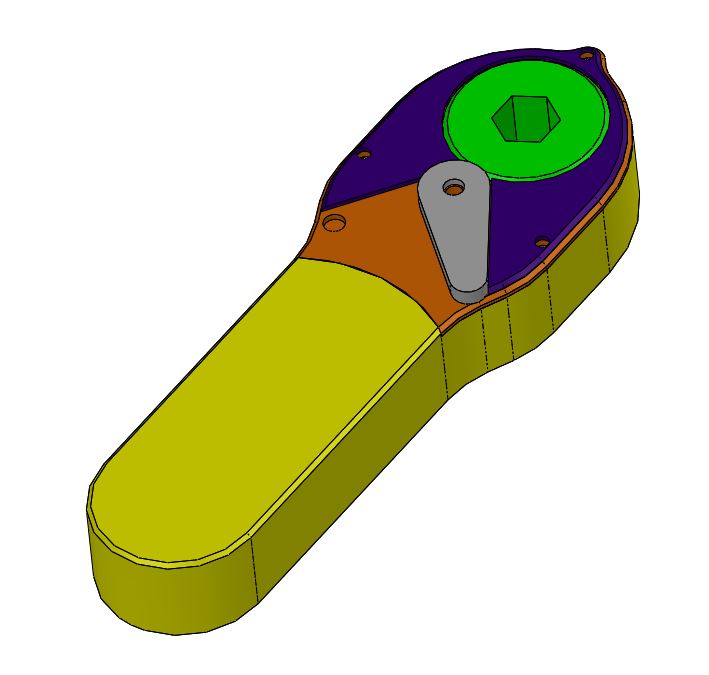

A handy little reverseable ratchet for socket wrench I designed, to use for my 3d printer nozzle assembly.

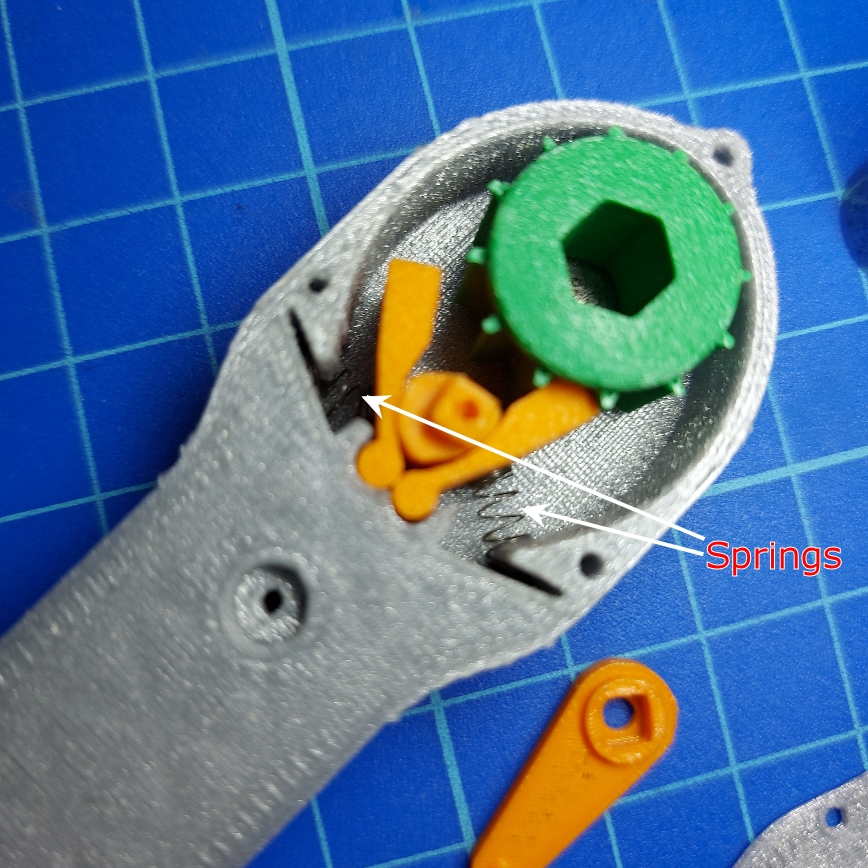

A couple of small metallic springs is needed to tension dogs: Ø 3-4mm.

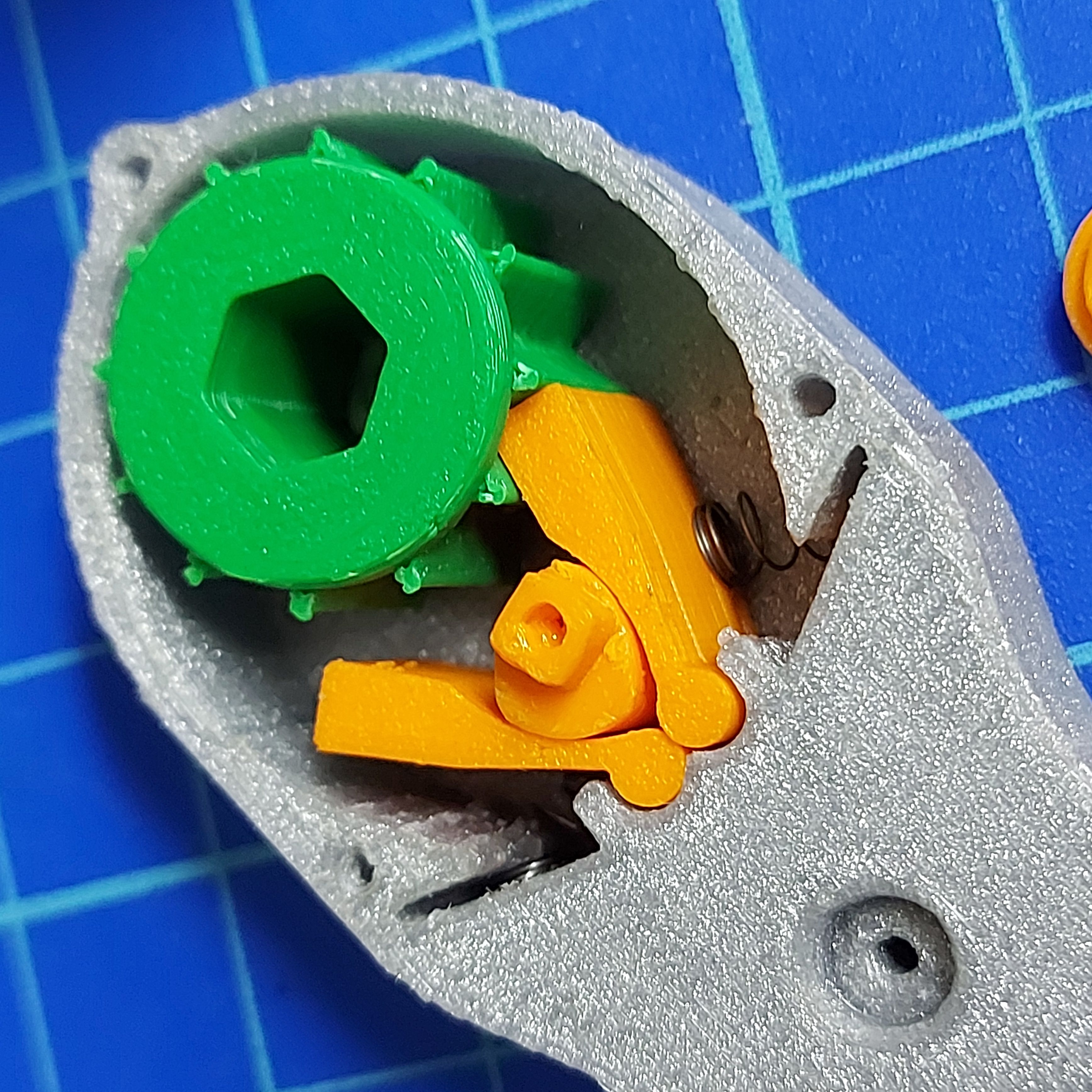

(Photos show an older version. The current one includes the lever lock plate and other improvements)

Little video here:
https://www.facebook.com/100011406896305/videos/1315215888909753/


3D printing settings

Material: PLA - PETG
Nozzle Ø: 0,4 mm
Nozzle Ø: 0,2 for
-parte02.stl file
-parte02b.stl file
-parte03.stl file

Layer Height: 1/2 Nozzle Ø
Support is needed for the parte03.stl file
Minimum travel after retraction (to avoid artifacts in very small parts):
- 0.5 mm small parts
- 3.0mm elsewhere
Brim: where needed

Hardware:
5pcs Ø1.6-1.8mm screws

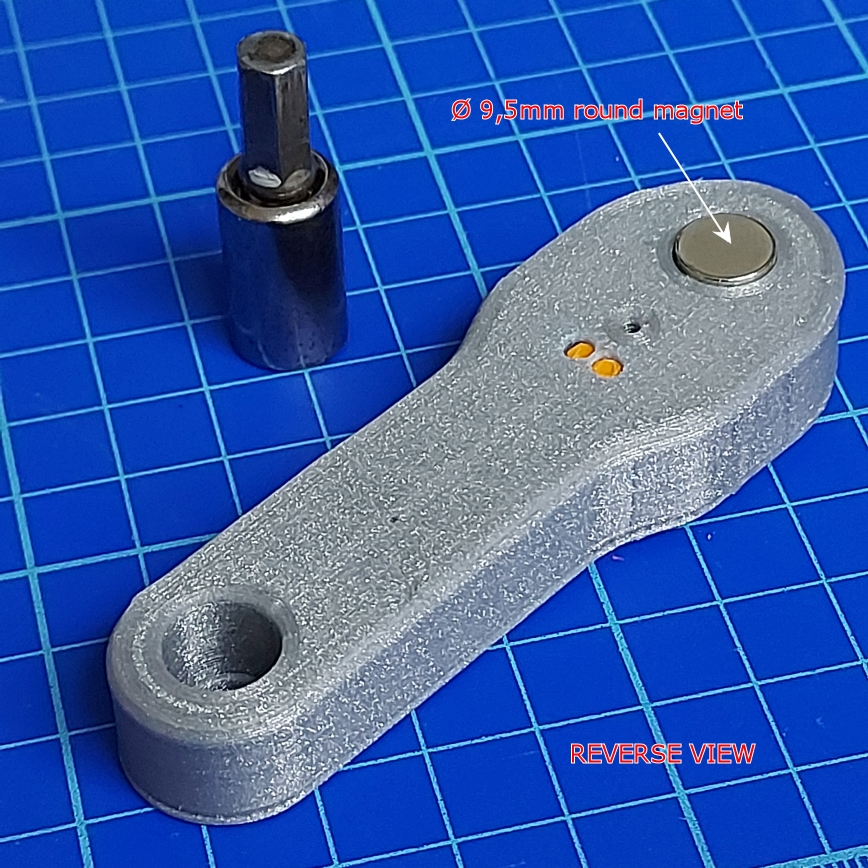

1pcs Ø9.5mm round magnet (key holder function)
1pcs hexagonal key holder
2pcs Ø 3-4mm steel springs (like those inside pens)
