Raspberry Pi modern case w/ hard drive compartment & VESA holes - Enjoy!

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 747 views
  • 2 likes
  • 15 downloads

3D model description

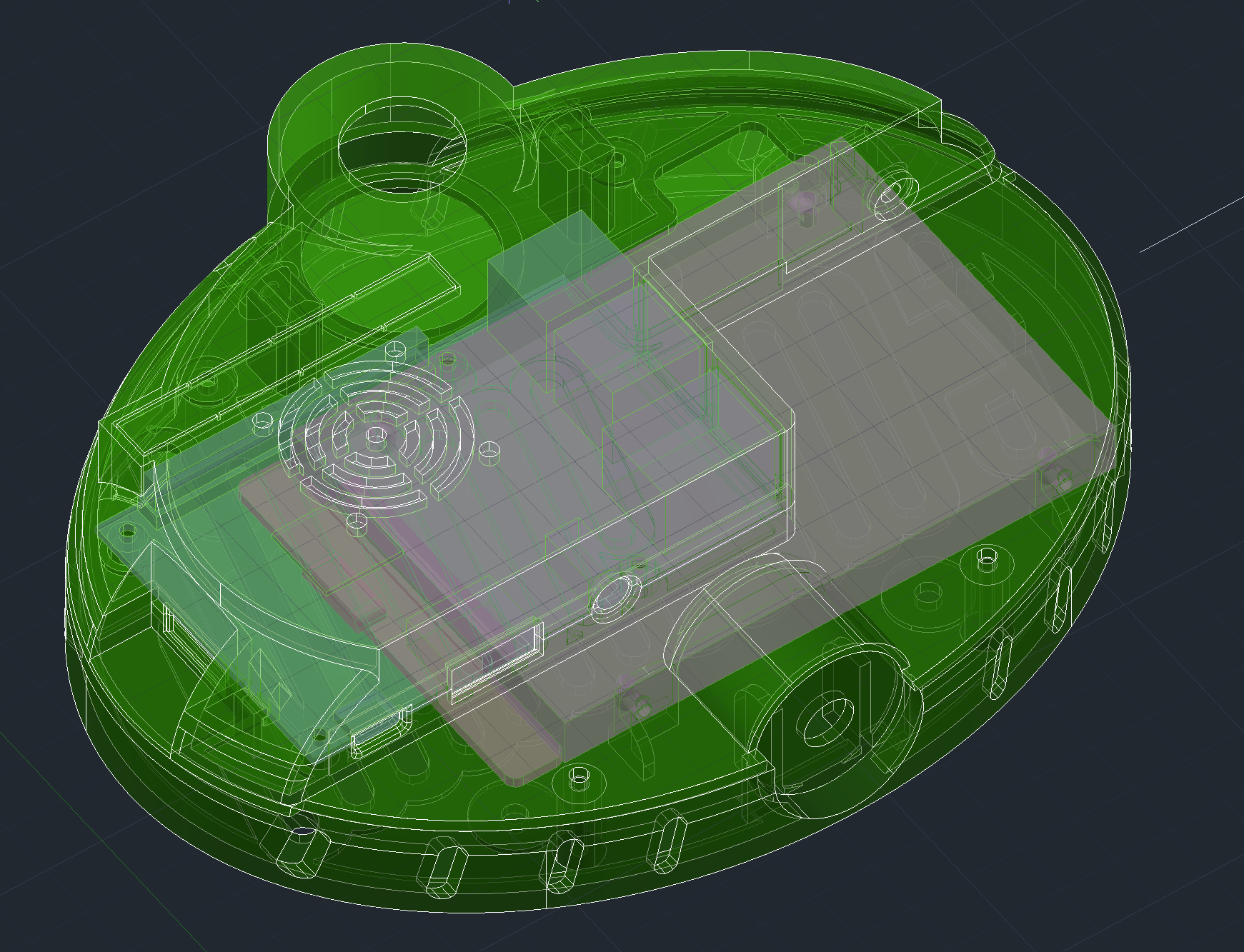

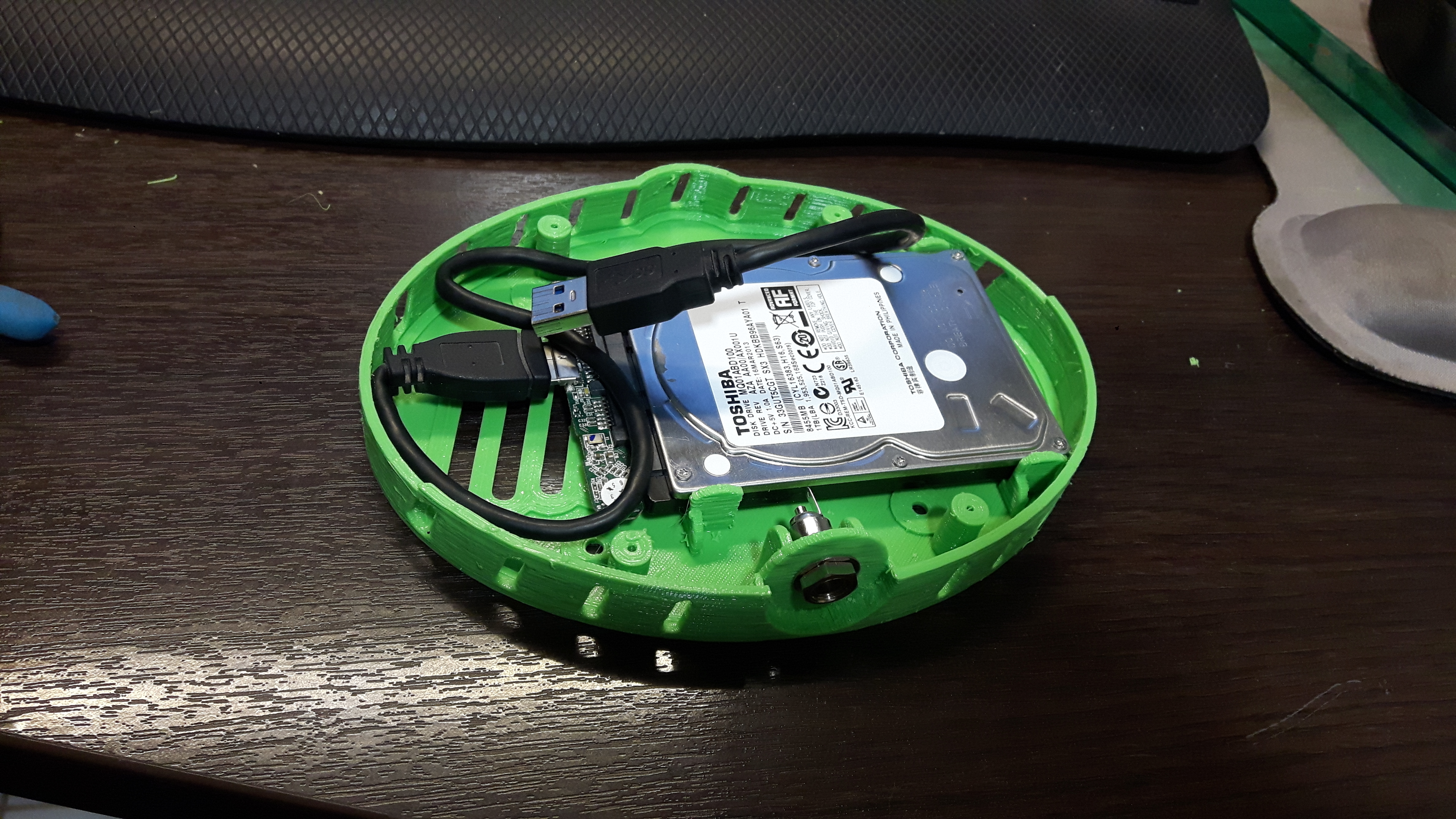

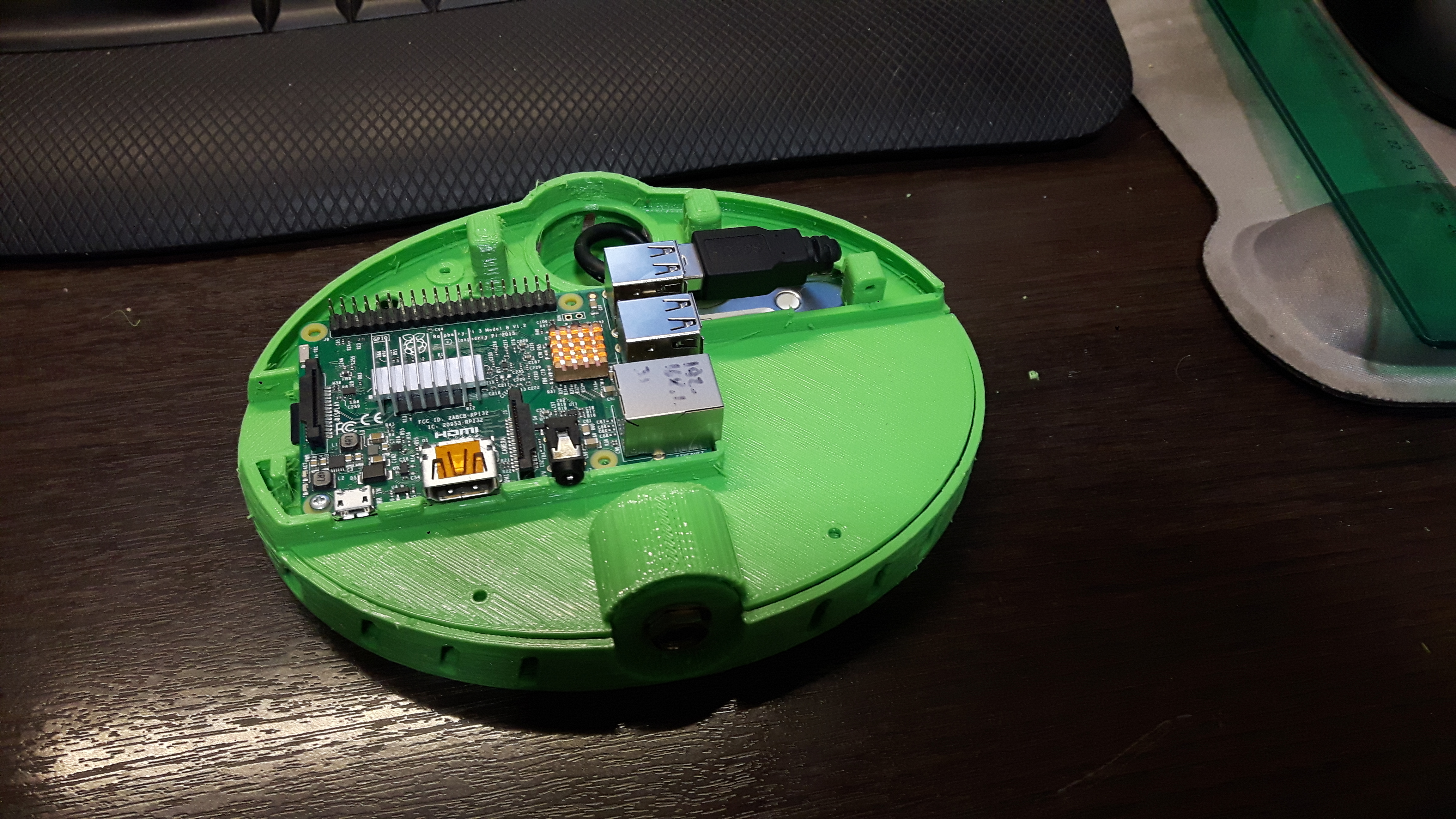

I created this case in Autocad, with the need to put a raspberry Pi 3 w/ an attached hard drive in the back of a monitor and convert it to a cheap AIO, my plan is to use the disk instead of the SD, following a tutorial by explainingcomputers. Tried first seeking the web for such a kind of case but could not find a stilish one like I was having in mind.
I tried my best to reduce material usage in order to make it cheap. Maybe I can give it another round some day!

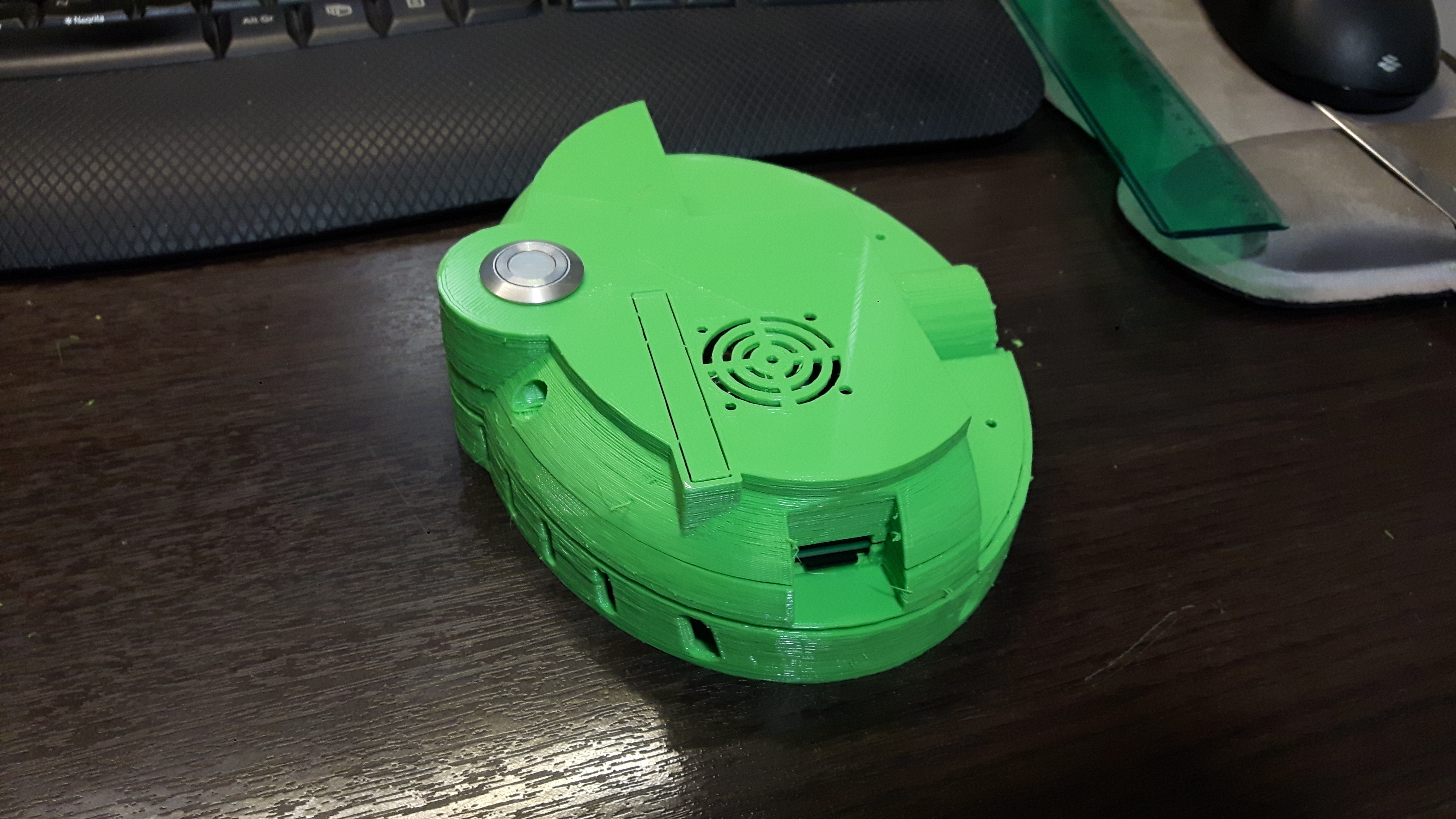

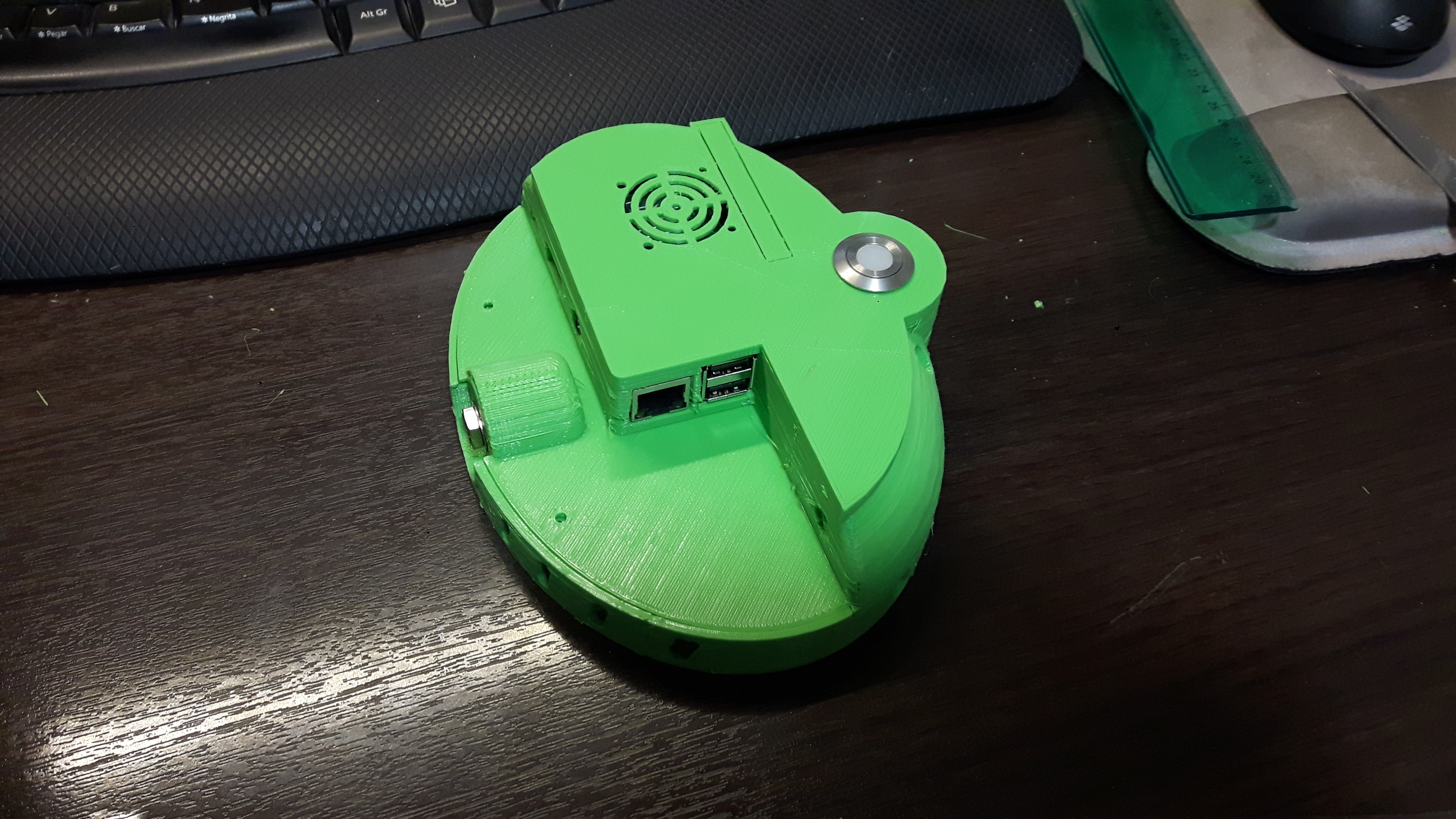

Hope you enjoy it as I enjoyed this couple of days designing it. Prints in 8 hours, consists in 3 parts, and needs some screws (7 small plus 4 for the raspberry itself) in order to keep is assembled.
It has internal space to hold a keyboard&mouse usb dongle, a perfect AIO for cheap!

Thank you!

Update 10/8/18: Update intermedio to v1.1, just a minor fix to left side lock plate which was weak and I made it wider.

  • 3D file format: STL
  • Publication date: 2019/10/11 at 12:25
