Raspberry Pi Fish Eye Camera for VertexEvo

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 74 views

3D model description

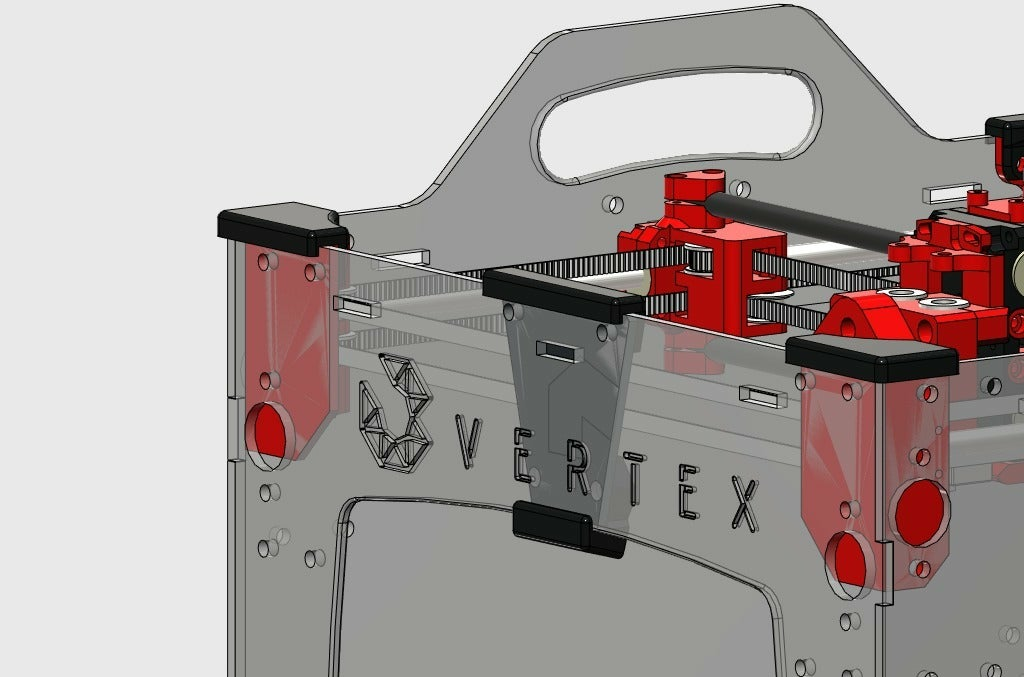

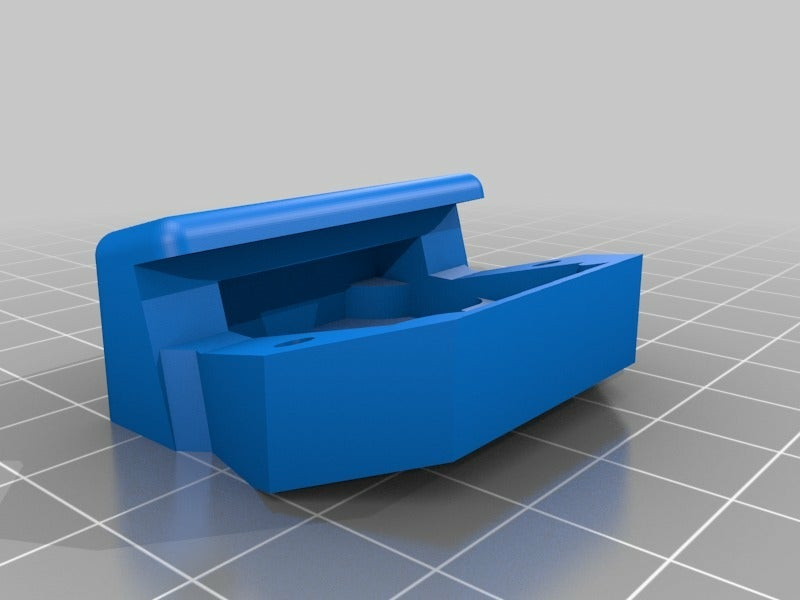

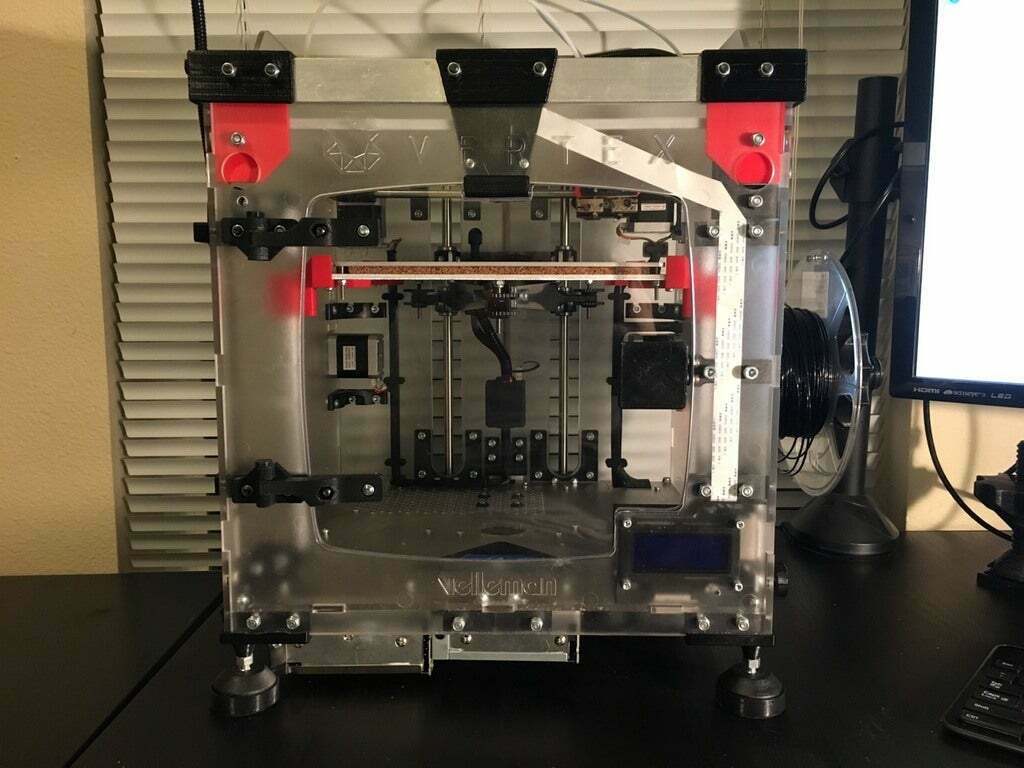

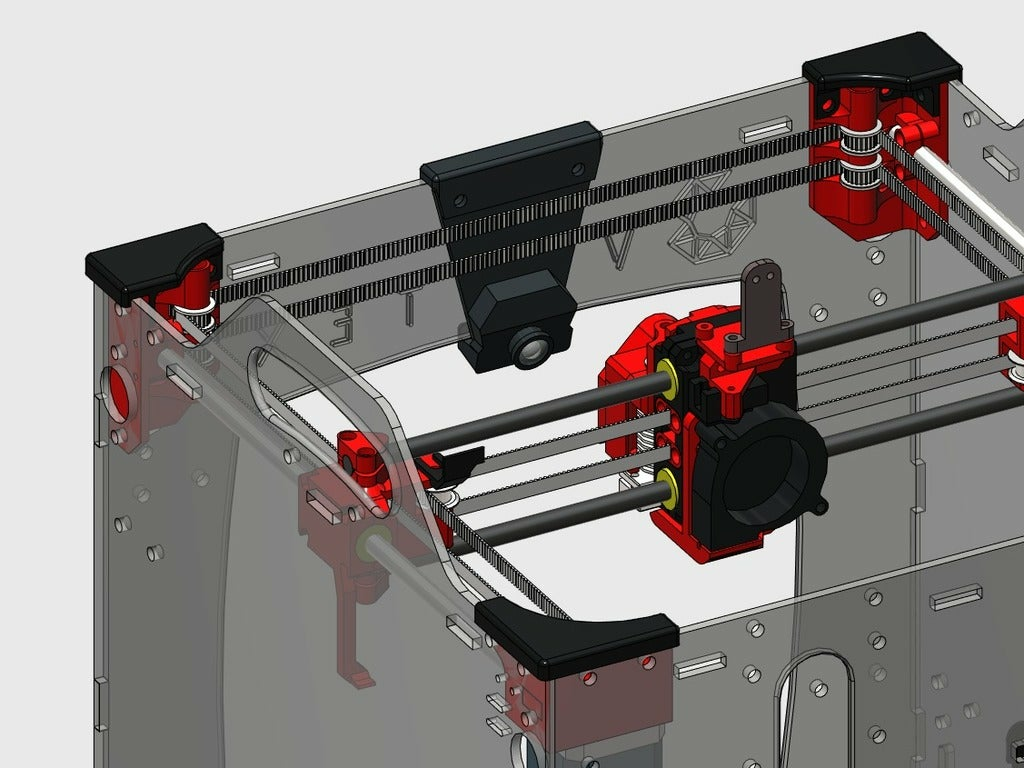

This is Raspberry Pi Fish Eye Camera mount for my VertexEvo project published here.

The camera is positioned at the nozzle end level. The details about the ribbon cable and the camera were published earlier here.

Important: This camera mount won't fit original Velleman Vertex K8400 printer.

To assemble you will need:
2 x M3 x 6mm screws
2 x M5 x 16mm socket head screws
2 x M5 self locking nuts.

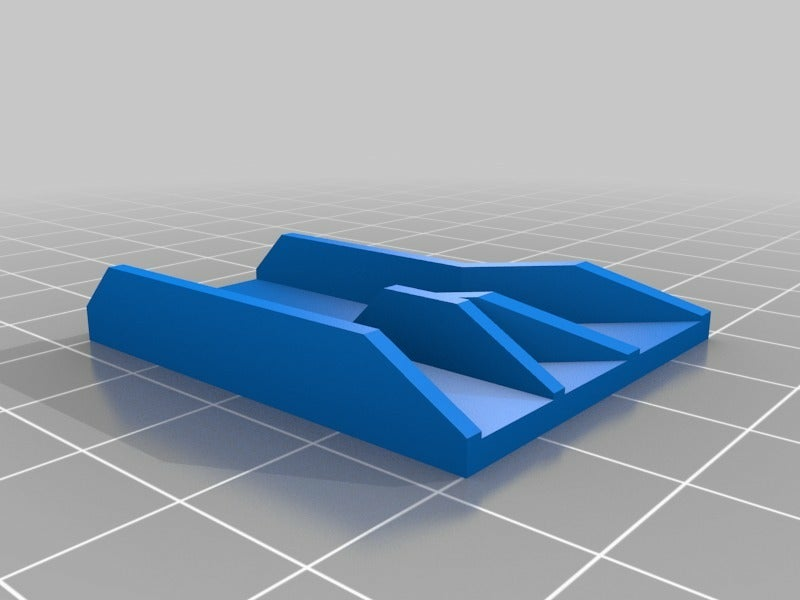

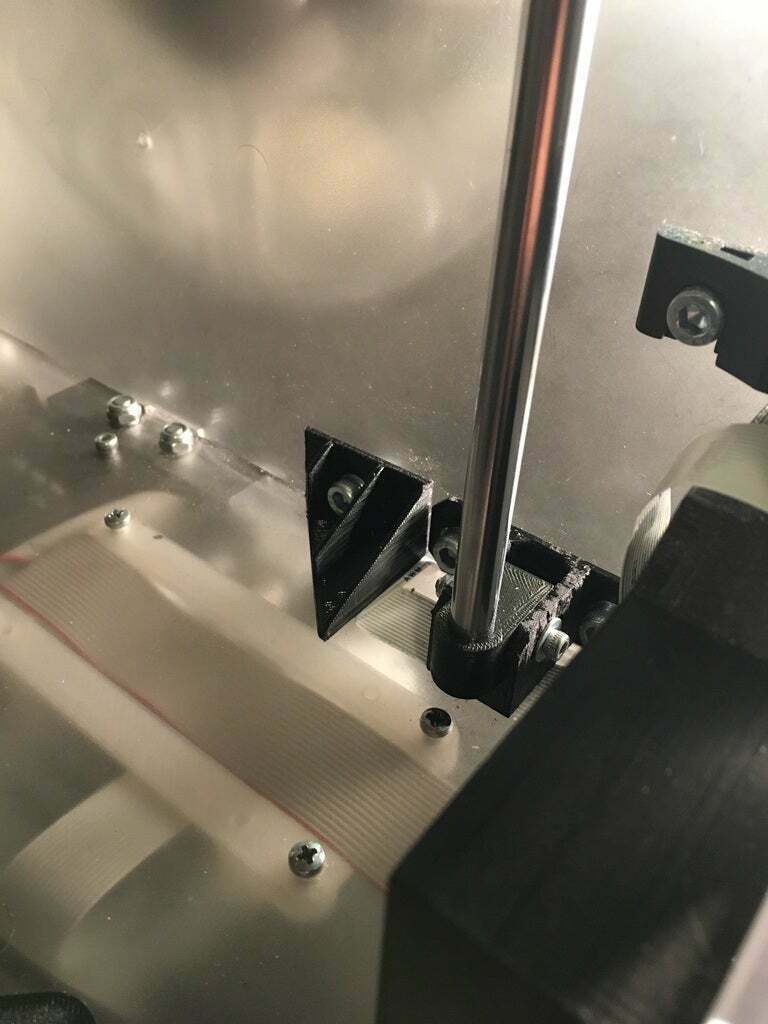

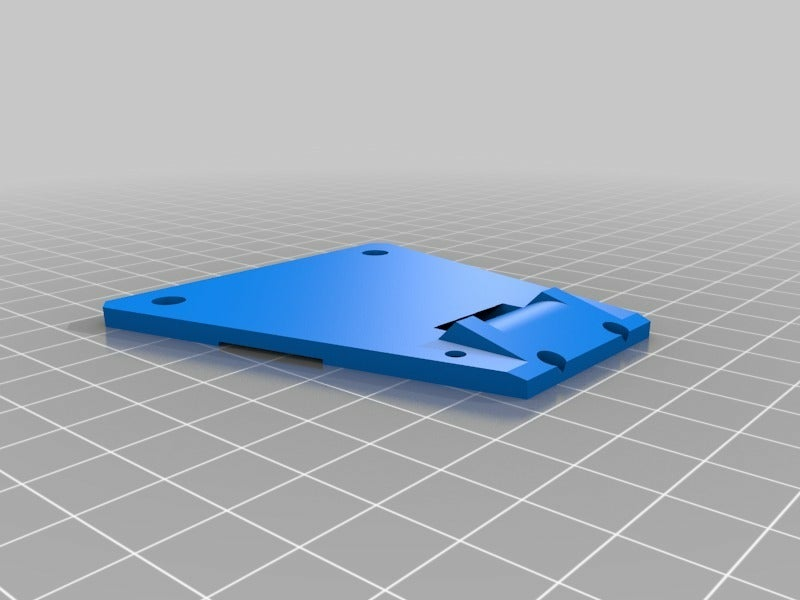

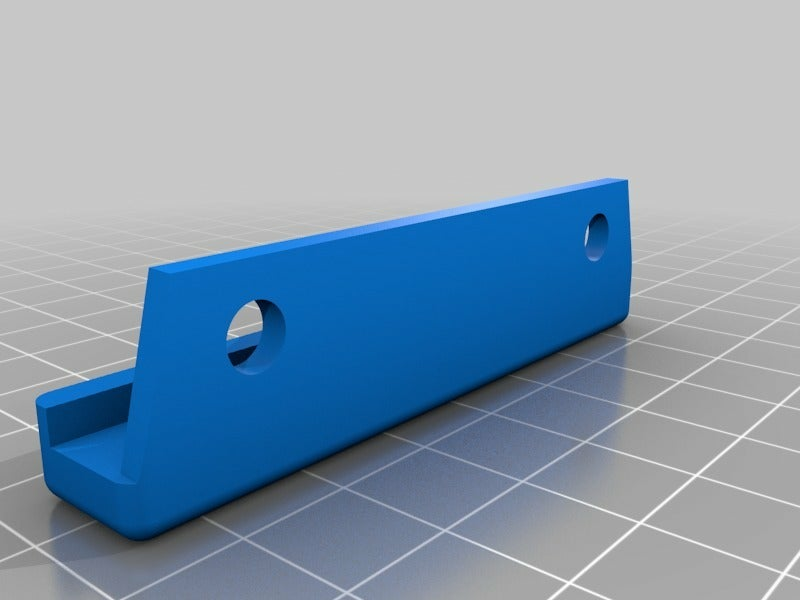

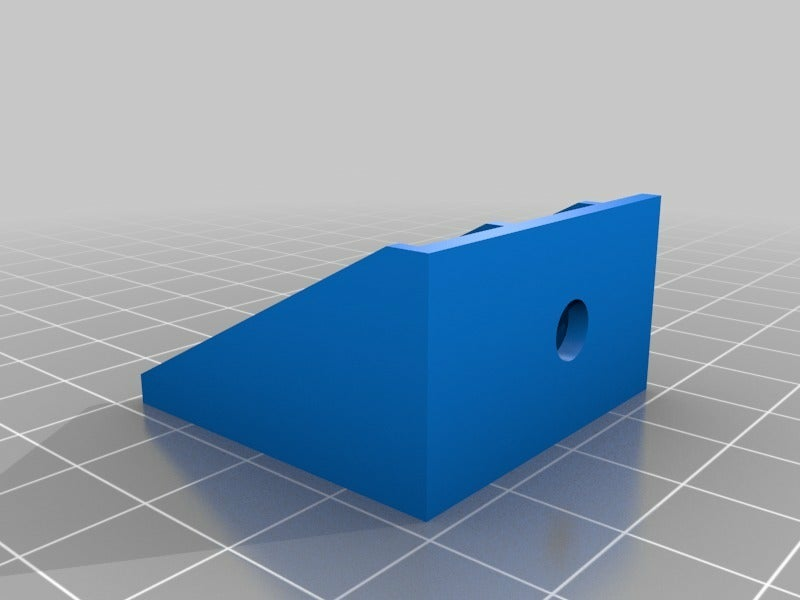

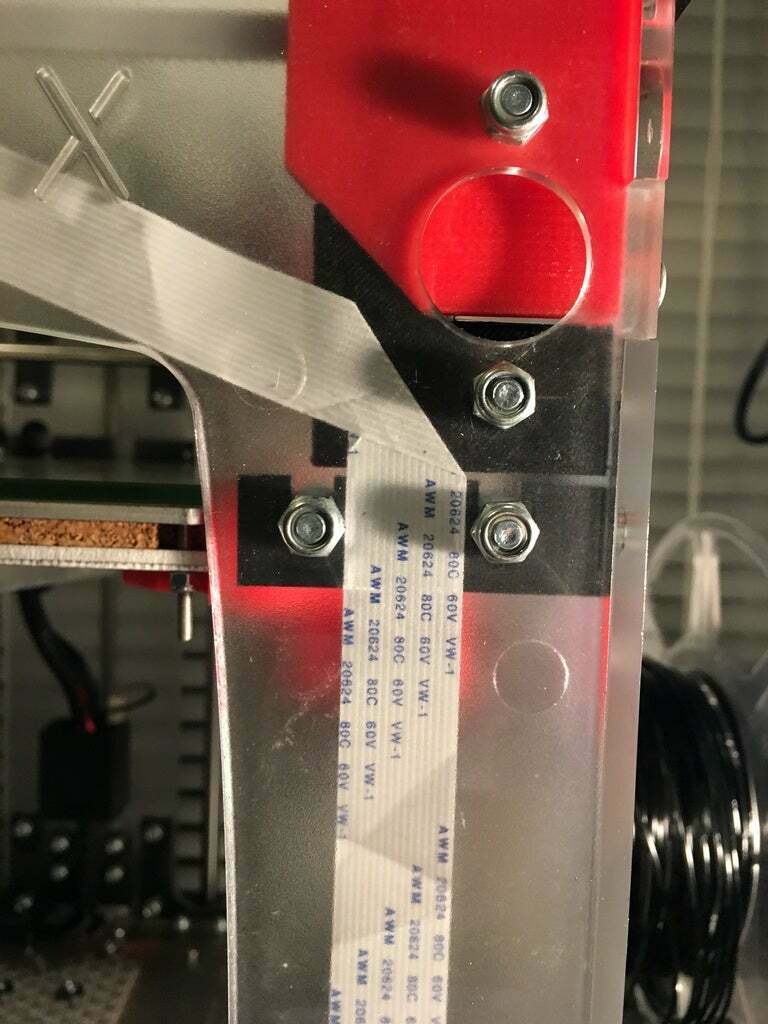

Update 29-Nov-2017 Added flat cable holders and images.

  • 3D file format: STL
  • Publication date: 2021/02/20 at 05:08
