Raspberry Pi case (2/3B/3B+) mount for V-Slot rail

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 301 views
  • 7 downloads

3D model description

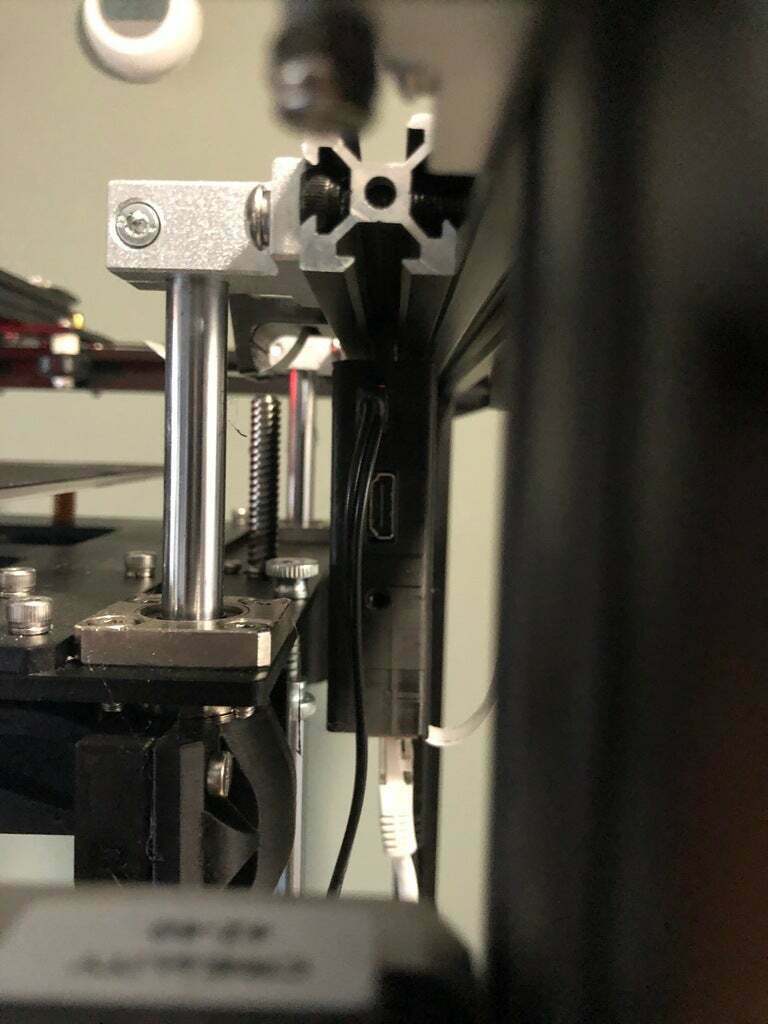

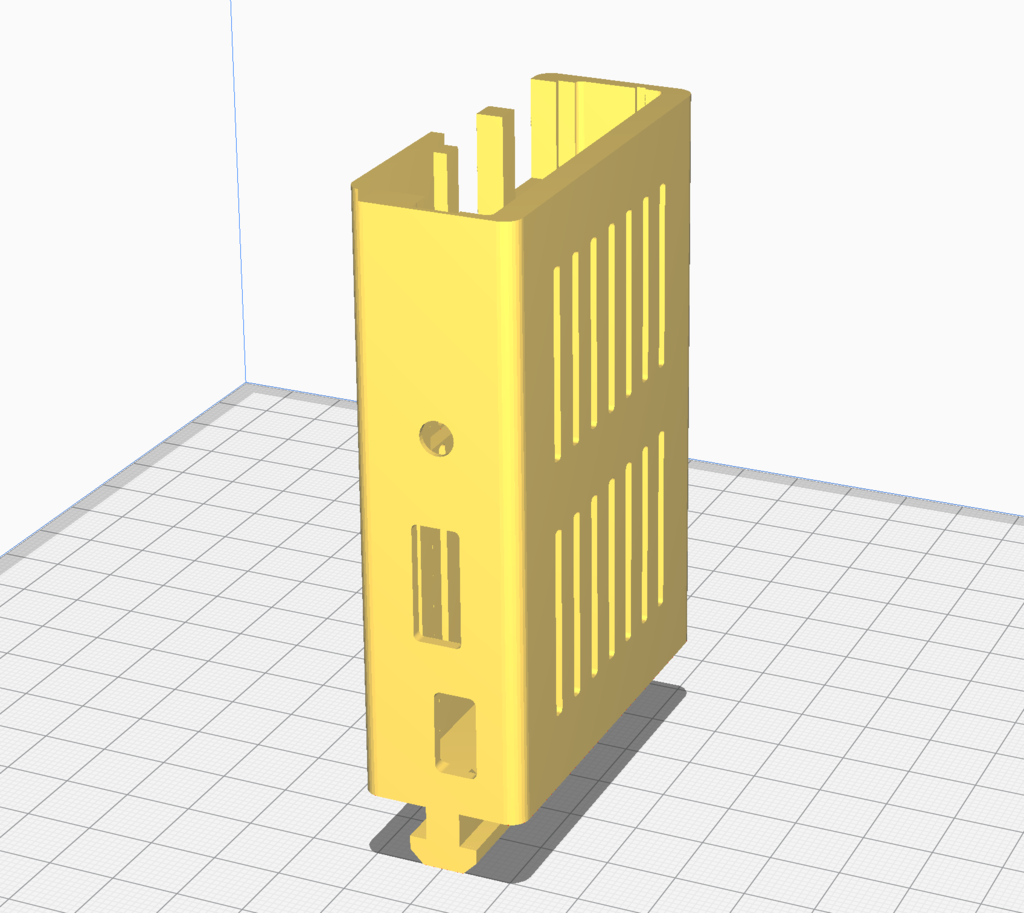

This is a remix of the Raspberry Pi 3B sleeve case by dktosoch. I added a slide mount which will fit into the X rails of an Ender 5 or Ender 3. In this example the Raspberry Pi is mounted downwards on the back of the printer, but is is possible to mount it in any V-slot rail you want. If your printer is calibrated, it will fit (with some friction) in the rail, so screws are not necessary.

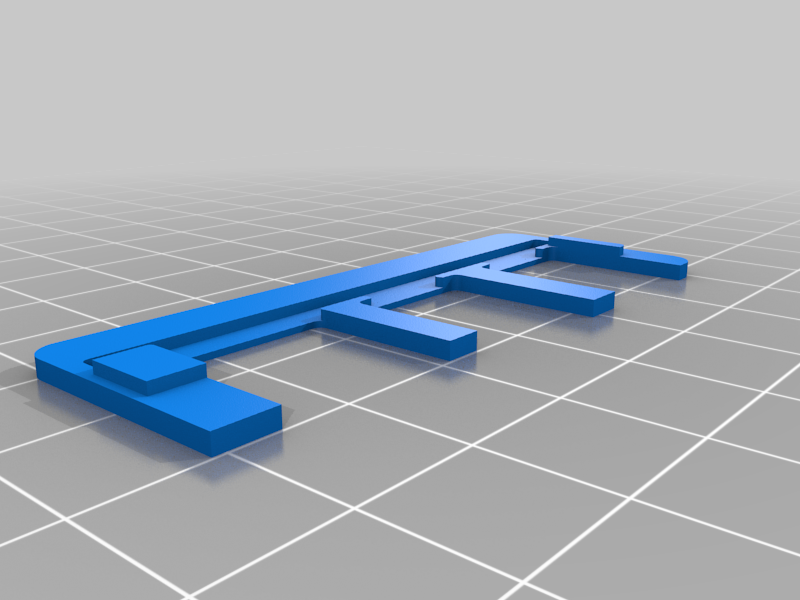

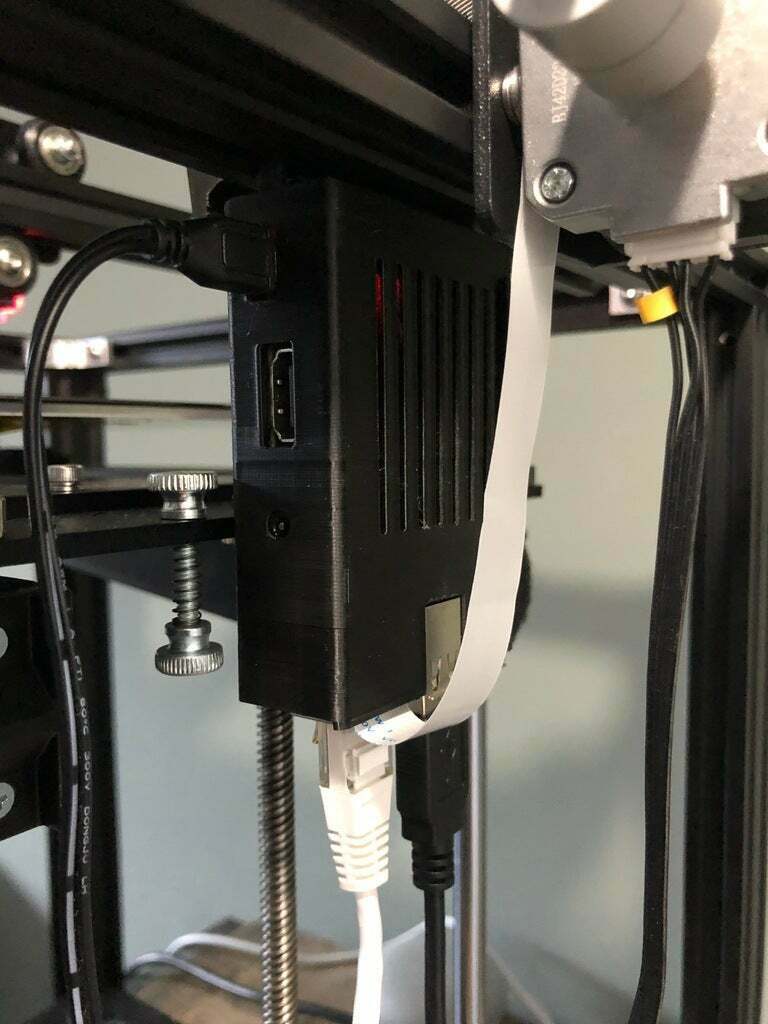

I also made a pull-through for the camera cable. My post print photo shows my first print attempt without the cable pull-through.

Notes:
- Don't scale up the model, it won't fit in the V-Slot anymore.
- Needs some post-processing if it's too hard to fit your Raspberry Pi.

  • 3D file format: STL

Tags

Creator

License

CC BY
