Raspberry Pi camera mount for duplicator i3

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 97 views

3D model description

This is a camera mount for attaching a raspberry pi camera board onto a duplicator i3 v2.1.
The POV will follow the Z-axis and therefore gives a nice overview of your print from bottom to top.

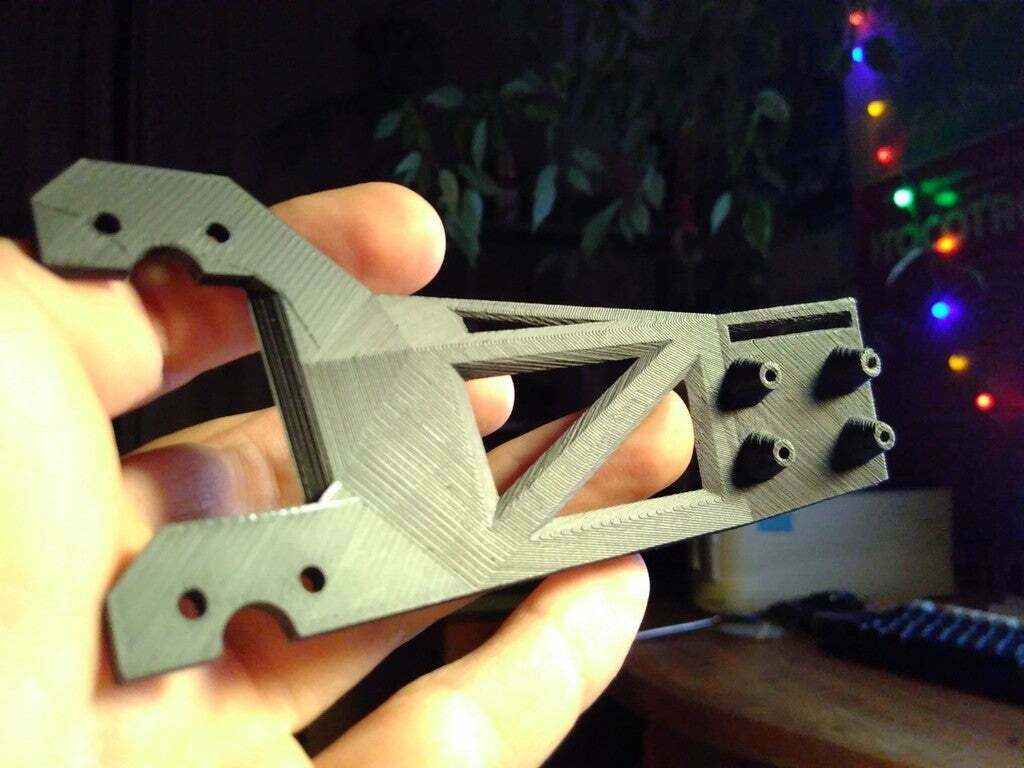

There's one version (39) which can be attached onto the left side of the x-gantry without obstructing anything, but will decrease the x axis width if attached to the right.

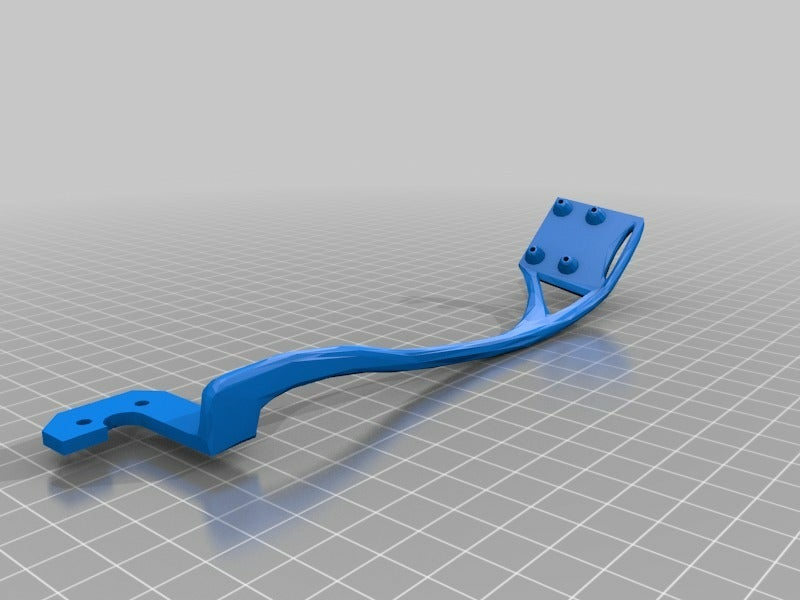

If you prefer right, like I do, print the version #49 which is longer and therefore gives a better view (I've added 2 pictures that are supposed to show the POV). The downside of this version is that it's rather flimsy and prone to vibrations.

For installation you'll need 4, resp. 2 pieces of M3x10 screws. The original ones will be too short.

3D printing settings

-

  • 3D file format: STL
  • Publication date: 2021/03/26 at 19:33

License

CC BY NC SA
