Raspberry Pi Camera Mount for 2020 or 2040 Extrusions (CR-10, CR-10s, Ender 3, Ender 5, etc.)

3D model description

Update 2020/02/10: Updated arms to have greater support for the weight.

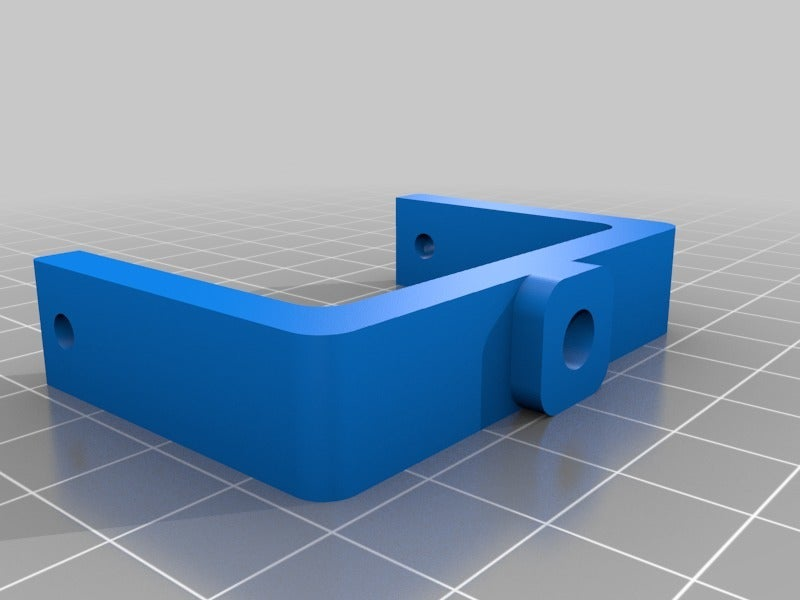

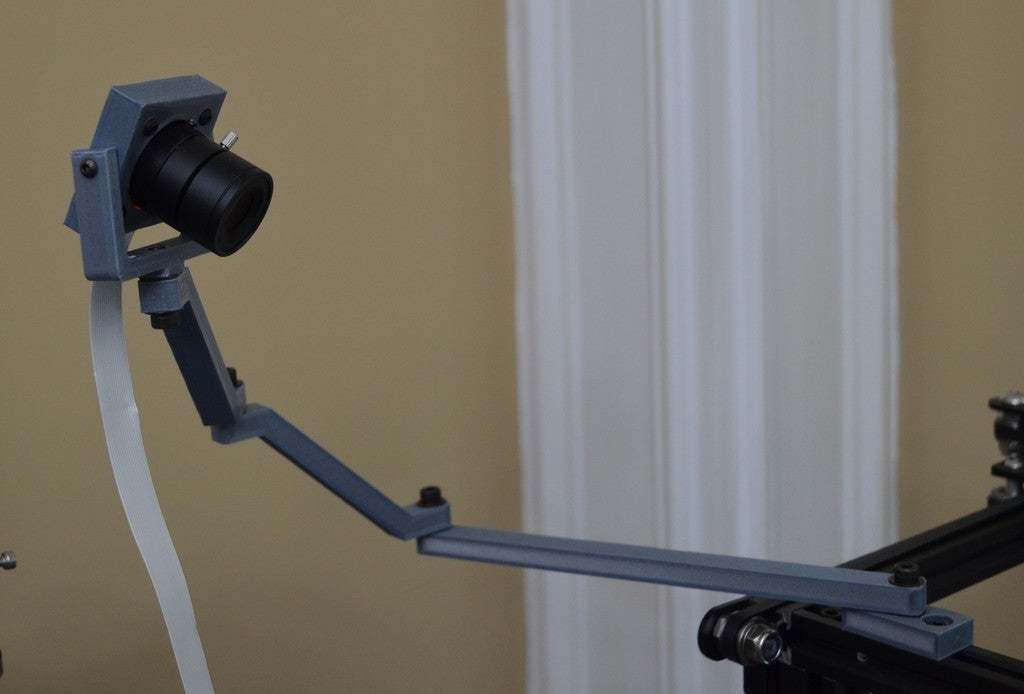

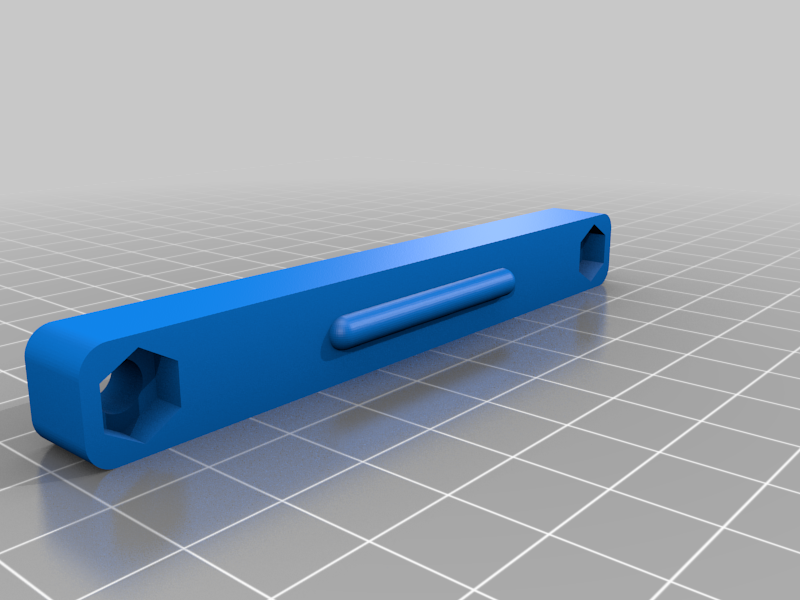

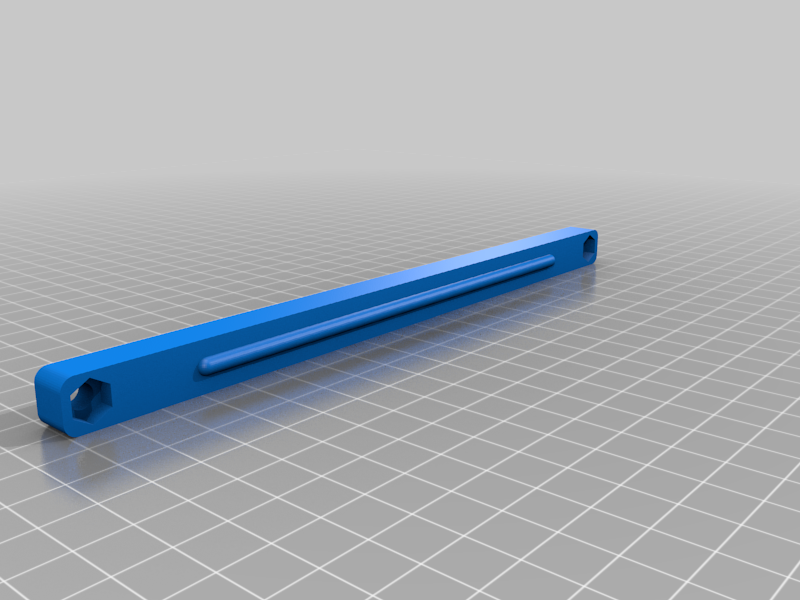

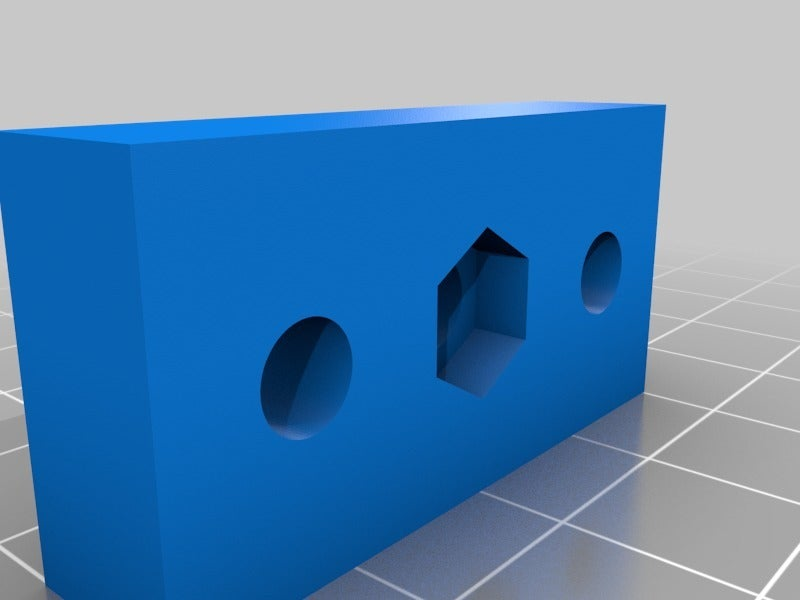

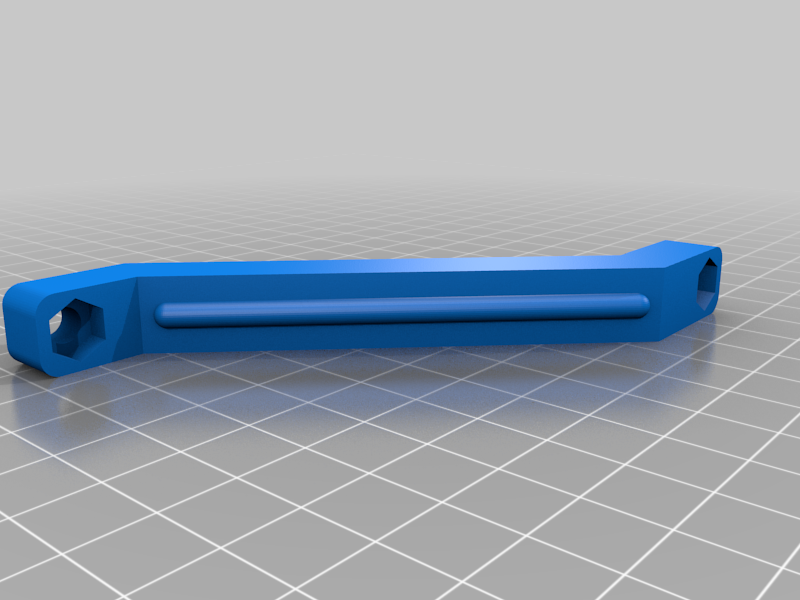

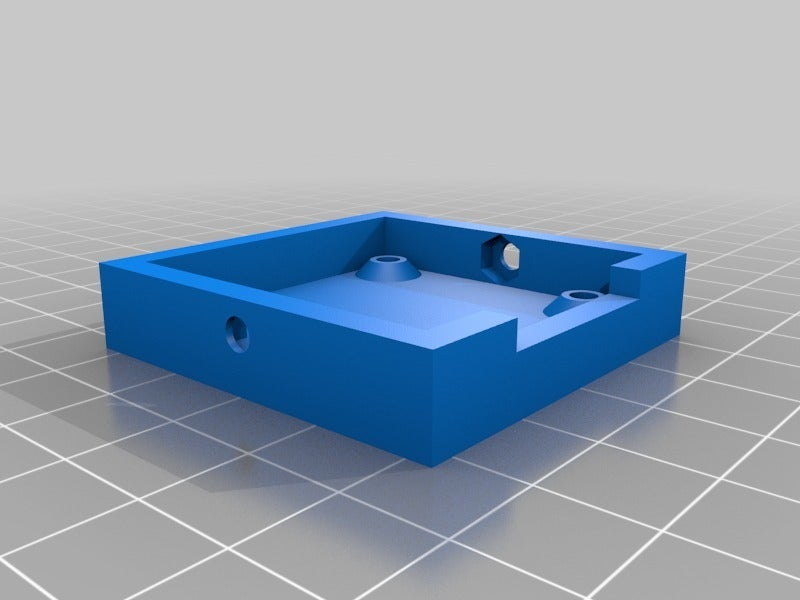

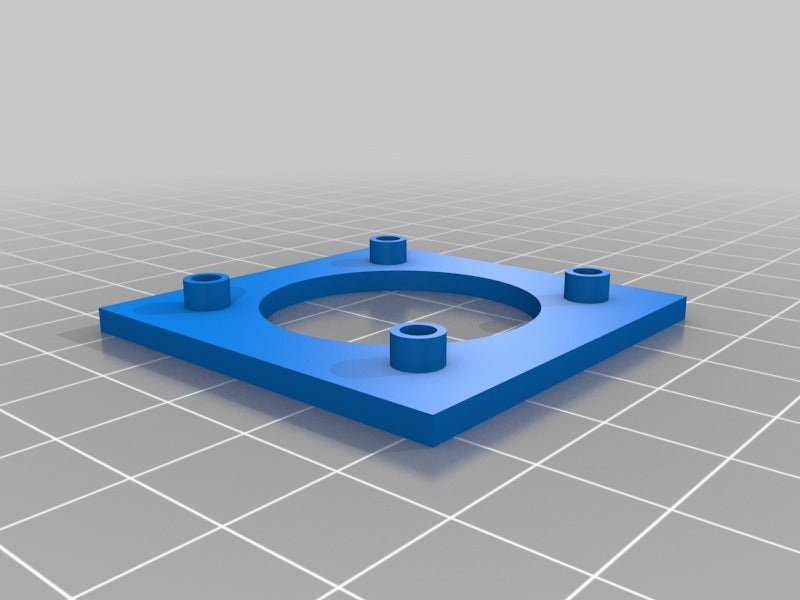

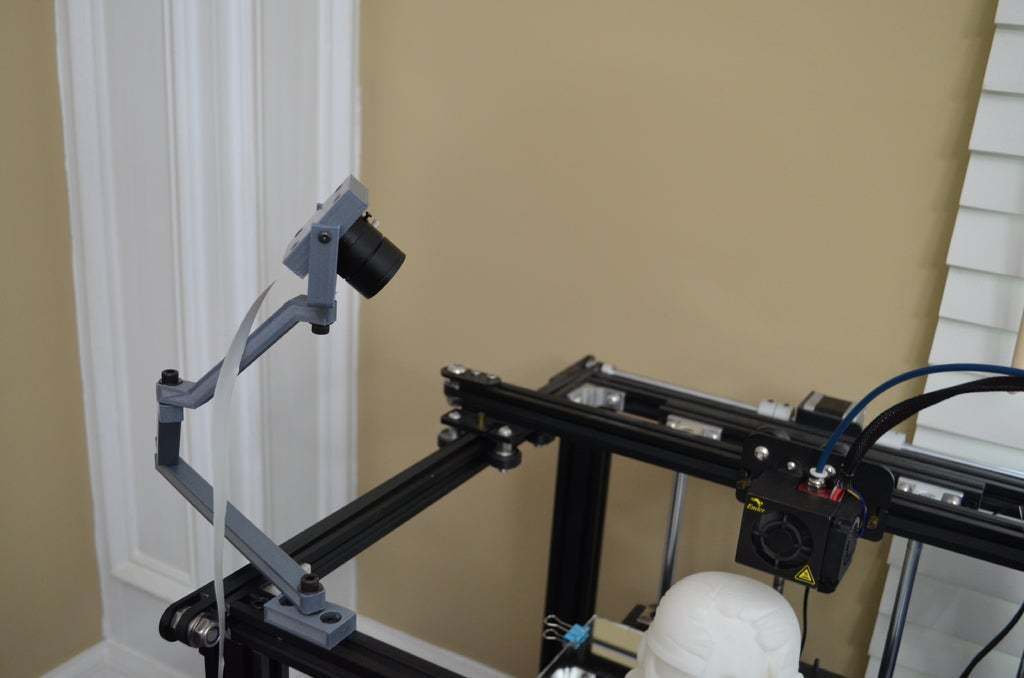

I designed this camera mount to be used on any 2020 or 2040 extrusion-based printer. You can mix and match the various rigid extensions or create your own! The following video has full assembly instructions: https://youtu.be/aPOUPXh9m-g

Hardware Needed:
Camera: Arducam 5 Megapixels 1080p OV5647 Camera Module
https://amzn.to/2IYQOdl

Camera Mount:
4 x M3 12mm Screws
2 x M3 8mm Screws
6 x M3 Nuts

Extensions:
2 x M5 20mm Socket Head Cap Screws (Minimum): https://amzn.to/2IWk2tq
2 x M5 Nuts (Minimum)
4 x M5 Washers (Minimum)

Mounting to Extrusions:
2 x M5 10mm Screws
2 x M5 T-Nuts: https://amzn.to/2DAMXzF

All of the screws, nuts, and washers from above you'll need except for the M5 Socket Head and M5 T-Nuts:
https://amzn.to/2XO8JYz

Links to various components above are affiliate links. Thanks for supporting my designs!
