Raspberry Pi (2 & 3) Lab Plate

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 5 likes
  • 75 downloads

3D model description

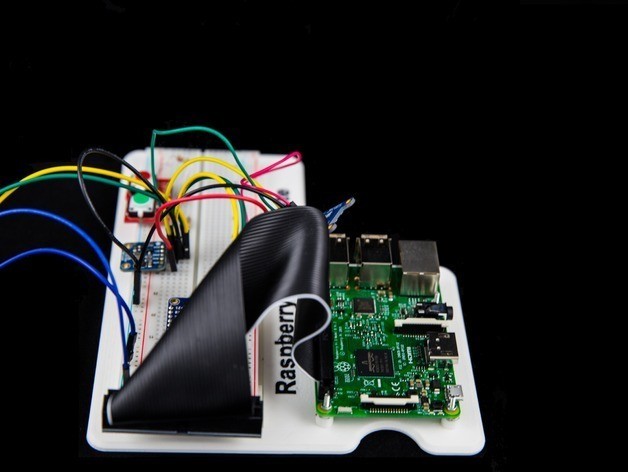

Nice little plate holding your stuff together when playing with your Raspberry Pi 2 or 3.

Notes:

If you have a dual extruder printer, you can add a differently colored text by using the second extruder and one of the text stl files.
There are two versions of the text, one at the exact same height as the surrounding plate (text.stl), and one slightly sunk into the plate (text2.stl).
If you have a single extruder printer, just use labplate.stl.
To attach your breadboard, use double sided installation tape.

I used:

The Adafruit full sized breadboard
Tesa 55733 for attaching the breadboard


3D printing settings

Printer:
BCN3D Sigma

Rafts:
No

Supports:
No

Infill:
15%

3D printer file information

  • 3D design format: STL Folder details Close
    • pi3labplate.stl
    • text.stl
    • text2.stl

    Learn more about the formats

  • Publication date: 2016/11/07 at 11:18

License

CC BY NC SA
