Radial Fan Fang E3D V6 40mm fan Remix

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.6k views
  • 5 likes
  • 61 downloads

3D model description

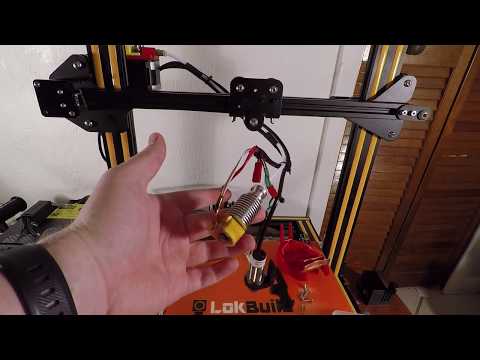

https://youtu.be/b7YWOwUNp8g
E3D V6: http://amzn.to/2wZBcBE

UPDATE 08/24/17
I am using the ABL stock mount from Timothy Hoogland
ABL Mount: https://www.timothyhoogland.com/download/creality-cr-10-ezabl-sensor-mount/?v=7516fd43adaa

UPDATE 08/07/17

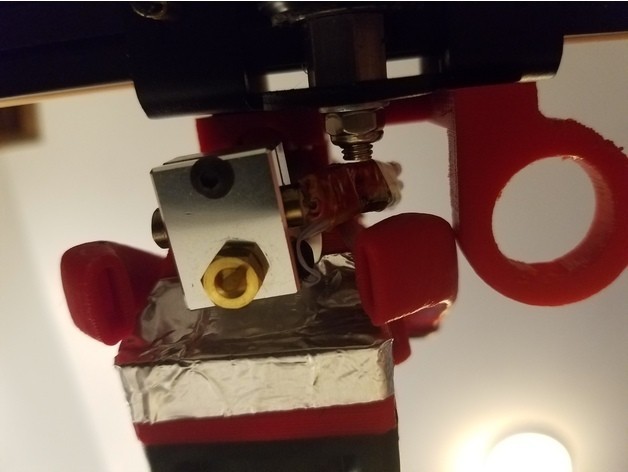

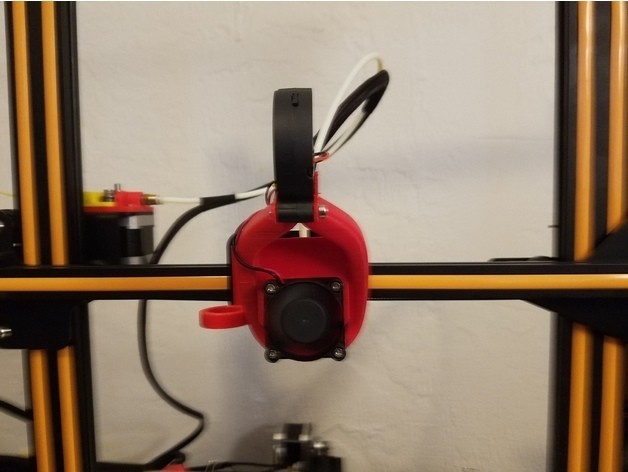

So I finally got around to installing this model to my cr-10 and tested it. What I found was that PETG works the best. If you plan on going to temperatures of 270-300 degrees, then I recommend adding a small strip of Aluminum Foil Tape ( http://a.co/if9dAdt ) to reflect some of the heat near the heater block, seen in the above picture.

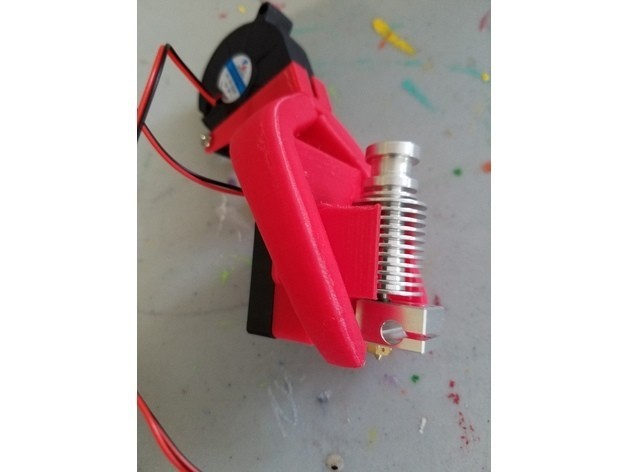

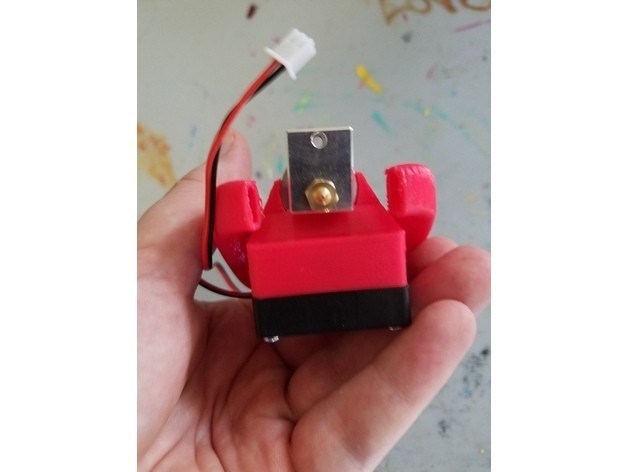

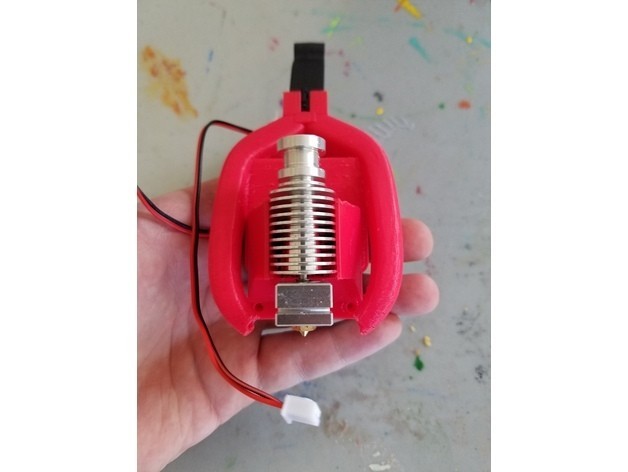

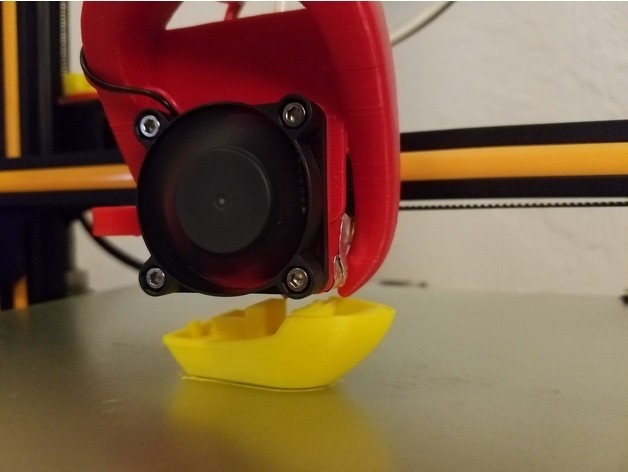

The fan used on the fang is a bit more powerful then stock and is nice upgrade and helps with the quality of the print. I used the stock 40mm fan to cool the E3d V6.

I only have about 12 hours of print time with the E3d V6 so far but, I can say quality has gone up on the models that I have printed.

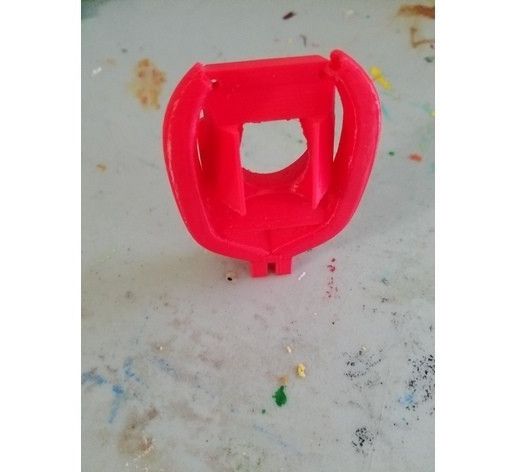

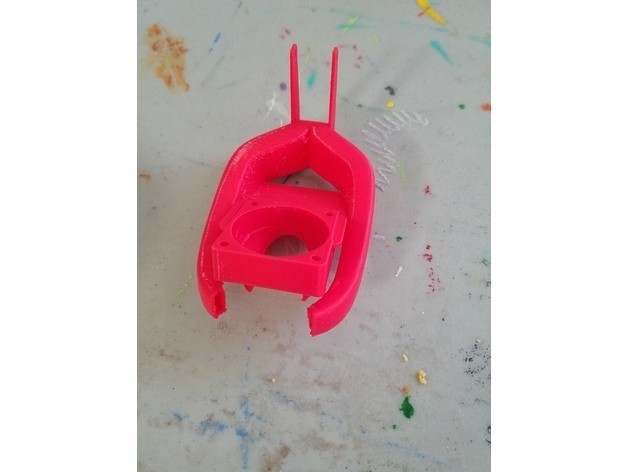

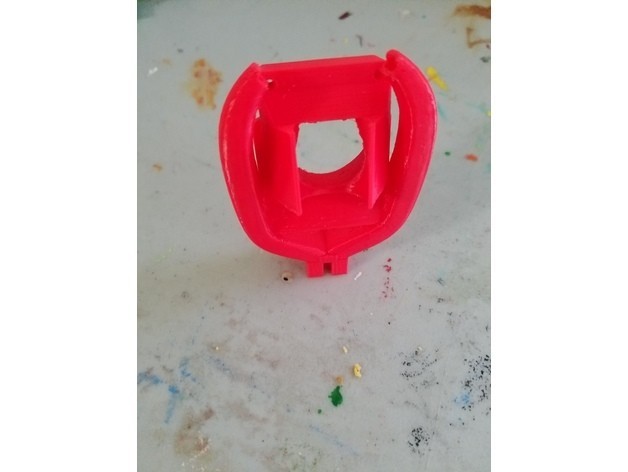

I combine the radial fan fang from jneilliii and the short E3D V6 40mm fan mount by lethala.

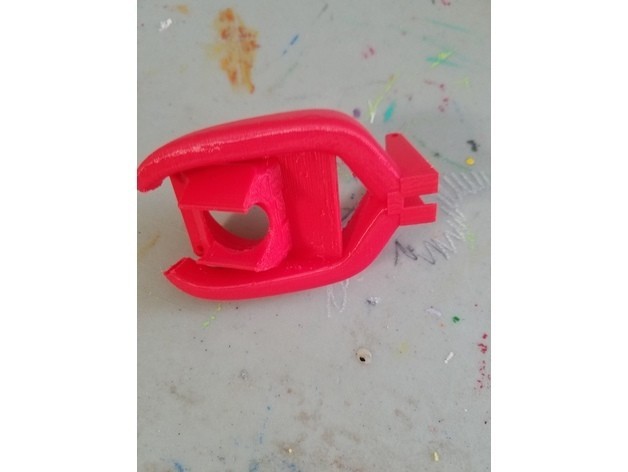

I also cut down the fang's tips by 5mm. I am using this for a Creality CR-10 but can be used with certain other printers as well.

\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

I am using this model from Bandanam4n to mount the E3D to the printer: https://www.thingiverse.com/thing:2182924

Note: I have printed this and tested if the components fit and checked the clearance of the nozzle, however, I have not tested this model on an actual printer. (still waiting for my cr-10 in the mail)


3D printing settings

Printer Brand:

Robo 3D

Printer:

R1 ABS + PLA Model

Rafts:

No

Supports:

Yes

Resolution:

.2

Infill:

50-70%

Notes:
I used PLA for this model and it should work fine, if not the PETG may be a better option.

3D printer file information


License

CC BY SA

Creator
