Radial Arm Saw Fence Stop

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.7k views
  • 9 likes
  • 32 downloads

3D model description

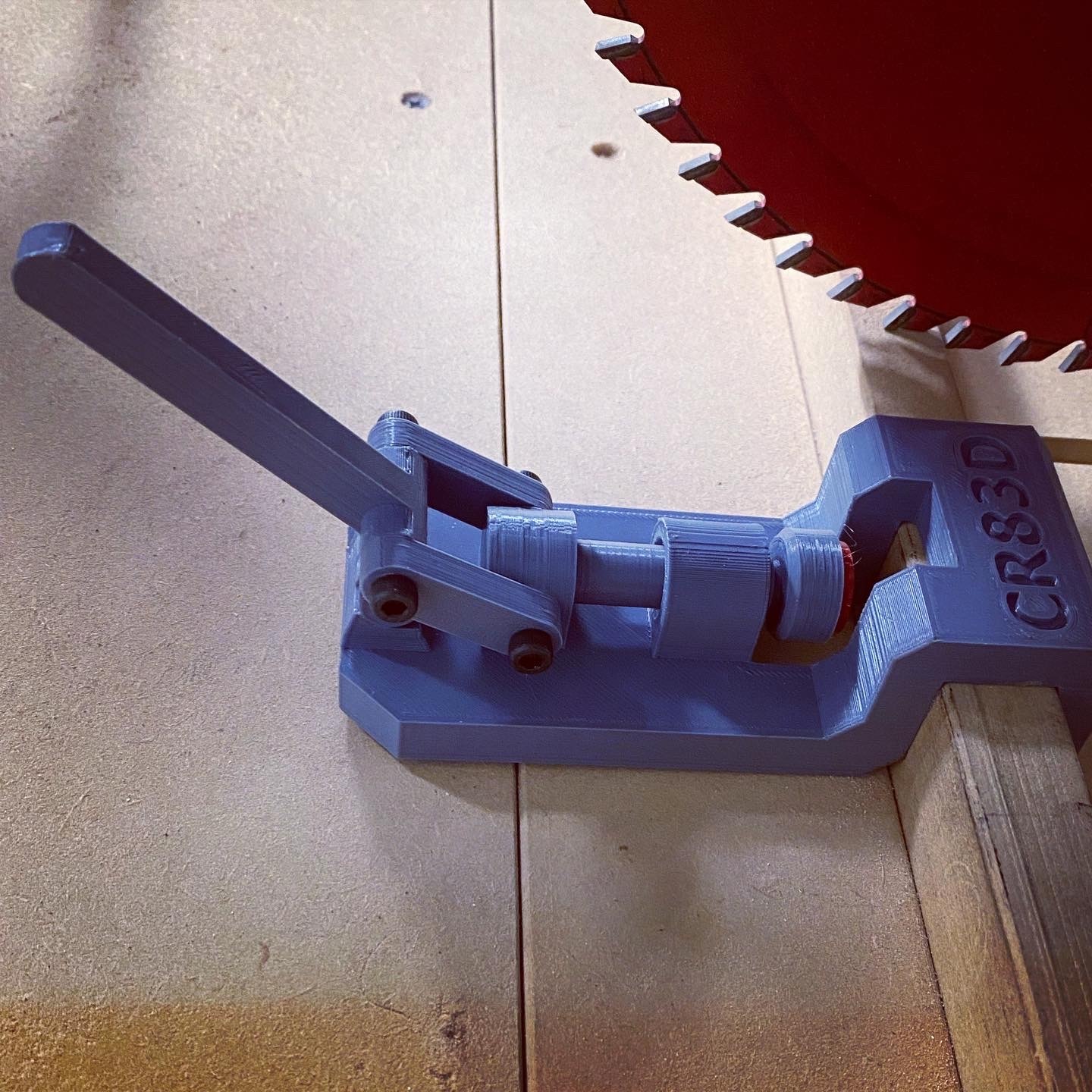

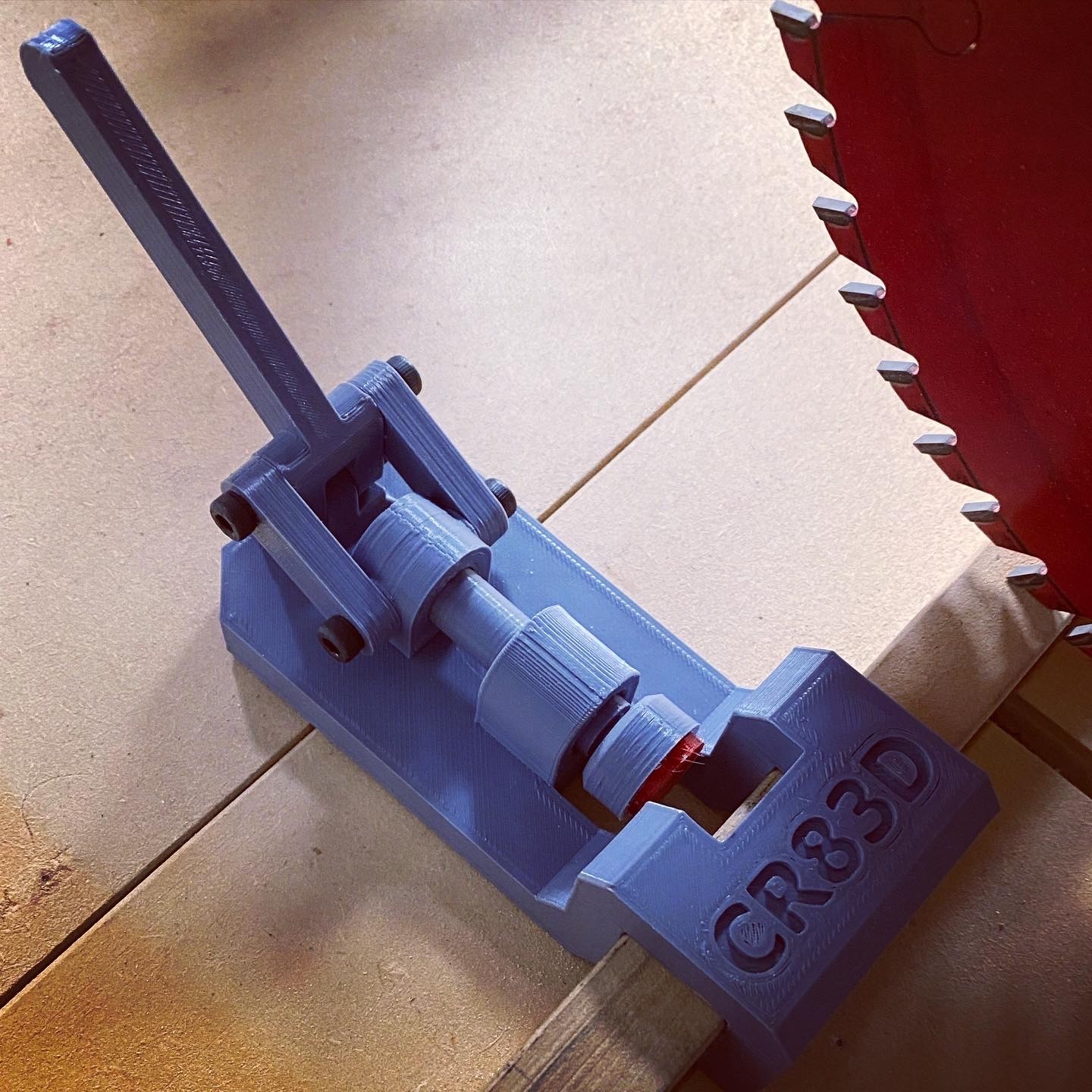

Quick release fence stop for radial arm saw.
fits 1" X .75" Fence

requires (5) M4 X12 bolts

https://youtu.be/ZbiL0EP4YsI


3D printing settings

Body requires support all other pieces can print without
30% infill
3 walls

TPU insert printed with 10% infill

Plunger tube accepts 1/4-20 thread and may need to be tapped depending on your machines tolerance

3D printer file information

  • 3D design format: STL Folder details Close
    • CR83D Fence Clamp Base V2.stl
    • CR83D Fence Clamp Handle.stl
    • CR83D Fence Clamp Linkage V2.stl
    • CR83D Fence Clamp TPU Pad.stl
    • CR83D Fence Clamp Tube Base.stl
    • CR83D Fence Clamp Tube.stl
  • Last update: 2021/02/09 at 06:39
  • Publication date: 2020/03/16 at 03:27

License

CC BY NC ND
