Pyramid Clamp

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.8k views
  • 15 likes
  • 119 downloads

3D model description

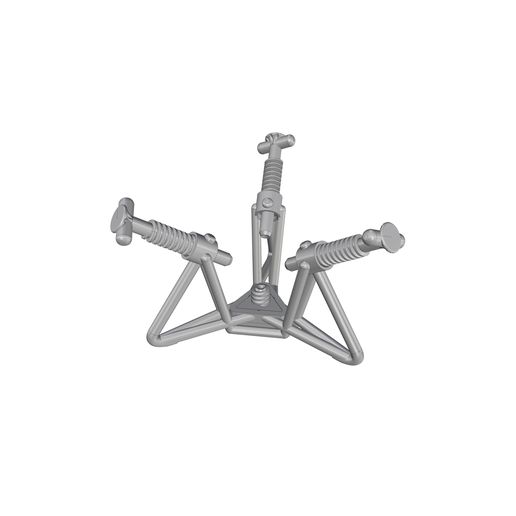

Pyramid Clamp
#LIFEHACK3D

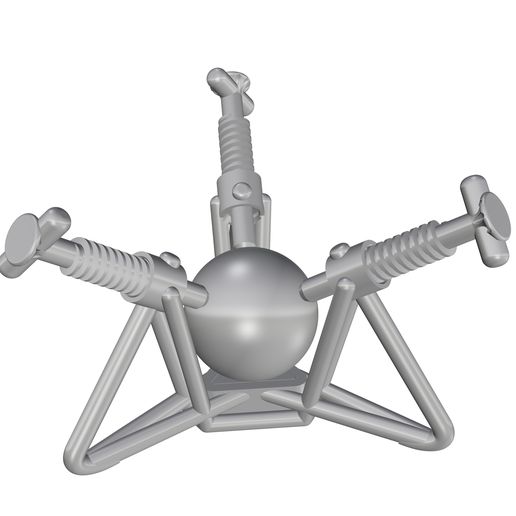

Working or carving a spherical objects\ beads is diffcult if not clamped properly, or one needs a customized jig to hold the sphere steady. This clamp is made for clamping spherical geometry objects. Very Simple Assembly with three + one nob to adjust as per size. Easy to 3D Print.

Files Saved :

1.) 5 parts cad file in .stl format.

2.) full assembly in .stl format.

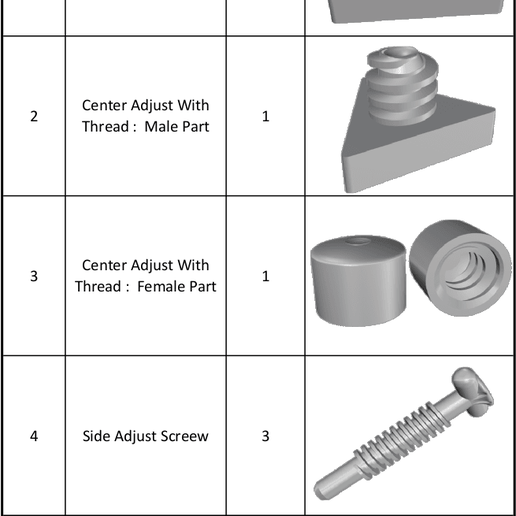

3.) picture showing parts used in Clamp.

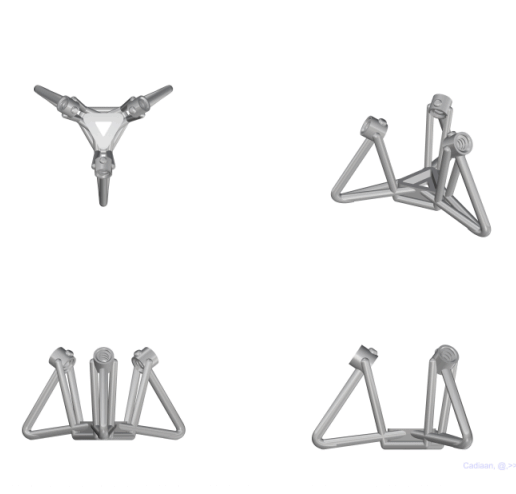

4.) Animation for the use of clamp.

3D printer file information

  • 3D design format: STL Folder details Close
    • Center Adjust Single_ Pyramid Clamp_ Cadiaan.stl
    • Center Adjust With Thread Female Part_ Pyramid Clamp_ Cadiaan.stl
    • Center Adjust With Thread Male Part _ Pyramid Clamp_ Cadiaan.stl
    • Main Stand_ Pyramid Clamp_ Cadiaan.stl
    • Pyramid Clamp_ Side Adjust part.stl

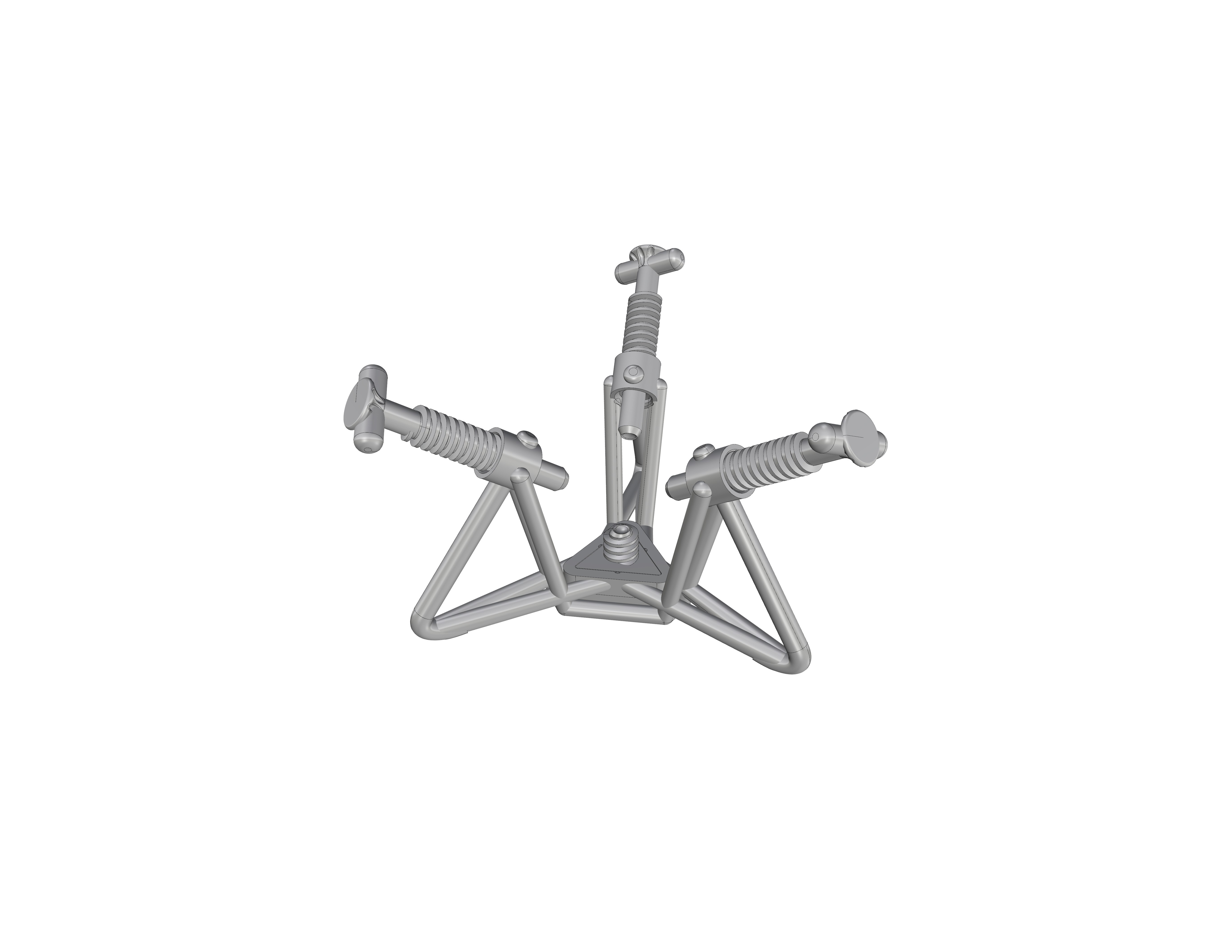

    • Pyramid Clamp_ Stand Full Assembly.stl

    Learn more about the formats

  • Last update: 2018/03/15 at 23:22
  • Publication date: 2018/02/13 at 19:16

License

CC BY NC
