PSK60 endstop

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 2 likes
  • 48 downloads

3D model description

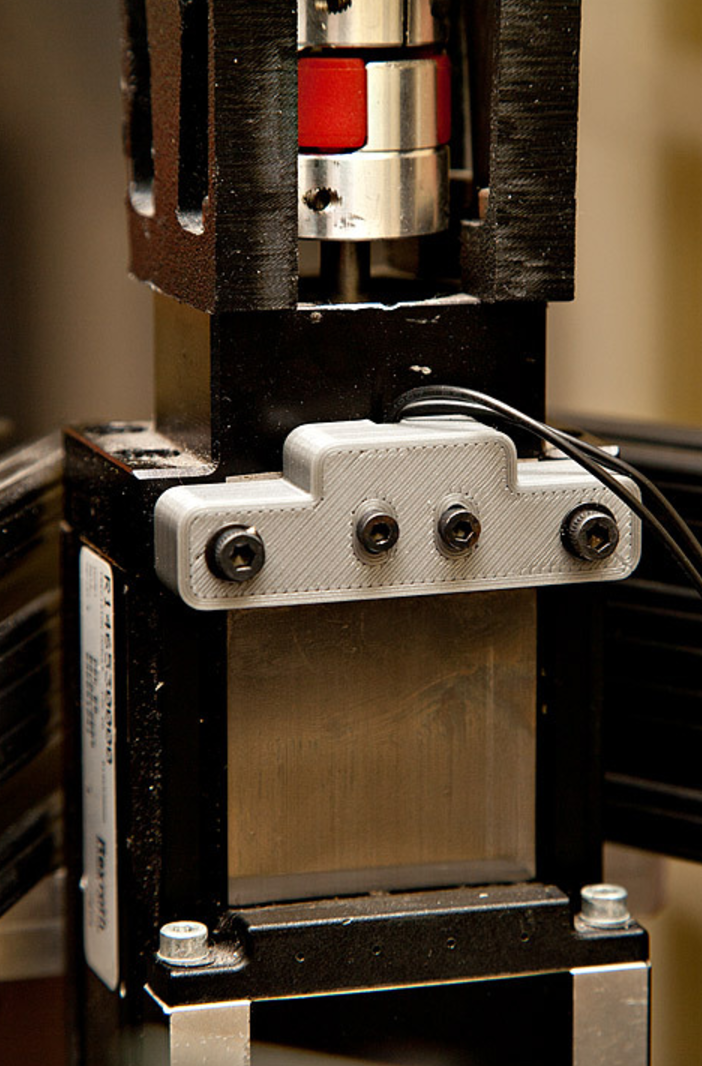

A compact, enclosed endstop for the Bosch-Rexroth PSK60 linear actuators.

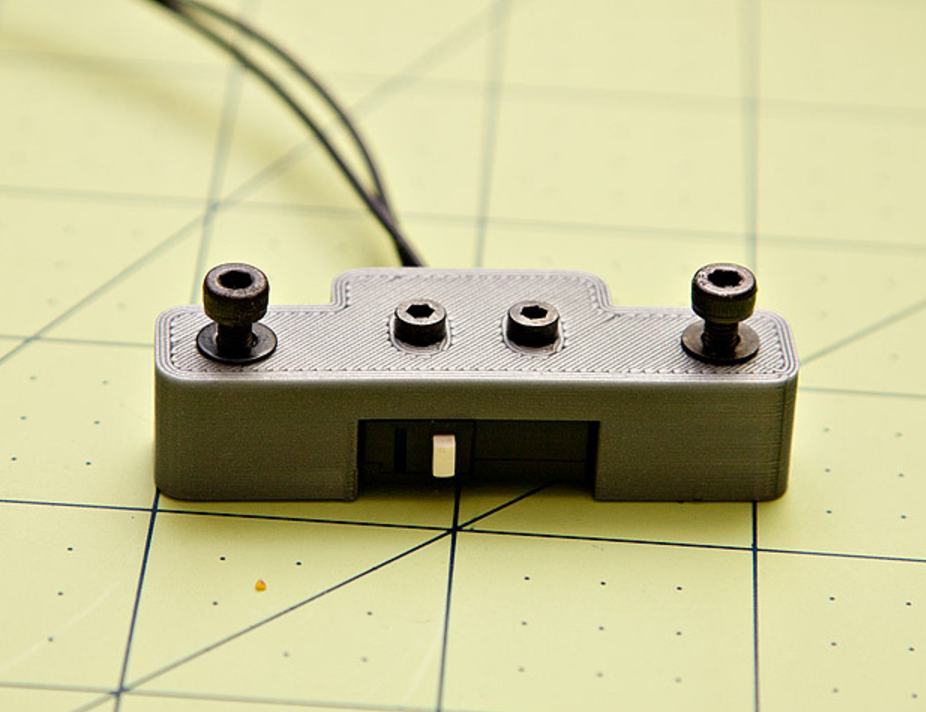

It replaces the factory default aluminum tabs at either end of the actuator and besides being an end-stop, it also a) holds the magnetic strip in place and b) functions as a crumple zone in case of a crash (which I have not tested and don't plan to :) but the theory is the micro-switch position is adjustable such that the carriage first triggers the endstop then stops in the plastic buffer in case of a crash without crashing the microswitch). I have also not attempted to measure repeatability but it seems to perform very well in practice.

Additional parts needed:

2x M3x16mm screws and washers to mount the endstop cover
2x M2.5 screws and nuts to mount the microswitch.
standard 20mm microswitch

  • 3D file format: STL

Tags

Creator

Designs 47
Downloads 6.7k
Followers 48

I enjoy designing minimalist-functional 3D objects.

License

CC BY
