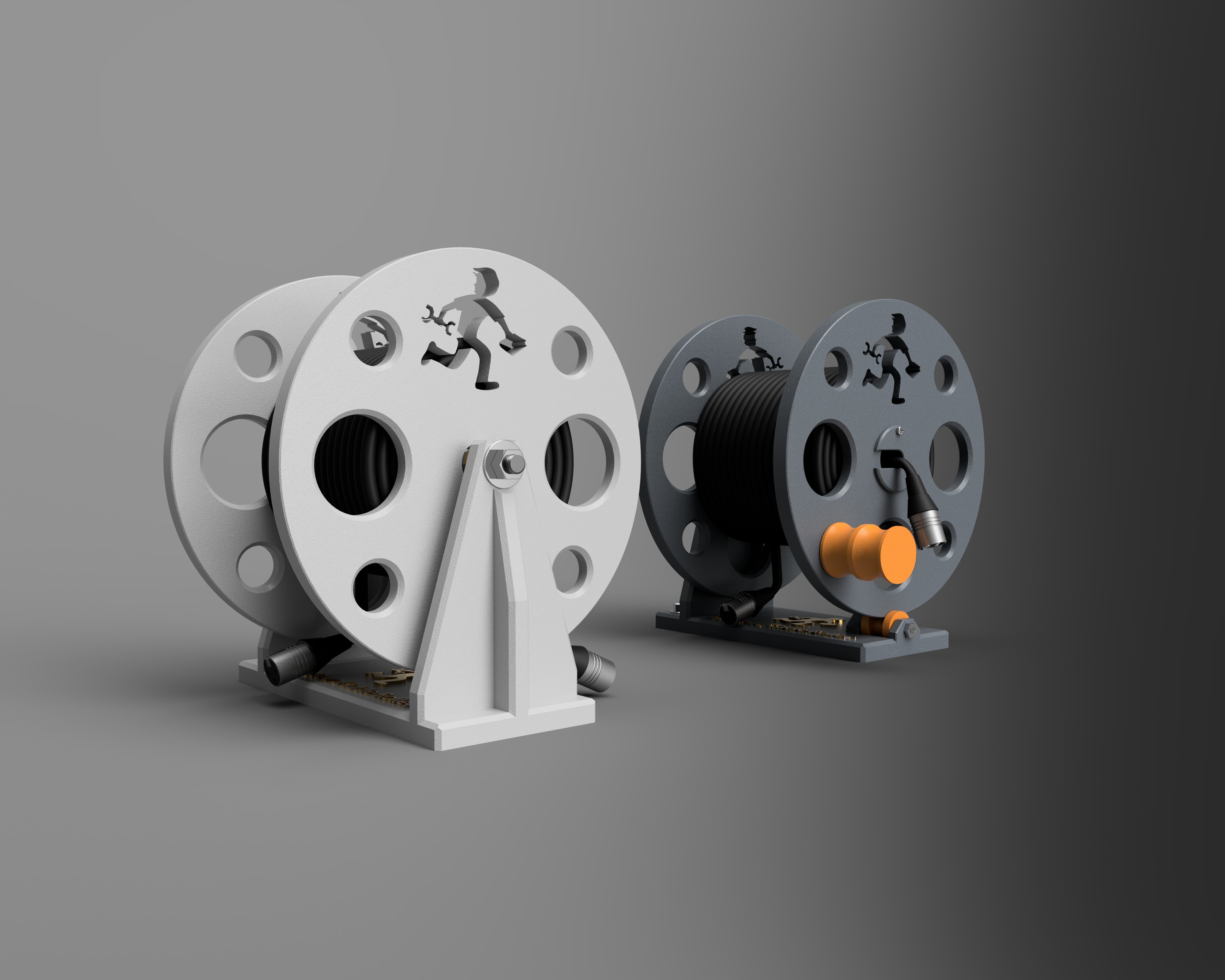

Proteus Cable Roller
Organizing your cables and removing those tangled messes
still a work in progress and has not been fully tested
Designed to be heavy duty enough to handle any cable you can fit on it. Expect long print times.

Let me know what you think in the comments below. Ideas, changes, and more are encouraged by the community.

Help me create more designs like this by becoming a Patron at: https://www.patreon.com/proteanman
Everything helps and ideas are welcome!

Hardware
Nuts, Bolts, Bearings:

1x M8 Threaded Rod: (cut to size with hacksaw)
95mm for Open Center Design
170mm for Dual Strut Design
M8 Nuts
2x M8 19x6 Bearing
1x M5 Bolt 40mm Length and M5 nut
(only for Base_BearingWheel_SingleStrut)
2x M5 10x4 Bearing
(only for LowerRoller_Core_WithBearing)
Glues: choose best option for you

Plastic Adhesive: make sure the plastic type you use works with your adhesive, please use proper air filters/respirators
CA Glue (Super Glue)
Epoxy: please use proper air filters/respirators
Base Hardware:

M6 holes are cut into both Base types for you to secure the Cable Roller to something. A center distance of 50mm is between both holes.
Both Base types are 80mm x 180mm in size.

3D printing settings

Printing Parts
No support needed! - designed to print on any printer without support.
See images for the two Base types for printing
Use stronger material: PETG, ABS, NYLON, Other. I personally use PETG for everything these days.

If you want less print time you can try the -THINWALL versions of the main parts. Just find the same file name with -THINWALL at the end. The thin walled WheelCore is needed for the thin walled WheelWalls.

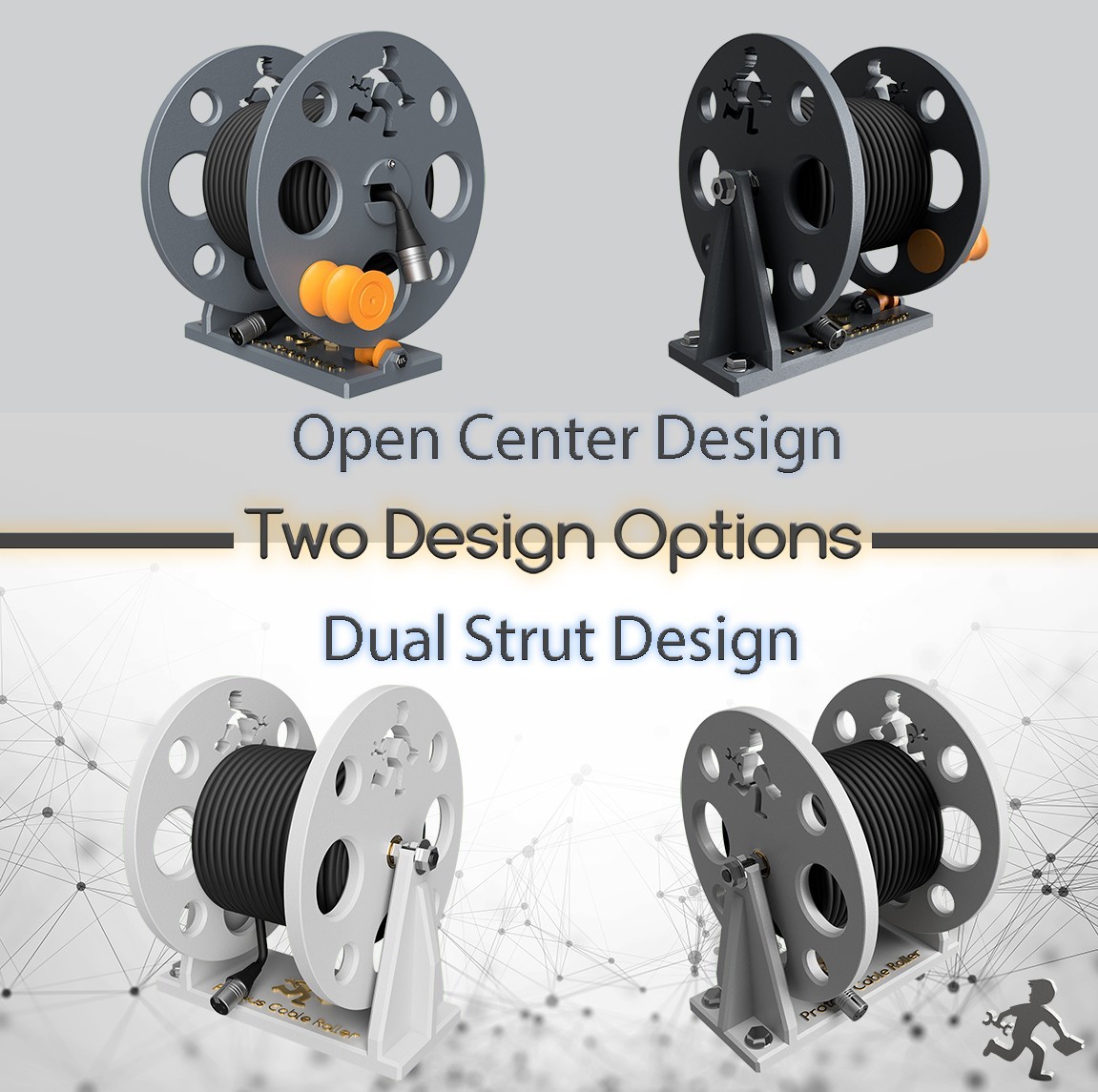

Open Center Design

Base-BearingWheel_SingleStrut
WheelWall_OpenCenter
WheelWall_SingleStrut-LongCore
WheelCore
WheelWall_OpenCenter_Cap

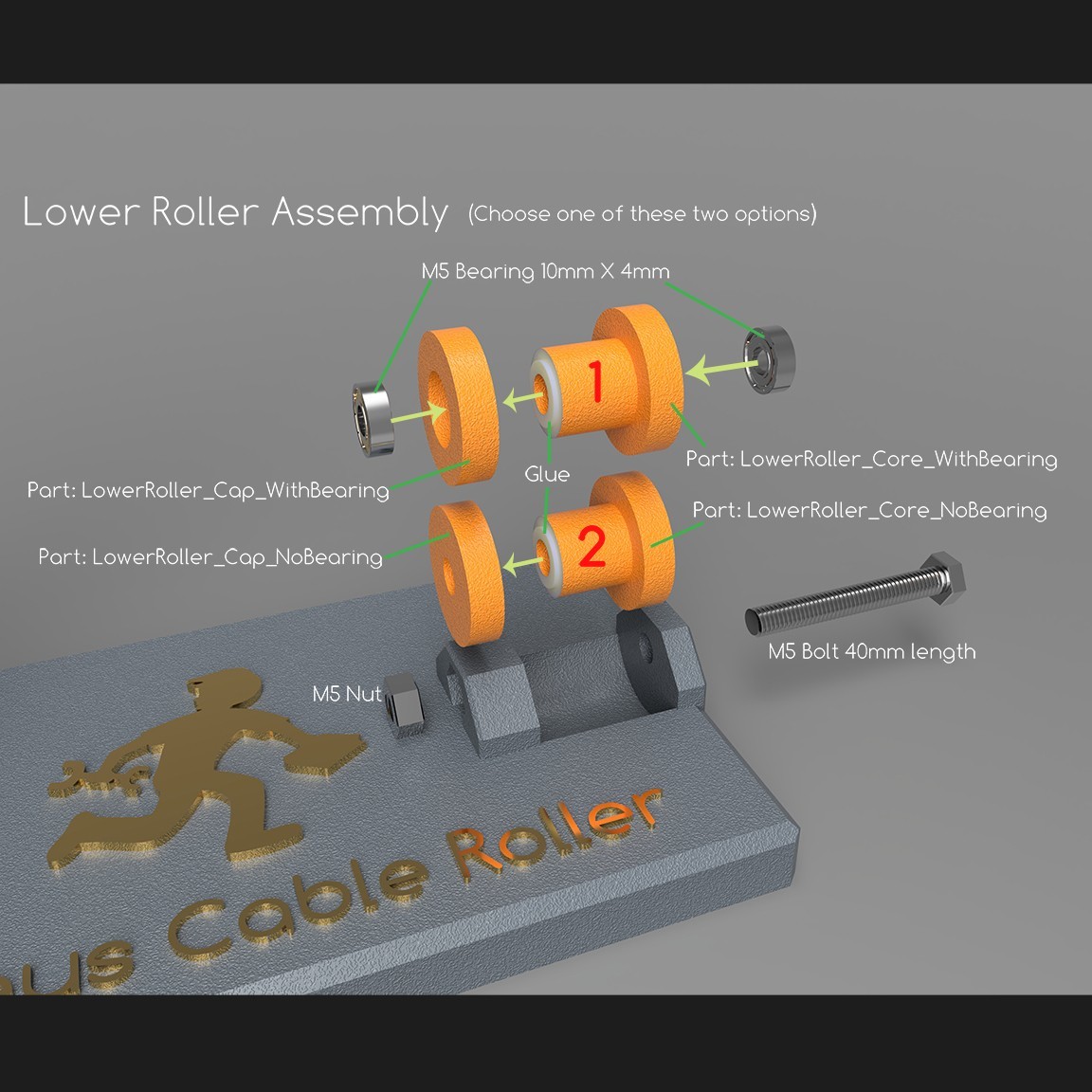

Base Roller: two options
With Bearings:

LowerRoller_Core_WithBearing
LowerRoller_Cap_WithBearing
Without Bearings:
LowerRoller_Core_NoBearing
LowerRoller_Cap_NoBearing

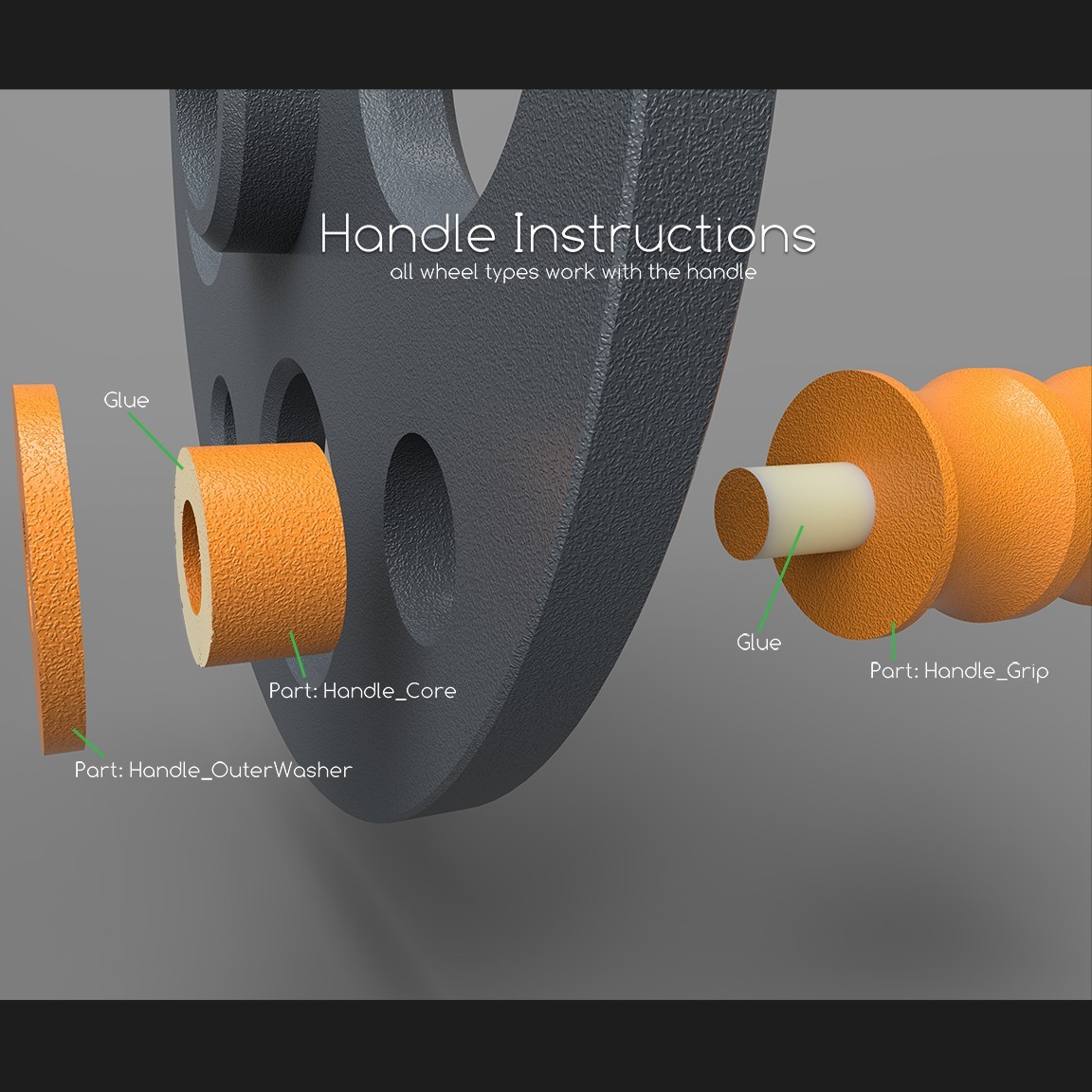

Optional Handle:

Handle_OuterWasher
Handle_Grip
Handle_Core
Dual Strut Design
you can not use a handle for this design, it will hit the strut.

Base-DualStrut
2X WheelWall_Bearing_ShortCore
WheelCore
this is the easiest and shortest print time design

Ideas/Suggestions
Let me know in the comments below what you think and if you have any ideas for these designs. There is much more that I could add but have kept it fairly simple to see how everyone uses the Cable Roller.

If you're like me and find this to be extremely useful then please share it and print some for friends/family/coworkers. Our lives get better the more people start using 3D Printers for everyday objects.

Enjoy!

Disclaimer: I am letting anyone use this design for free. Selling this design or any version of this product is not allowed under Creative Commons licensing. You are allowed to print, share, give away your prints for free, or use this design in any way that does earn you monetary value.
If you do wish to sell these products please let me know and we can come an agreement.
