Propeller Thrust Meter

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.4k views
  • 5 likes
  • 51 downloads

3D model description

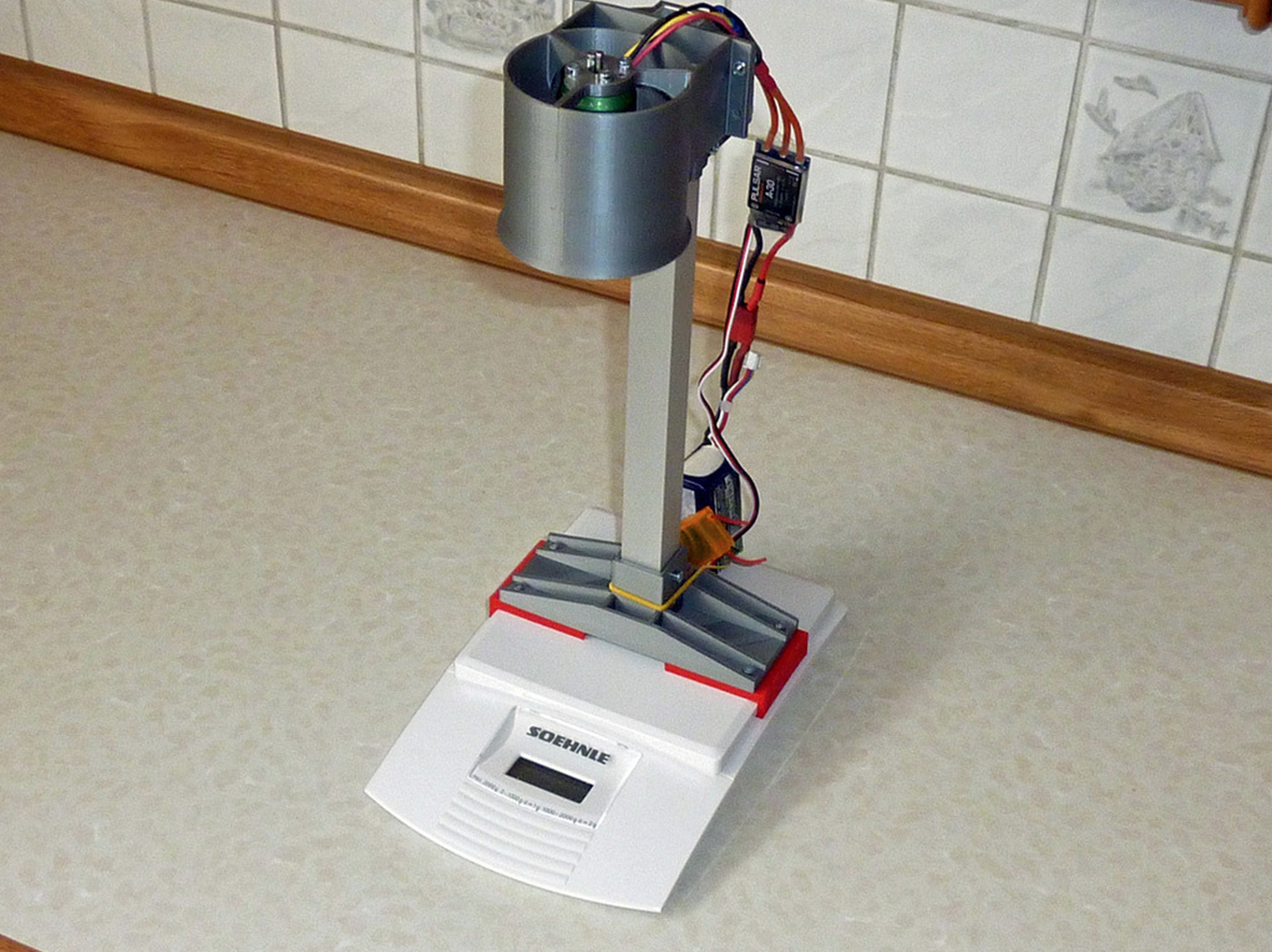

I wanted to test a new combination of a motor with a propeller. Then I found out that our kitchen scales could do it. It shows not only a weight, you can also pull up the scale pan because it is bonded to it. So you can measure the thrust in both directions.
It is possible at least with the "SOEHNLE" max 2000 g - if you have it by chance.
You need also a square tube 20 x 20 mm to fasten your test part with screws M3.
For testing my impeller you can fasten the housing with the "bracket for impeller".

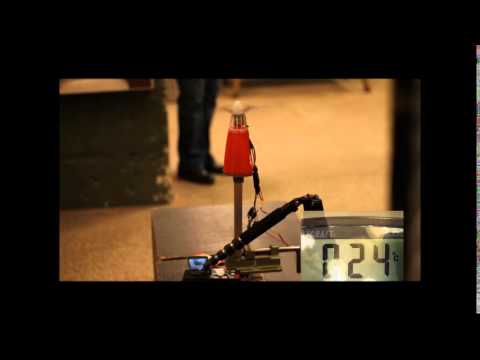

The second part of the video shows the test with the Roxxy Outrunner and a propeller 10 x 6" driven by a 3 cell battery. We measured the thrust, current flow and the temperature. Unfortunately we documented only the temperature. Anyway, the temperature is important if you use PLA to mount the motor. We reached 68°C residual heat - I think the nose should be better printed in ABS ;-)
I wanted to test a new combination of a motor with a propeller. Then I found out that our kitchen scales could do it. It shows not only a weight, you can also pull up the scale pan because it is bonded to it. So you can measure the thrust in both directions.
It is possible at least with the "SOEHNLE" max 2000 g - if you have it by chance.
You need also a square tube 20 x 20 mm to fasten your test part with screws M3.
For testing my impeller you can fasten the housing with the "bracket for impeller".
The second part of the video shows the test with the Roxxy Outrunner and a propeller 10 x 6" driven by a 3 cell battery. We measured the thrust, current flow and the temperature. Unfortunately we documented only the temperature. Anyway, the temperature is important if you use PLA to mount the motor. We reached 68°C residual heat - I think the nose should be better printed in ABS ;-)
You can see it here: http://youtu.be/yRqLzA4--oU
Attention
If you use it by thrust upwards, make sure that the scale pan is tight bonded and charge it more than the possible thrust (such as machine vice). Otherwise it will morph into a uncontrollable helicopter ;-)
Please proceed carefull and be aware that you will use it on your own risk.
Attention
If you use it by thrust upwards, make sure that the scale pan is tight bonded and charge it more than the possible thrust (such as machine vice). Otherwise it will morph into a uncontrollable helicopter ;-)
Please proceed carefull and be aware that you will use it on your own risk.

3D printing settings

Propeller Thrust Meter

  • 3D file format: STL
  • Last update: 2018/06/27 at 10:59
  • Publication date: 2015/08/18 at 14:00

License

CC BY SA

Tags

Creator

http://www.vizy.homepage.t-online.de/

I am constructing engineer for powerplants. Designing was allways my passion and I am glad, now as a pensioner, to have interesting challenges again.
I want to give thanks to the
http://www.hackerspace-ffm.de
