project enclosure for 12PSU, prototype board and voltmeter

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.1k views
  • 1 like
  • 11 downloads

3D model description

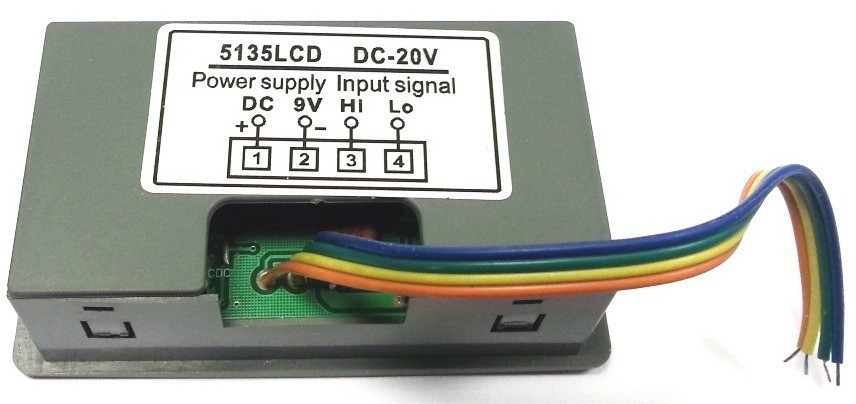

an enclosure/cover for a Mean Well 12 PSU Model RS-15-12 and a prototype board (75.5x51mm) plus enclosure for a panel voltmeter 5135-LCD DC-20 ( 79x42x26mm )
on a column.

The mains switch is from mouser.com :
http://eu.mouser.com/ProductDetail/E-Switch/R6ABLKREDAF/?qs=sGAEpiMZZMtNT9UGfLL4eD%2ffQBVjEjwGqdlbQiyh%252bKc%3d

datasheet of the switch :http://www.mouser.com/ds/2/140/R6-346382.pdf

tumbler switches are mini ones with ∅ 6mm neck

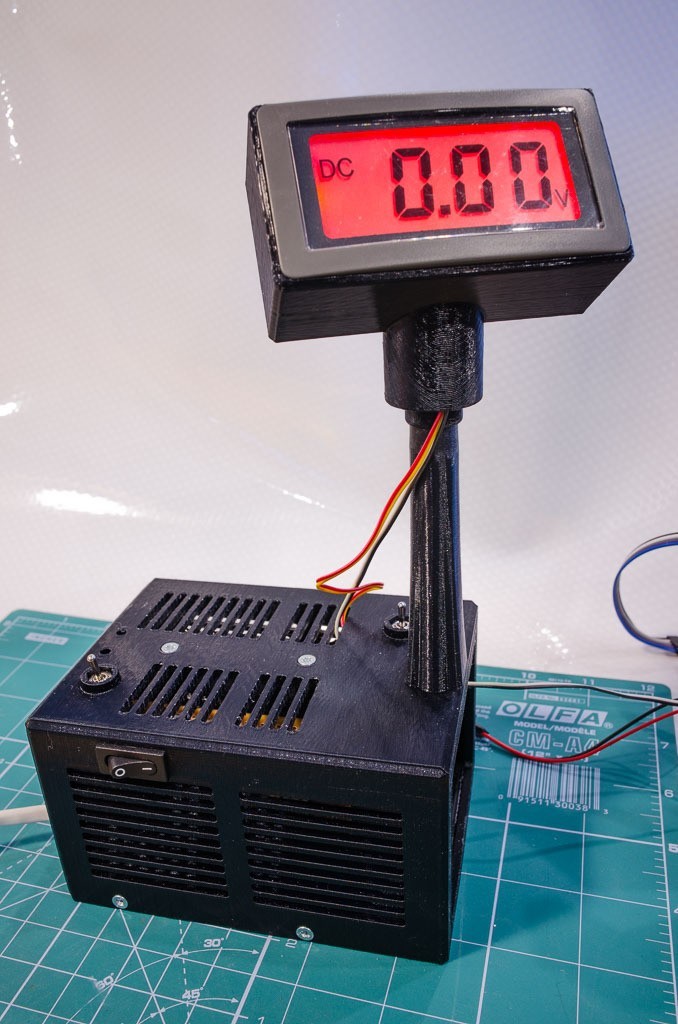

Originally the backlight of this voltmeter is blue, but I have burned those blue LEDs while torture-testing power voltage for this voltmeter (backlight died at >12V) and soldered two red and one yellow in the middle and added 500Ω load resistor - hence rose colour of backlight

3D printer file information
