Printshield v1.0 for Arduino printbots [Git repo]

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 698 views
  • 1 like
  • 7 downloads

3D model description

Download (Git): Now all the files are hosted in GitHub: https://github.com/carlosgs/ArduSkybot/tree/master/Electronics

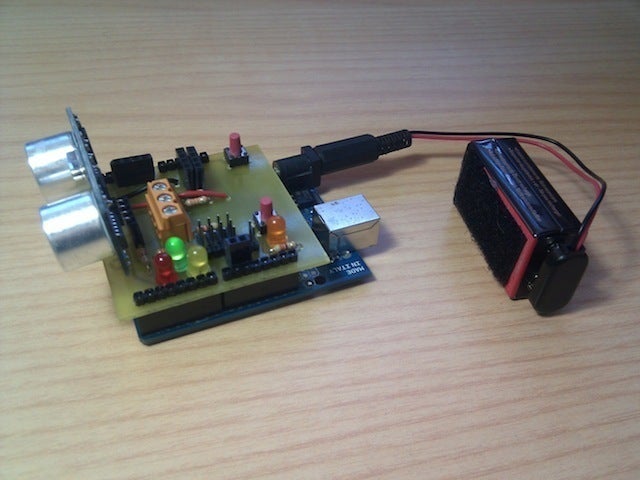

Circuit board that simplifies making Printbots based on Arduino UNO! :)

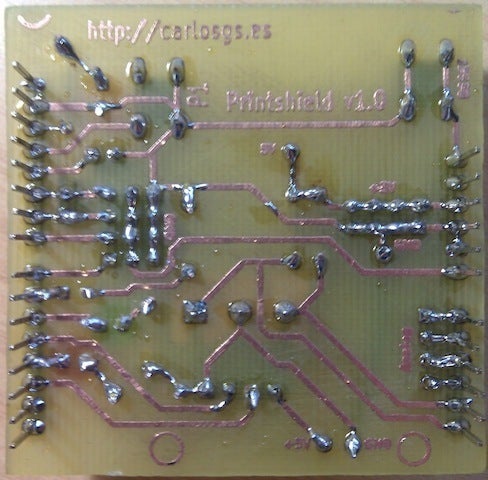

It is one-sided so anyone can make it easily.

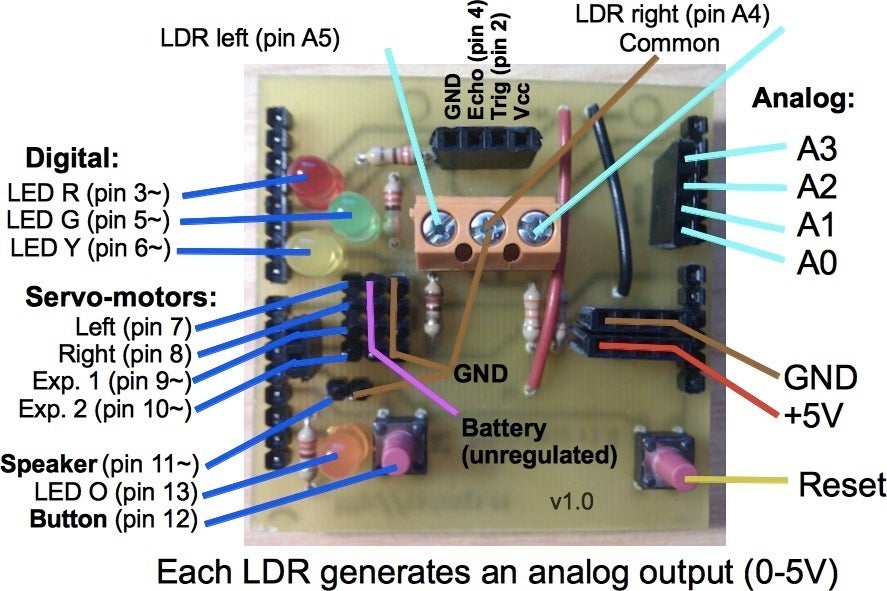

Features:

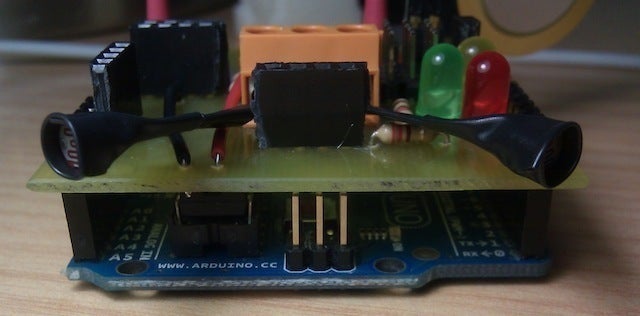

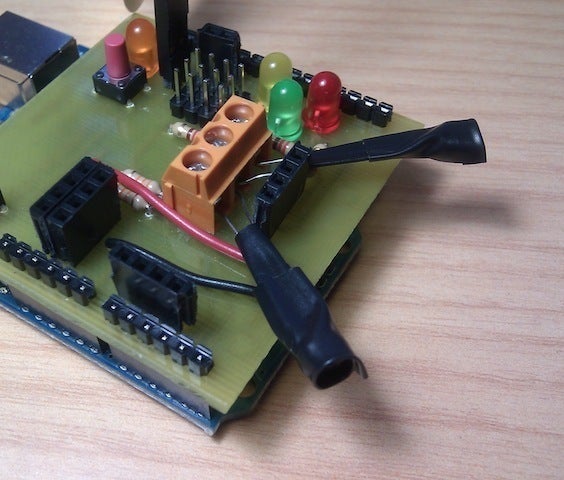

-Two light sensors (LDR)

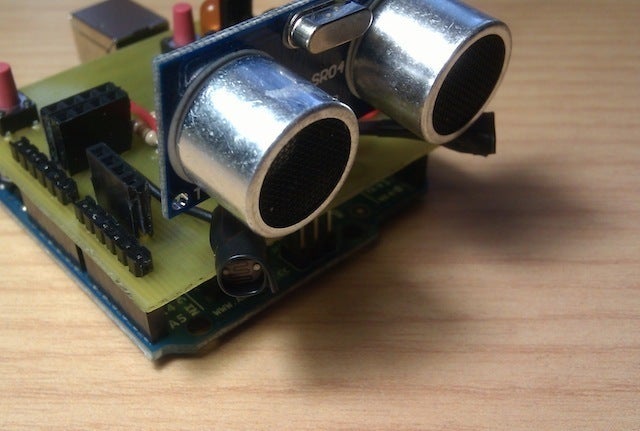

-One ultrasonic distance sensor

-Two buttons

-Four LEDs

-Four servo-motor connectors

-Compatible with CNY70 board (http://www.thingiverse.com/thing:26819)

Component values:

The cap is 1000uF 6.3V (between +5V and ground), LED resistors 330ohm, LDR resistors 33kohm

3D printing settings

You can use one of this methods to make the PCB:
youtube.com/watch?v=QQupRXEqOz4
instructables.com/id/Toner-transfer-no-soak-high-quality-double-sided/ (this one didn't work for me, you should try it anyway...)

I have uploaded also the connection diagram so you can see the components :)

Modifications (will be added in v2.0)
- You should power the Arduino with at least 9V and place a capacitor in the 5V line when using servomotors (otherwise the board will reset due to voltage peaks).
- It is a good idea to add one diode in series with the power line for the servos, this will help minimize voltage peaks that affect the 5V line.

Uses:
- Arduino shield library: http://www.thingiverse.com/thing:9630
- Monolito library: http://www.iearobotics.com/wiki/index.php?title=Monolito

Designed with Kicad

  • 3D file format: PDF
  • Publication date: 2019/07/31 at 14:38

Tags

Creator

Designs 51
Downloads 3.5k
Followers 28

License

CC BY SA
