Printer Drawers For Ikea Lack Table

?
Creation's quality: 4.3/5 (11 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 6.9k views
  • 37 likes
  • 314 downloads

3D model description

Printer Drawers for Ikea Lack Table

INTRODUCTION

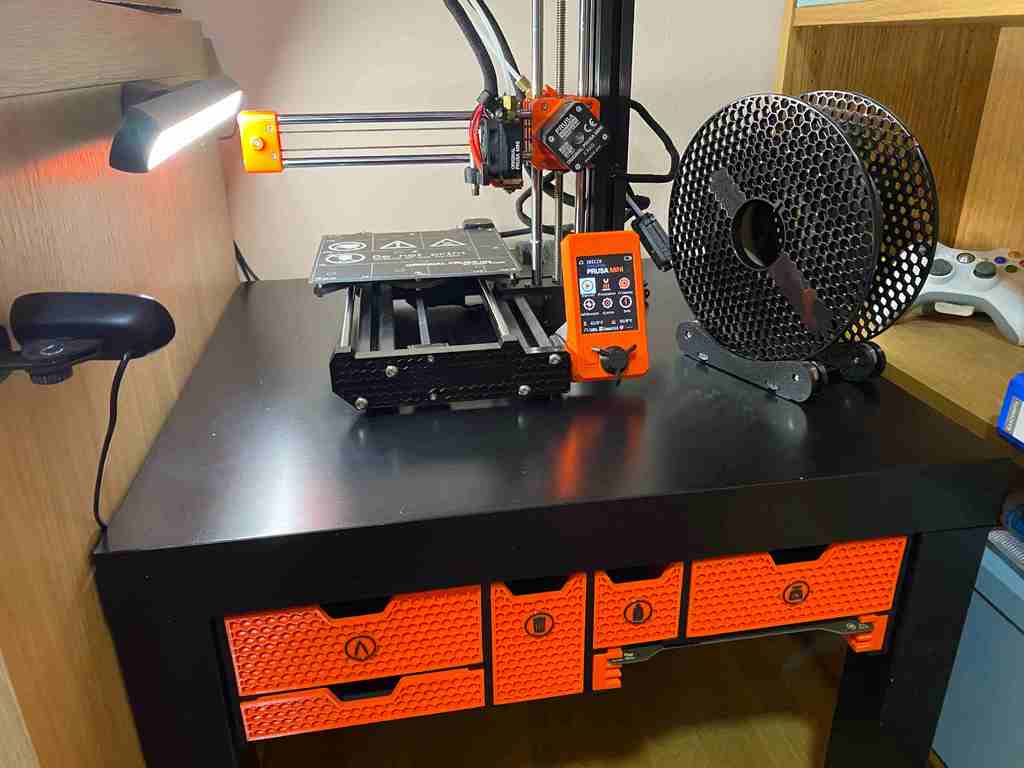

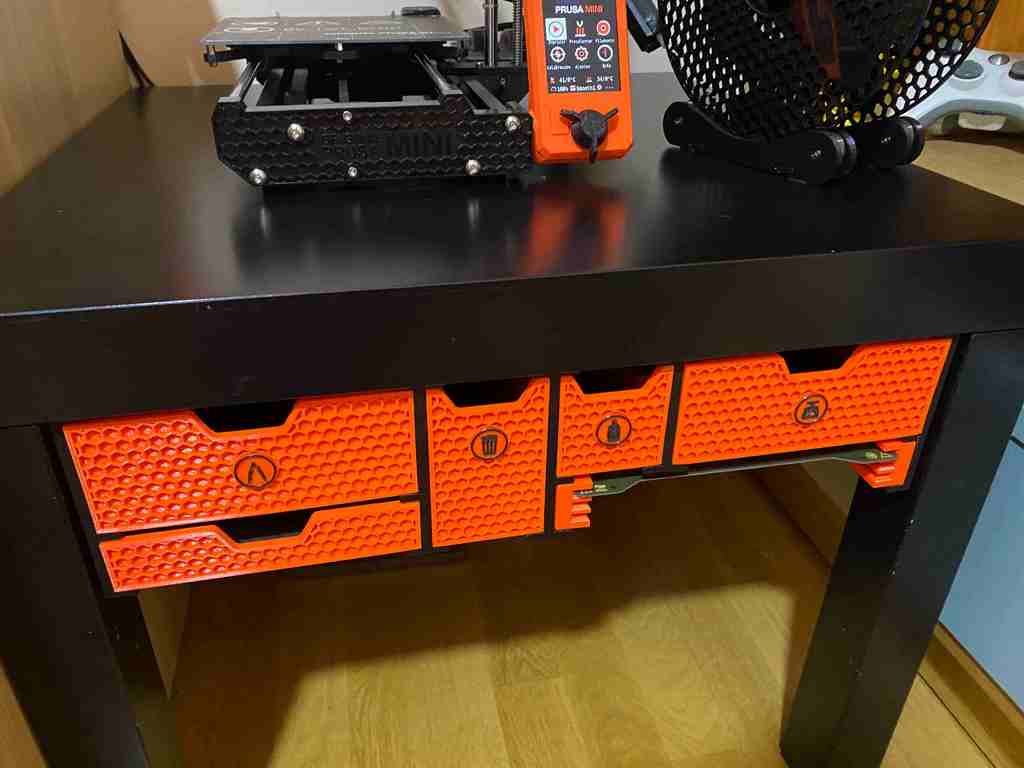

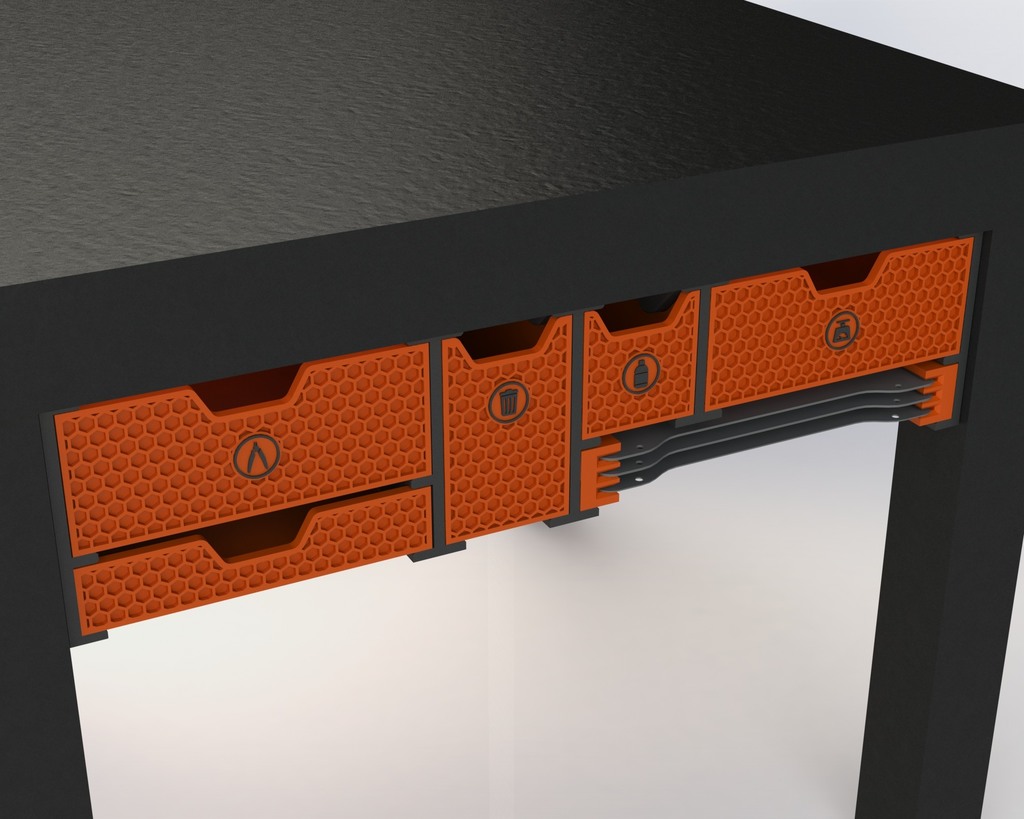

This set of drawers was originally designed for an Ikea Lack table, although they could fit under any table with a gap of at least 450mm.

VERSIONS

I have uploaded a total of six versions attending to all the suggestions I have received from the community, five with the slots for the steel sheets, and a sixth one without them:

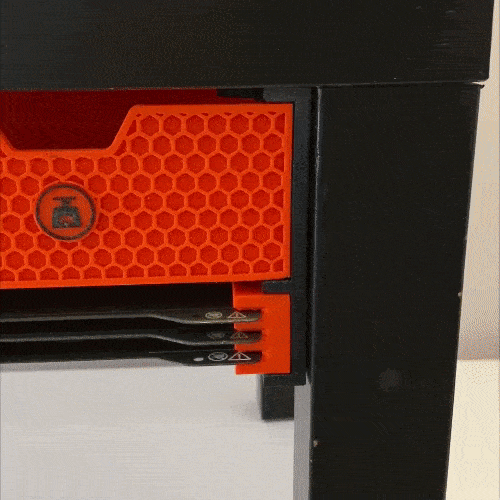

Printer Drawers Preview

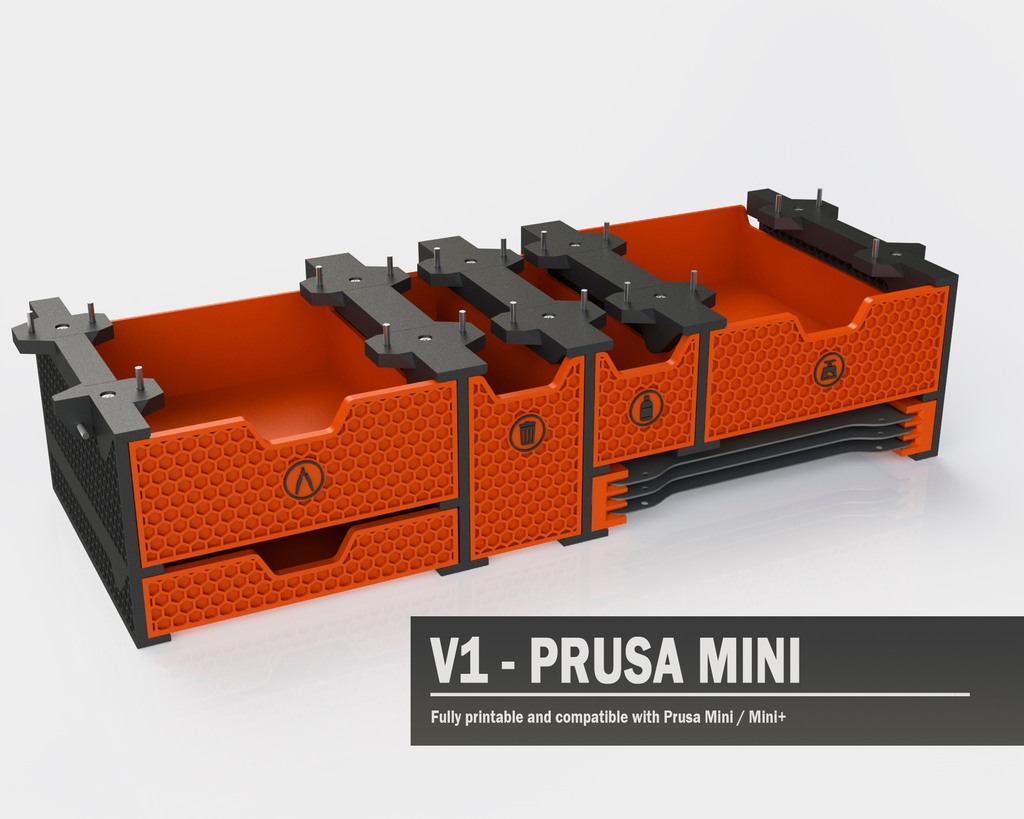

  • V1. Prusa Mini: The first version is designed for a prusa Mini / Mini+, and all parts are designed to fit its print bed.
  • V2. Prusa Mini +Plates: The second one is also designed for the Prusa Mini / Mini+, but this one will fit some extra plates, up to a total of six.

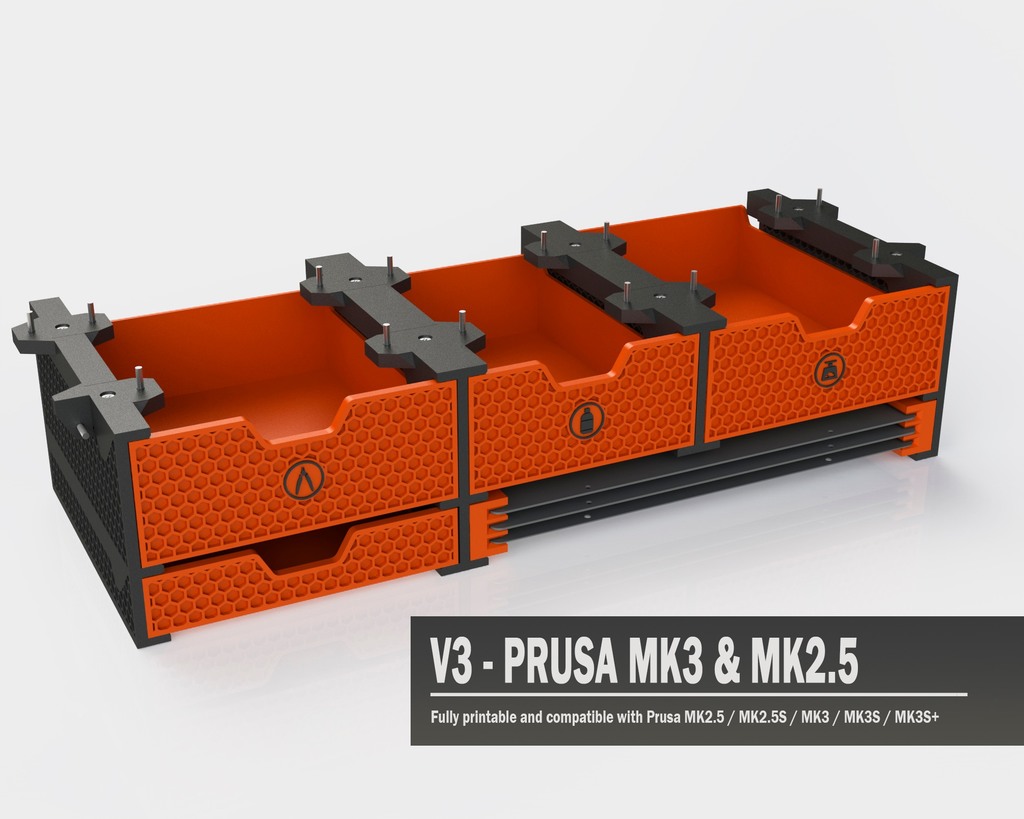

  • V3. Prusa MK3 & MK2.5: The third one is designed for a Prusa MK2.5 / MK2.5S / MK3 / MK3S / MK3S+ and again, all parts are designed to fit its print bed.
  • V4. Prusa MK3 & MK2.5: The fourth one is also designed for the Prusa MK2.5 / MK2.5S / MK3 / MK3S / MK3S+ , but this one will fit some extra plates, up to a total of six.

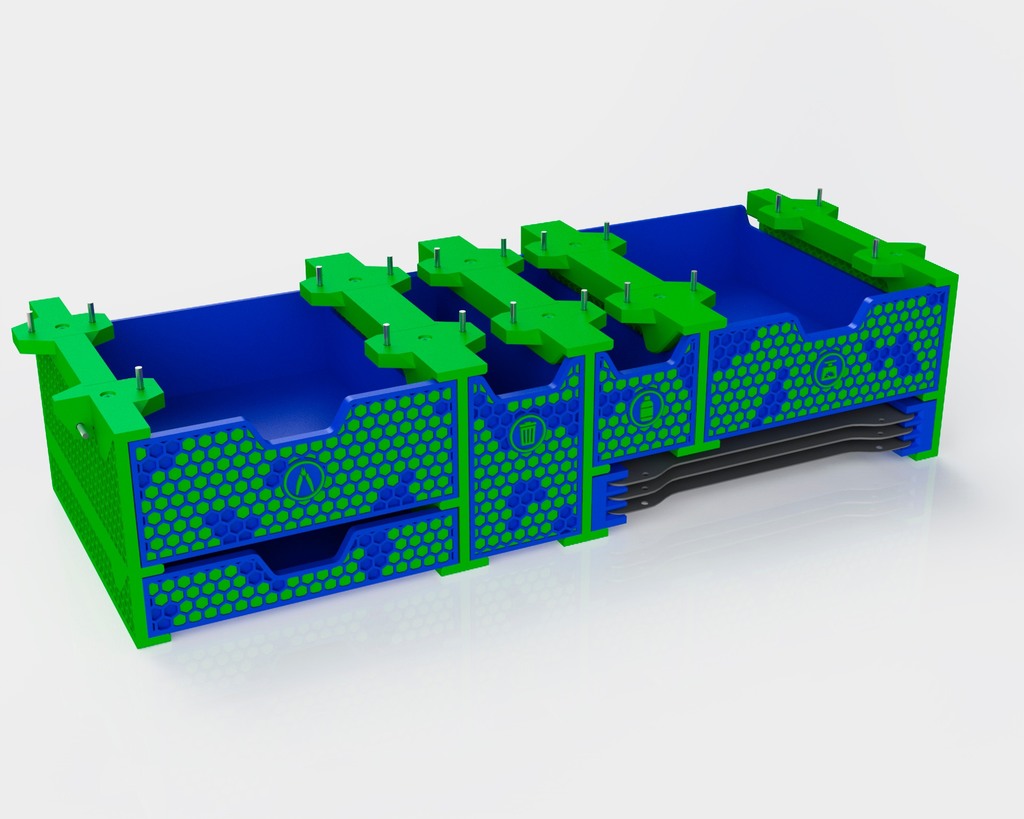

  • V5. Prusa Mini & MK3 & MK2.5: The fifth one is designed for all Prusa printers, an can fit up to a total of six print beds, from both the mini and the MK. It has been designed in a way so that each slot can fit both sheets, so it comes very polyvalent.

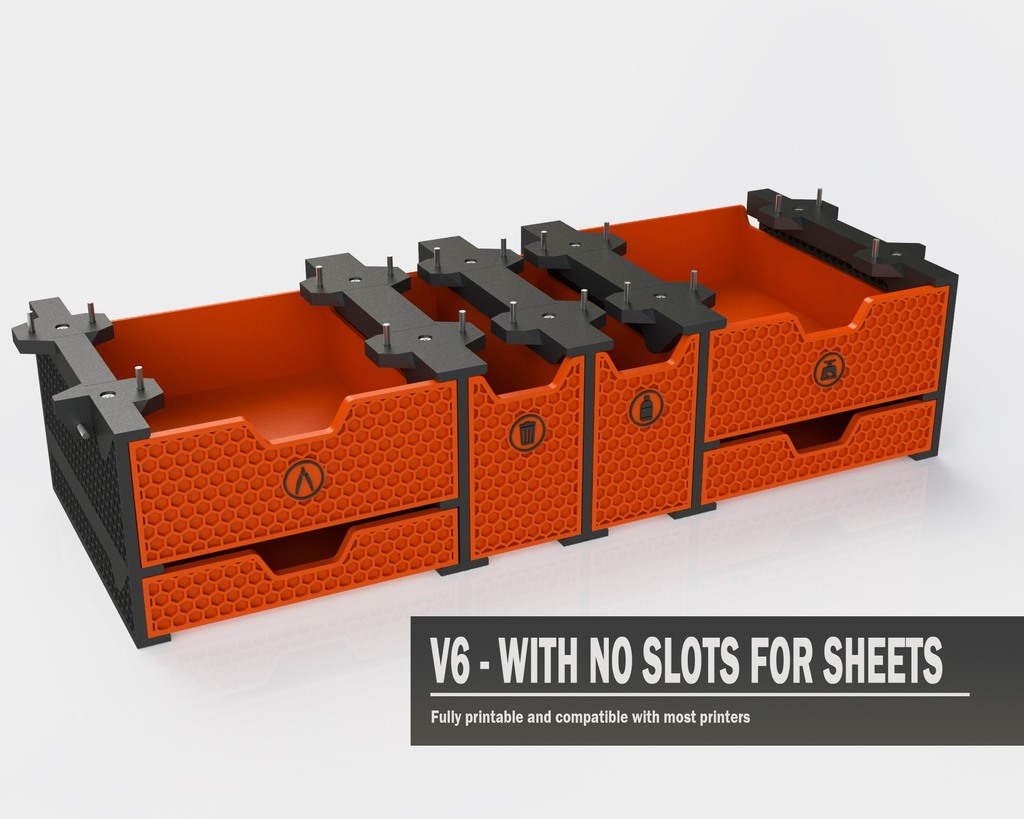

  • V6. With no slots for sheets: The sixth one is designed for any printer and comes with no slots for the print beds.

PART LIST

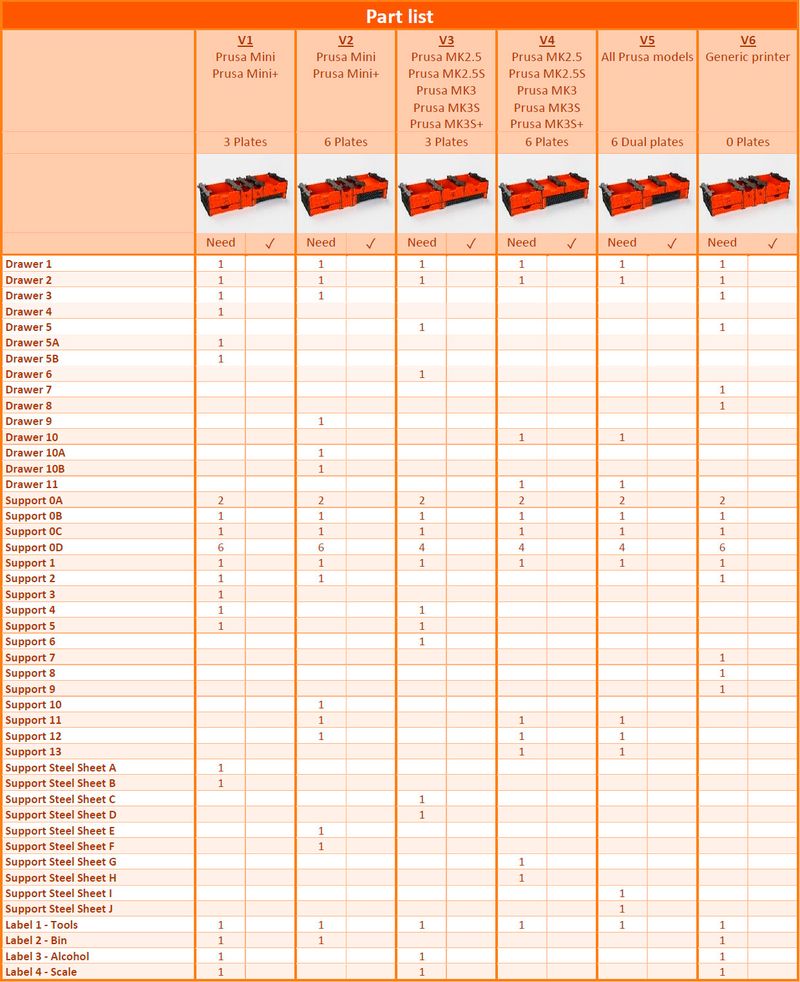

To make it easier which parts to print depending on the model you are looking for, I have created a part list included in the instructions where you can even mark the parts you have already printed.

FEATURES

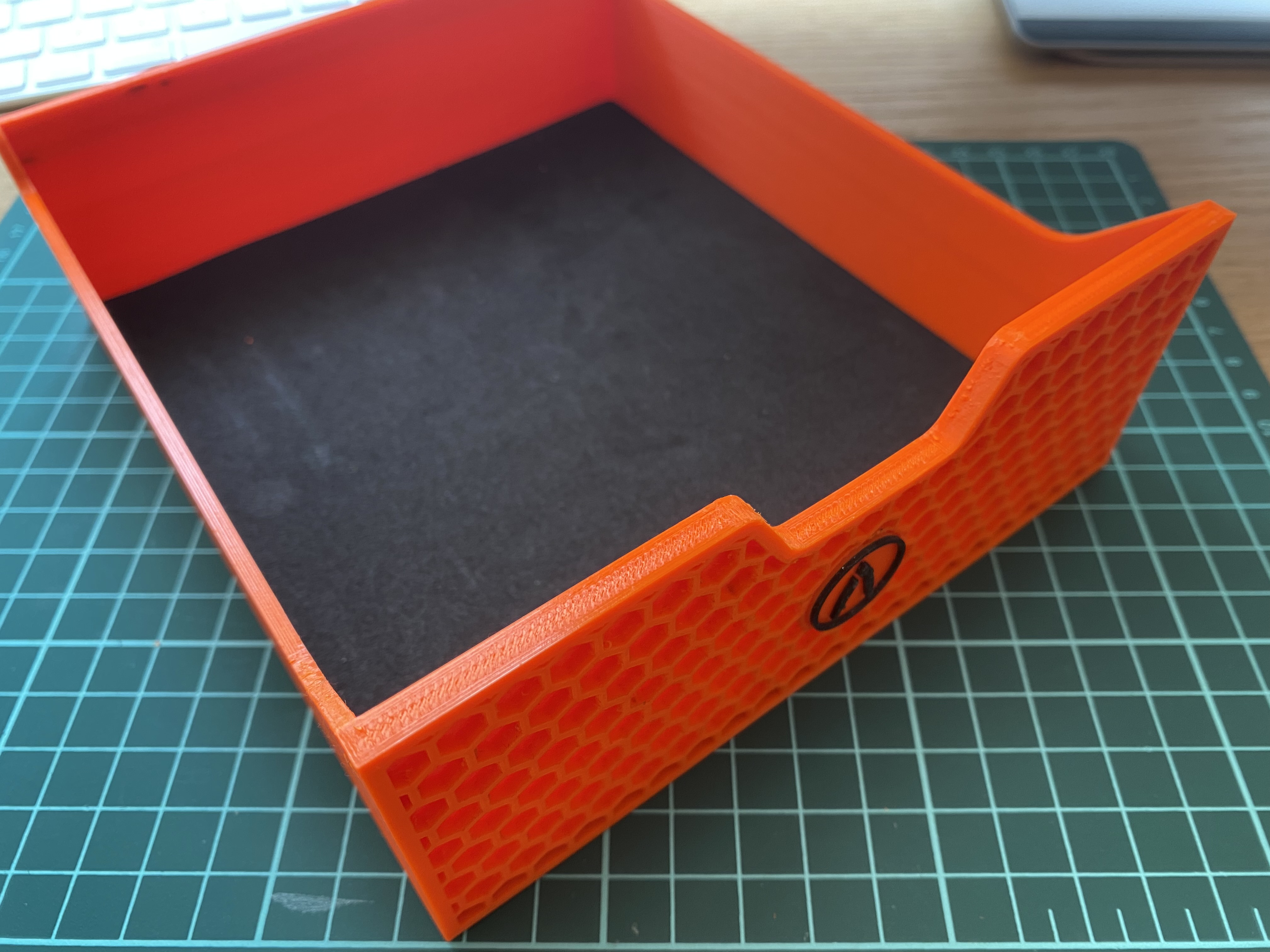

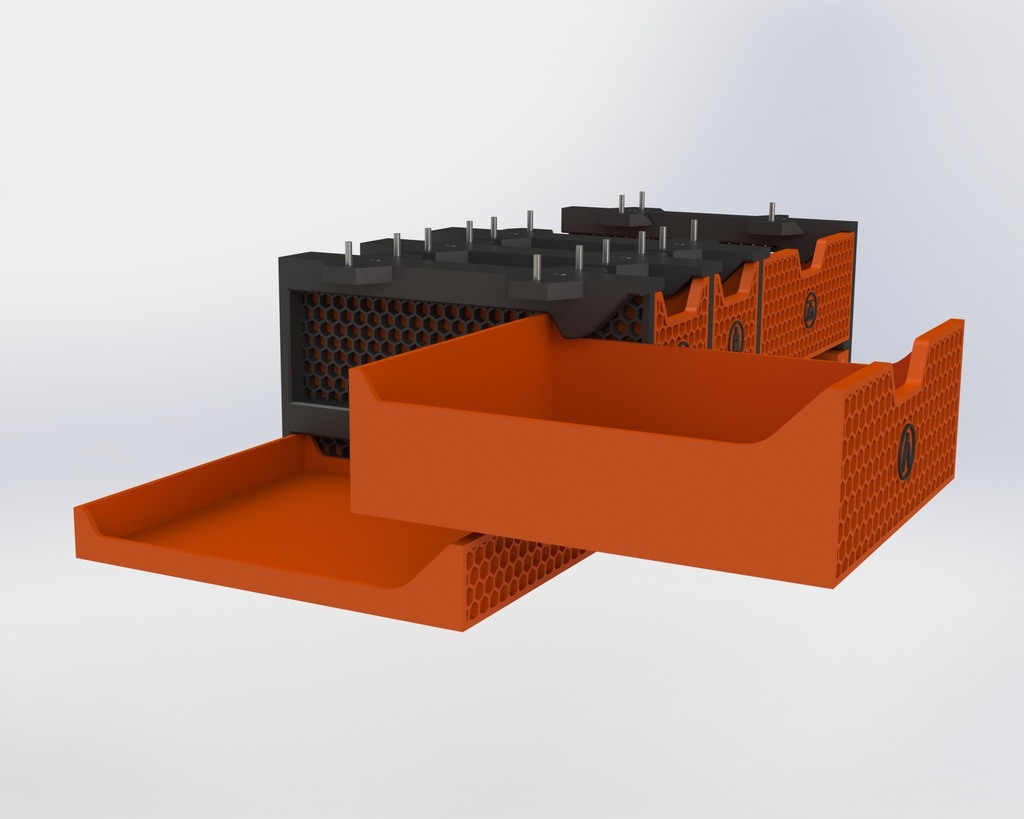

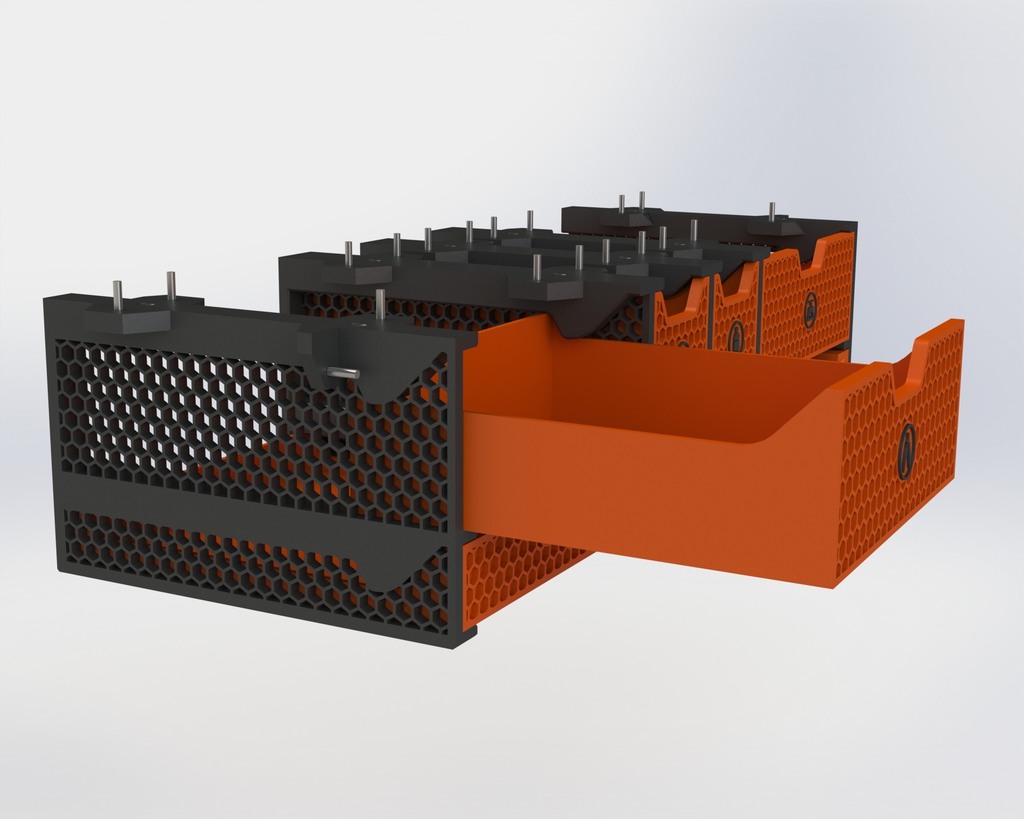

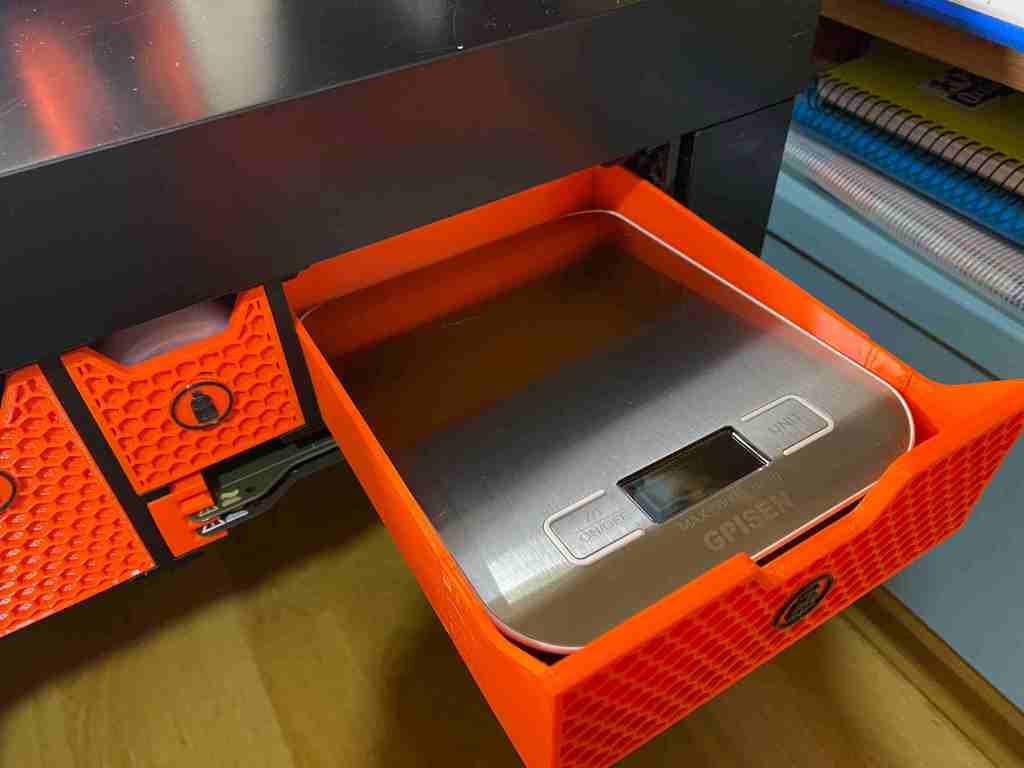

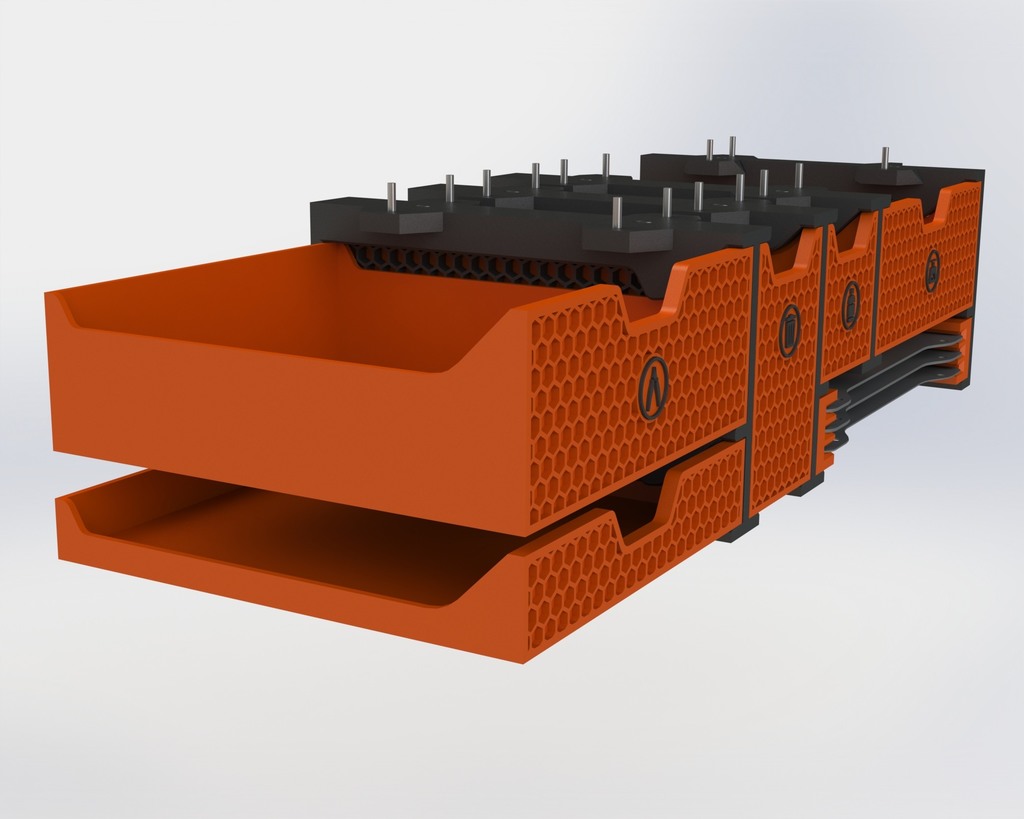

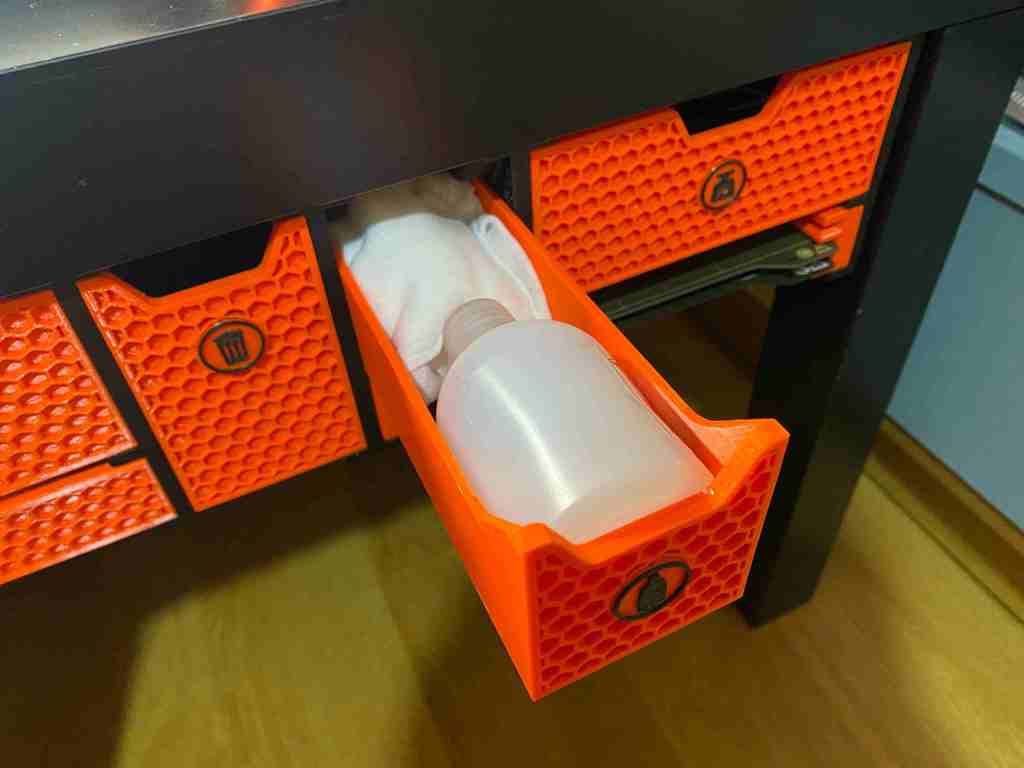

The drawers have been designed so that they don’t fall out when you pull from them so you can safely use them without worring of your stuff falling down.

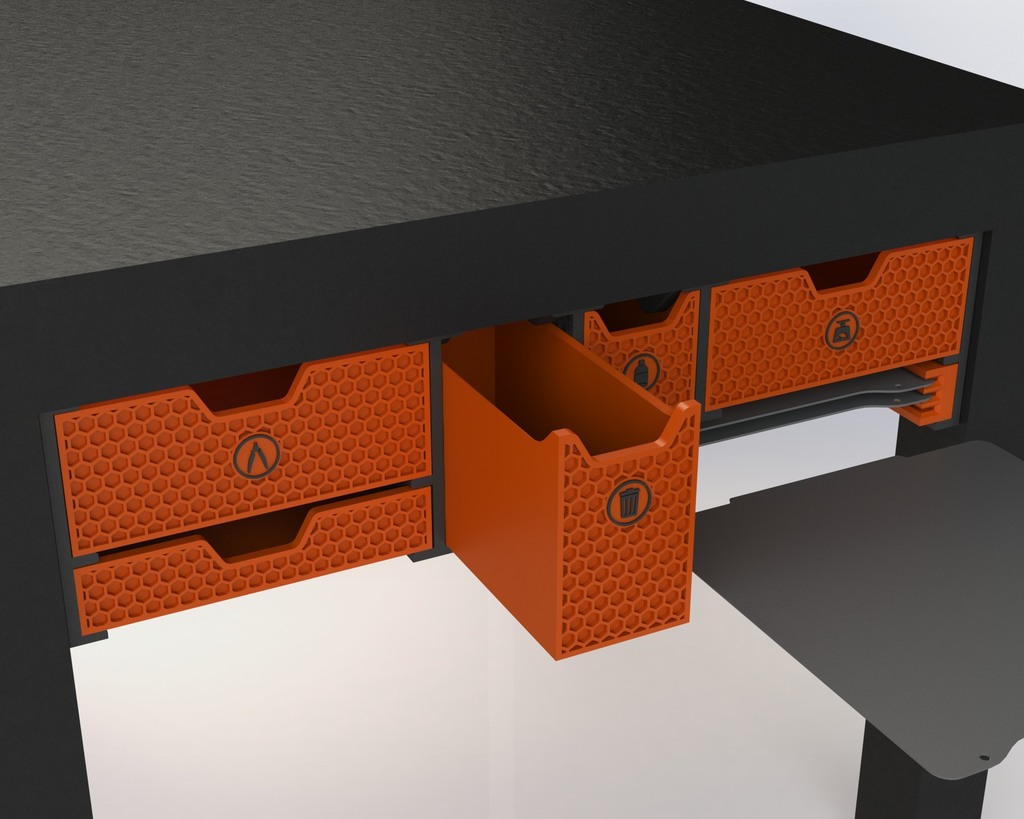

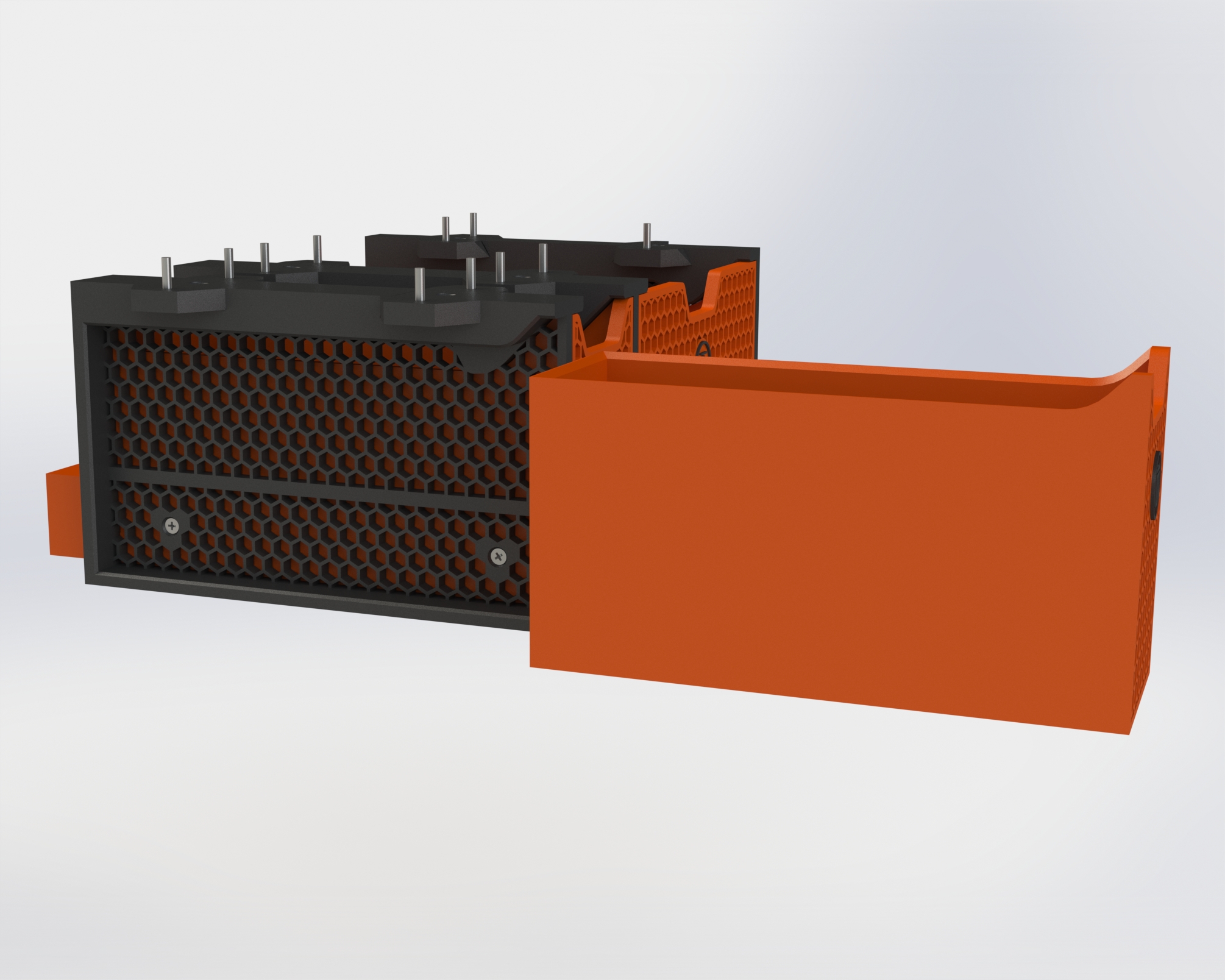

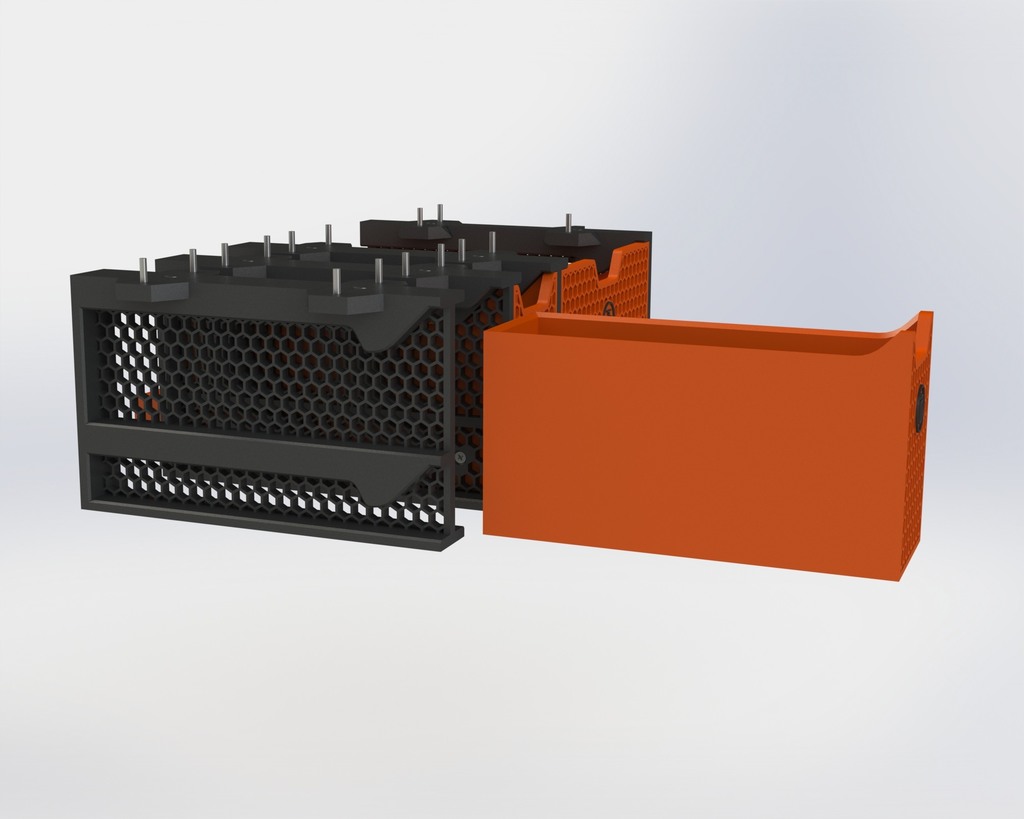

Only exception to this is the bin drawer, that has been designed in a way that can be easily pulled out so you can sweep your waste into it and also so that you can empty it easier.

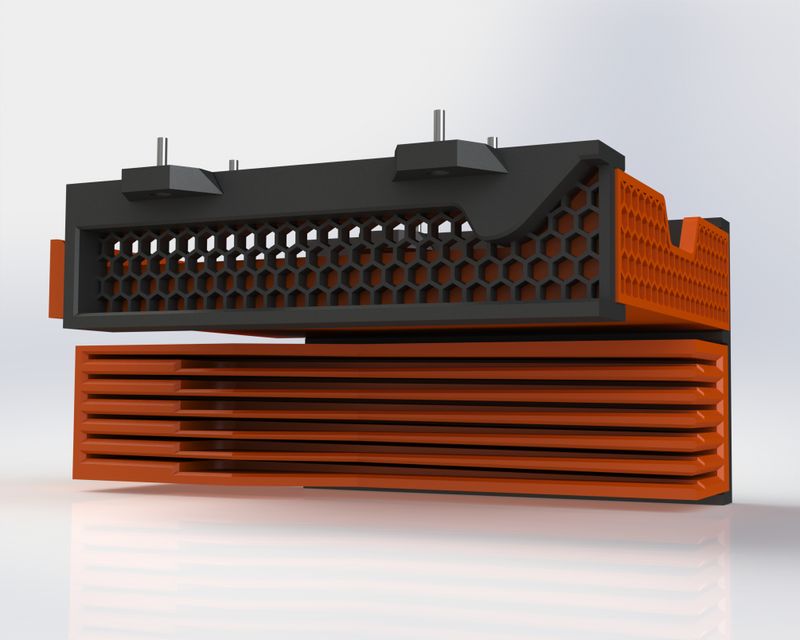

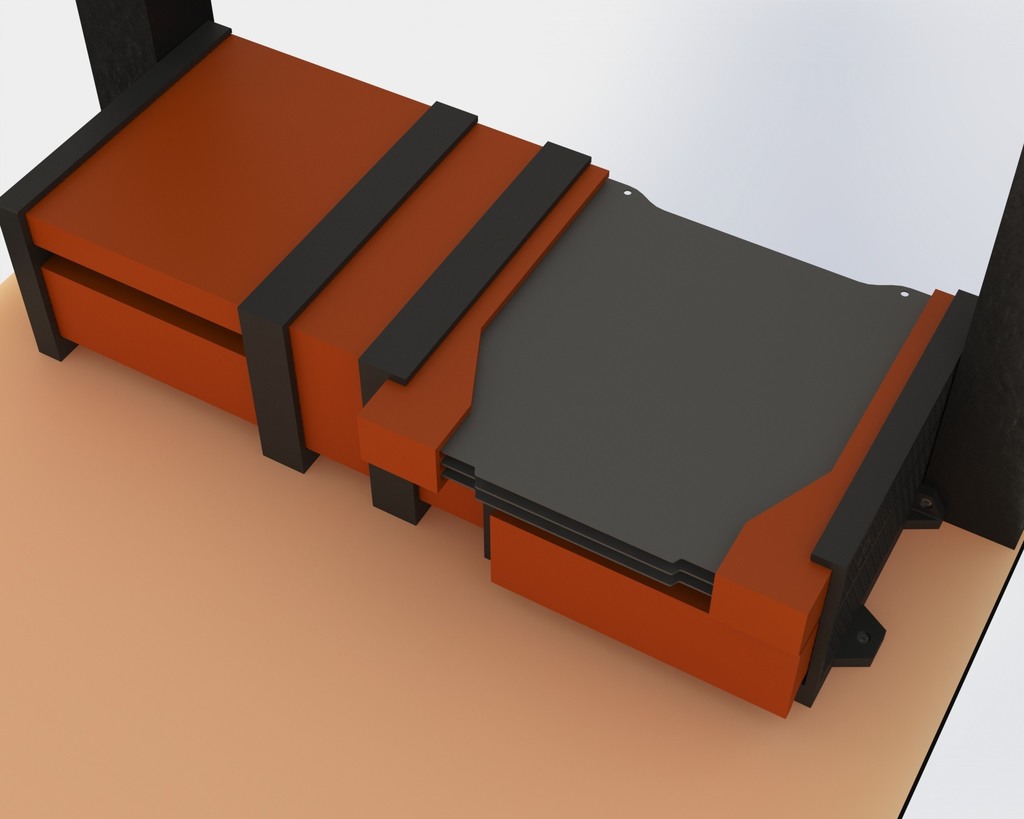

On top of this, the dual print bed supports on V5 are designed in a way so that both print sheets (Mini´s and MK´s) fit all slots, as there are dual slots for each print bed.

CUSTOMIZATION

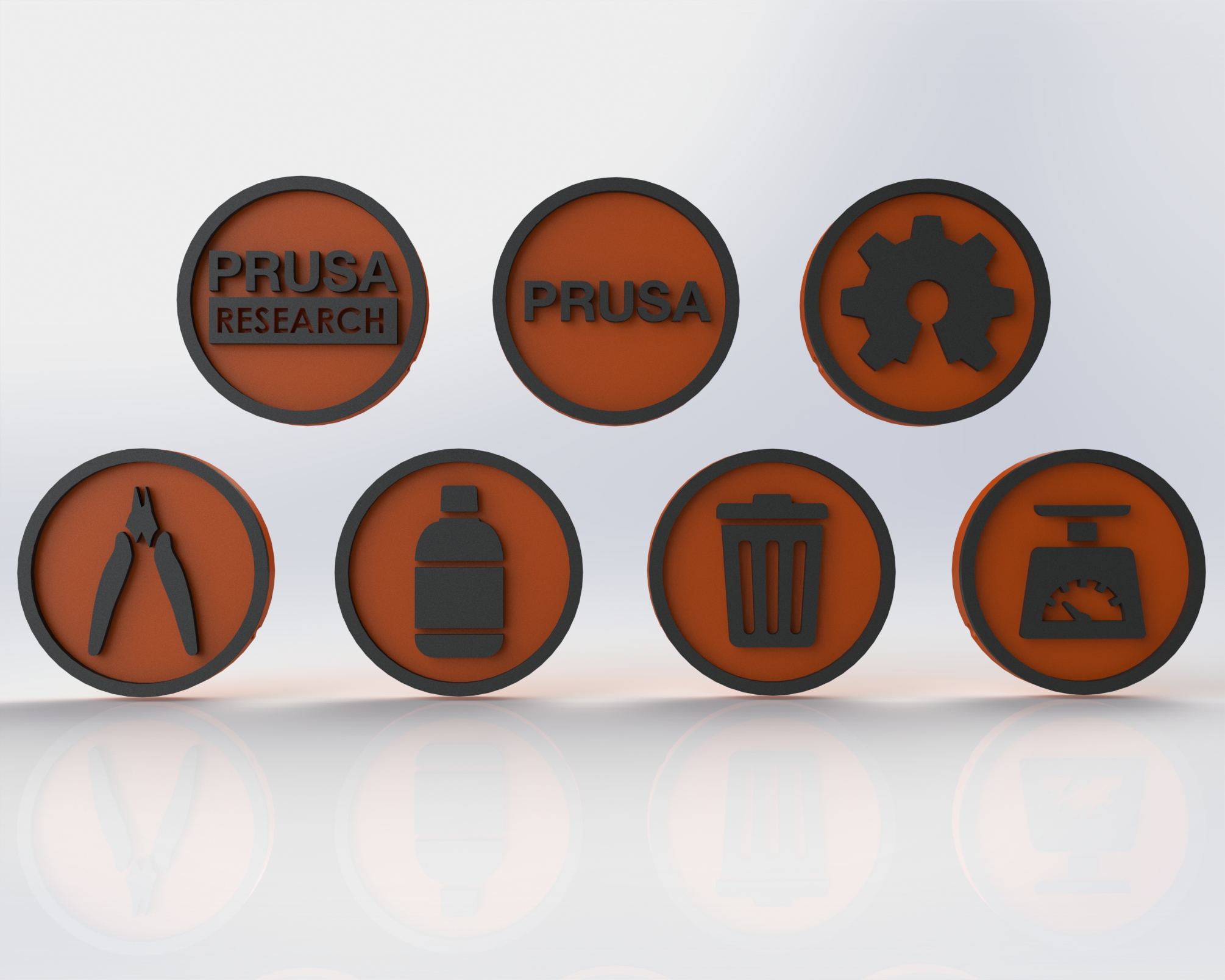

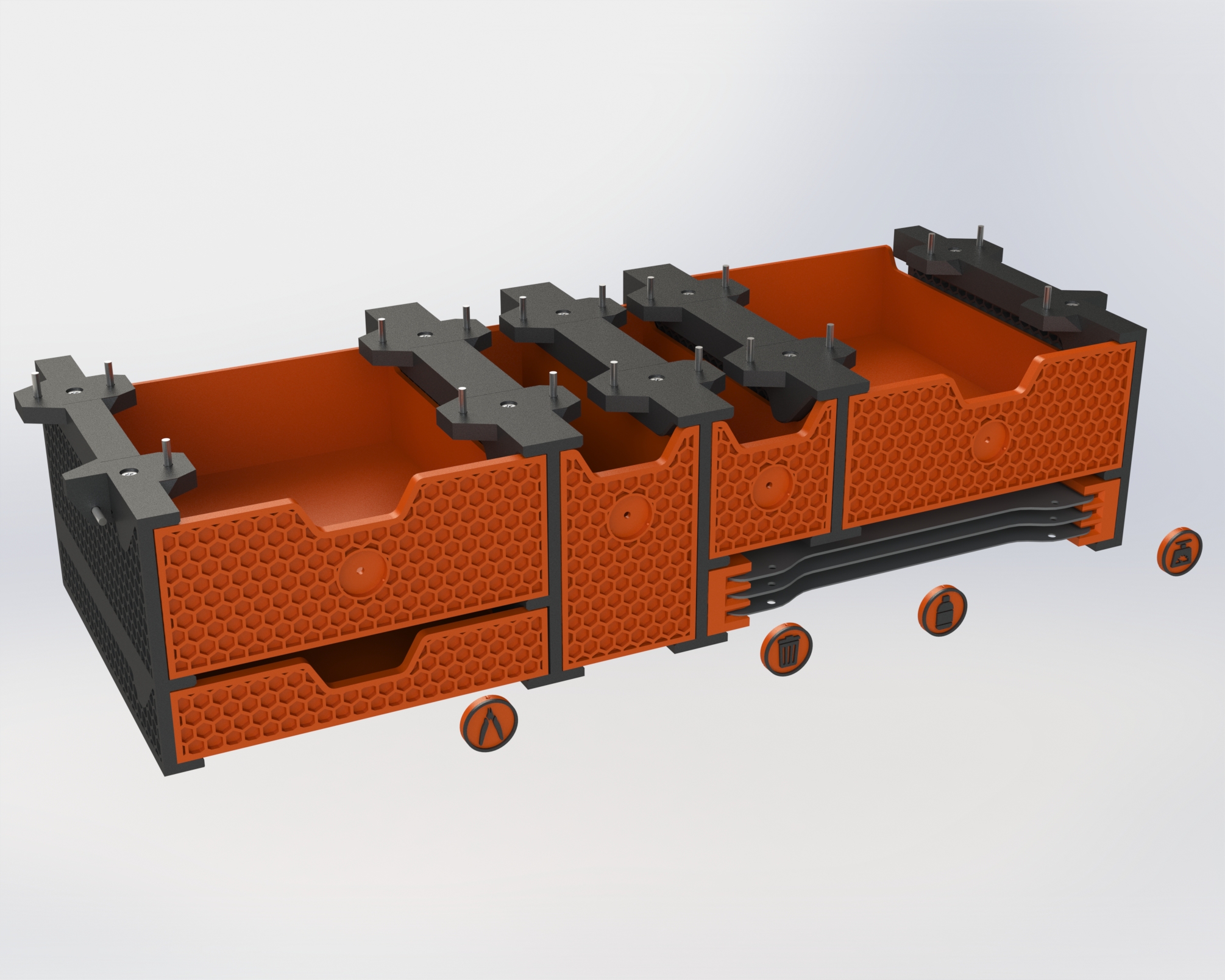

As I wanted the drawers to be fully customizable, I made the signs on the front removable, so you can easily take it out and change it. If you wanted me to design your own labels, feel free to contact me.

Furthermore, recently I have also uploaded some hexagon inserts so that you can make your drawers even more unique, thanks to an idea by Omega MiniProject

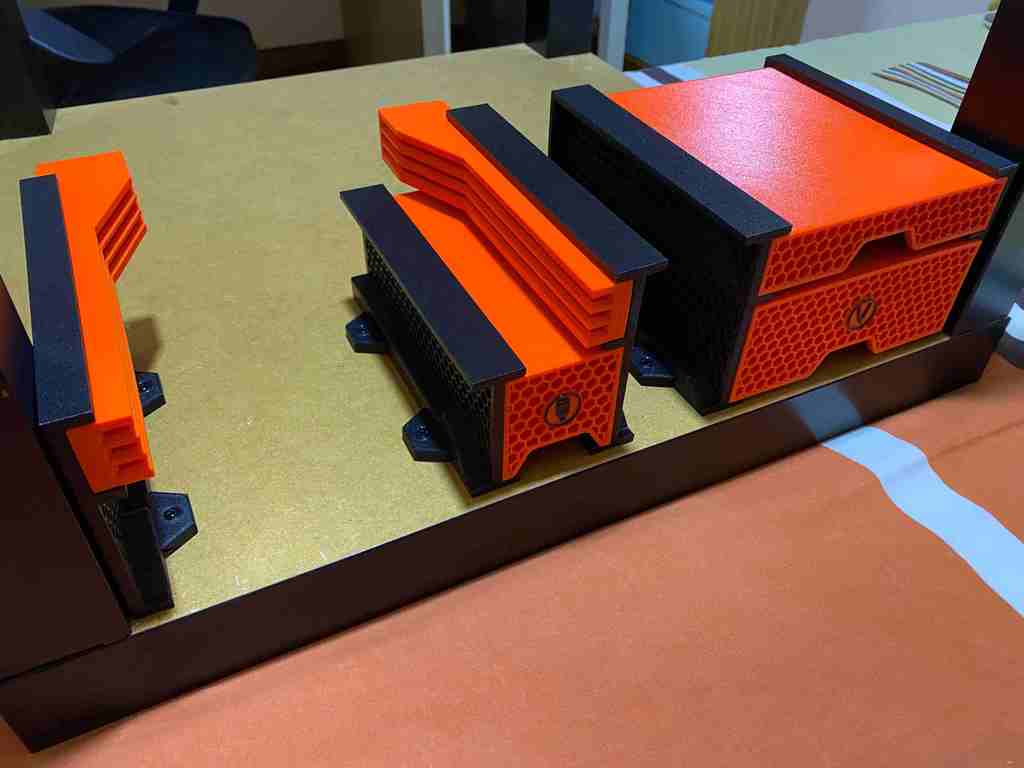

ASSEMBLY

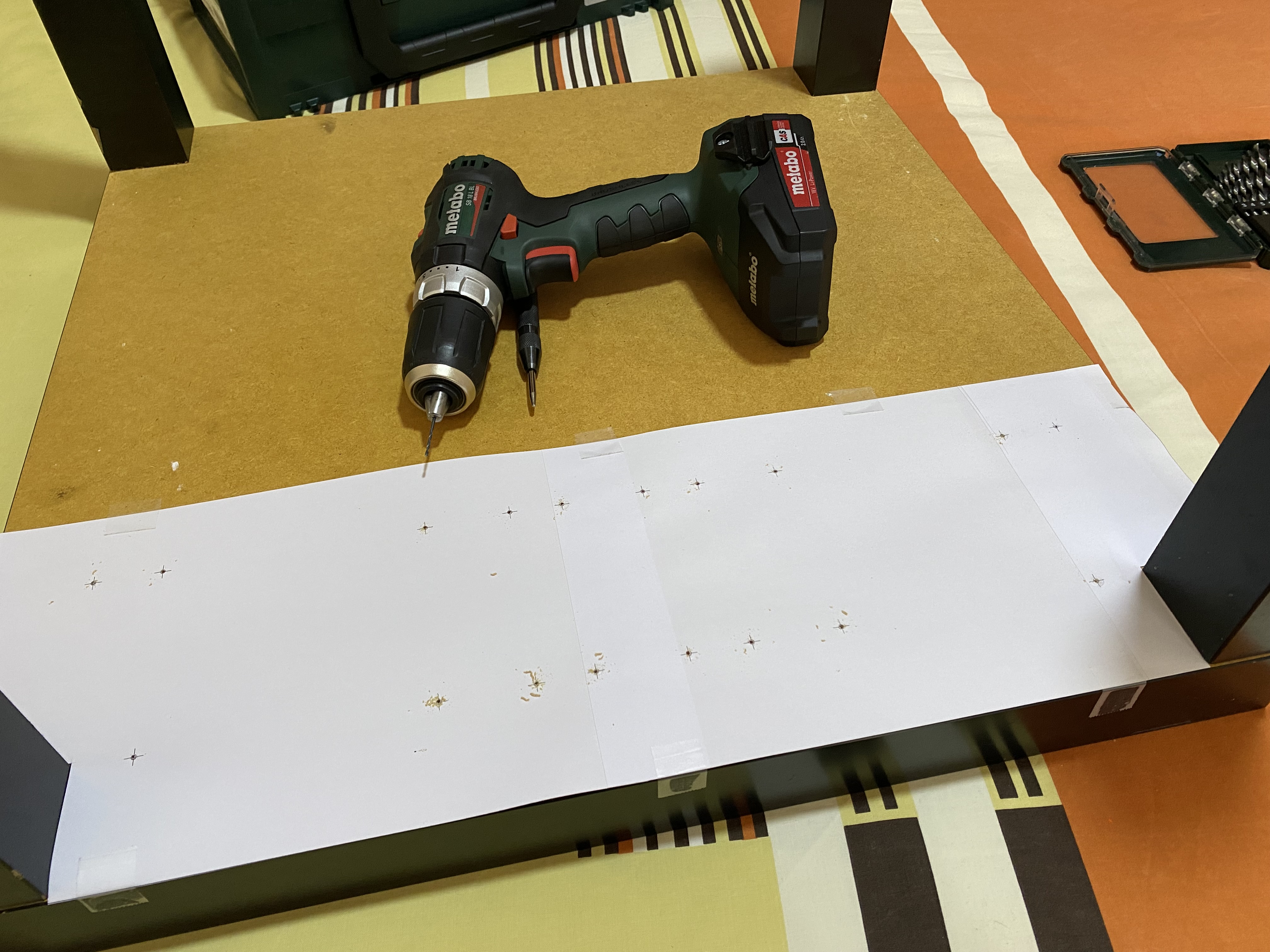

A pdf file with the assembly instructions and a template to mark the holes is attached, but also a video can be seen below with the assembly procedure:

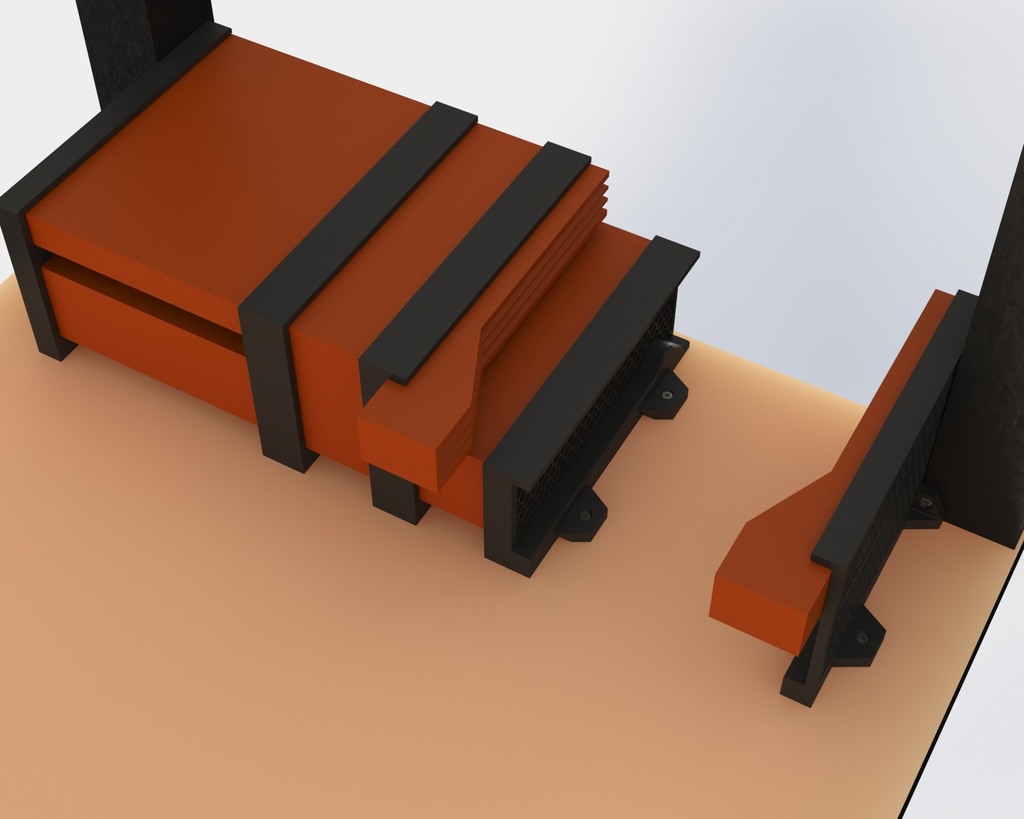

Printer Drawers For Ikea Lack Table Assembly Renderization

Furthermore, a full video of the assembly can be seen just below:

Printer Drawers For Ikea Lack Table Assembly Instructions

Anyway, if you had any questions don´t hesitate to contact me through Cults3d or DM me at Instagram, where you will find this and other cool designs and where you can follow me to be up to date:

SolidWorksMaker profile at Instagram

Or in Prusa Printers looking for SolidWorksMaker:

SolidWorksMaker profile at Prusa Printers

Follow me to keep updated and if you like this print, I would really appreciate it if you uploaded your make so everyone can see what a great setup you have with these drawers.


3D printing settings

-

3D printer file information

  • 3D design format: 3MF, GCODE, PDF, SLDPRT, and STL Folder details Close
    • Cajon 1_0.1mm_PETG_MINI_22h53m.gcode
    • Cajon 2_0.1mm_PETG_MINI_12h4m.gcode
    • Cajon 3_0.1mm_PETG_MINI_22h26m.gcode
    • Cajon 4_0.1mm_PETG_MINI_12h38m.gcode
    • Cajon 5A_0.1mm_PETG_MINI_11h11m.gcode
    • Cajon 5B_0.1mm_PETG_MINI_15h15m.gcode
    • Drawer 1 Hexagons.3MF
    • Drawer 1.3MF
    • Drawer 10 Hexagons.3MF
    • Drawer 10.3MF
    • Drawer 10A.3MF
    • Drawer 10B.3MF
    • Drawer 11 Hexagons.3MF
    • Drawer 11.3MF
    • Drawer 2 Hexagons.3MF
    • Drawer 2.3MF
    • Drawer 3 Hexagons.3MF
    • Drawer 3.3MF
    • Drawer 4 Hexagons.3MF
    • Drawer 4.3MF
    • Drawer 5 Hexagons.3MF
    • Drawer 5.3MF
    • Drawer 5A.3MF
    • Drawer 5B.3MF
    • Drawer 6 Hexagons.3MF
    • Drawer 6.3MF
    • Drawer 7 Hexagons.3MF
    • Drawer 7.3MF
    • Drawer 8 Hexagons.3MF
    • Drawer 8.3MF
    • Drawer 9 Hexagons.3MF
    • Drawer 9.3MF

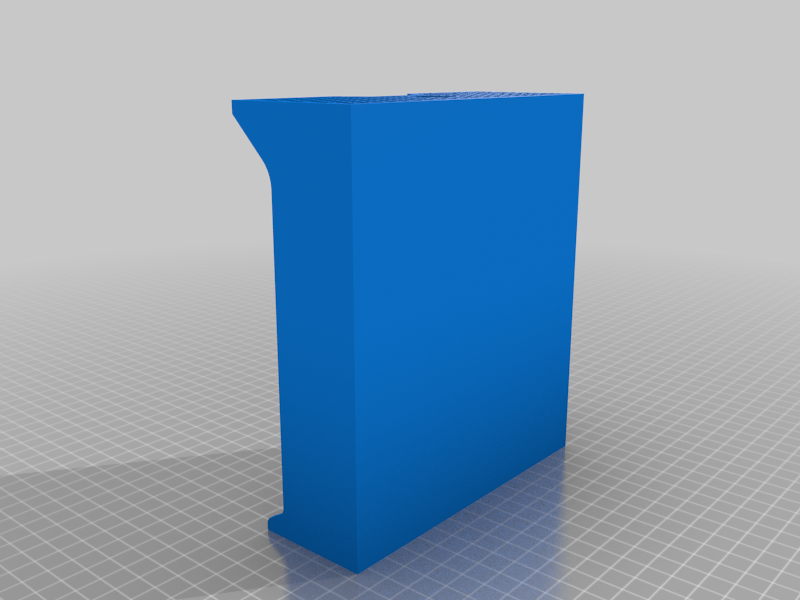

    • Drawer_1.STL
    • Etiquetas_0.1mm_PETG_MINI_1h7m.gcode
    • Generic Label.SLDPRT
    • Hexagons DR1, DR2, DR3, DR4_0.2mm_PLA_MINI_3h28m.gcode
    • Hexagons DR5_0.2mm_PLA_MINI_1h30m.gcode
    • Label 1 - Tools.3MF
    • Label 2 - Bin.3MF
    • Label 3 - Alcohol.3MF
    • Label 4 - Scale.3MF
    • Label 5 - Prusa.3MF
    • Label 6 - Prusa Research.3MF
    • Label 7 - Open Source.3MF
    • Soporte 0_0.1mm_PLA_MINI_10h2m.gcode
    • Soporte 1_0.2mm_PLA_MINI_7h31m.gcode
    • Soporte 2_0.2mm_PLA_MINI_12h4m.gcode
    • Soporte 3_0.2mm_PLA_MINI_12h22m.gcode
    • Soporte 4_0.2mm_PLA_MINI_8h11m.gcode
    • Soporte 5_0.2mm_PLA_MINI_7h58m.gcode
    • Soporte Steel Sheet A.SLDPRT
    • Soporte Steel Sheet A_0.1mm_PETG_MINI_12h15m.gcode
    • Soporte Steel Sheet B.SLDPRT
    • Soporte Steel Sheet B_0.1mm_PETG_MINI_12h15m.gcode
    • Soporte Steel Sheet C.SLDPRT
    • Soporte Steel Sheet D.SLDPRT
    • Soporte Steel Sheet E.SLDPRT
    • Soporte Steel Sheet F.SLDPRT
    • Soporte Steel Sheet G.SLDPRT
    • Soporte Steel Sheet H.SLDPRT
    • Support 0A.3MF
    • Support 0B.3MF
    • Support 0C.3MF
    • Support 0D.3MF
    • Support 1.3MF
    • Support 10.3MF
    • Support 11.3MF
    • Support 12.3MF
    • Support 13.3MF
    • Support 2.3MF
    • Support 3.3MF
    • Support 4.3MF
    • Support 5.3MF
    • Support 6.3MF
    • Support 7.3MF
    • Support 8.3MF
    • Support 9.3MF
    • Support Steel Sheet A.3MF
    • Support Steel Sheet B.3MF
    • Support Steel Sheet C.3MF
    • Support Steel Sheet D.3MF
    • Support Steel Sheet E.3MF
    • Support Steel Sheet F.3MF
    • Support Steel Sheet G.3MF
    • Support Steel Sheet H.3MF
    • Support Steel Sheet I.3MF
    • Support Steel Sheet J.3MF
    • Template - A4.pdf
    • Template - US Letter Size.pdf
    • V1 - Prusa Mini EN - Printer Drawers Assembly Instructions.pdf
    • V2 - Prusa Mini +Plates EN - Printer Drawers Assembly Instructions.pdf
    • V3 - Prusa MK EN - Printer Drawers Assembly Instructions.pdf
    • V4 - Prusa MK +Plates EN - Printer Drawers Assembly Instructions.pdf
    • V5 - Prusa Mini + MK EN - Printer Drawers Assembly Instructions.pdf
    • V6 - Generic EN - Printer Drawers Assembly Instructions.pdf

    Learn more about the formats

  • Last update: 2021/11/17 at 14:14
  • Publication date: 2021/10/14 at 01:12

Copyright

©

Tags

Creator

I’m a passionate about 3D designing, and now that I have a 3D printer I can say I love 3D printing as much as I love designing. I have loads of models I will be updating and new ones to come.

Issue with this design? Report a problem

Makes created by the community

Best sellers of the category Tools


Add a comment

One comment

Hello, I am David, the person behind SolidWorks Maker profiles, and I just wanted to say I hope you enjoy my design and to invite you to write me if you had any issues with the installation of the drawers.

Hi David, what size are the wood screws M4 x 8mm or M3 x 8mm?

Hi! you will need wood screws no longer than 8mm. The diameter is not that important, but I´d go for 3x8mm screws rather than 4x8mm. I hope that helps.
