3D model description

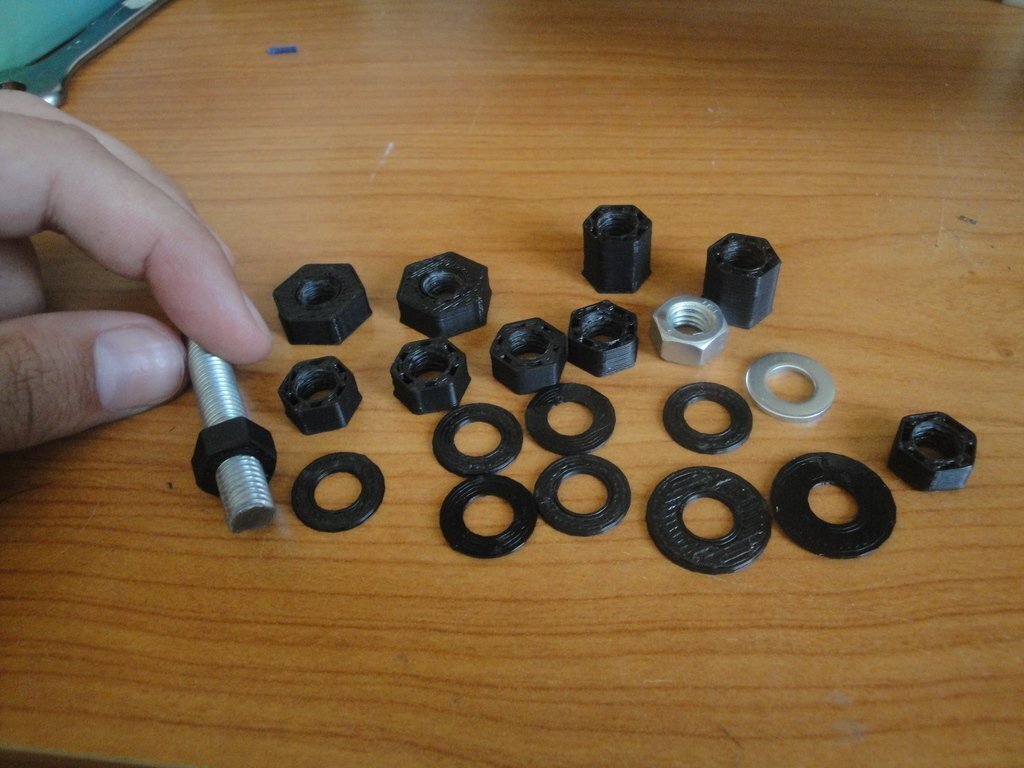

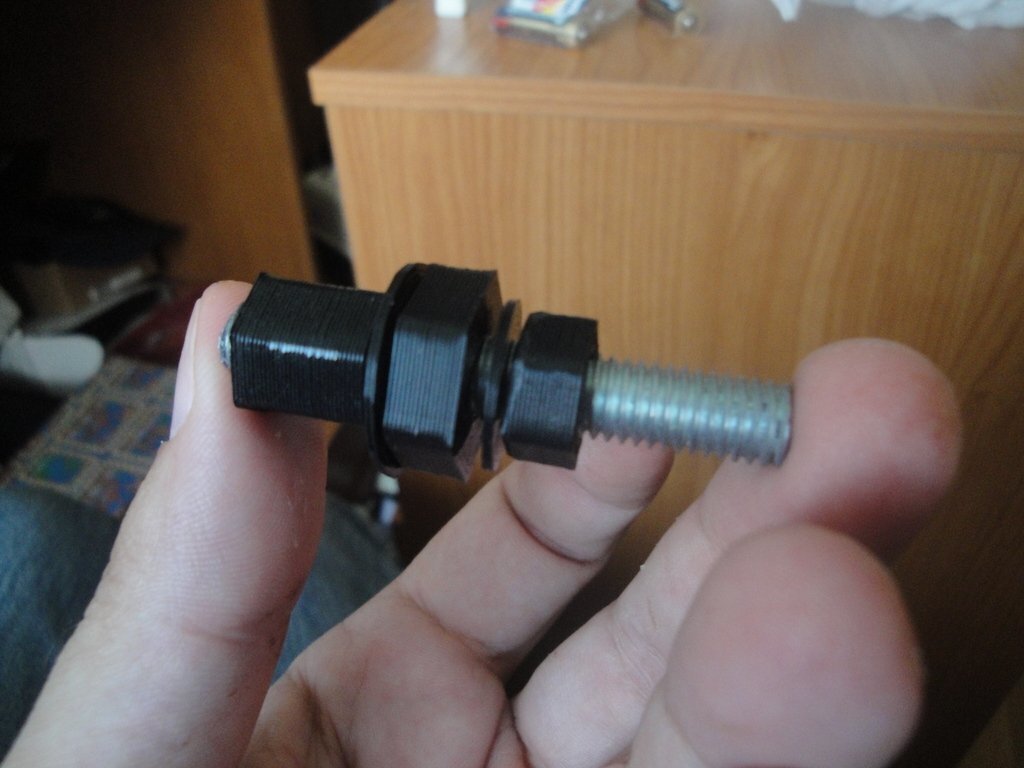

Fully working printable M8 hex nuts with standard dimensions. They are derived from the wonderful ISO Metric thread library by Trevor Moseley.
Do you want to build a Prusa with printable nuts and washers? Just download them and do it!
You can see these parts in action in this video:
http://www.youtube.com/watch?v=xHMjs-O9nq0
More information (In Spanish):
http://www.iearobotics.com/wiki/index.php?title=Tuerca_M8_imprimible
UPDATE: 2012/Sep/06
http://www.youtube.com/watch?v=EIm0ZwCNhyA

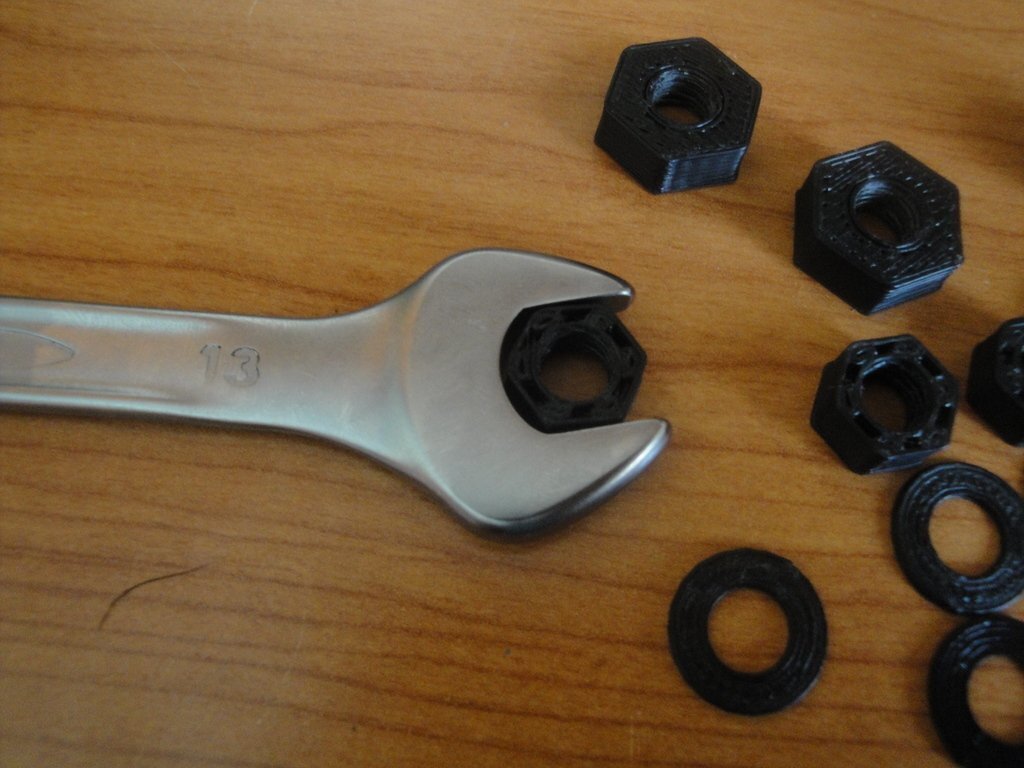

The printable nuts are not only functional and cool. They can also be taken off very easily from the heatbed using a Wrench!! :-D
3D printing settings
The hex nut and washer with standard dimensiones are the files:
Hex_nut_M8.stl and washer_M8.stl.
But these parts are also parametric (designed with OpenScad), so that the user can easily change the height and outer diameters. I have created some STLs as an example:

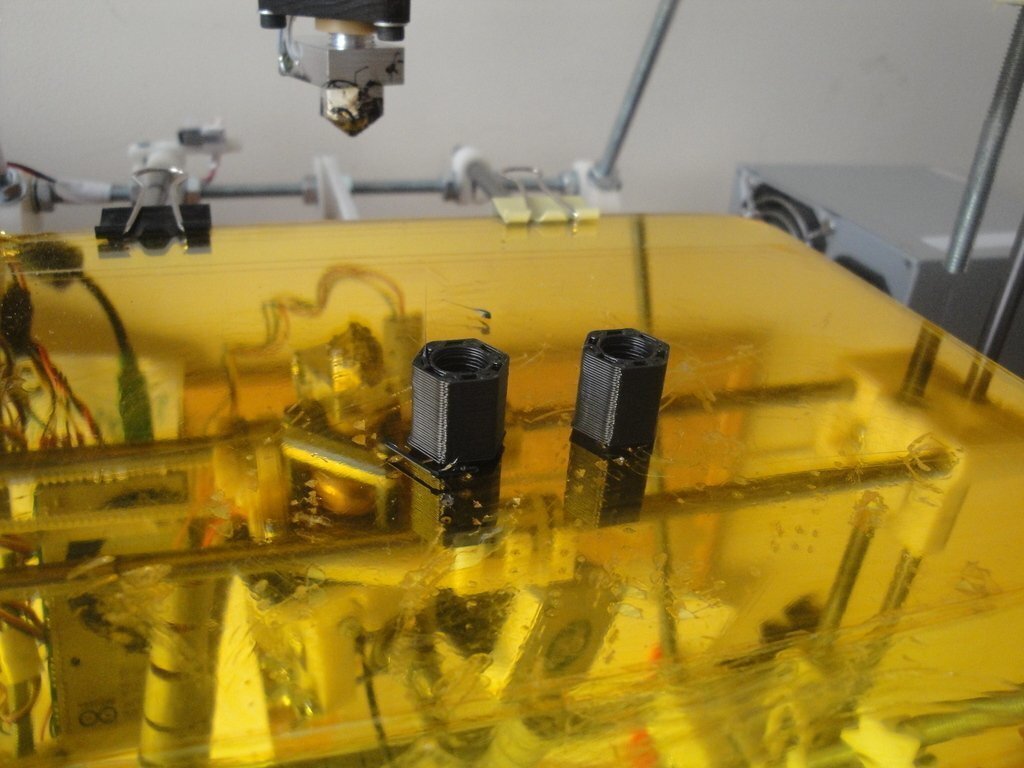

- Hex_nut_M8_higher.stl : An M8 hex nut 13mm in height
- Hex_nut_M8_wider.slt : An M8 hex nut with an outer diameter of 20mm

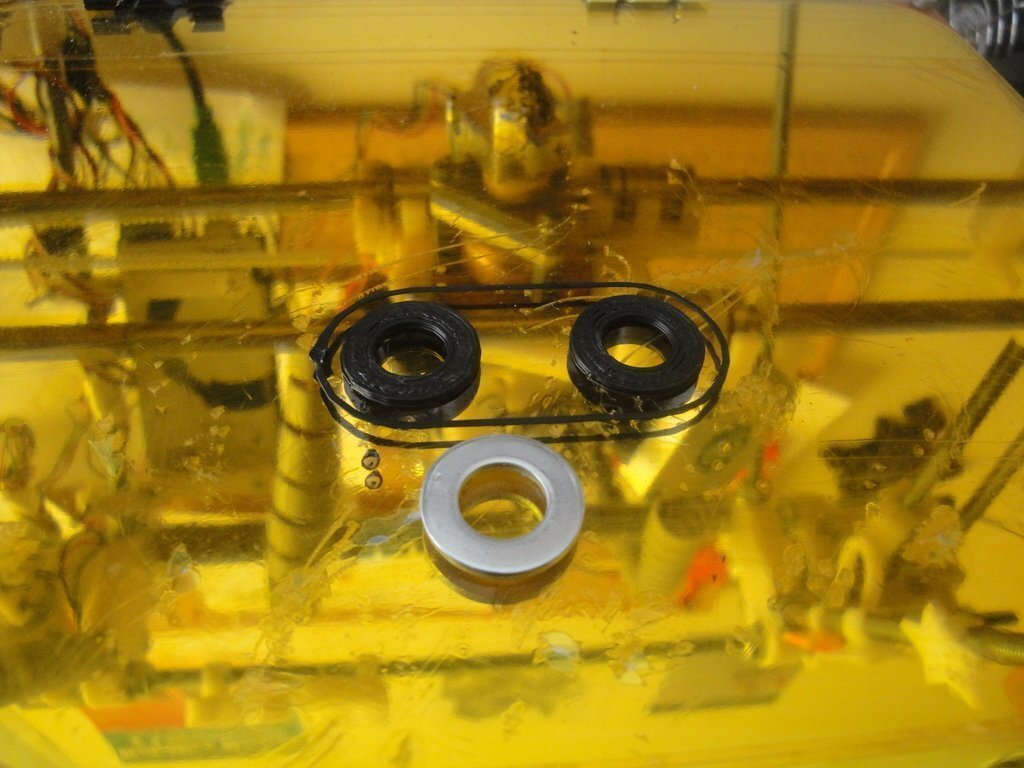

- washer_M8_extra.slt: A M8 washer with an outer diameter of 20mm
3D printer file information
- Design number: 55224
-
3D design format: STL and ZIP Folder details Close
- Hex_nut_M8.stl
- Hex_nut_M8_higher.stl
- Hex_nut_M8_wider.stl
- M8_hex_nut_washer.zip
- washer_M8.stl
- washer_M8_extra_wide.stl
-
Publication date:
2019-04-26 at 13:53
?
Published to Thingiverse on: 2012-08-01 at 13:41
