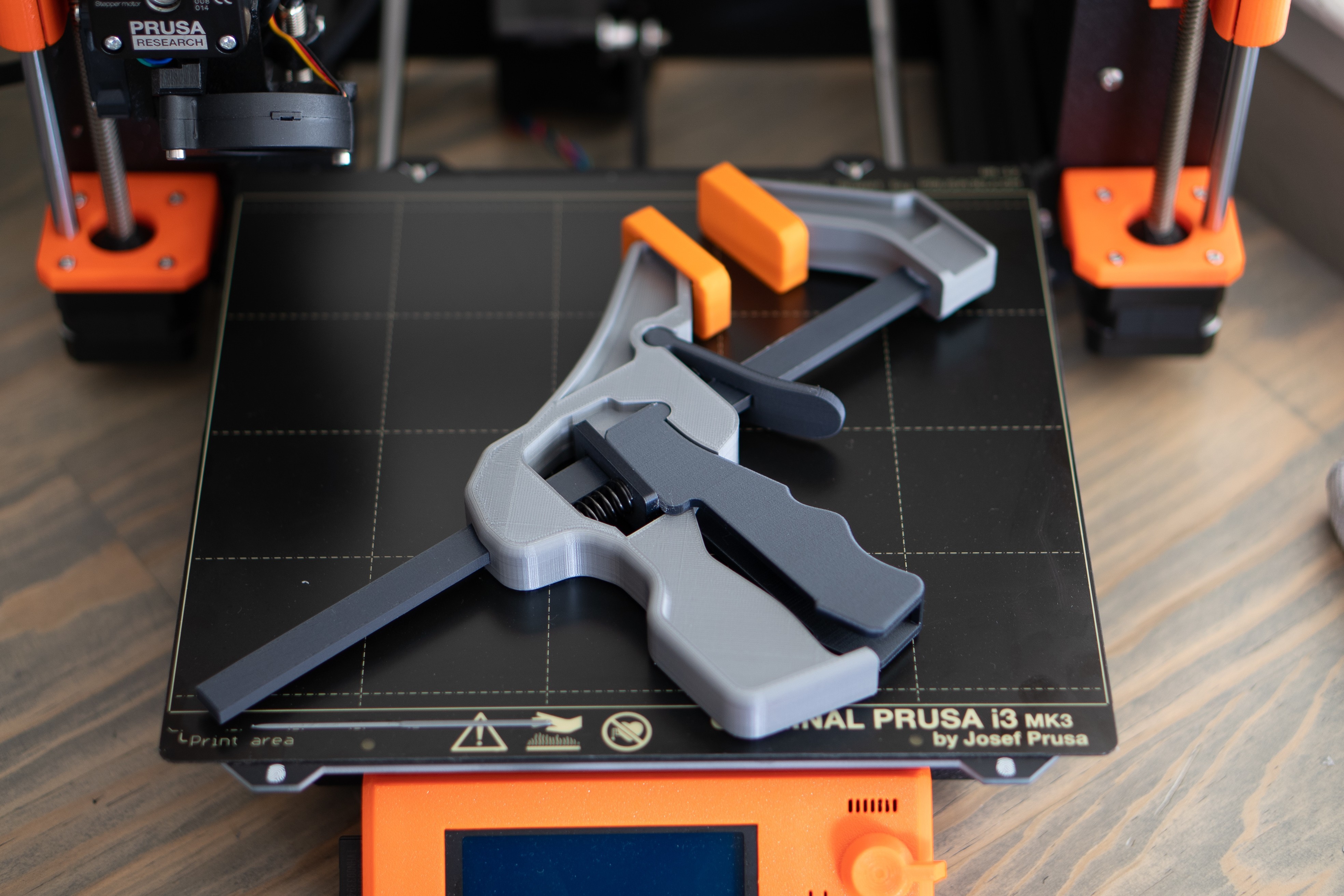

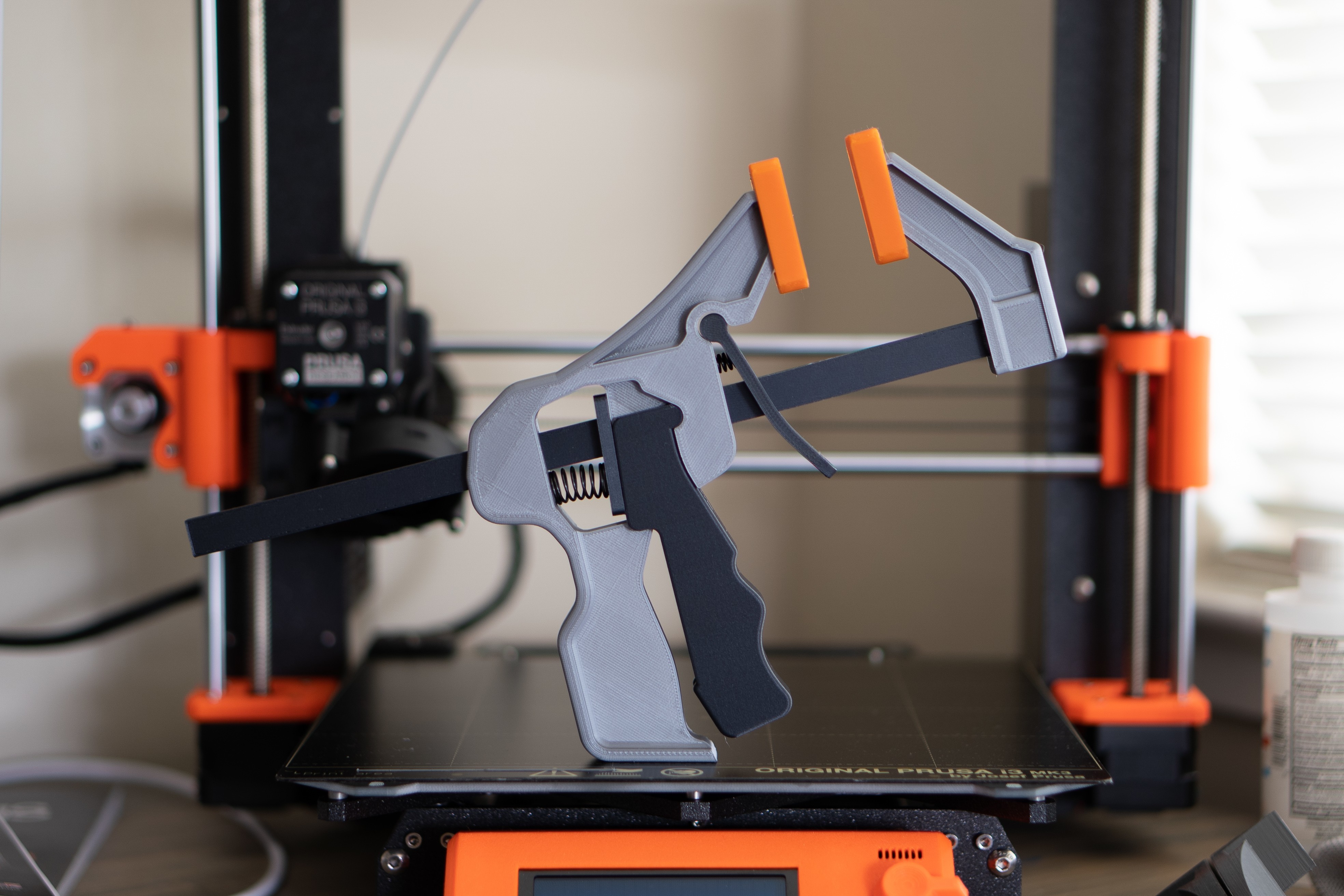

Quick Grip Trigger Clamp

This is a fully functional Quick Grip Trigger Clamp. C-Clamps have become very popular prints but the clamp allows quick single hand adjustments. This design was created with fusion 360 and printed on a Prusa i3 MK3.

Everything on this clamp is printed with exception to the springs which make it functional.

Springs can be found in this great spring assortment on amazon:

https://amzn.to/2DAFIbd

Springs needed are:

0.035"x0.25"x0.5" for the release trigger

0.041"x0.437"x1.062" for the clamp trigger

The kit has enough springs to make 6+ clamps.

#XYZCHALLENGE

3D printing settings

Filament

The printed version shown in pictures is printed in three different filaments:

Black parts: https://amzn.to/2Dt6xho
Ziro Carbon Fiber PLA (One of my favorites to use)

Grey parts: https://amzn.to/2DqNS5J
Prusament Galaxy Silver PLA

Orange parts: https://amzn.to/2VXMHSm
Amazon Basics PETG

Print Settings

Printer Brand:
Prusa

Printer:
I3 MK3S

Notes:

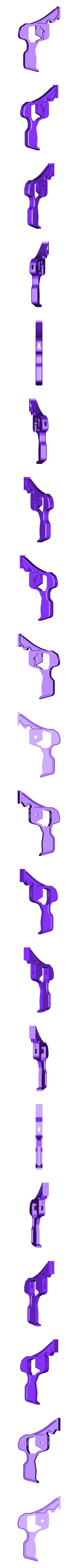

Clamp Body & Clamp End

These pieces can be printed together with supports. If printing 1 at a time Clamp end doesn't need supports most likely but does need a brim.

Pump Handle

This piece should be printed vertically and upside down. The circular pivot part should be on the print bed.

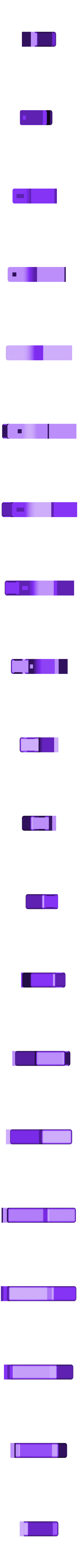

Release Trigger, Clamp Bracket & Shaft

These pieces can all be printed together (depending on material preference). Shaft and Clamp Bracket laying flat and trigger release on edge.

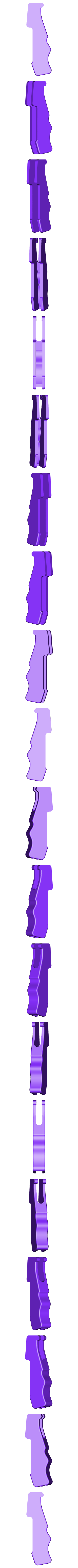

Grip

Grip needs to be duplicated. Print 2x together.

Post-Printing

Assemble parts as seen in pictures.

Insert springs in areas shown in pictures.

  • 3D file format: STL
  • Publication date: 2019/04/22 at 07:16
