return pulley with support

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

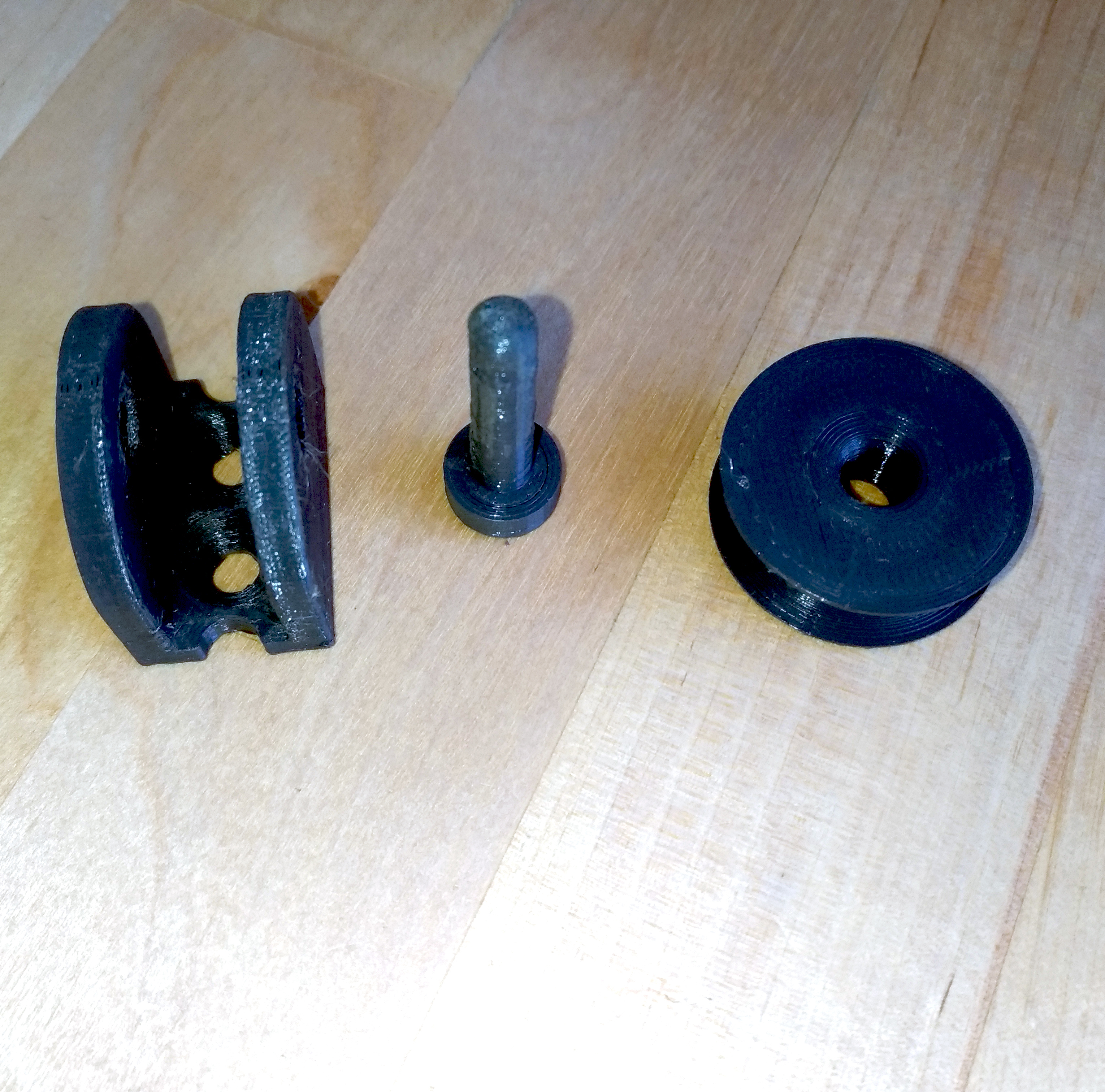

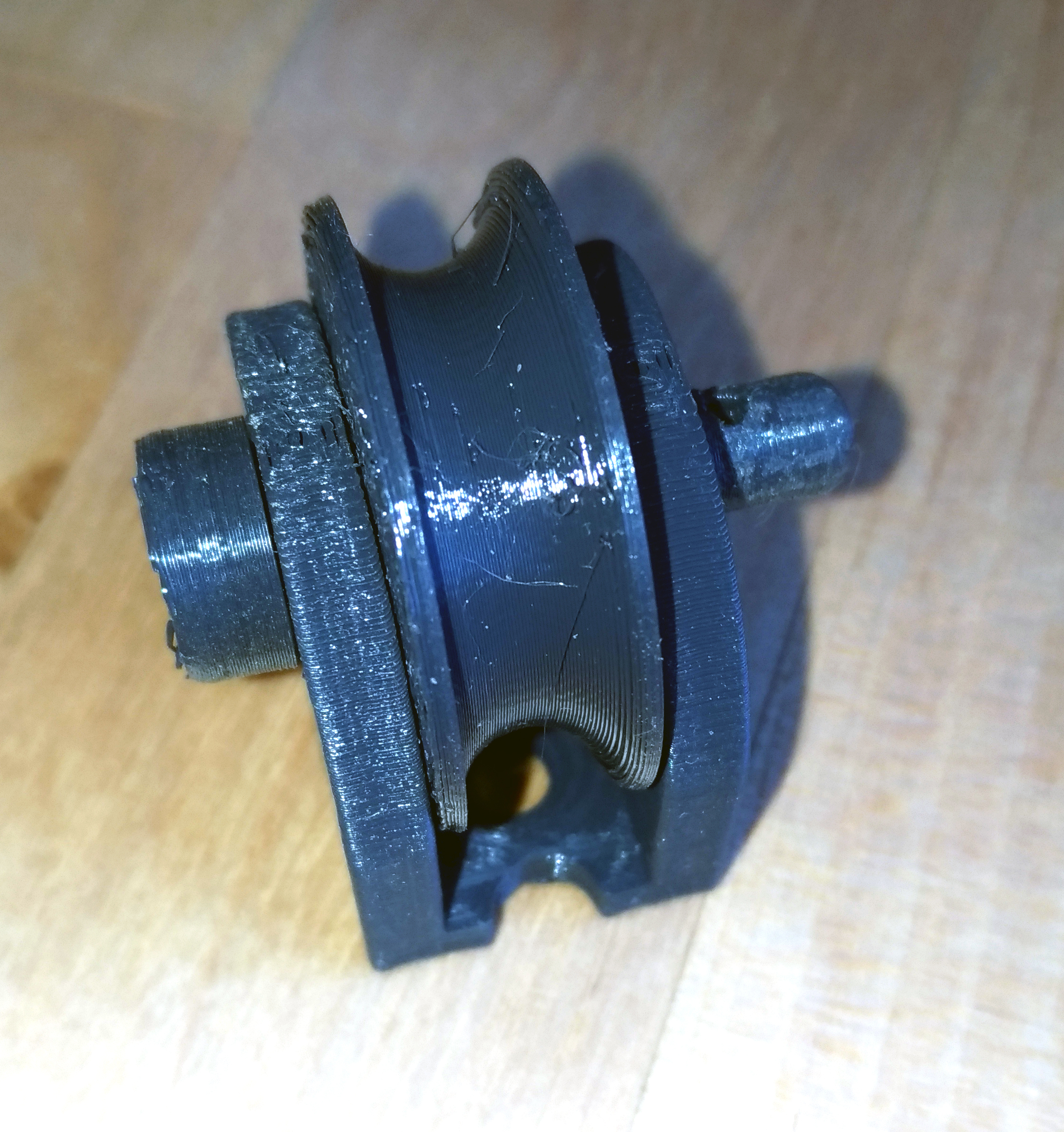

support pulley and axle assembly. Pulley diameter 30 th 10 with groove, axle diameter 6 and support with countersunk fixing holes. A piece of paper clip to hold the axle in place.


3D printing settings

Pulley flat, shaft upright and support up, DO NOT PLACE SUPPORTS, raft: yes

PTEG material, 230° bed 60° filling 30 % 4 outer layers, thickness of deposit: 0,1 8 upper and 5 lower layers.filling grid at 45°. Put the parts close together so that the raft is only one piece, this improves the grip.

3D printer file information

  • 3D design format: STL Folder details Close
    • Axe diam 6.stl
    • galet diam 30 trou 6 et demi.stl
    • support galets diam 30 ep 10.stl

    Learn more about the formats

  • Publication date: 2020-05-03 at 08:56

License

CC BY NC SA
