Portabobine Makeroll by 3Dingegno

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 212 views
  • 1 like
  • 2 downloads

3D model description

Non trovando una guida sul montaggio di questo bel progetto di portabobine ideato da 3dingegno

https://github.com/3dingegno/MakeRoll

https://www.youtube.com/watch?v=0LwdssKLHrM

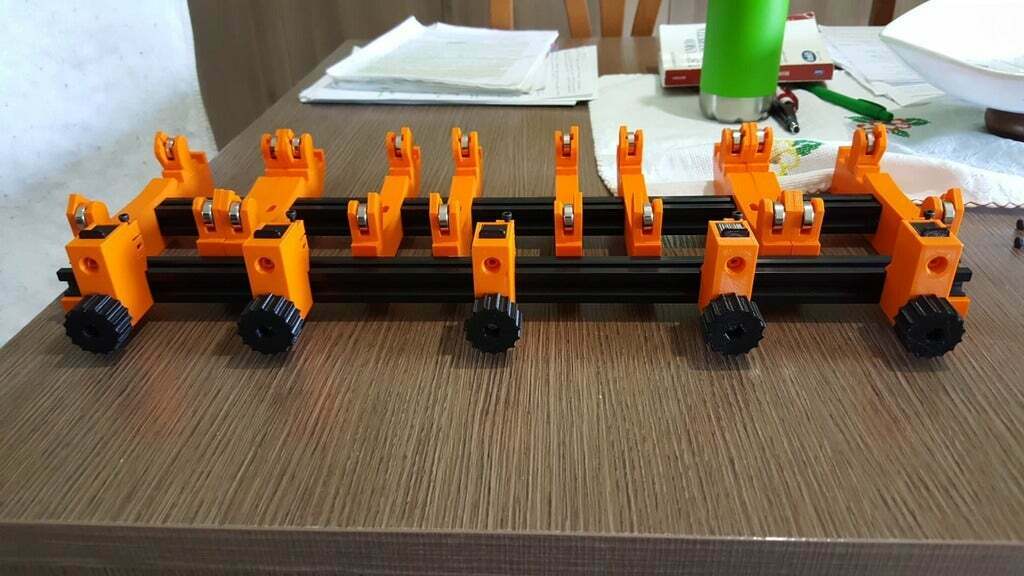

ho pensato di condividere tutto quello che ho usato per montarlo

2 profili 2020 da 500mm
https://www.aliexpress.com/snapshot/0.html?spm=a2g0s.9042647.6.2.13f74c4d4F231l&orderId=103304878734588&productId=32869137731

20 cuscinetti 625
https://it.aliexpress.com/item/560971144.html?spm=a2g0s.12269583.0.0.5e2c75e85Hdcyj

4 viti m3x10 + nut m3 per profilo 2020
5 viti m5x40 + nut m5 per profilo 2020
5 viti m3x14 + dato

i nut li potete trovare qui
https://it.aliexpress.com/item/32825357262.html?spm=a2g0s.9042311.0.0.14c74c4du6kzlR

raccordi
https://www.amazon.it/pc4-m10-maschio-pneumatico-connettore-montaggio-confezione/dp/B07143R4QK/ref=sr_1_6?__mk_it_IT=%C3%85M%C3%85%C5%BD%C3%95%C3%91&keywords=PC4-M10&qid=1562568631&s=industrial&sr=1-6&fbclid=IwAR34S4soNywdVFN0PHl6dhH_3tdMfFyZl-NNoJwEnn2kAuYOMCq7w0Yq8N8

Note:

i pezzi roll-system-lock.stl e dust-filter.stl per farli combaciare bene li ho stampati riducendo la proporzione al 97%

17/07/2019
aggiunto adattatore per PTFE da 4mm
