manual gold panning pump

?
Creation's quality: 2.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.3k views
  • 2 likes
  • 2 downloads

3D model description

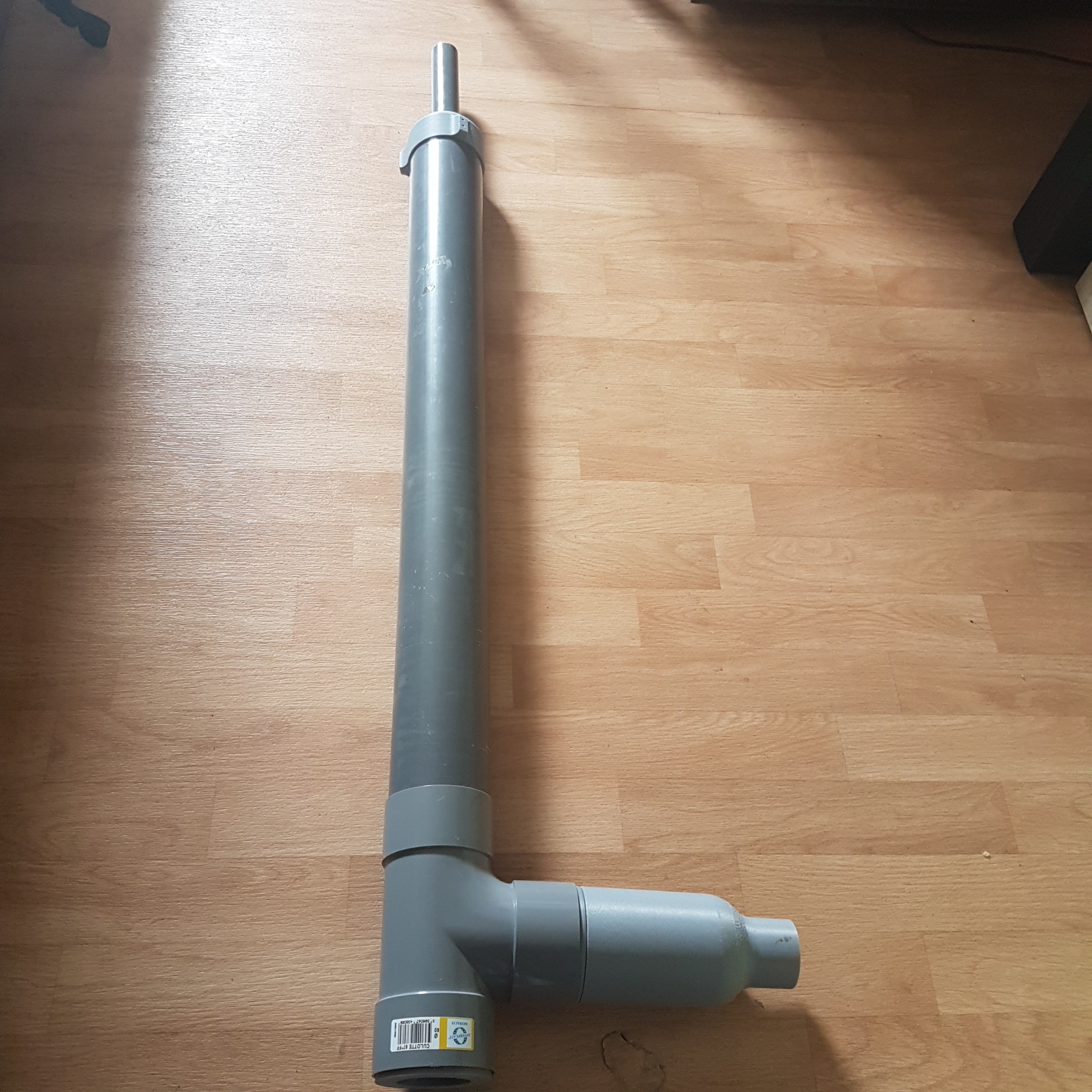

this pump extracts sediments loaded with gold from rivers for gold panning, it can be used to suck Earth into cavities.

--(pump inlet and outlet diameter 5 cm)--

    ***supplies to design the pump***

-1x PVC tube diameter 80

-1x pvc tube diameter 32

-1x T diameter 80x87°30

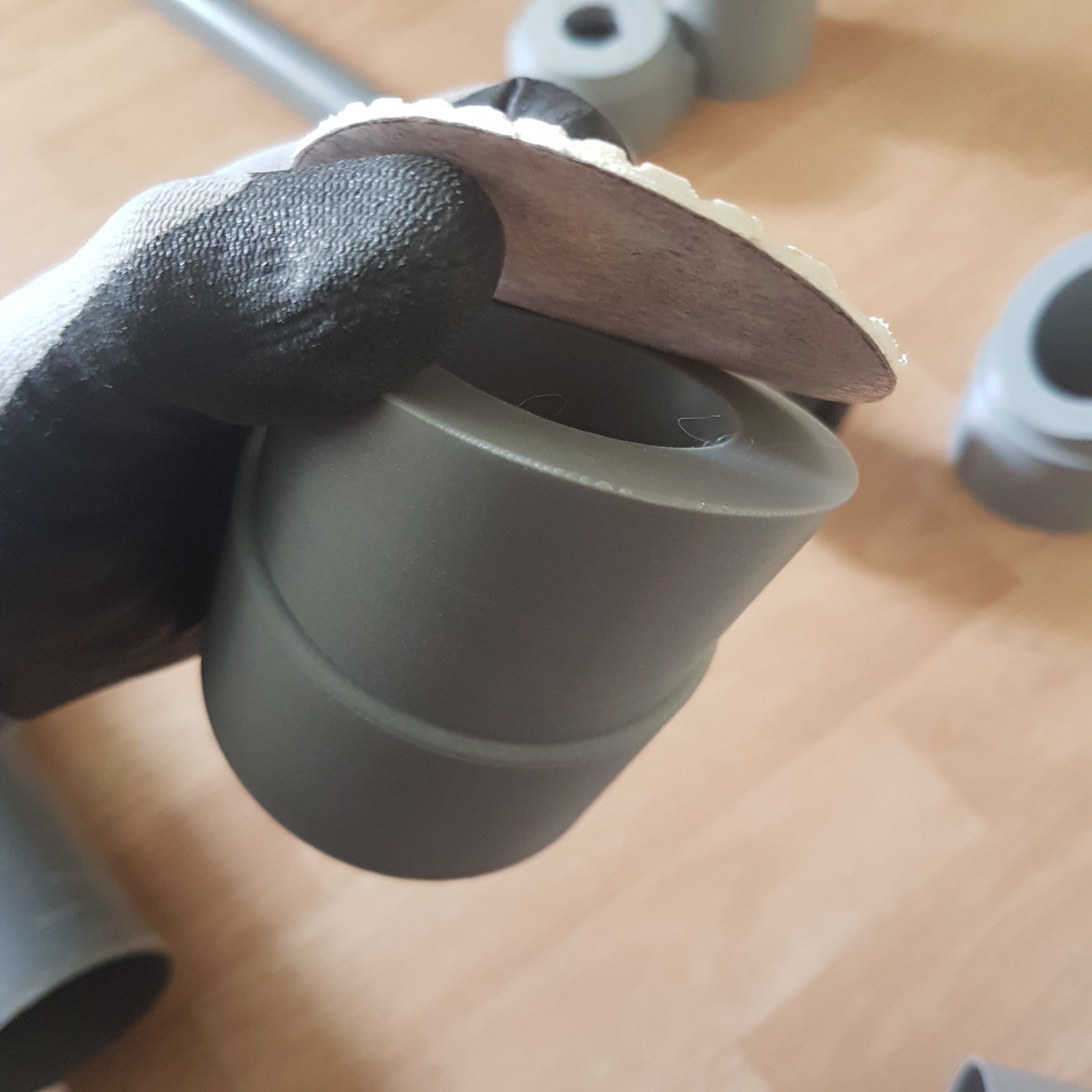

-2x for valves use 2 flexible plates

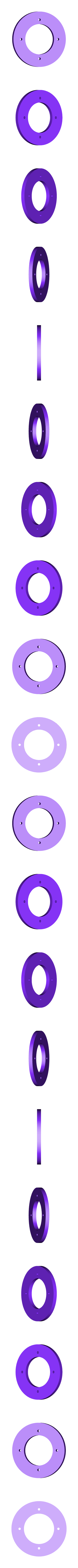

-1x listen to a circle in a floor mat for the piston seals (foam 1 or 2 cm).

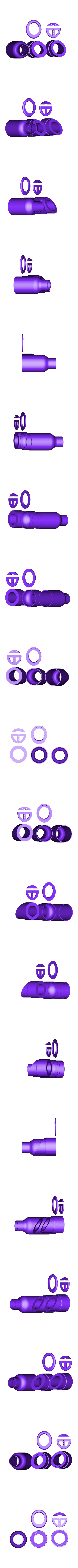

    ***Finalize the assembly with the following 3D elements***

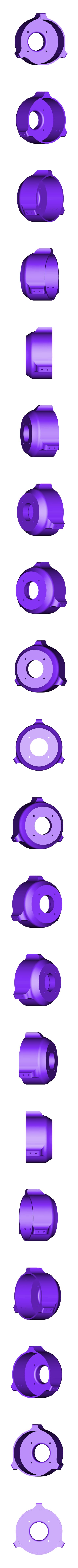

-1x valve for the inlet? and1 outlet

-1x valve for 1 outlet

-1x piston

-1x piston tip

ps: if you wish, I can also print it for you** and send it (in this case agree on the shipping methods).


3D printing settings

I advise you to use ABS for printing because it is more durable in water.

3D printer file information

  • 3D design format: STL Folder details Close
    • ENBOU.PISTON..stl
    • piston.80.ble.st.stl
    • piston80.pompe.st.stl
    • pompe.1.classiq80.st.stl

    Learn more about the formats

  • Last update: 2018/12/11 at 12:52
  • Publication date: 2018/06/08 at 17:43
