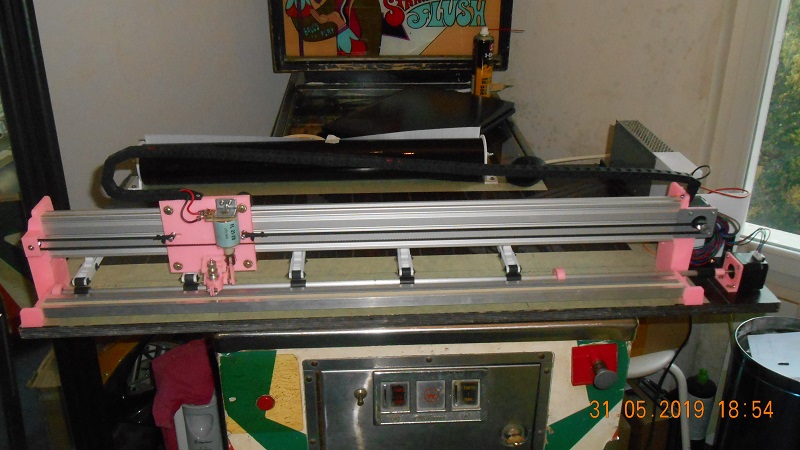

Cutting Plotter

3D model description

on the basis of: https://www.instructables.com/id/Printer-to-vinyl-cutter-hack/

non-printable parts:

Aluminium profiles 20mm x 60mm

Aluminium profiles 30mm x 15mm

Aluminium profiles 20mm x 10mm

Aluminium tube diameter 8mm

ball bearings 6-3-2.5 x14, 20-6-6-6 x4 22-8-7 x2

Thermo sheath, auto vacuum hose

Cable chain

Martyr band

GT2 6mm curroy-rod, pinion

Stepper motor

Arduino uno card

Driver

Power supply

Blade holder

3D printing settings

ABS

  • 3D file format: STL

Creator
