(Pi) USB&SPDIF sound card PCM2704 box

Download free STL file (Pi) USB&SPDIF sound card PCM2704 box • 3D printable template, mschillerDownload free STL file (Pi) USB&SPDIF sound card PCM2704 box • 3D printable template, mschillerDownload free STL file (Pi) USB&SPDIF sound card PCM2704 box • 3D printable template, mschiller

Did you 3D print this model?

3D model description

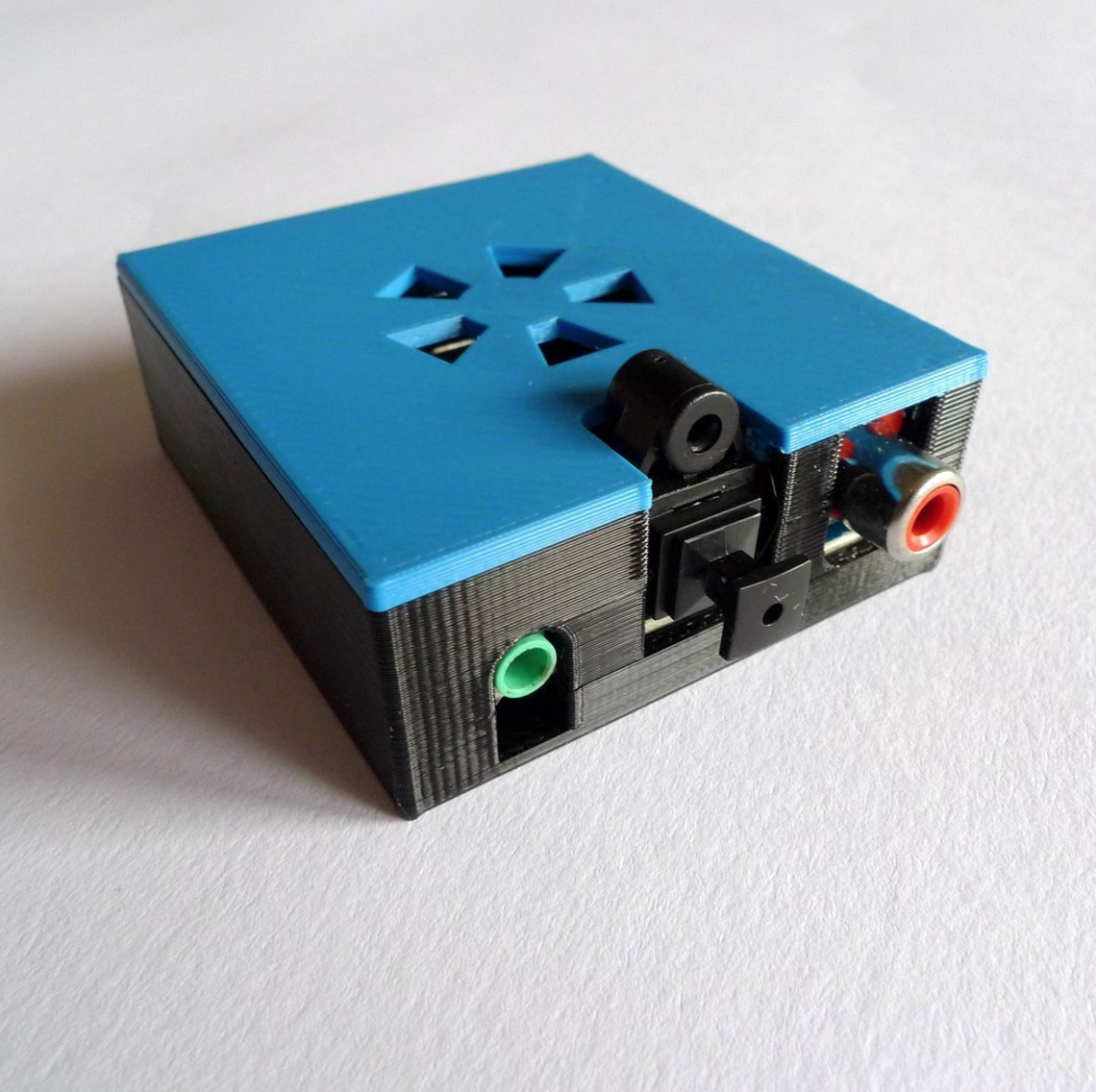

Box for external PCM2704 USB DAC to S/PDIF Sound Card Decoder Board that you can buy cheap at ebay.com
(http://www.ebay.com/itm/PCM2704-USB-DAC-to-S-PDIF-Sound-Card-Decoder-Board-3-5mm-Analog-Output-F-PC-/400565391017).

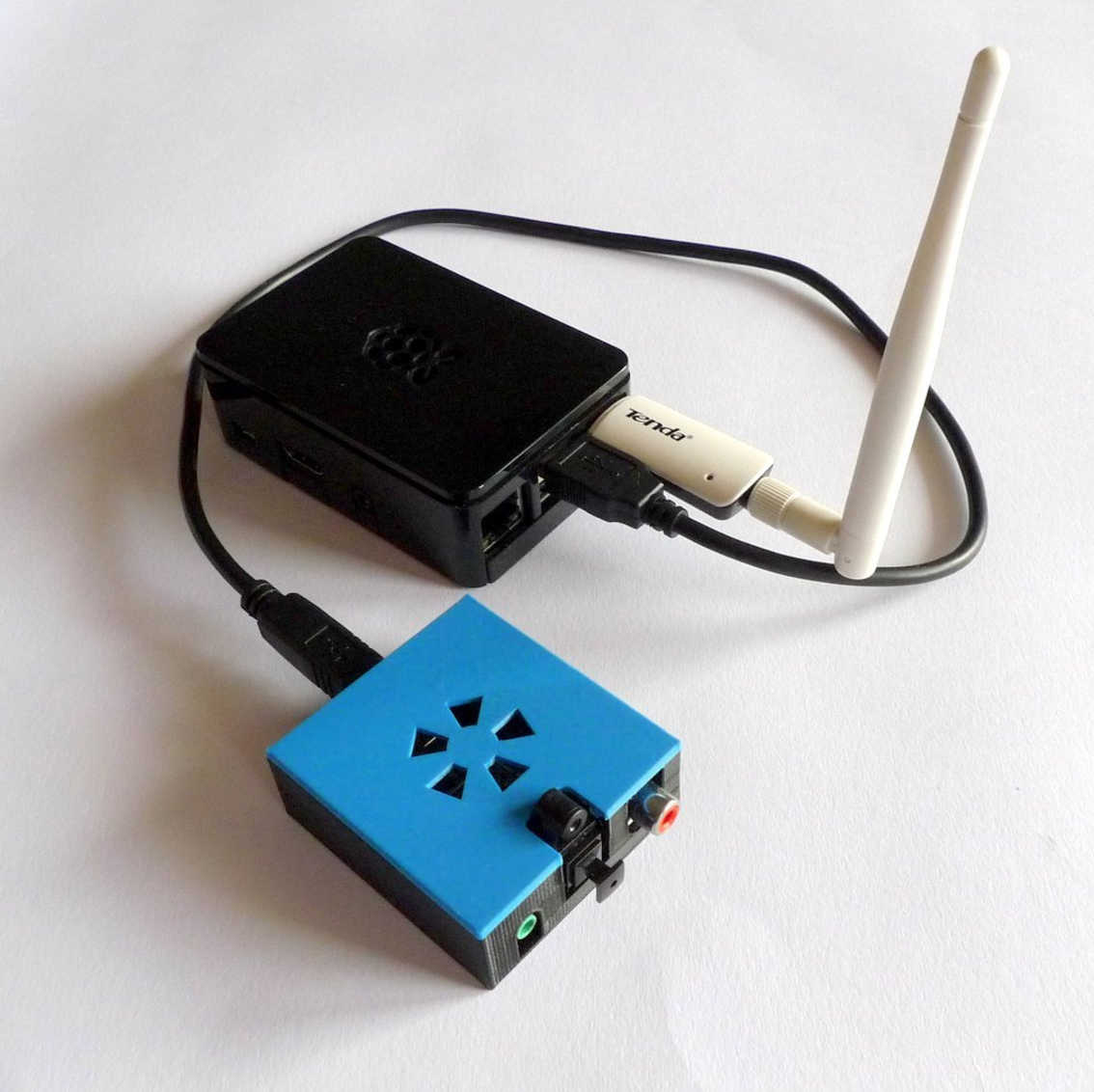

Attaching to Raspberry Pi you can get much better analog audio output (3.5 jack connector) AND digital SPDIF output that you can plug into your receiver via optical or coax connection.
Therefore you can get highest quality multi-channel sound.

Tested with Raspberry Pi 2 and KODI/OpenElec image. Sound card is really plug&play, no additional setting is required.

You can of course connect it to any other device (e.g. laptop) using USB interface.

3D printing settings

Printer:
Easy3DMaker

Rafts:
No

Supports:
No

Resolution:
0.25

Infill:
50 - 100%

  • 3D file format: STL

Creator

License

CC BY
