Parkside X20V Team Wuzhi TPA3116 Portable 2x20W Bluetooth 5.0 Audio Amplifier for Speakers

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

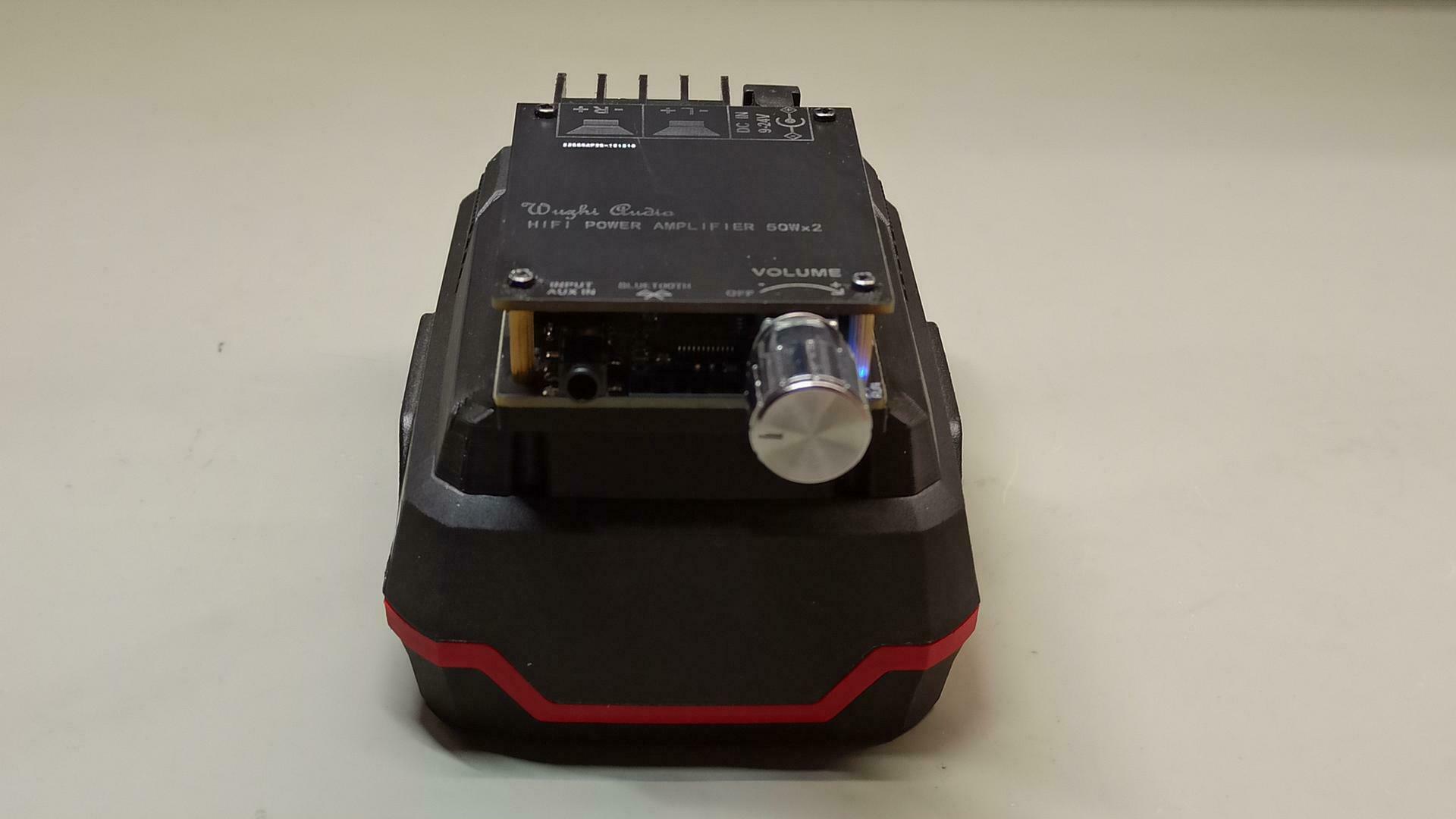

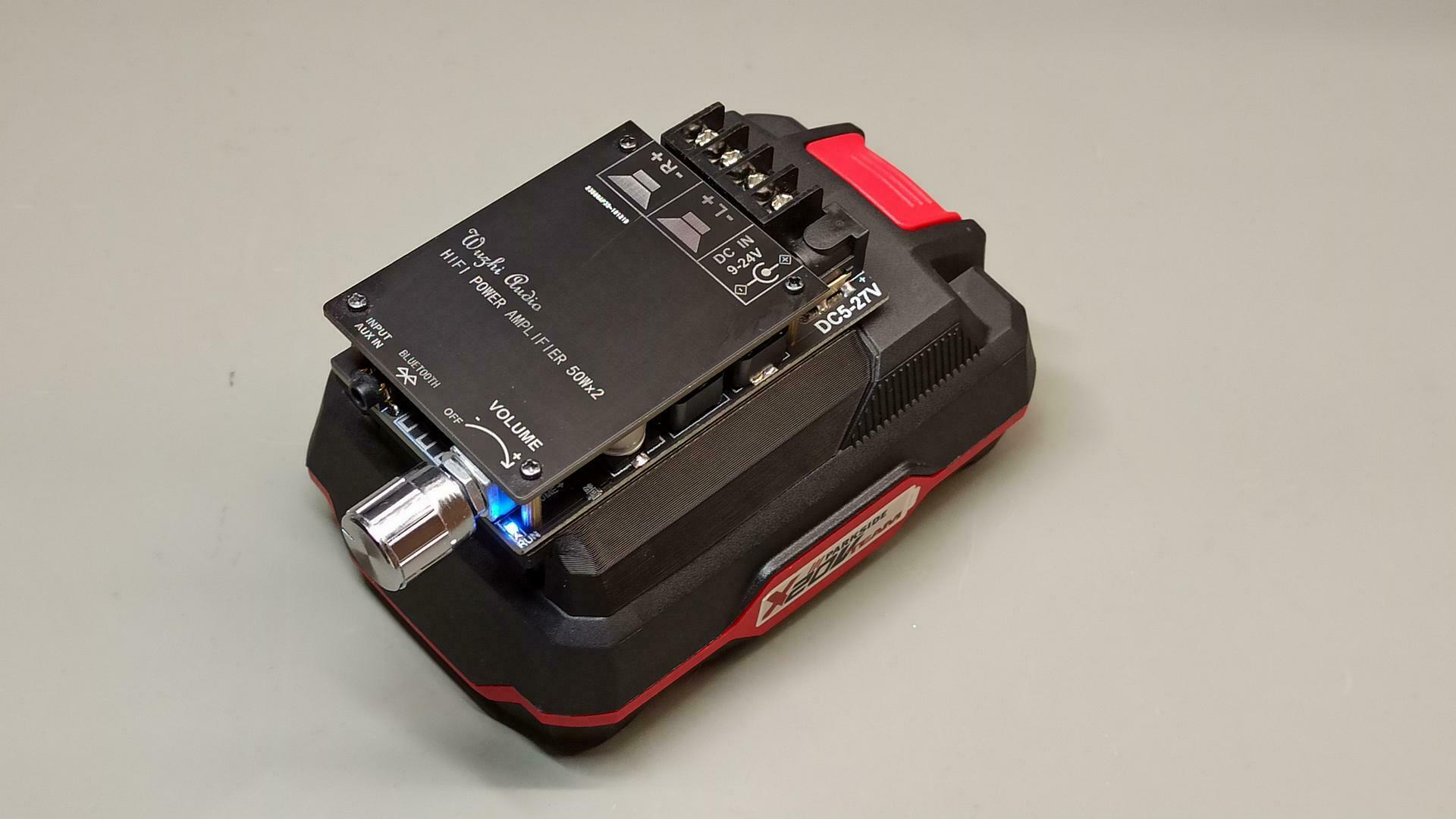

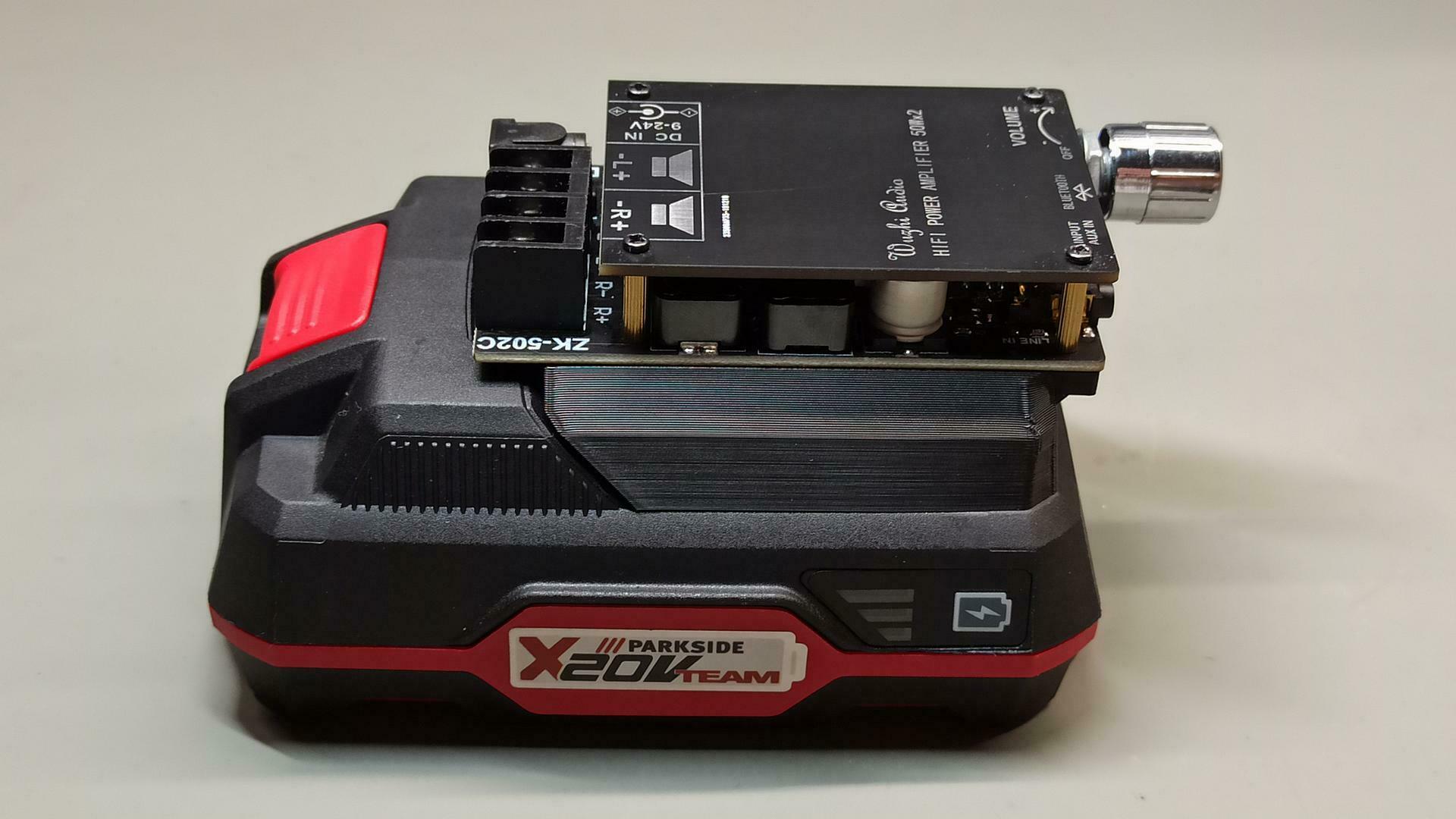

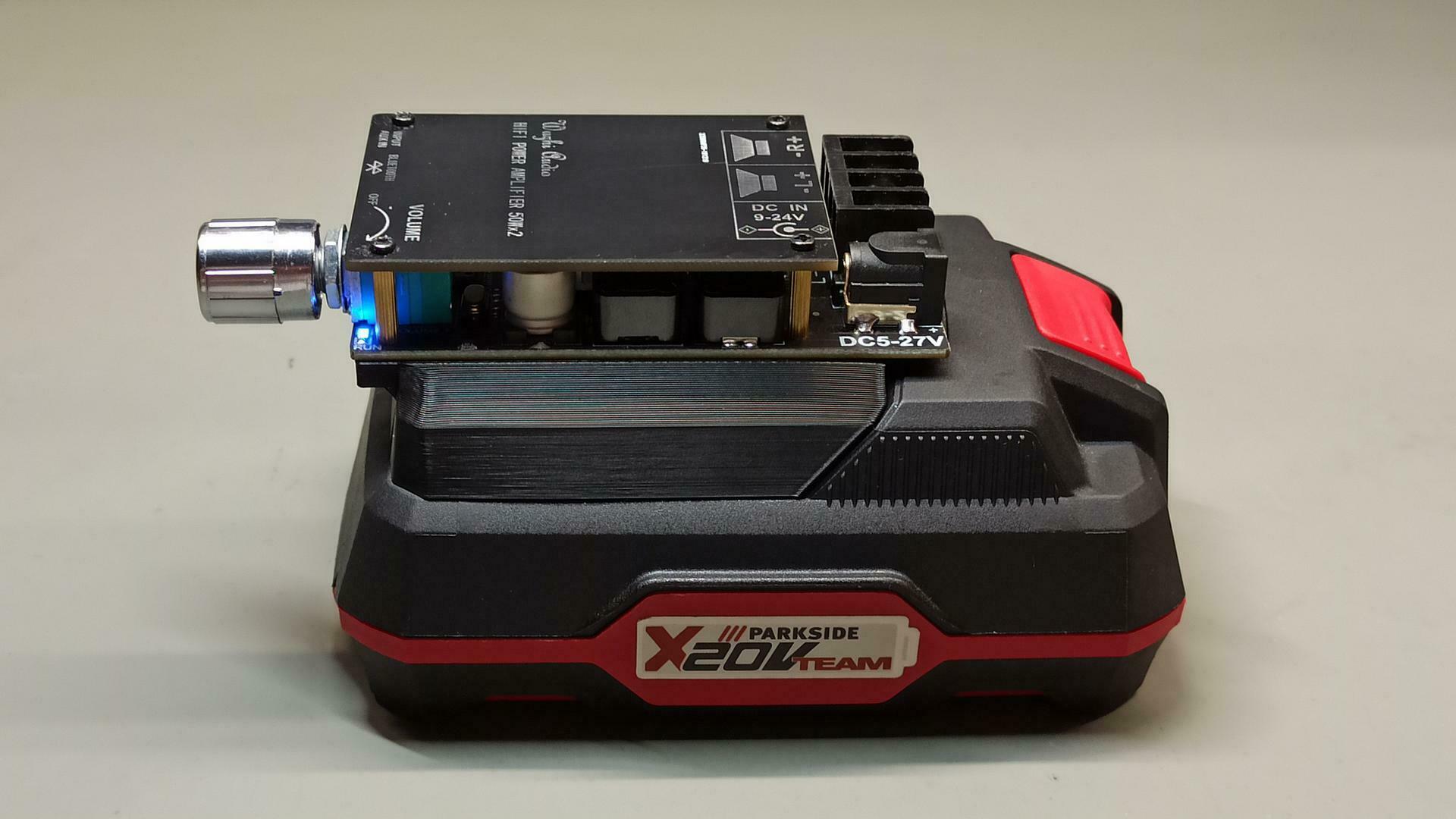

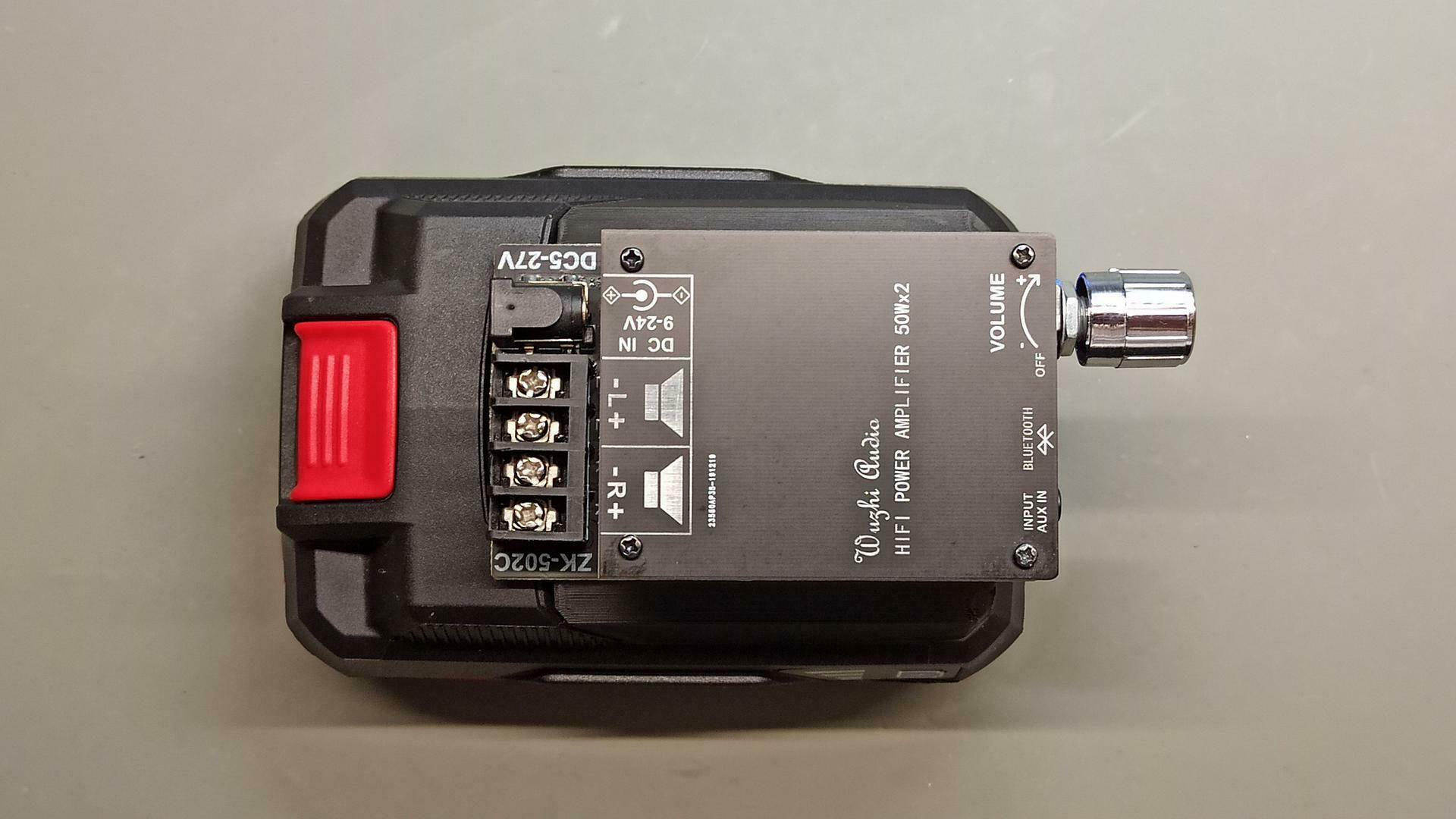

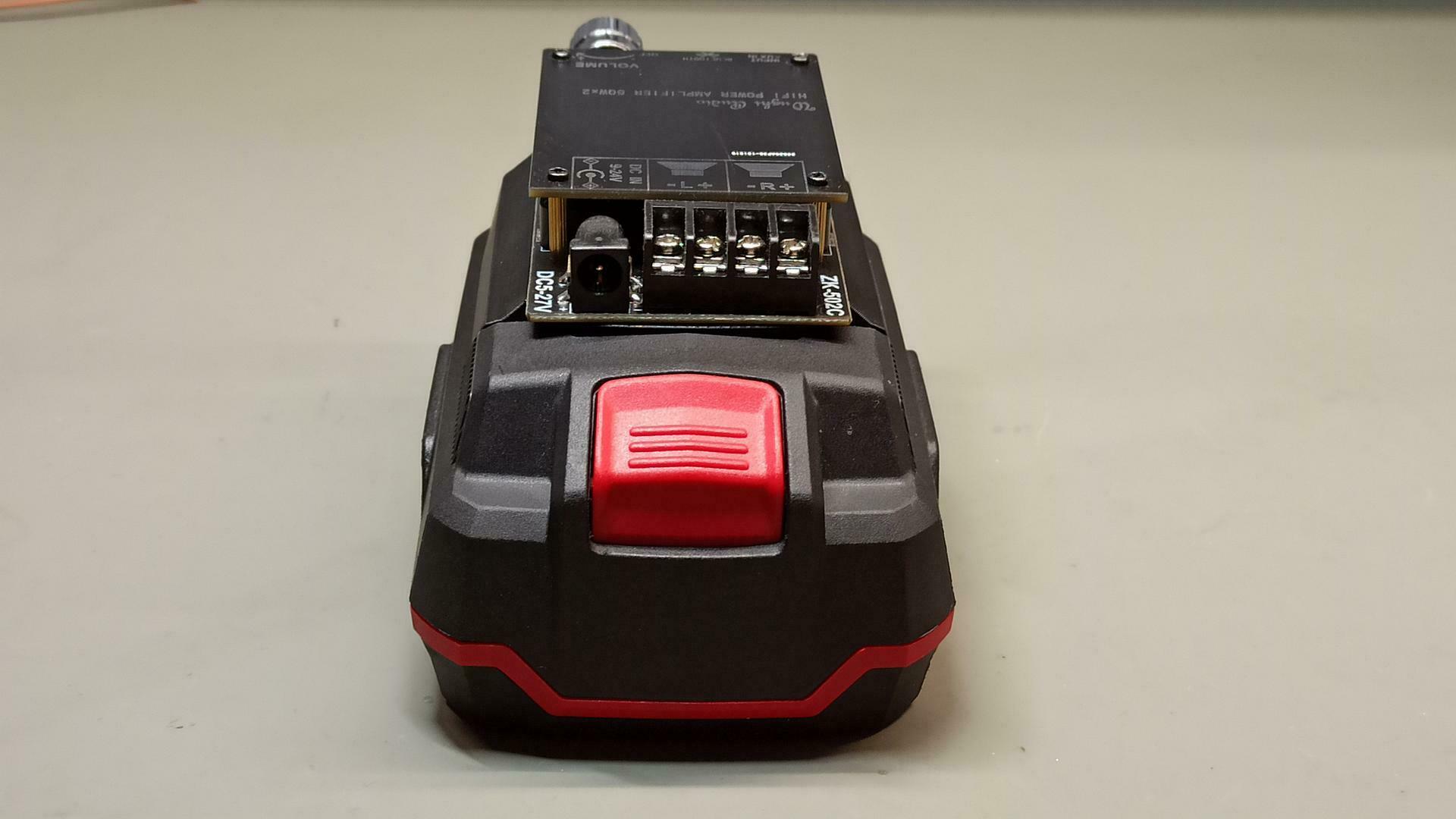

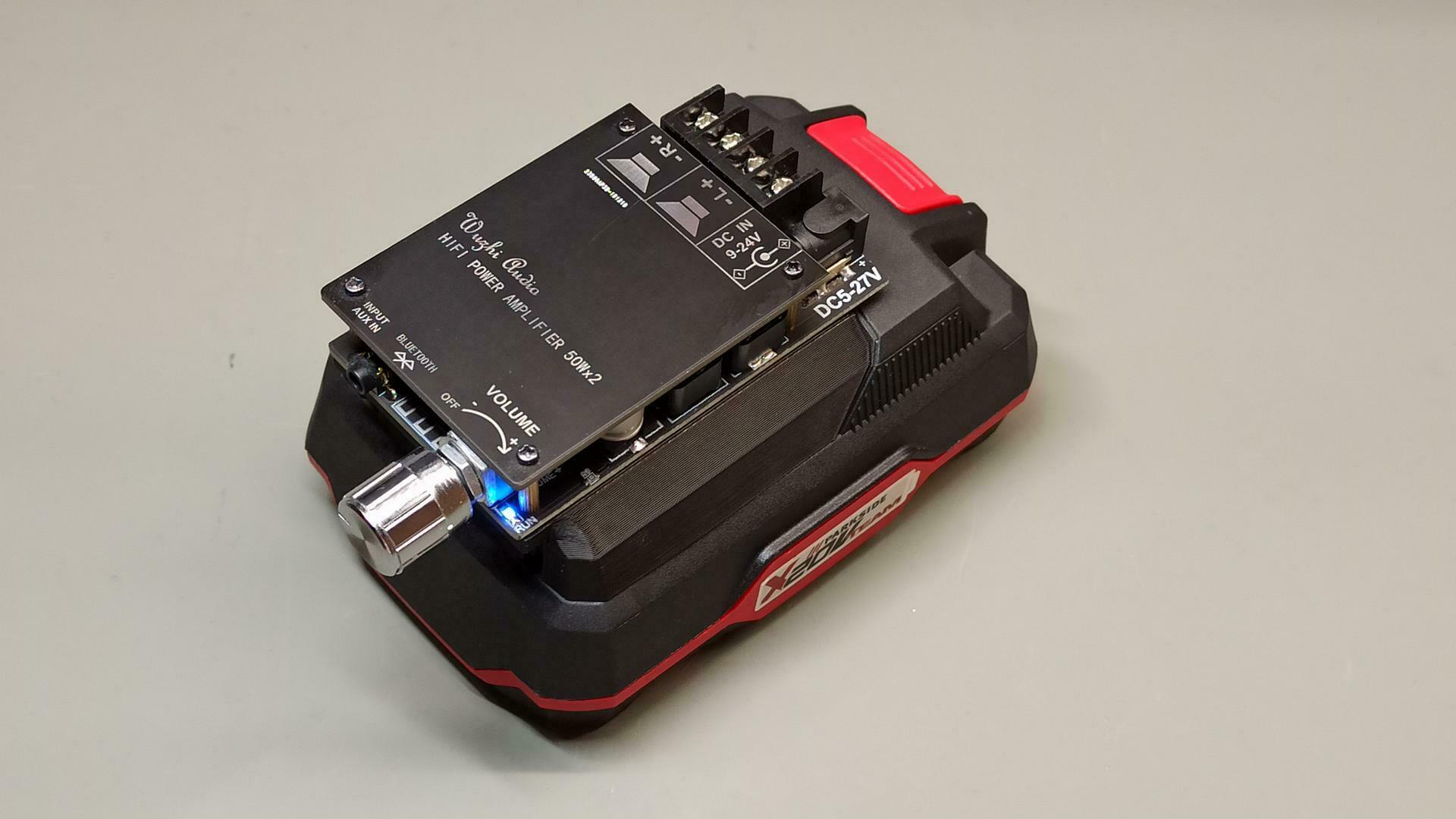

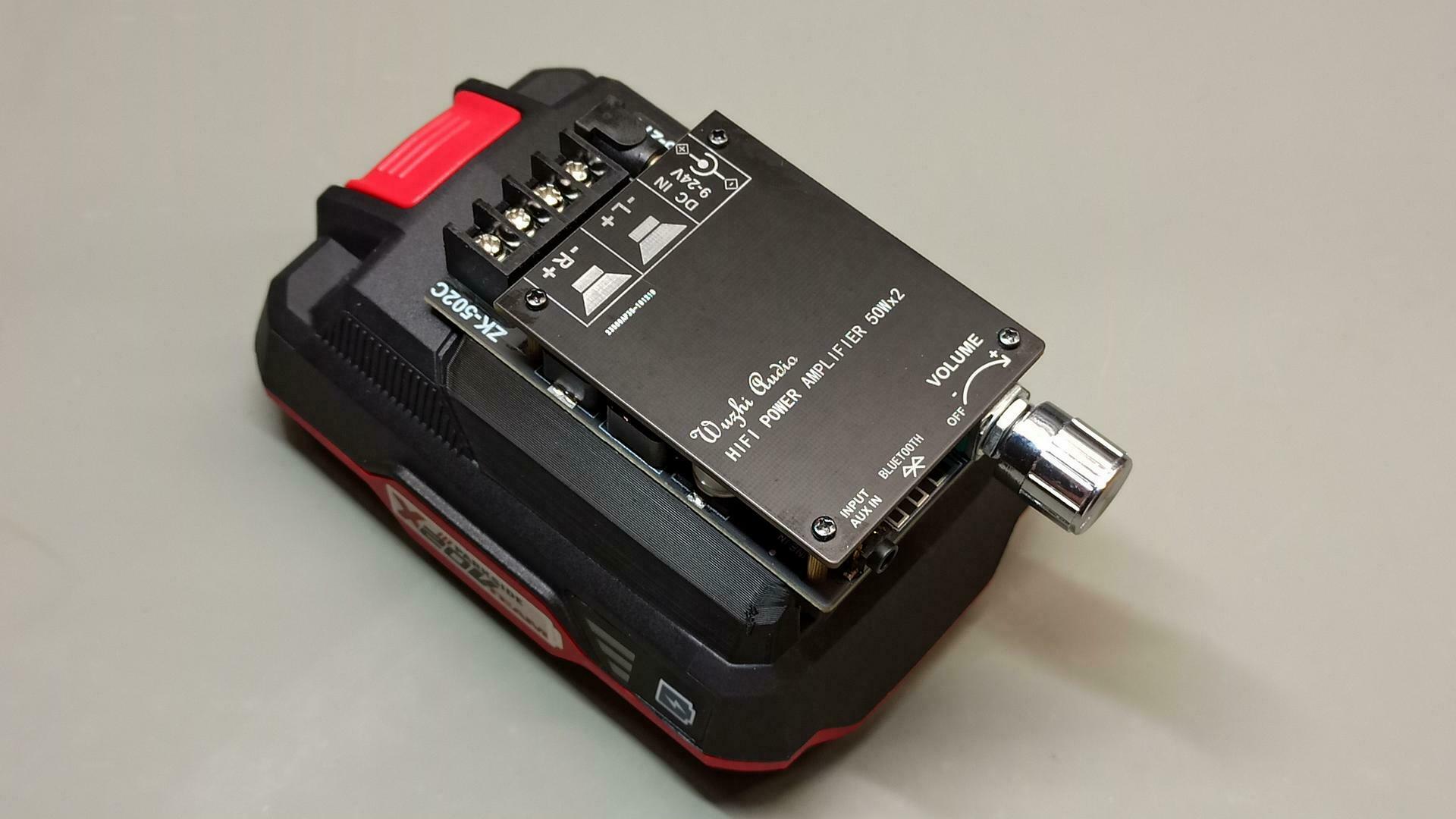

I present a compact portable wireless Bluetooth audio power amplifier dedicated to the Parkside X20V Team battery from the LIDL store.
The device is based on the inexpensive Wuzhi TPA3116 power amplifier module:
https://www.aliexpress.com/item/4000082757040.html
The module is equipped with a Bluetooth 5.0 audio receiver and jack 3.5 mm AUX line input.

You can connect to the amplifier external speakers or speaker sets with an impedance of 4-8 ohms.
The amplifier powered by fully charged 4Ah battery is capable of delivering the continuous RMS output power (1kHz, 1% THD) up to 2x20W/4R or 2x24W/8R.

WARNING! The switch built into the potentiometer does not disconnect the power supply from the device. Leaving the amplifier fastened on the battery will discharge the battery.
X20V batteries have no built-in over-discharge protection, so check the battery voltage and do not discharge below 15V.


This is my project of useful gadgets and portable wireless devices for Parkside X20V batteries. There are:
- Mounting brackets for the charger
- Battery mounting bracket (shelf and wall mount)
- Floodlight / Work Light - LED 10W
- Audio amplifier TPA3116 Wuzhi - maximum output power RMS 2x20W/4R, 2x24W/8R
- Power supply DPS3005 (max 19.5V/5.1A)
- Soldering station KSGER T12 OLED
STEP files are available so you can modify them to suit your needs.

If you like this project and appreciate my work, you can support me through PayPal.

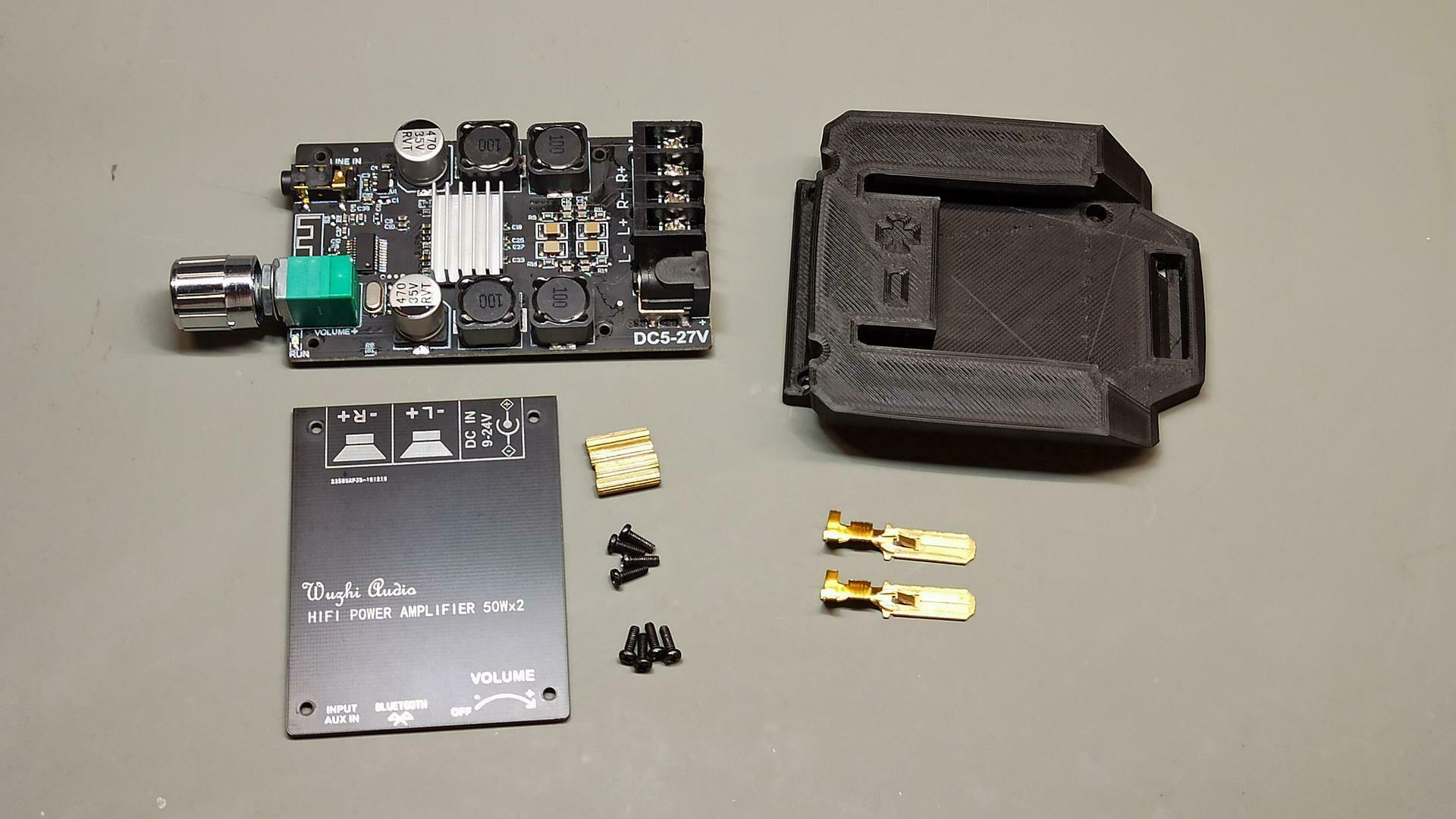

You need:
- 1 piece Wuzhi TPA3116 power amplifier module
- 2 pieces long 6.3 mm connectors
- wires 0.75-1 mm2

The photos should explain everything.

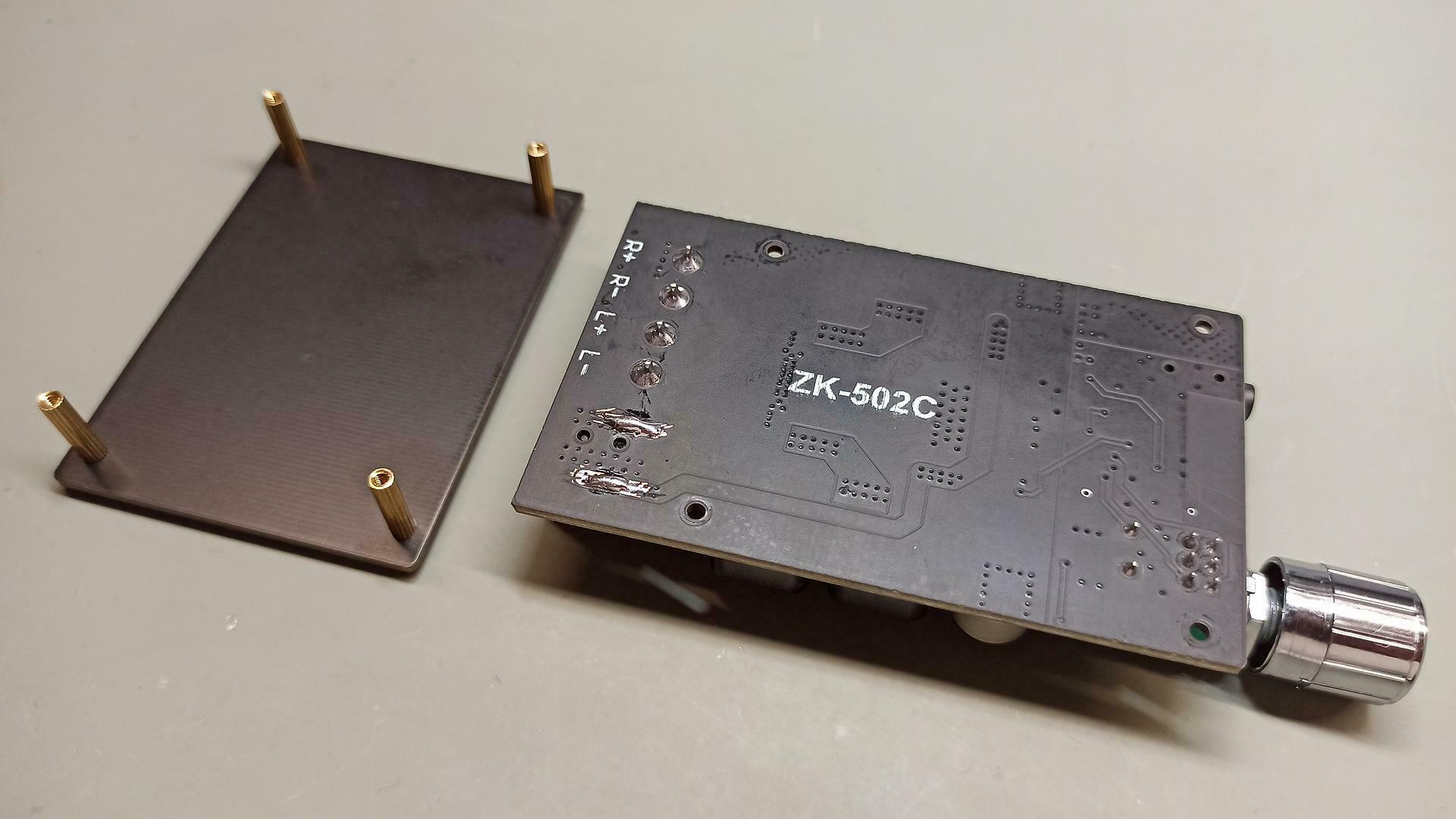

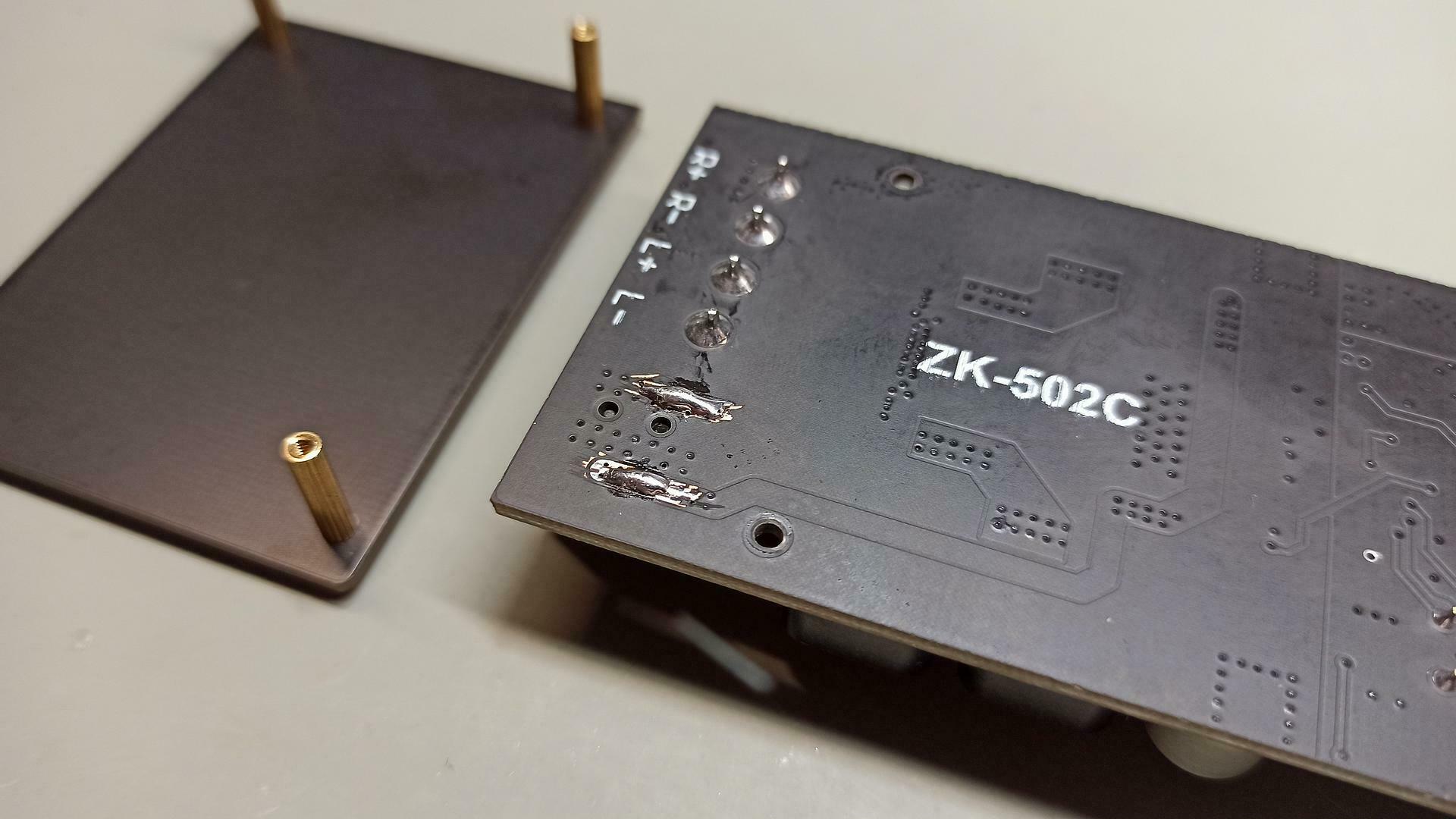

Scratch the solder mask in the places shown in the photo. Coat the copper places with solder.

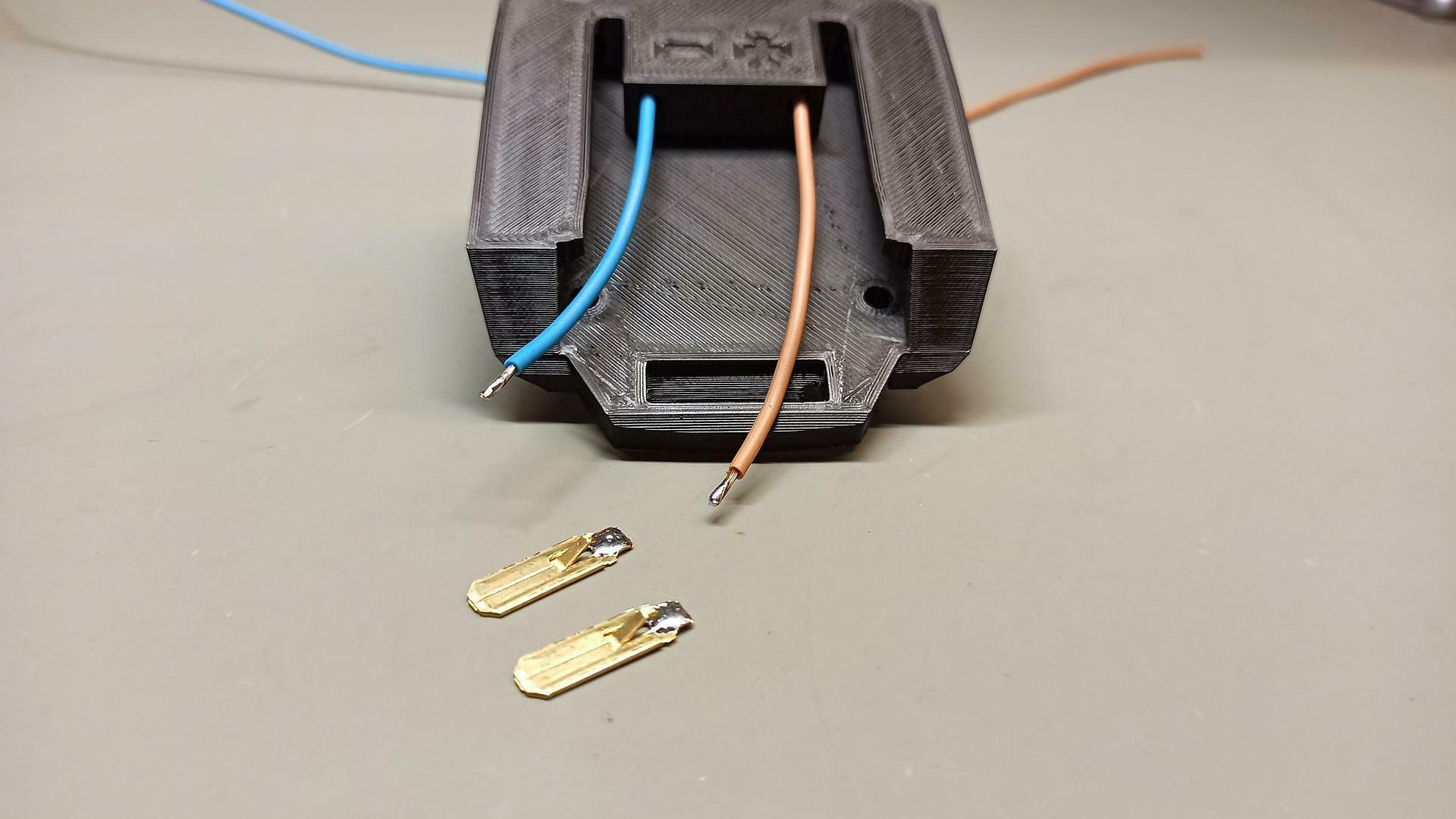

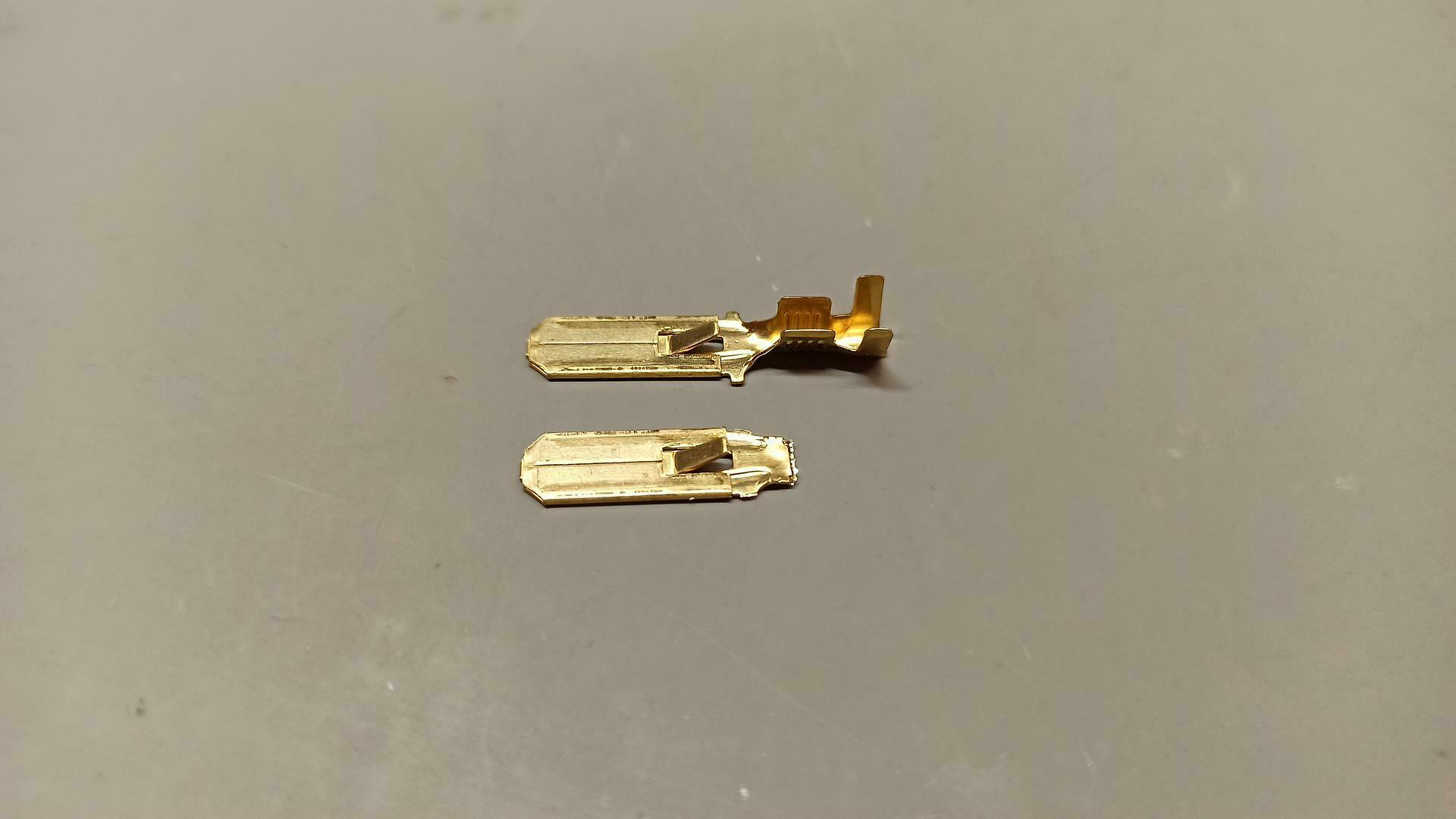

Cut the connectors as shown in the photos and solder the wires connections. Strip the ends of the wires.

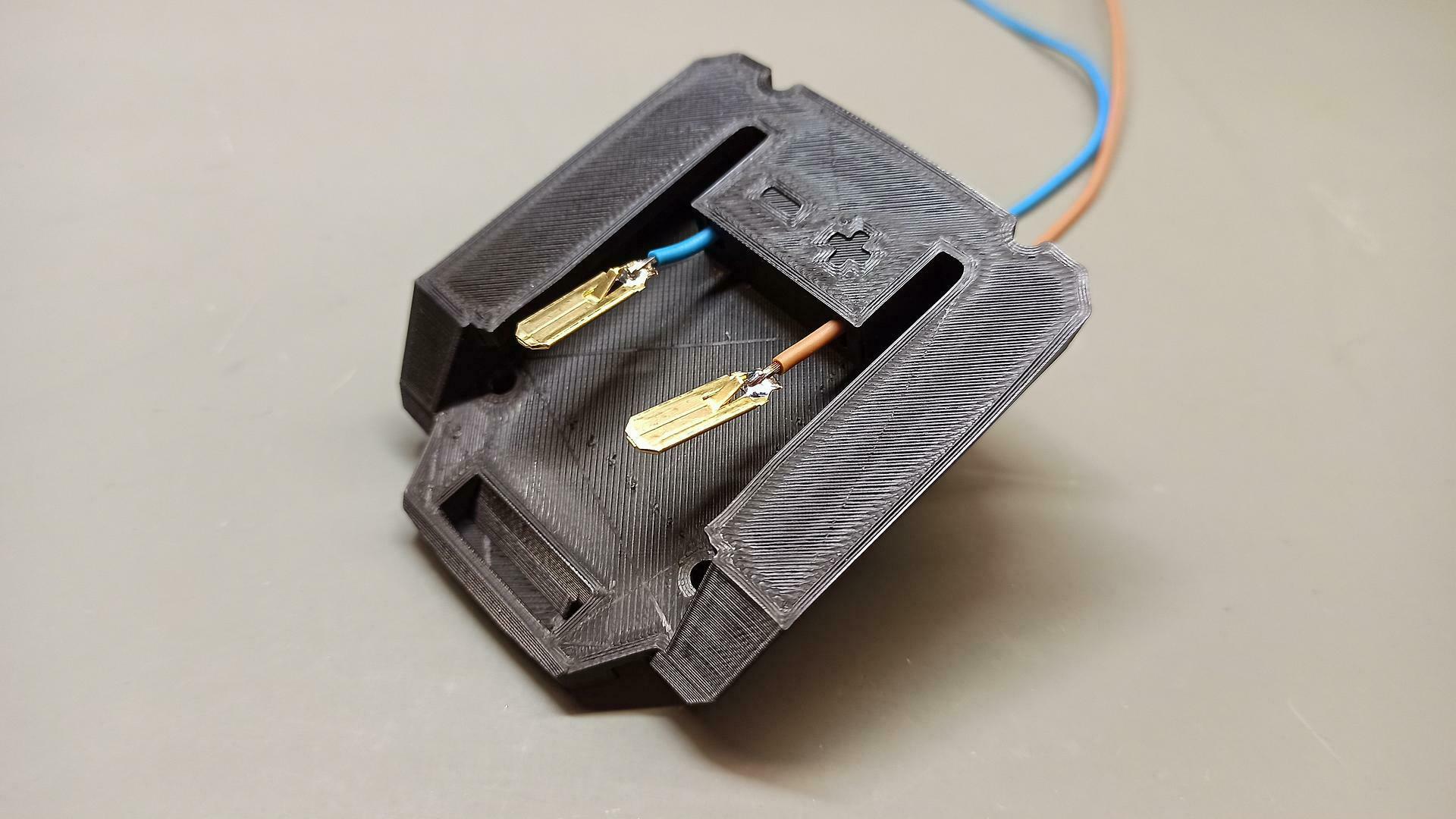

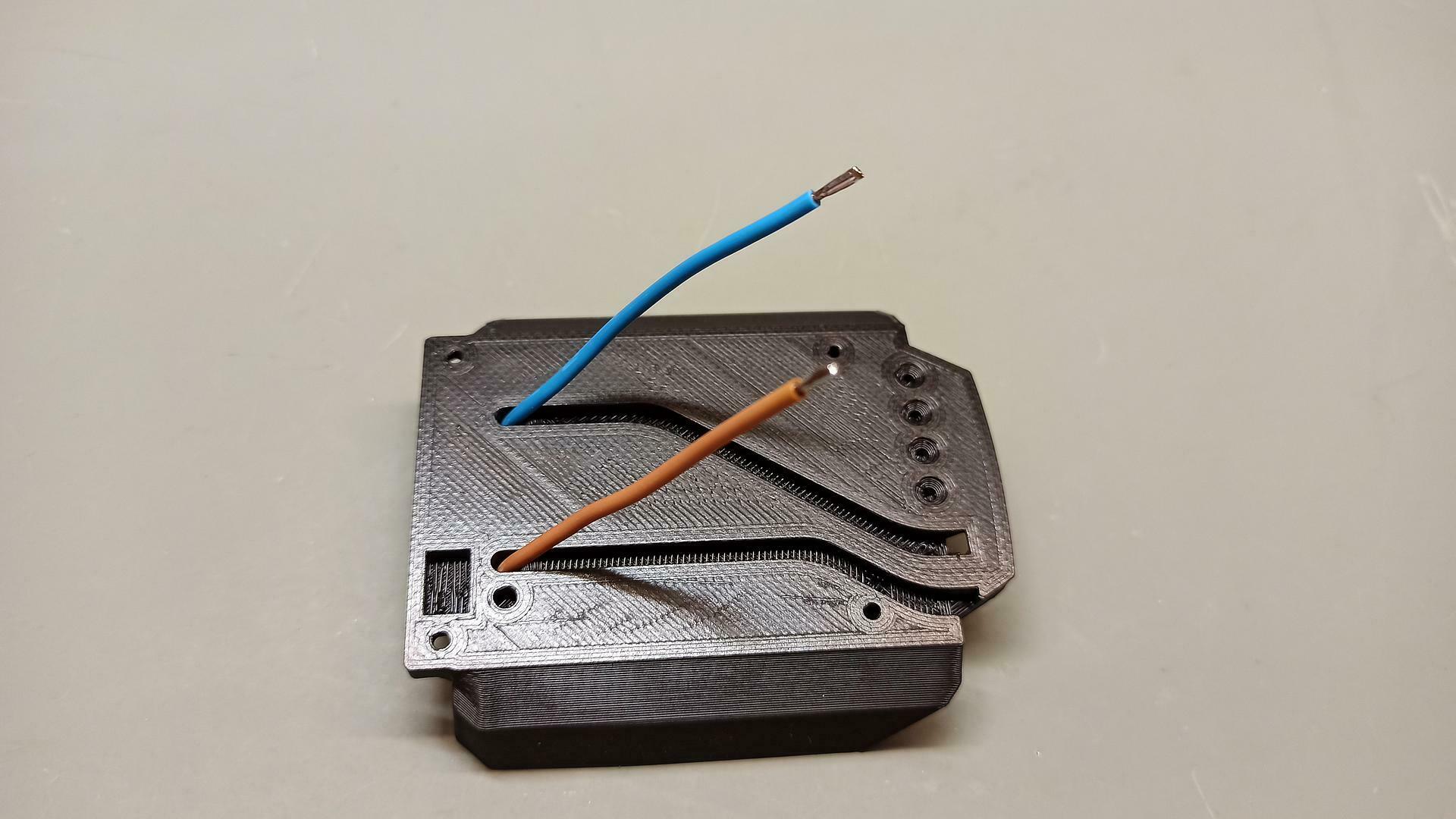

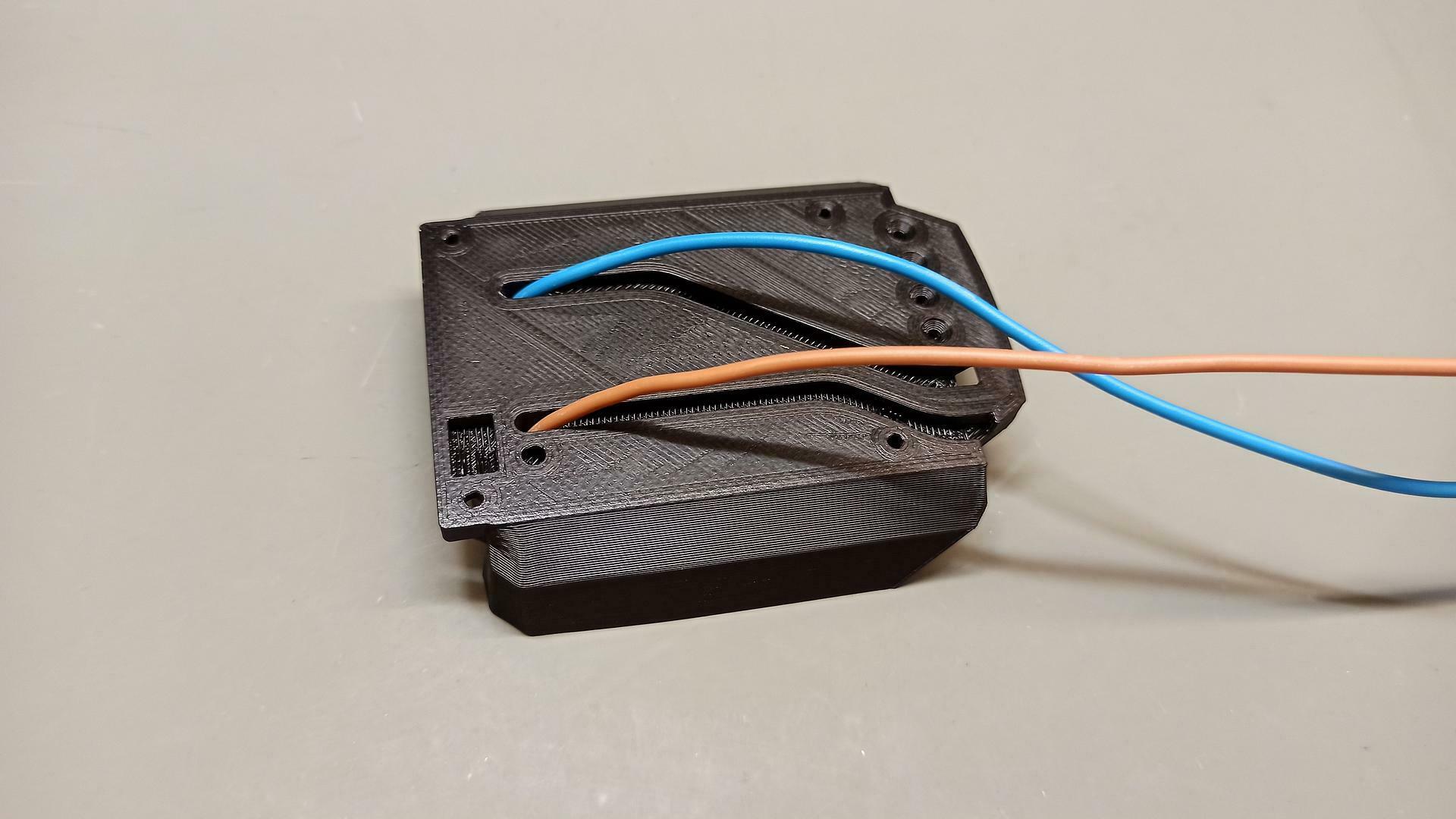

Push the wires through the holes in the 3D print. Solder the ends of the wire and solder the connectors to the wires.

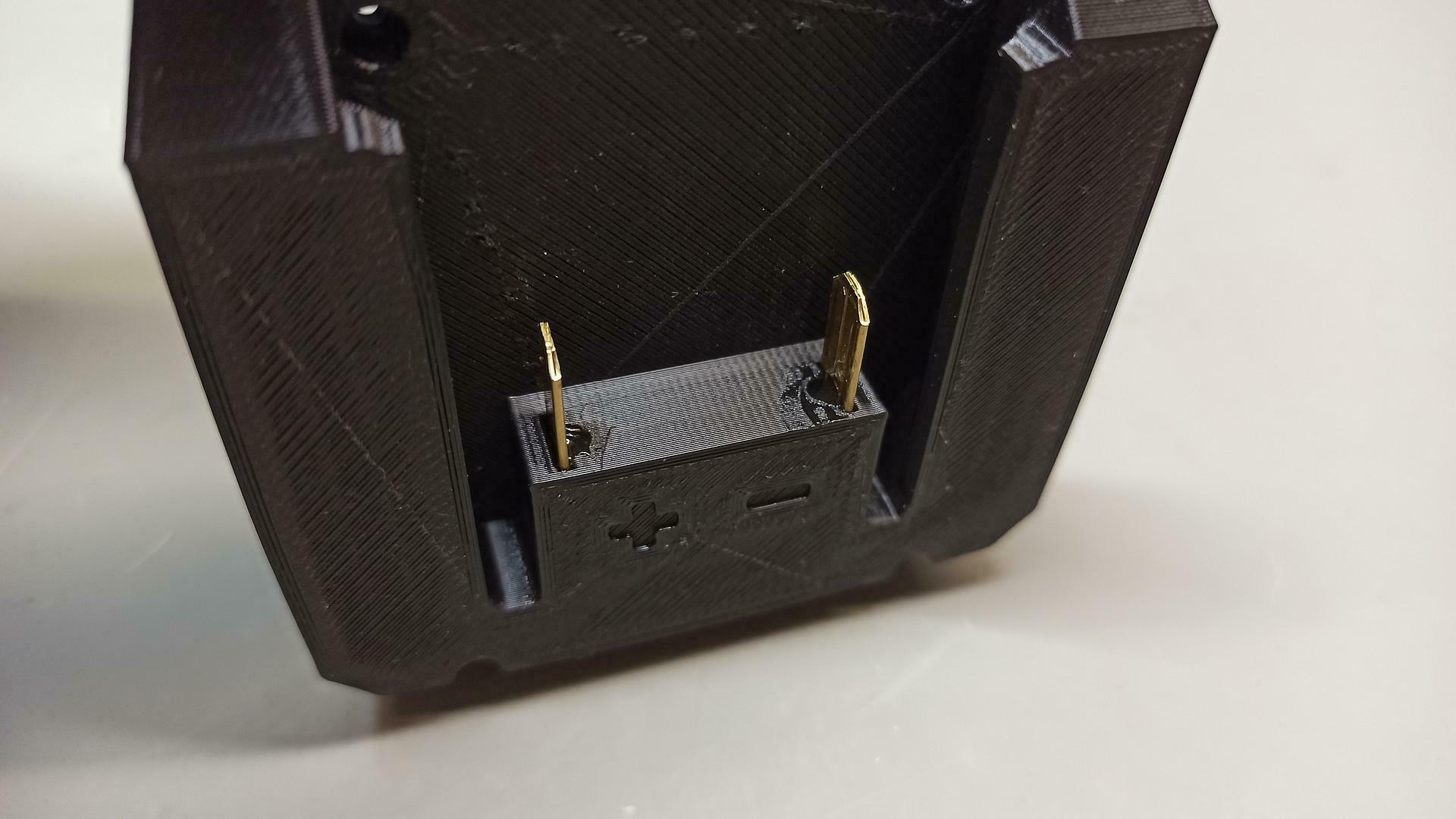

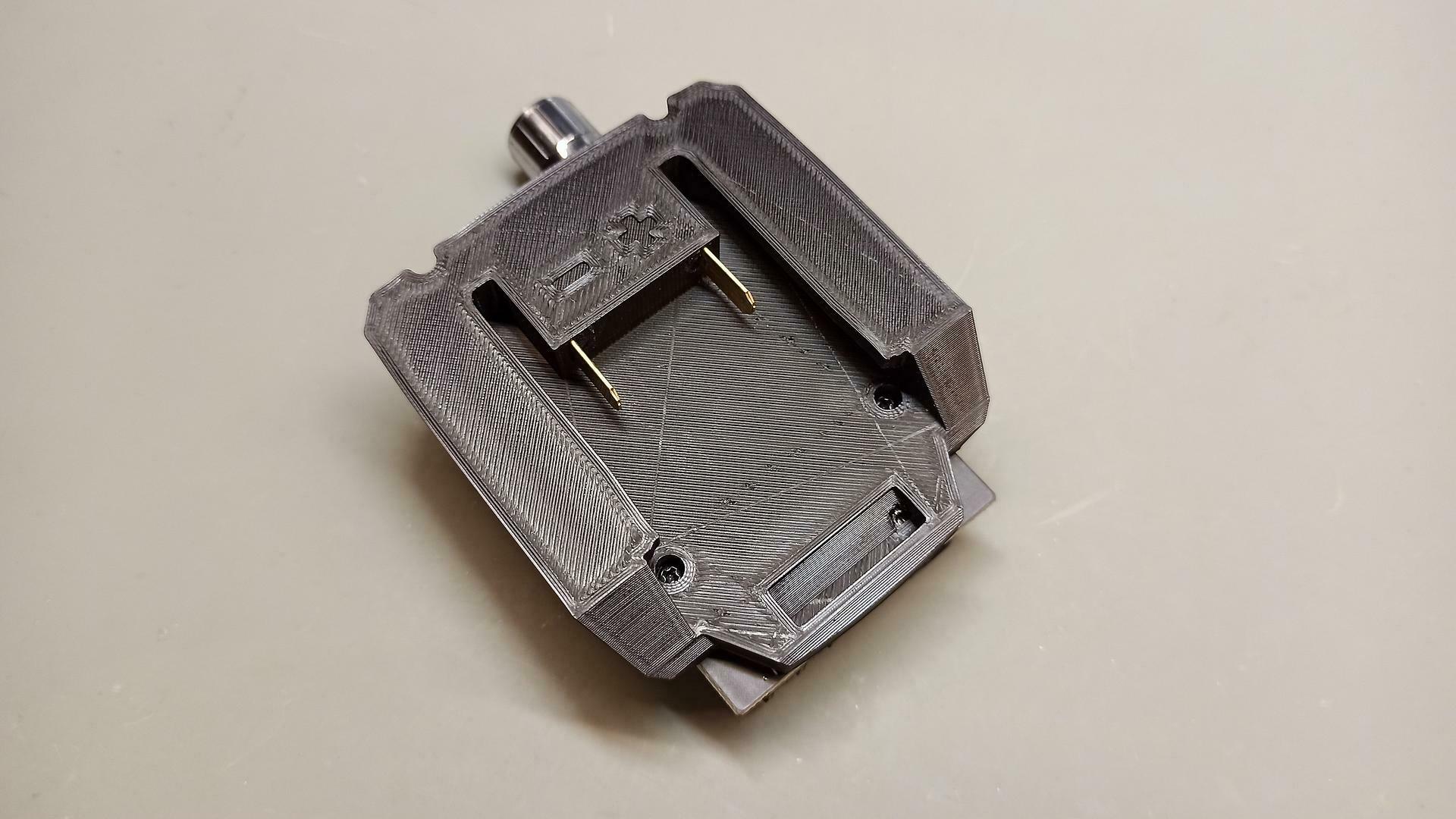

Put the connectors in place and secure them with CA glue.

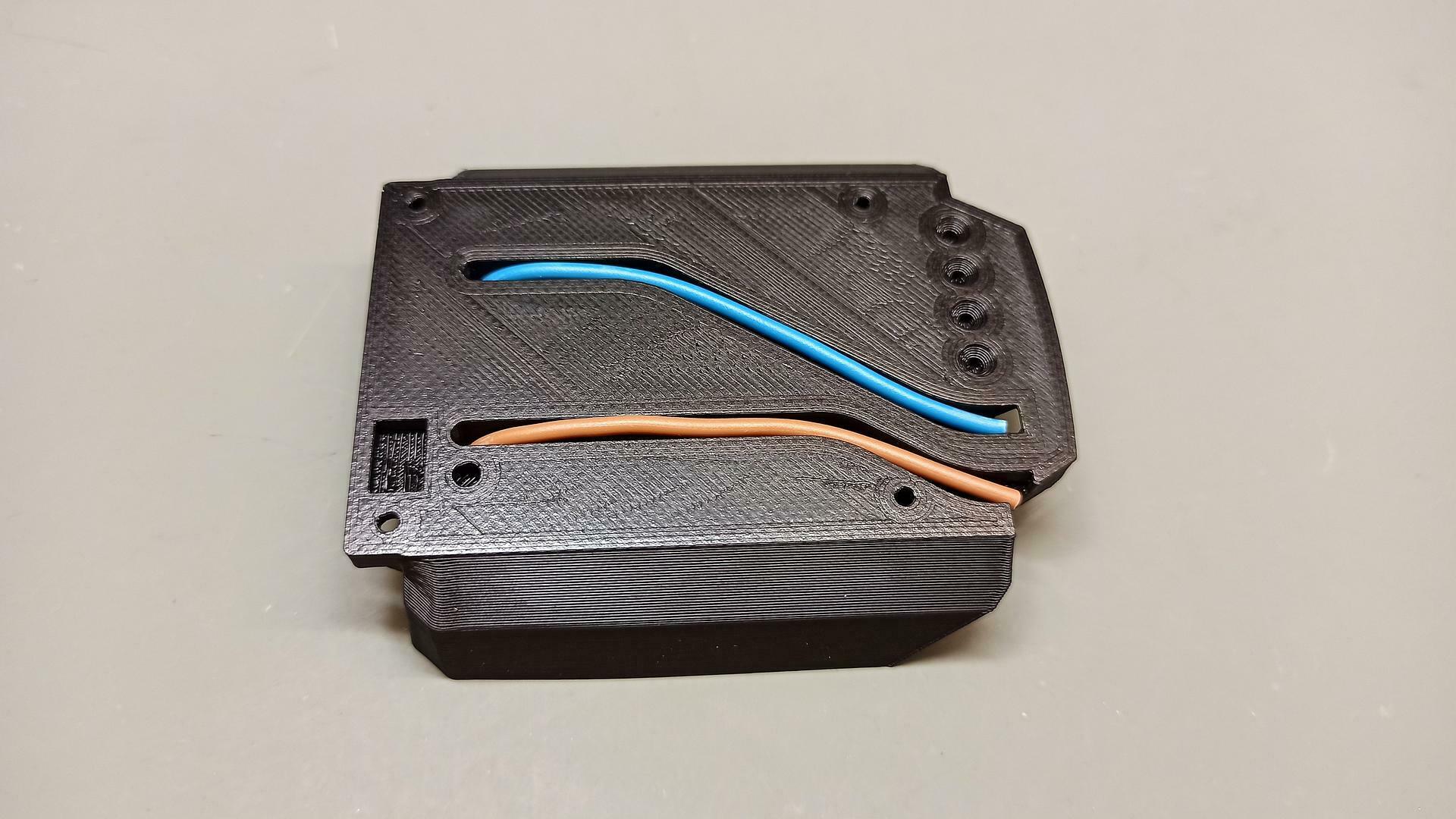

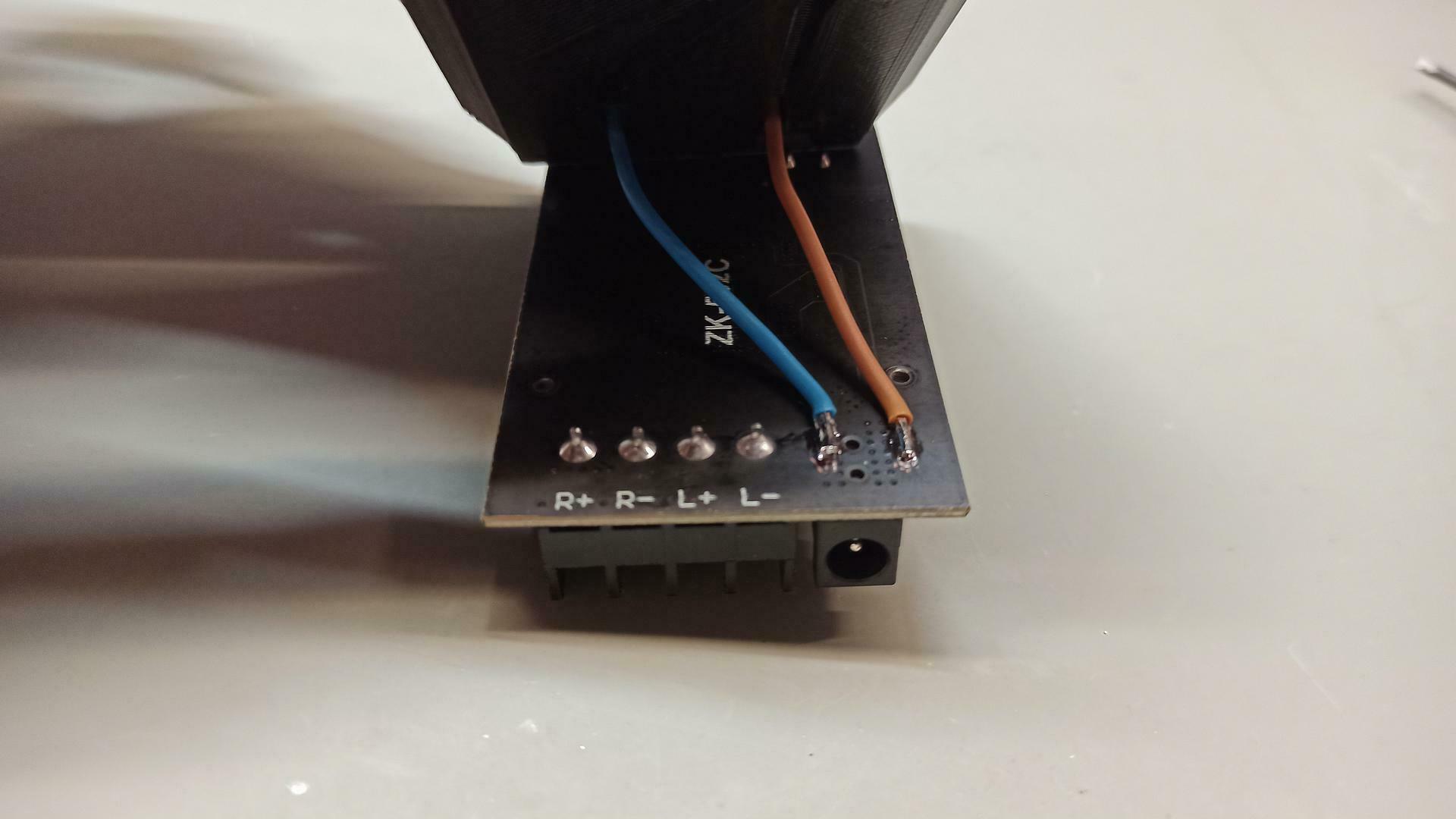

Cut the wires to the correct length and strip ends. Solder the wires to the amplifier module.

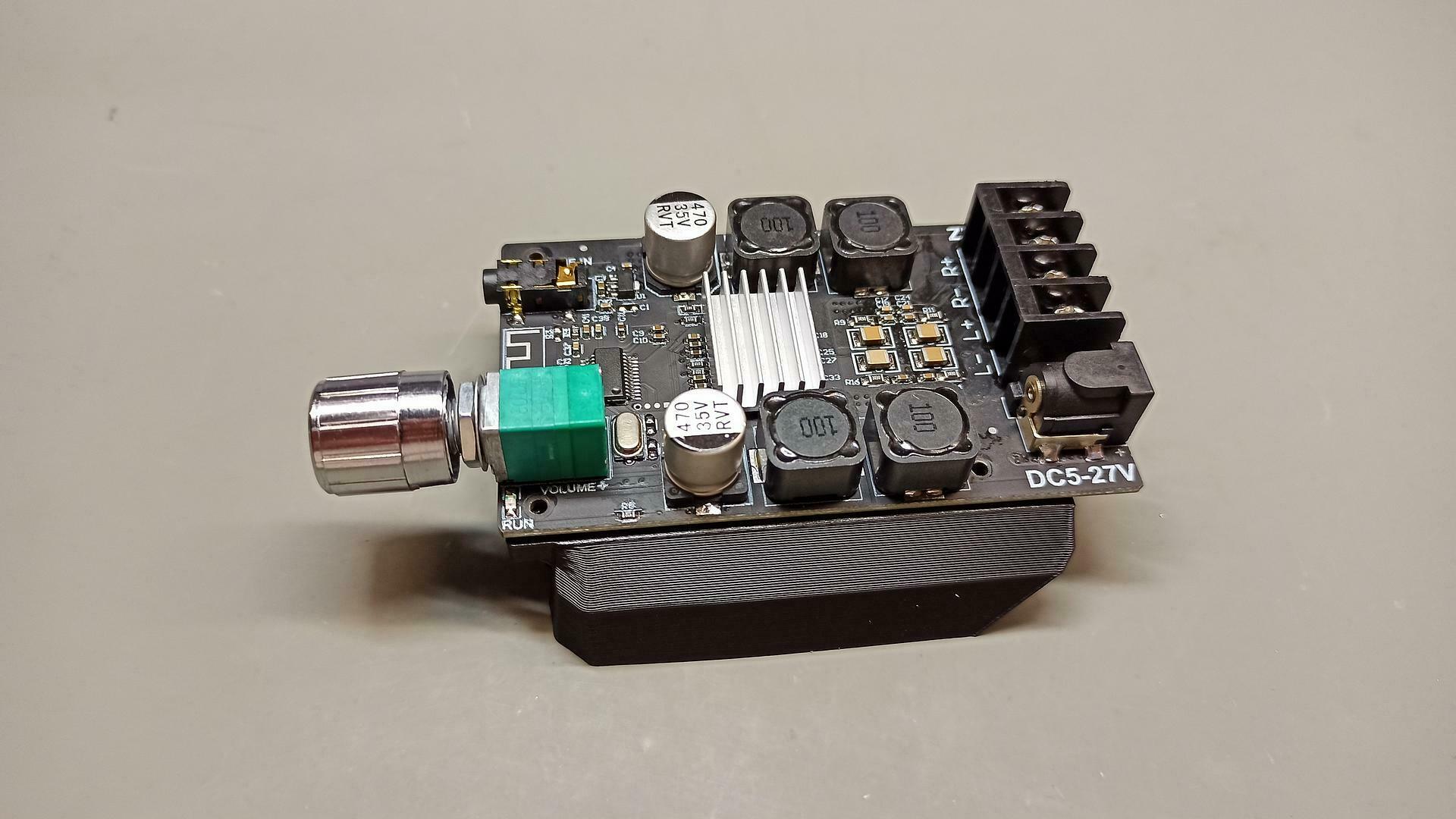

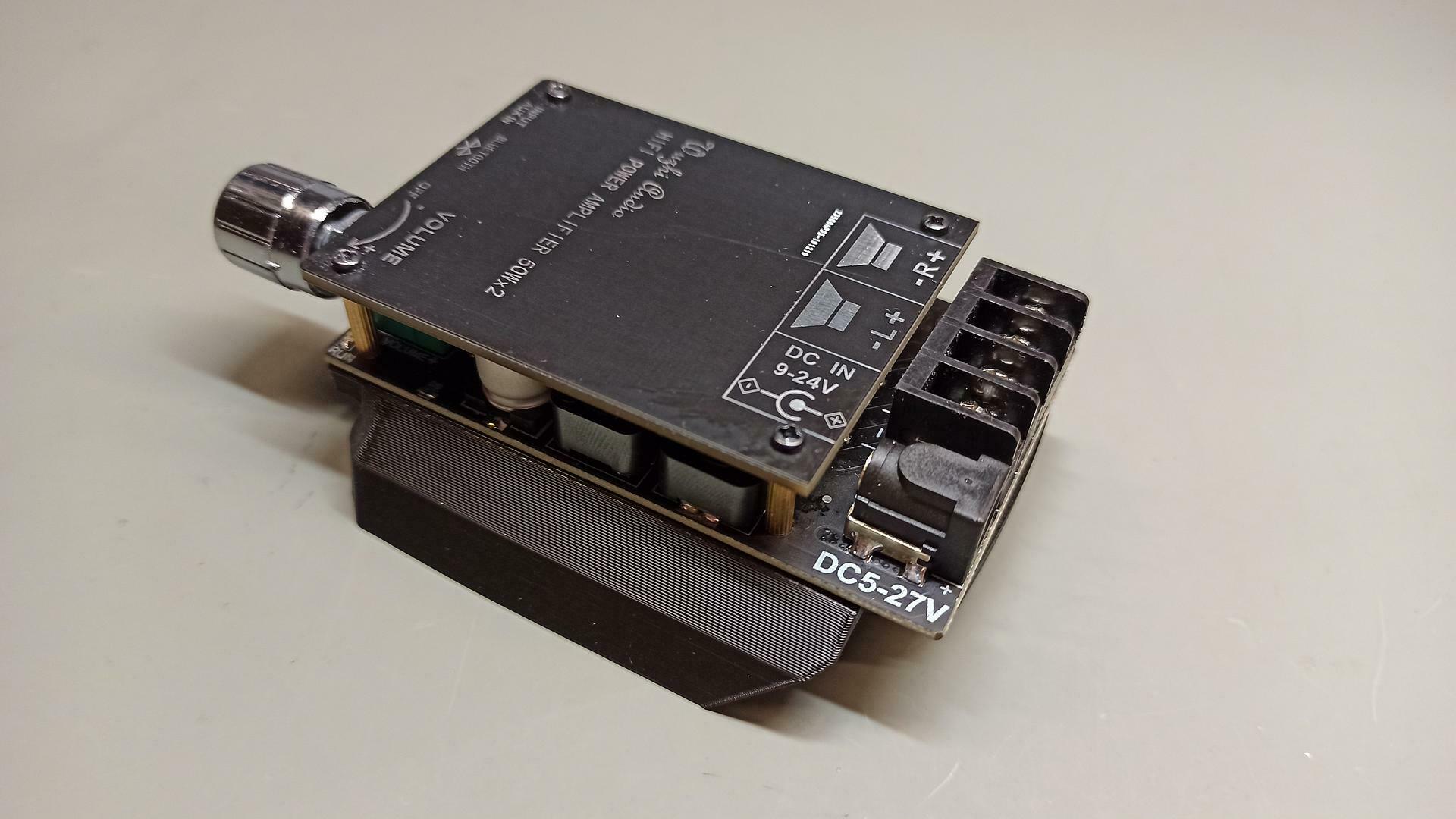

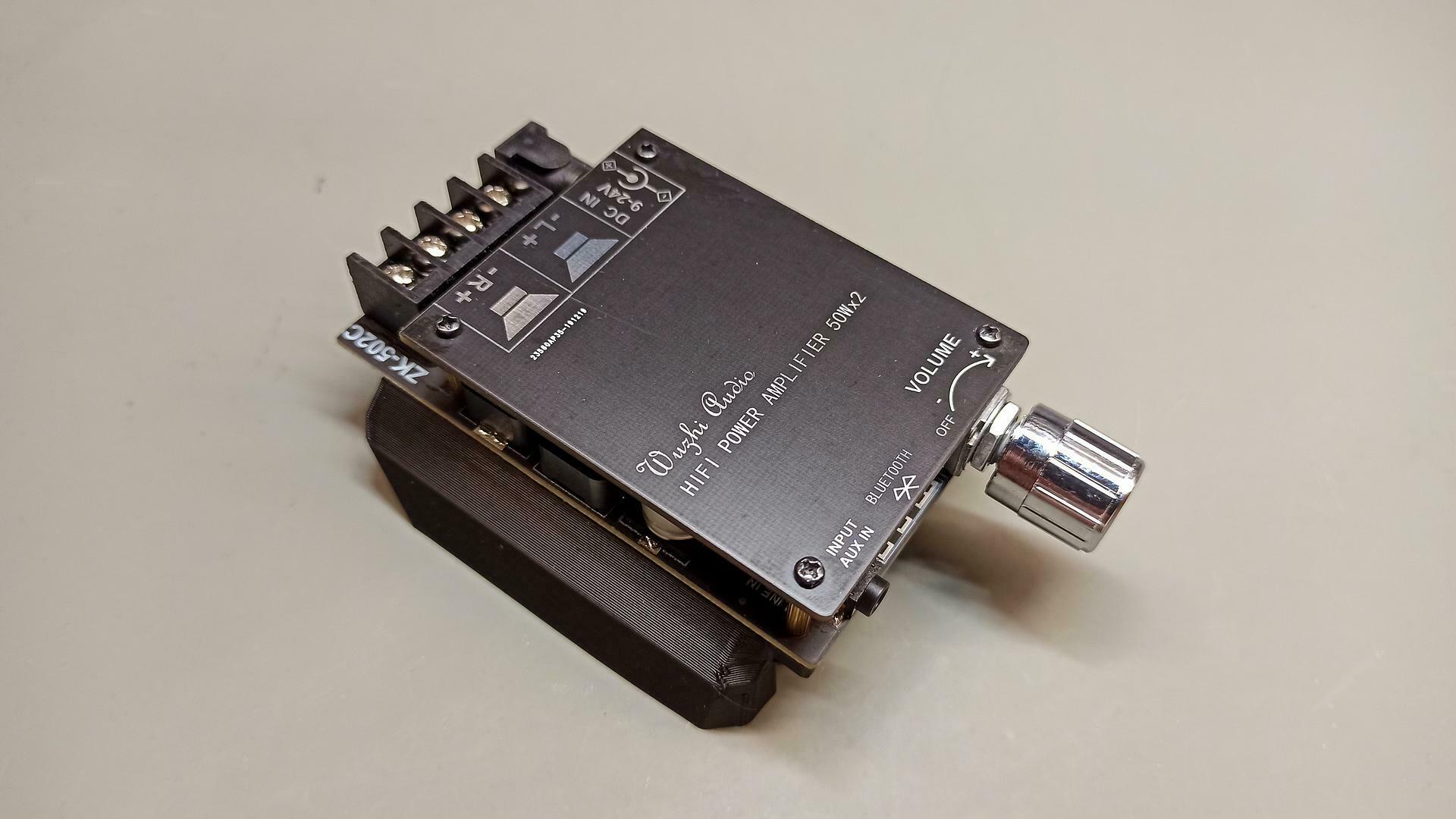

Screw the amplifier module onto the 3D printed part.


3D printing settings

The third photo shows the recommended orientation of the elements when printing.
Walls thickness 1.6 mm (4 shells). Layer height 0.2 mm. Infill 25-30%.

3D printer file information

  • Design number: 283533
  • 3D design format: STEP and STL Folder details Close
    • X20V_TPA3116_Wuzhi.step
    • X20V_TPA3116_Wuzhi.stl

    Learn more about the formats

  • Publication date: 2021-02-03 at 18:49

License

CC BY-NC-SA - Attribution - Non commercial - Share alike
