Parametric T-Slot Antenna

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 4 likes
  • 40 downloads

3D model description

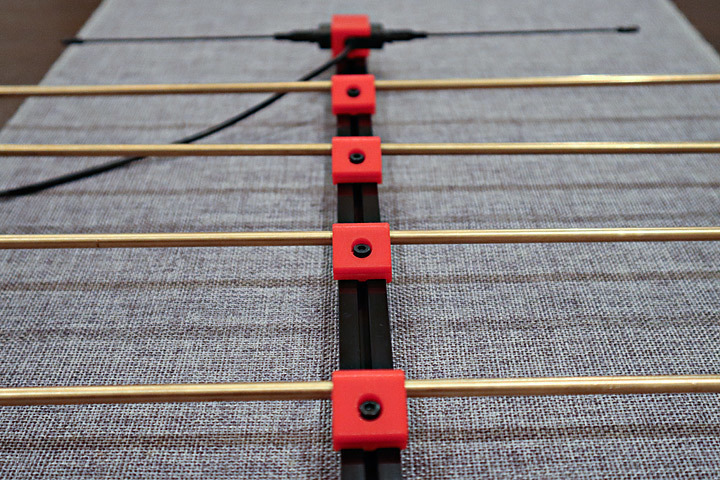

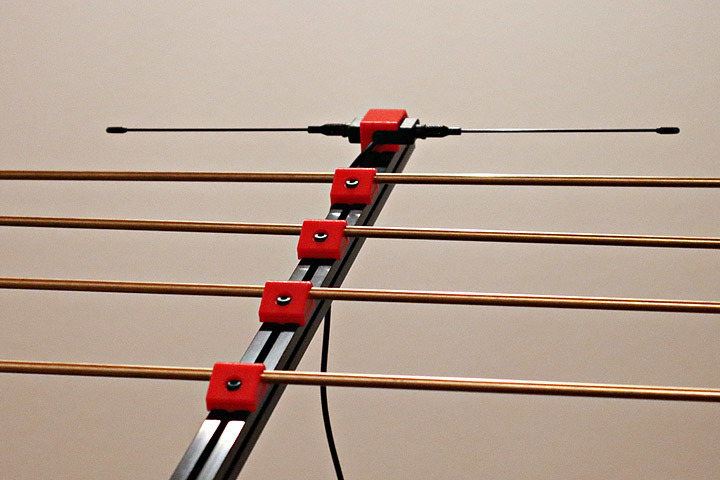

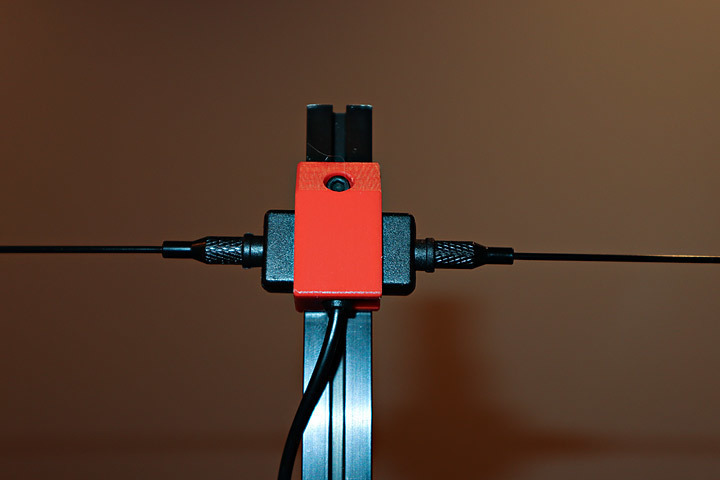

This is a generator for clips to build directional antennas with aluminum extrusion (T-Slot)

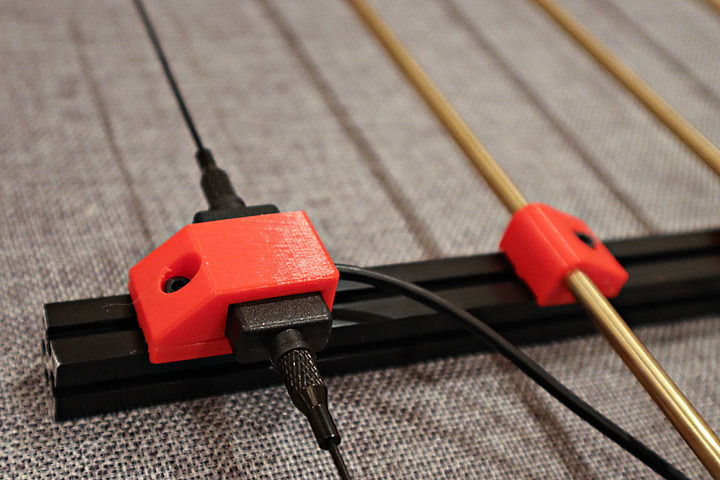

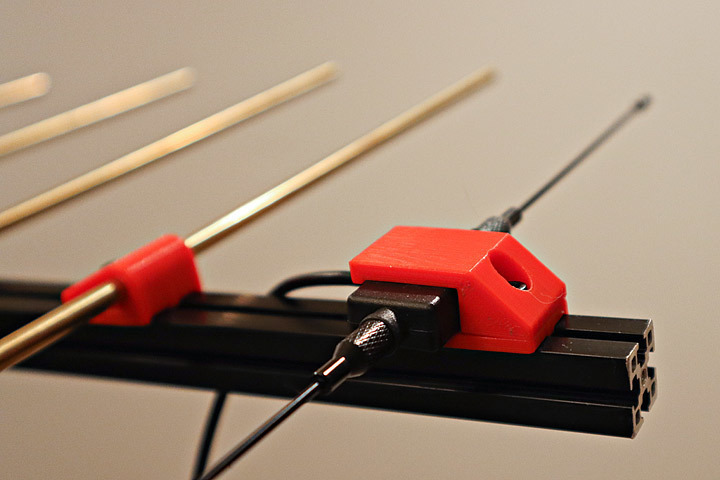

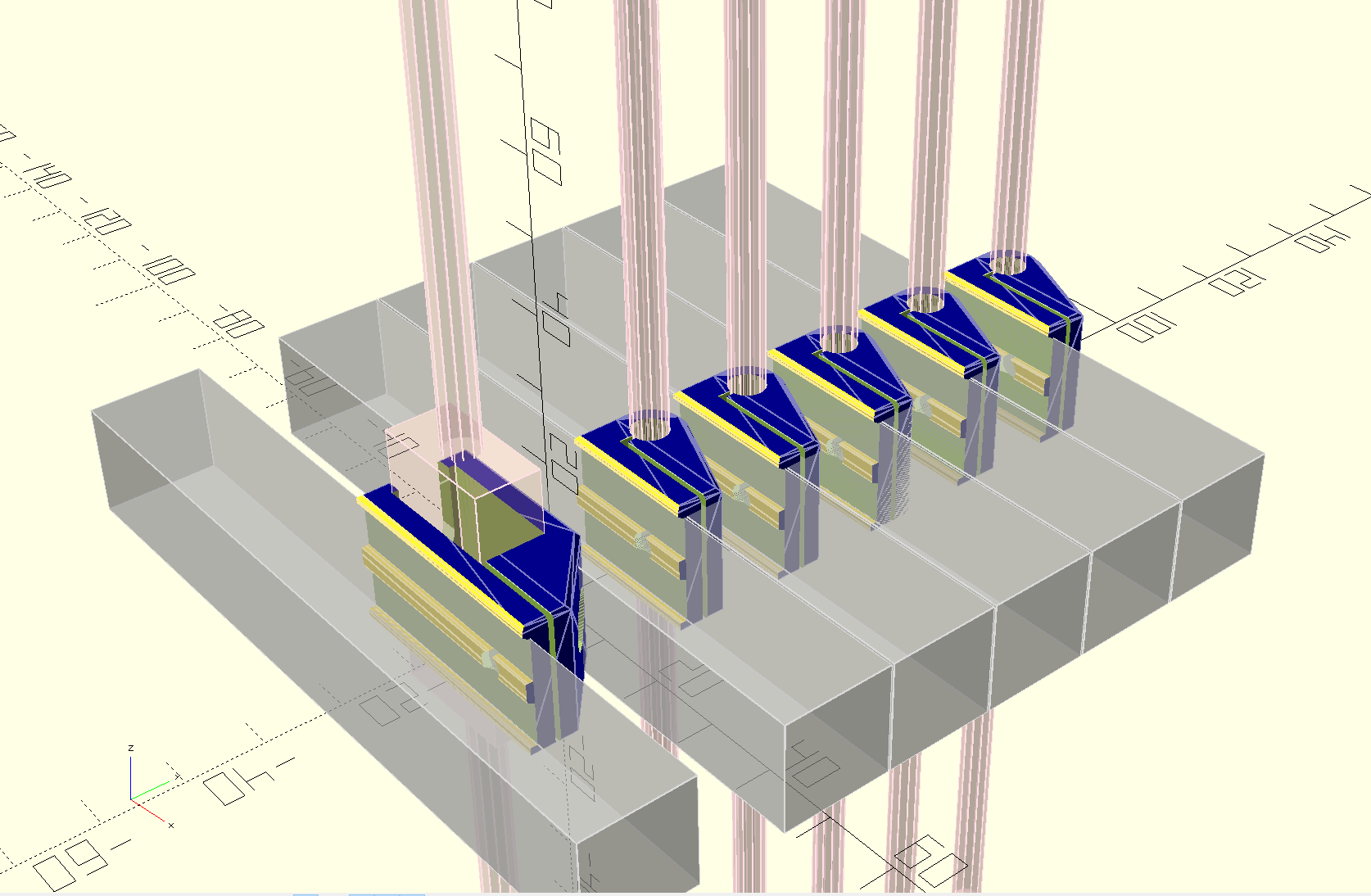

It generates one dipole clip and N rod (director/reflector) clips in a set, ensuring the rods are in the same plane with the dipole, iow the same distance from the aluminum extrusion

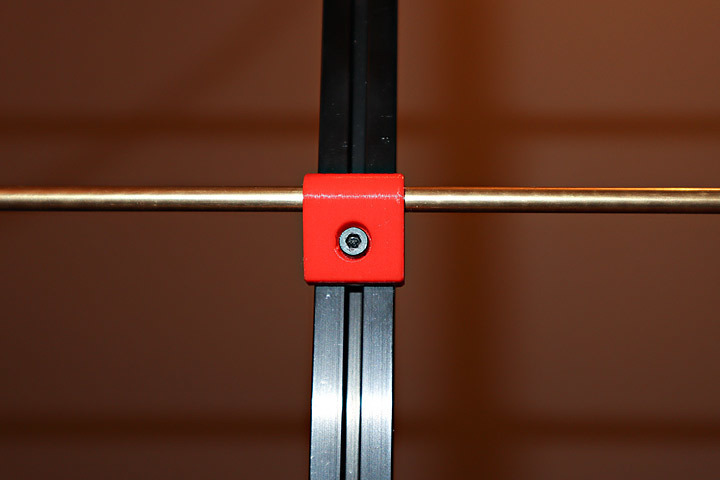

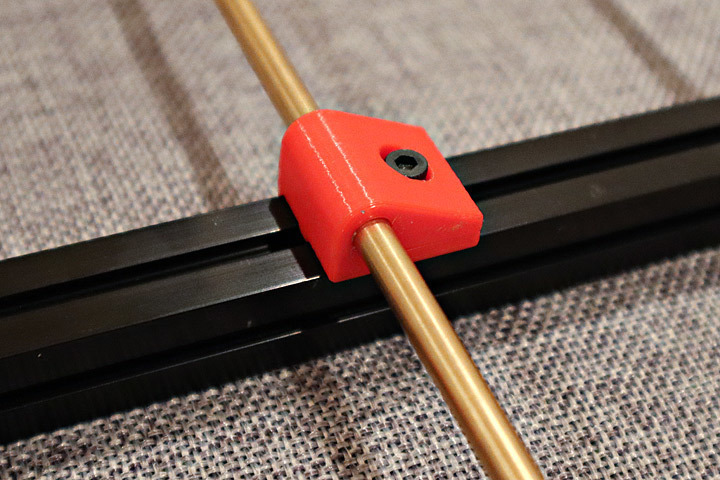

It uses a single screw (typically M3 for 15mm extrusion) to both tighten the rod and attach to the T-slot.

It prints as is, no supports required.

The included STL example is for 1515 (MakerBeam XL) and 3/16" rods, and uses M3 10mm screws, but you can "Open in Customizer" and adjust as needed.

  • 3D file format: SCAD and STL

Tags

Creator

Designs 47
Downloads 6.8k
Followers 48

I enjoy designing minimalist-functional 3D objects.

License

CC BY
