Parametric ceiling mounting electrical box for Coiaca boards and Sonoff Basic
:still():format(webp)/https://files.cults3d.com/uploaders/14421438/illustration-file/6a448db9-4b35-47ad-b474-dbfa7d4ded7a/featured_preview_r1.jpg)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 876 views
- 1 like
- 9 downloads
- 0 comments
- 0 makes
Designer
3D model description
Fully customizble ceilling mounting electrical box for Coiaca boards.
Make any light smart!

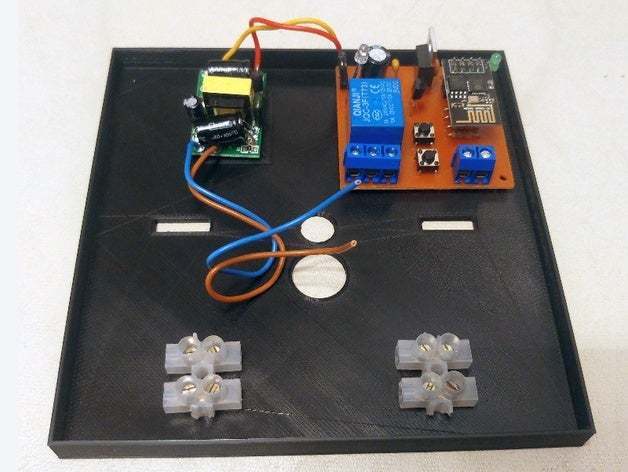

This box was designed to be placed between the ceilling (or wall) and the lighting artifact, to convert any light into a smart light, adding a Coiaca PSWSx smart switch board.
But, removing the Coiaca board support you can use it for whatever you need, placing it between a regular electric box (usually octogonal) and any lighting artifact.

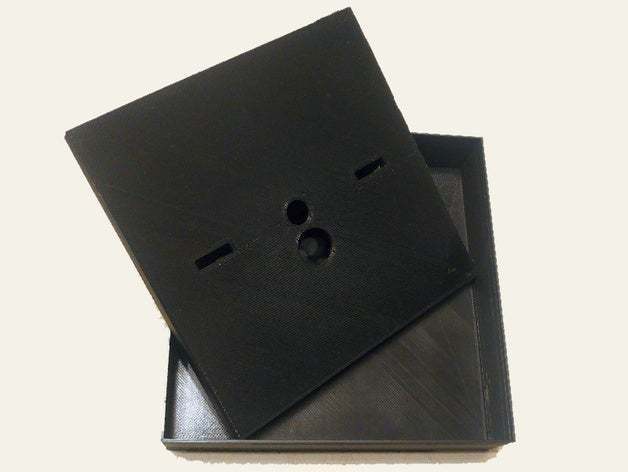

Provided STLs are for a square box 130mm long, 130mm width and 30mm height with and without Coiaca board support and also for Sonoff Basic.

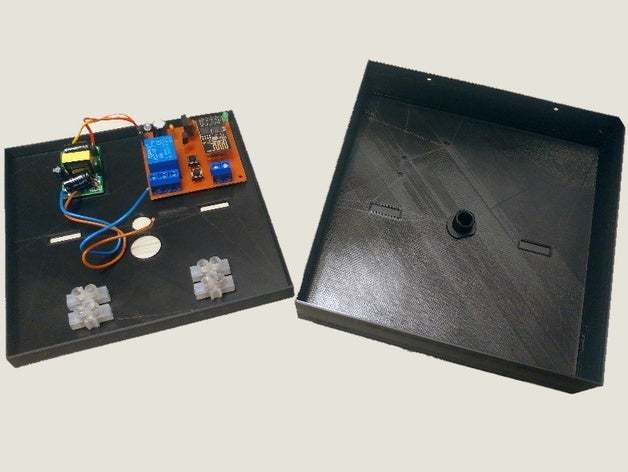

Note: Even though it's not so hard to make, I bought the cable gland that can be seen at the bottom of the box. So, it's not part of the model.
3D printer file information
- Design number: 129410
-
3D design format: STL Folder details Close
- ceilingBox-EMPTY-BOX.stl
- ceilingBox-EMPTY-LID.stl
- ceilingBox-PSWS01-BOX.stl
- ceilingBox-PSWS01-LID.stl
- ceilingBox-SONOFFBasic-BOX.stl
- ceilingBox-SONOFFBasic-LID.stl
-
Publication date:
2020-04-07 at 16:55
?
Published to Thingiverse on: 2019-10-17 at 01:07
License
CC BY-NC-SA - Attribution - Non commercial - Share alike
