Parametric 3D Printed Steel Ball Bearings

?
Creation's quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 11.1k views
  • 10 likes
  • 205 downloads

3D model description

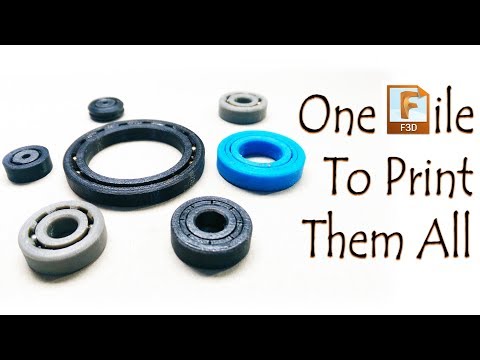

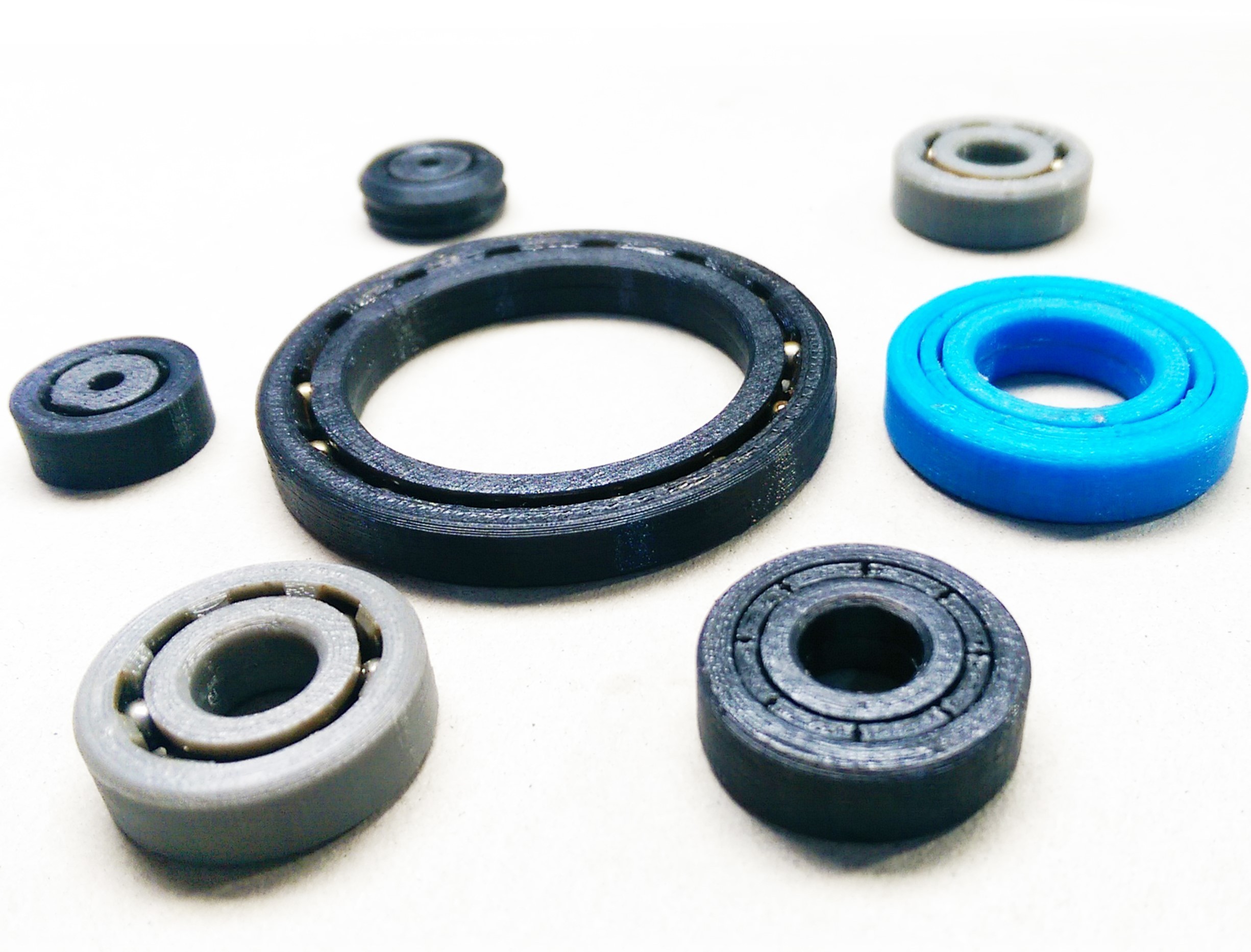

This ZIP file contains source files for my 3D printable Parametric Ball Bearing,With this files you can easily and quickly create any size ball bearings, all you have to do is enter the size of the steel balls you intend to use and the dimensions of the ball bearing you'll like to make, the model will take care of the rest.

UPDATE - June 2021.
A new and improved design for the bearing has been uploaded, and the download now contains source files for SOLIDWORKS, FUSION 360 and FREECAD.

This file has personally saved me hundreds of dollars in bearing cost, it can do the same for you too.

Instructions - https://drive.google.com/file/d/1o1Nti4sylbaLKGiv7DxjlpOr632uvZ36/view?usp=sharing

Video2 - https://youtu.be/DTSoJ4WL6Tk
Video1 - https://youtu.be/RPXKK6NsMaM

4mm steel balls- https://ebay.to/2ZcdUWz

3D printing settings

100% infill.

  • 3D file format: STL and ZIP
  • Last update: 2021/06/13 at 17:37
  • Publication date: 2018/09/06 at 03:23

Copyright

©

Tags

Creator

Designs 10
Descargadas 951
Ventas 3.302 $MX
Followers 12

Engineer, maker and a designer

instagram- @ahmsville
twitter- @ahmsville

Issue with this design? Report a problem

Best sellers of the category Tools


Add a comment

7 comments

Hi! I wasn't able to upload and open the fusion 360 file as well. Would you happen to have an updated file? Fusion updated a lot so that might have mess with the settings.

Yes. @roshanyams

Awesome file, made a few bearings with it.

Hello Great_white1234, can you share your printer settings, and also the dimensions of the bearing your trying to print?...I also use s3D, I should be able to help.

I am having a problem printing the ball ring part it not slicing it all useing s3d

@RAYIMPRESION3D i am sorry your having difficulties opening the file, i am sure the problem is specific to you alone as i have not gotten any complaints till now, but just to be safe, i have re uploaded the file. Thank you.

I can't open the file, when I want to upload it, Fs360 shows me this message "could not translate file. Please try to upload again leter" help :'c
