Overhead Bracket for Security Token

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 758 views
  • 3 likes
  • 16 downloads

3D model description

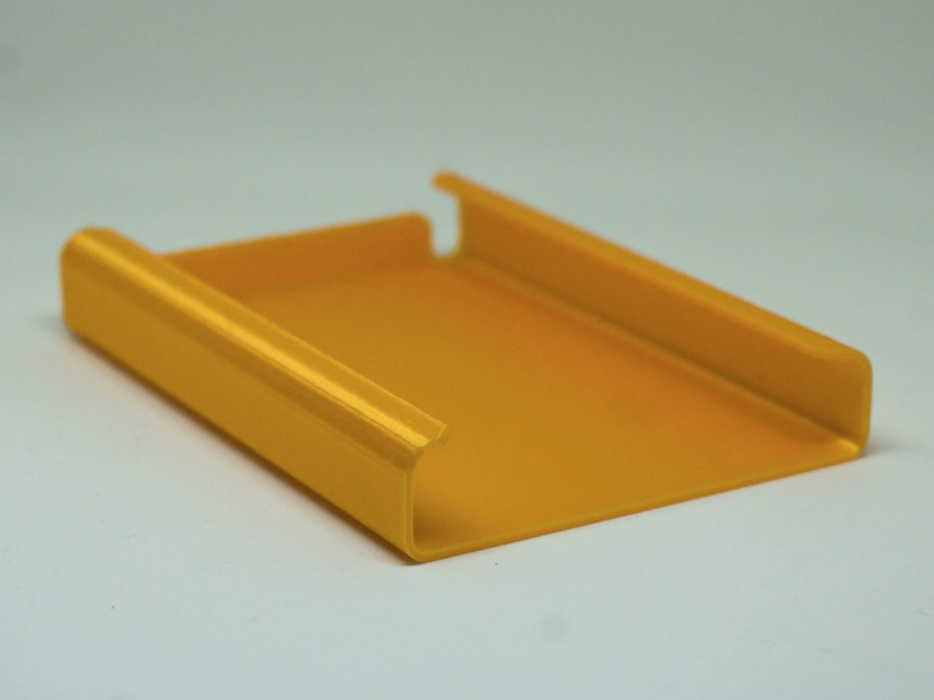

This bracket is for keeping the Digipass 831 security token from Postfinance at his assigned position.

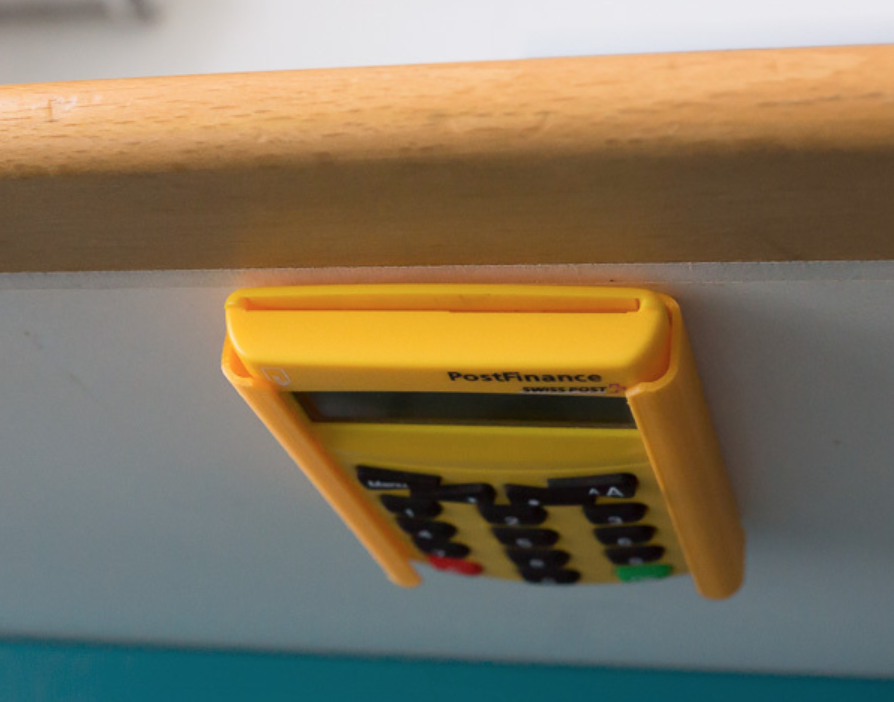

Always when I had to make some internet banking I searched my Digipass device from Postfinance. So i decided to to assign a fixe place where i store the Digipass. Because i already have many things on my desk t designed this brackte to store the Digipass underneath the desk surface.

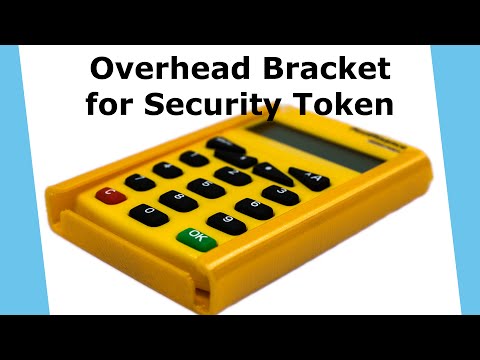

https://youtu.be/59sWRMnXL_k

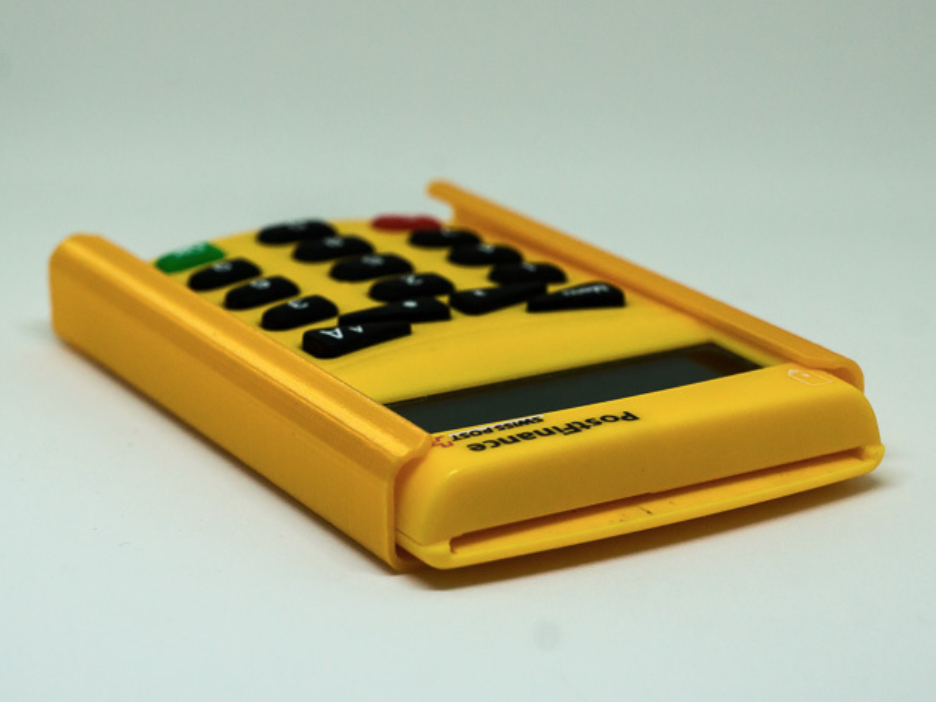

This Bracket is designed for a Digipass with the measuring of 62mm with, 12mm height and approximately 90mm lenght. If you need some other dimensions, I can generate a *.stl for you.

Generally it is a general purpose bracket. It can also be mounted on a wall, either for putting the device in from above, or from the side. Mounted upstanding on the wall you can use your Digipass without removing it out of the bracket.

If you don't know what a Digipass is... go to https://www.vasco.com/products/two-factor-authenticators/hardware/card-readers/digipass-unconnected-readers.html

3D printing settings

Printer Brand:
RepRap

Printer:
Prusa i3

Rafts:
No

Supports:
No

Resolution:
0.2mm

Infill:
(100%) see notes

Notes:
The wall thickness of the *.stl file is 1.2mm if you use an extrusion-with of 0.3mm and at least two perimeters, you will end up in a 100% infilled part without any additional infill, because there is no gap between the perimeters. (see print screen in the gallery)

Post-Printing

Options for mounting the bracket
You can either use double faced adhesive tape to stick the bracktet to a surface.
Or you can use hot glue, depending on the surface behavior.

http://amzn.to/2aVjqAK

  • 3D file format: STL
  • Publication date: 2017/10/31 at 15:43
