ORTUR LASER MASTER2 Z height adjuster and wedge
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/14949058/illustration-file/4615577e-779d-4e77-a7e4-c3889b06fa94/support_t%C3%AAte1.png)
/https://preview3d-images.cults3d.com/variants/xtec78dbhk3gr4mfd9hoob7v6pl3/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/871l2c6tunjls3dl95vjgtnz5tit/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/t8w3e41t3n2qdkq3uarecrekff01/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/3mieedpny261y2j8v4h528y3nre8/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/7hwn2vgnbagvcqlkviig32wme7ri/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/p08r8hevqbyt2y9gwknsivq3c7me/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://files.cults3d.com/uploaders/14949058/illustration-file/4615577e-779d-4e77-a7e4-c3889b06fa94/support_t%C3%AAte1.png)
/https://files.cults3d.com/uploaders/14949058/illustration-file/f21f5ad6-67d5-4e57-ab7f-92c56acaade1/cale_hauteur_55mm.png)
/https://files.cults3d.com/uploaders/14949058/illustration-file/520d4104-2291-4f52-b201-3ffccabc04e5/support_t%C3%AAte.PNG)
/https://files.cults3d.com/uploaders/14949058/illustration-file/27c9b211-ac3e-488a-ae45-2ec8d0eec423/path943.png)
?
Creation's quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 8.6k views
- 7 likes
- 296 downloads
3D model description

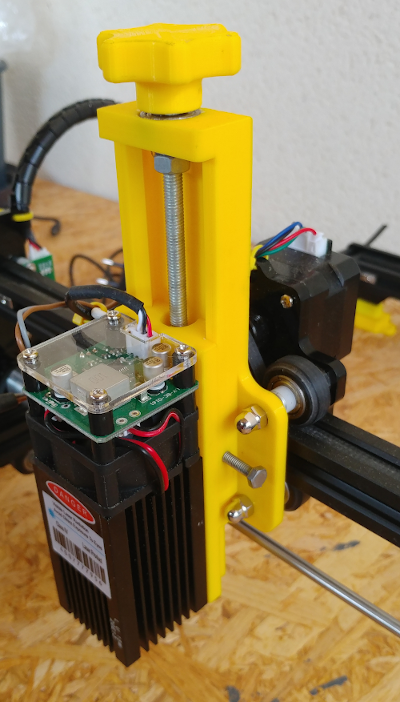

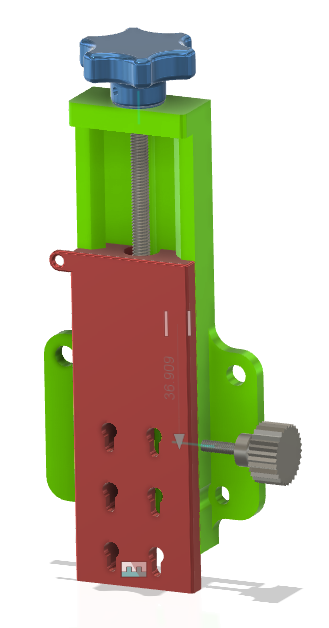

Amélioration apportée à mon laser master 2 qui me permet de régler facilement la position de la tête par rapport à la surface à graver.
Besoin :
- 1 tige filitée M6-110mm
- 4 écrous M6
- 1 vis M4-20mm
- 1 roulement à billes 606ZZ

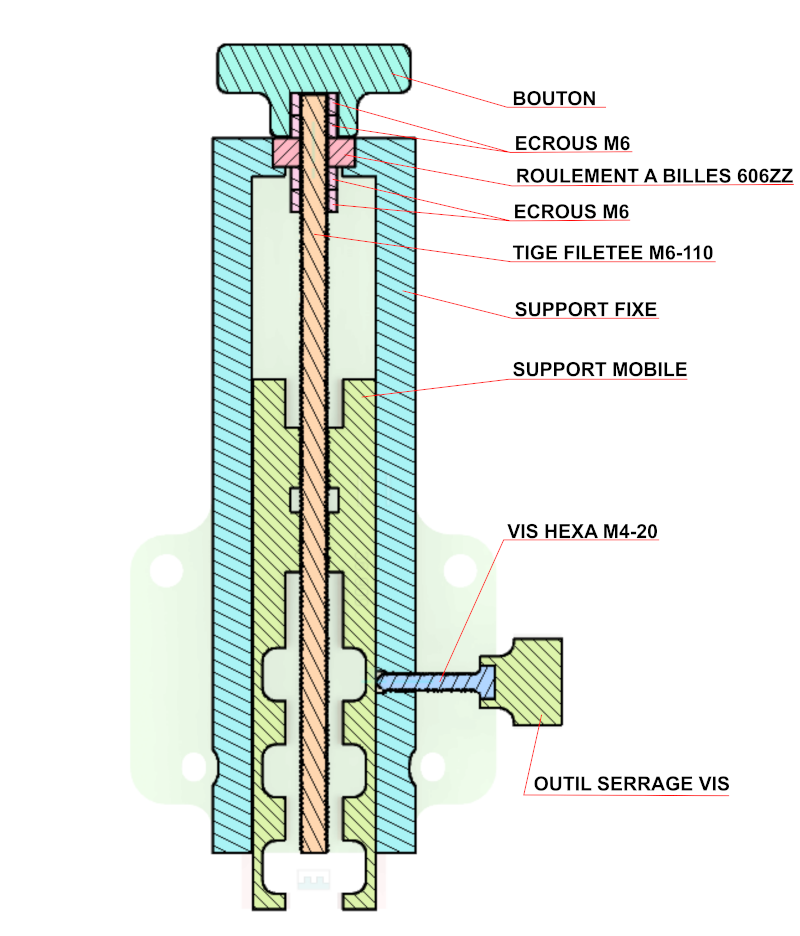

Improvement made to my laser master 2 which allows me to easily adjust the position of the head in relation to the surface to be engraved.
Need :
- 1 threaded rod M6-110mm
- 4 nuts M6
- 1 screw M4-20mm
- 1 ball bearing 606ZZ
3D printer file information
-
3D design format: STL Folder details Close
- SUPPORT_FIXE_TETE.stl
- SUPPORT_MOBILE_TETE.stl
- Spacer_for_all.stl

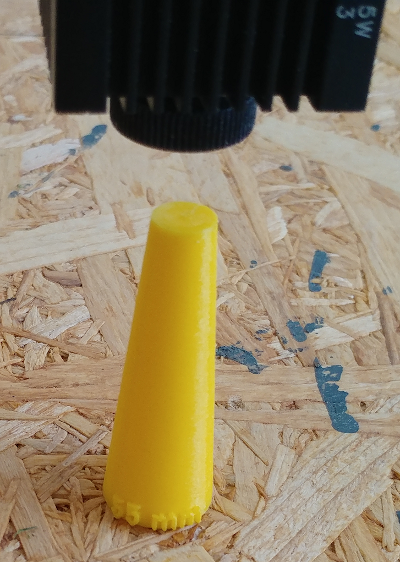

- cale_hauteur_55_mm.stl
- molette.stl
- outil_vis_verrouillage.stl
- Last update: 2021/01/09 at 18:25
- Publication date: 2020/12/02 at 16:54
