Original Hot End Fix Creality, Creality NEO, Tevo Tornado, Tronxy, JG Aurora, Eryone ThInker, MP mini, Sovol S4

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.


3D model description

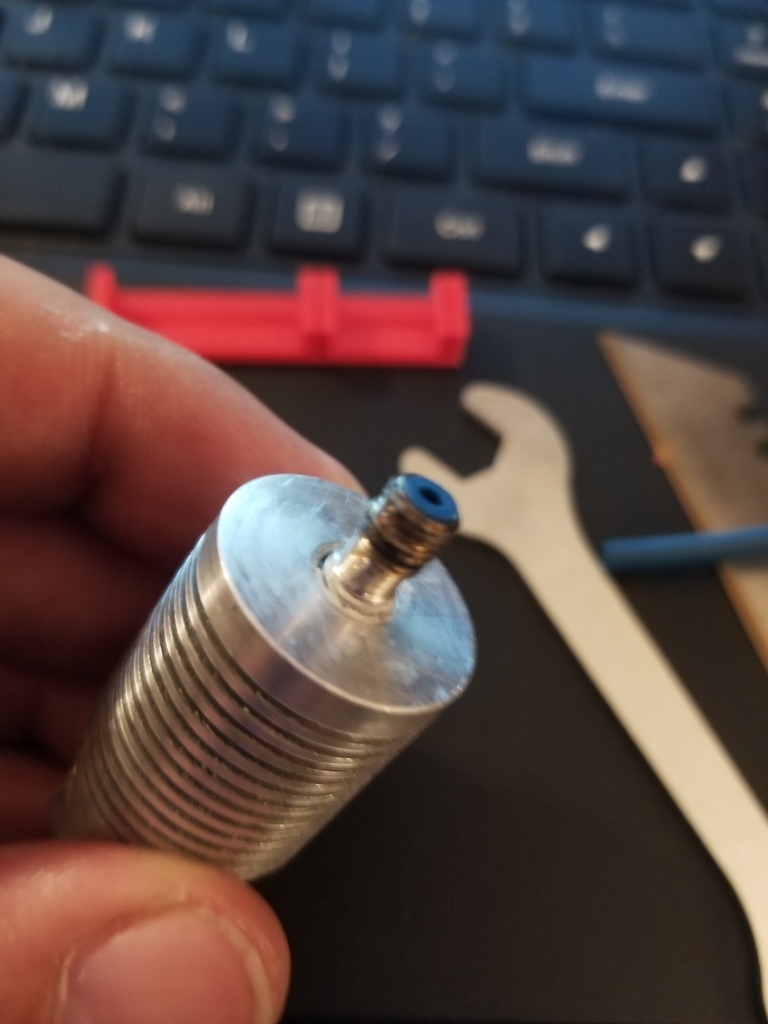

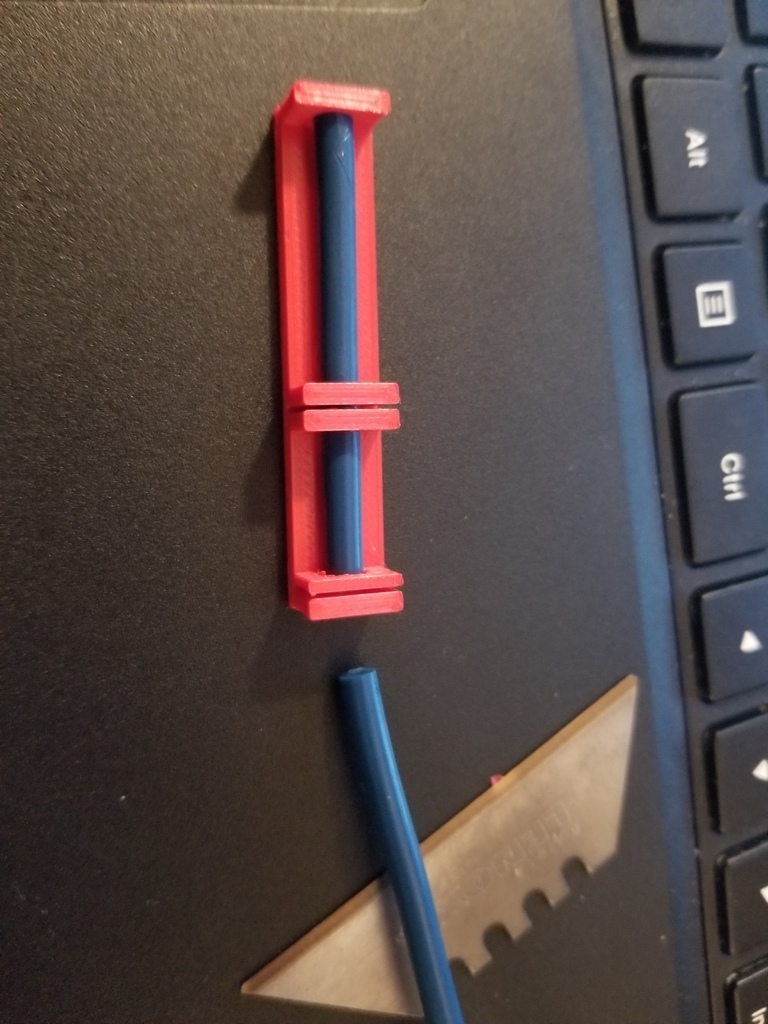

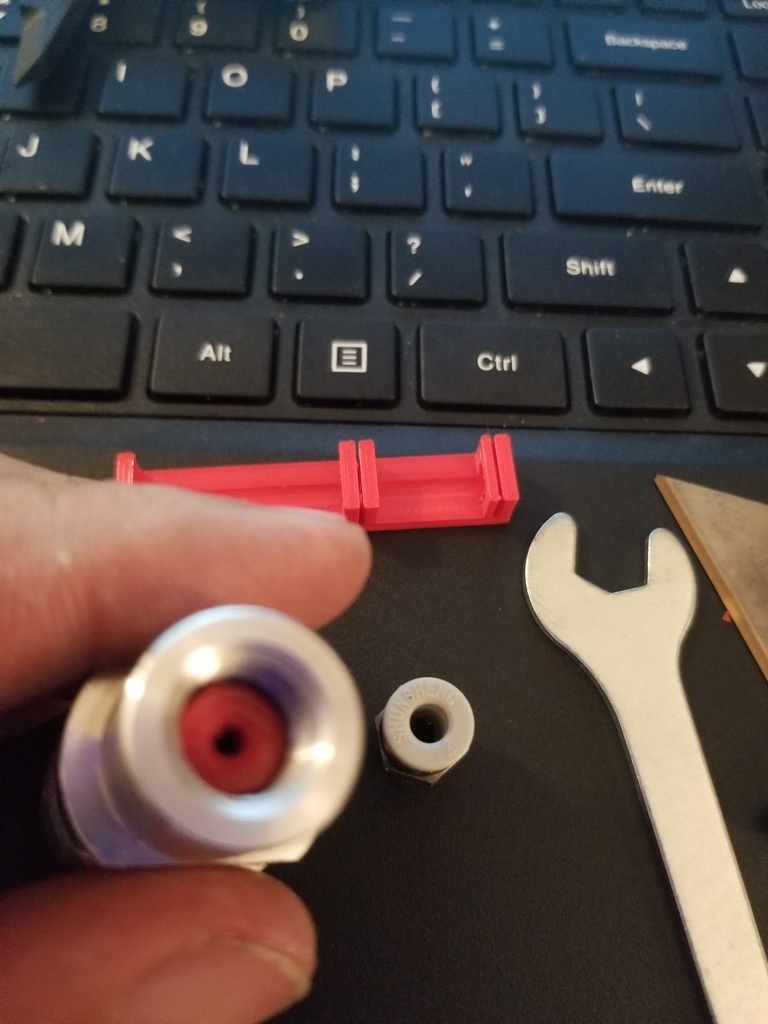

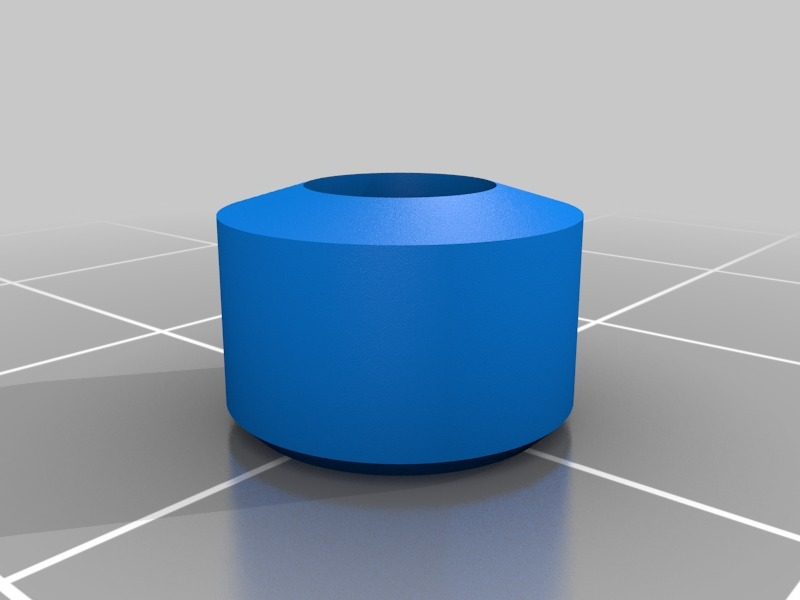

This mod// fix adds a spacer inside the top of hot end that allows a cut length of tubing to be lightly compressed against the nozzle. also taking the extra work of maintaining that seal away from the teeth in the bowden coupler.

See the post processing section for step by step instructions on putting the parts together.

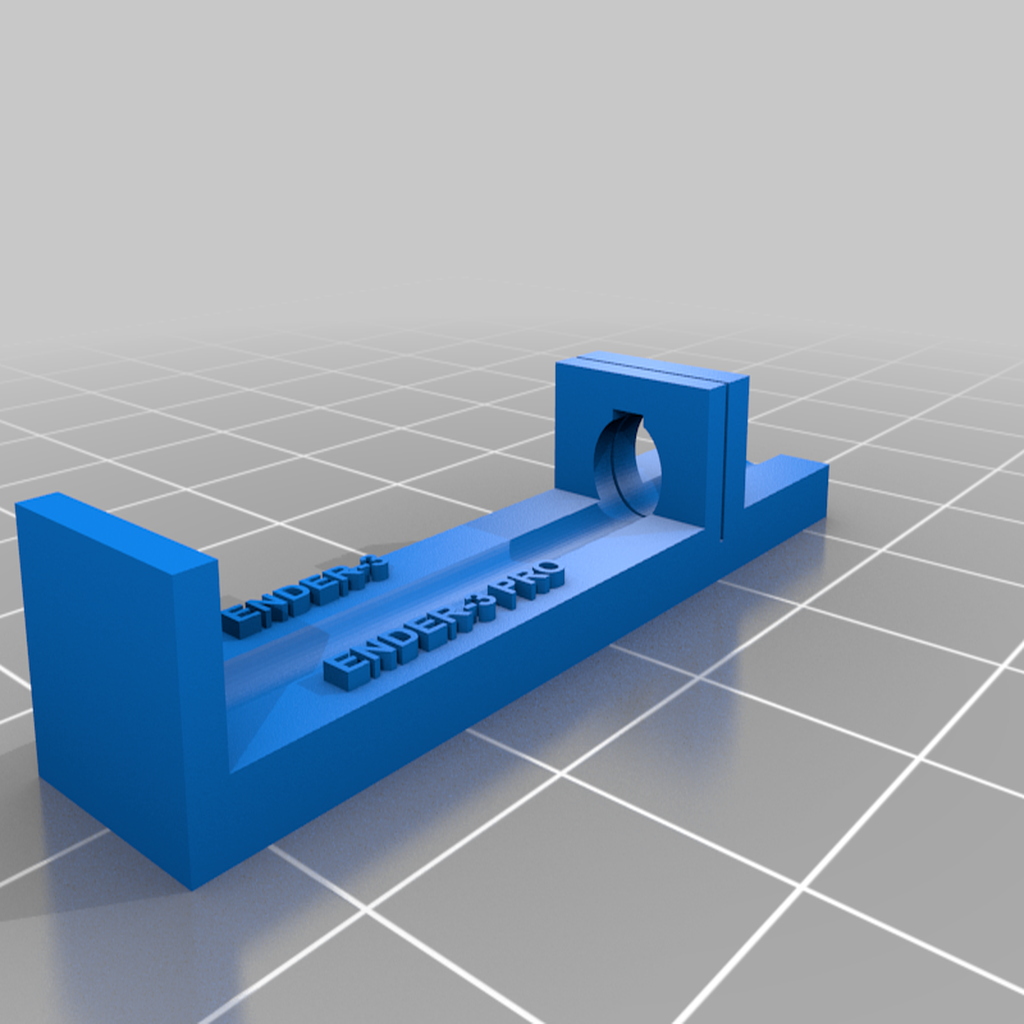

There are verions currently for the following model hot ends, Ender-3, Ender-3 pro Ender-5 all use the standard ender .stl), CR10, cr10 V@ and V3 (CR10S Pro/Max at bottom of page). Tevo Tornado, Tronxy X5SA

I have added an .pdf that has the tools to calibrate your printer to adjust for your now improved flow rate.

If you need new tubing and couplers use this discounted link below

added larger diameter hole for the pc4 m10 size spacer for easier filament withdrawal. fits any machine with the pc4 M10 fillling, ender 3 , ender5, ender 5 plus, tornado and others

added ,1mm length to all the standard type cut guages, due to many users getting under length cut without measuring the results. should not impact users significantly.

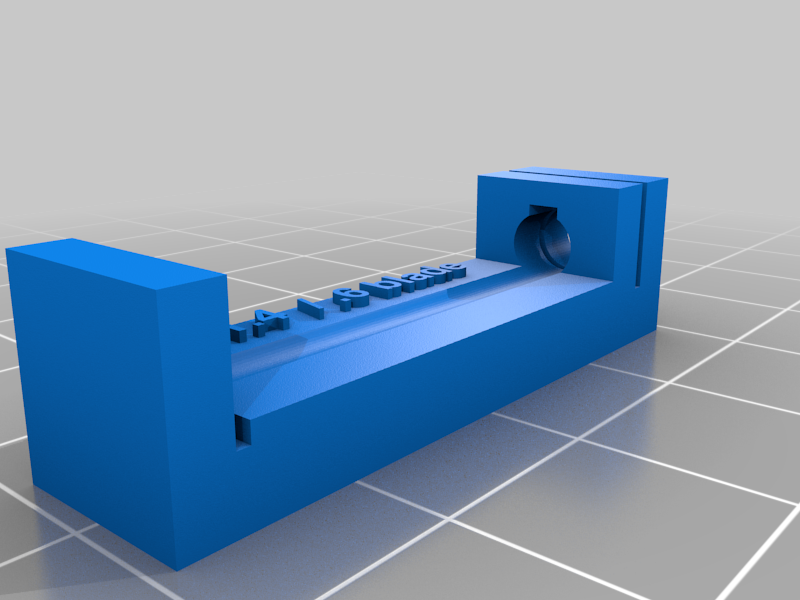

also added two more robust/thicker cut guages for those who want it more rigid in .4 and .6 blade width

Added CR10S PRO V2 to the family. it has a throat that is apprx 3mm shorter than the original cr10s pro. So to prevent issues it warrants its own set of guide and spacer.

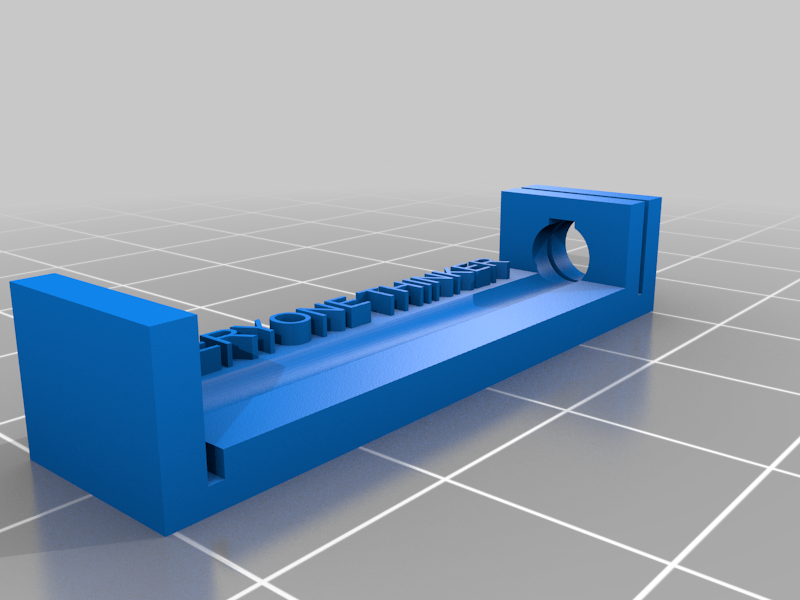

6/6/2020 added ERYONE THINKER SE using user provided length target

8/18/2020 added CR6 SE
2/24/2021 renamed the cr10v2DD to the cr10 V3DD to be in alignment with printer name {i received the DD as an add on to the V2 at beta testing}
08-27-2021 Sovol S4 captured ptfe target 22.8 +-.2mm

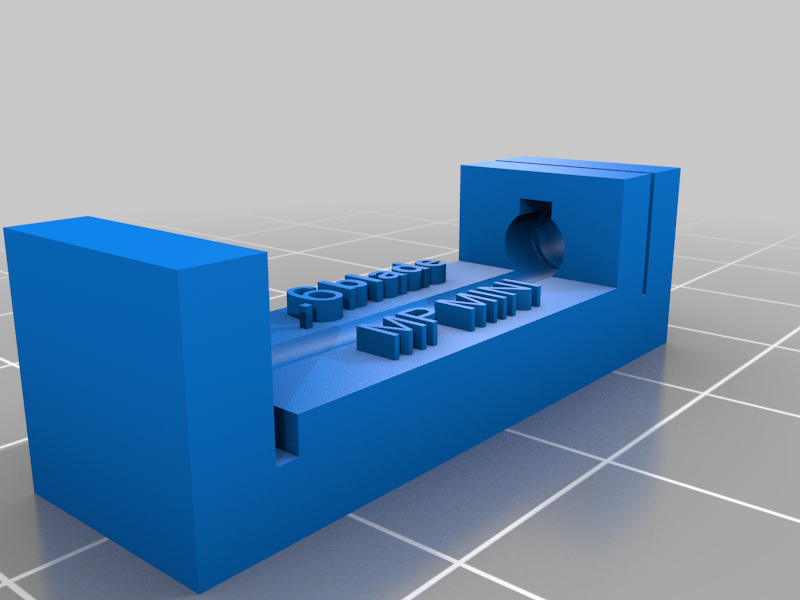

08-28-2021 Added Monoprice mini tubing cutter for captured ptfe length target 26.3mm -.2 +0. tolerance
04-28-2022 Added Ender 3 max cut and spacer 31.2 to 31.6mm
09-10-2022 Added NEO and CR10 Smart series parts in 2 lengths as the E3 Max Neo was ! mm shorter than the E3v2 Neo

3D printing settings


3D printer file information

  • Design number: 1034620
  • 3D design format: Folder details Close

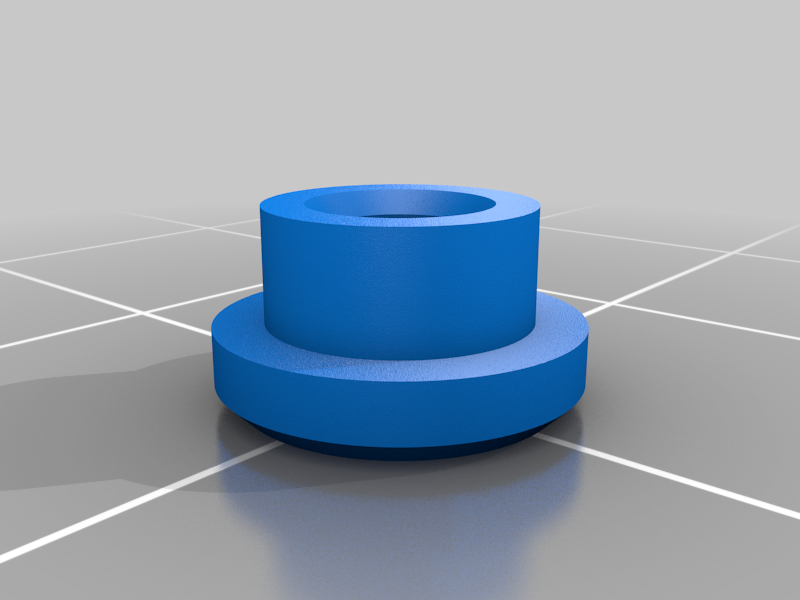

    • 5.8_special.stl

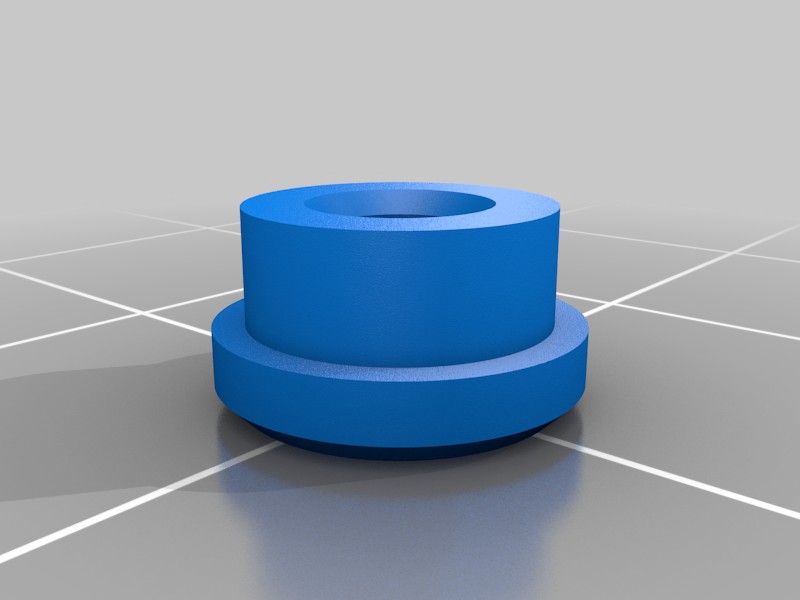

    • 6.8_special.stl

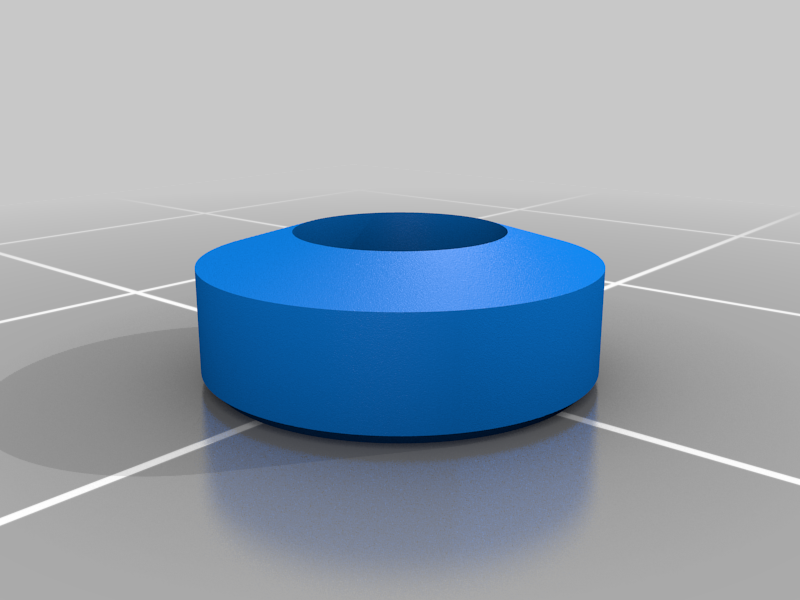

    • CR10SPROV2.stl

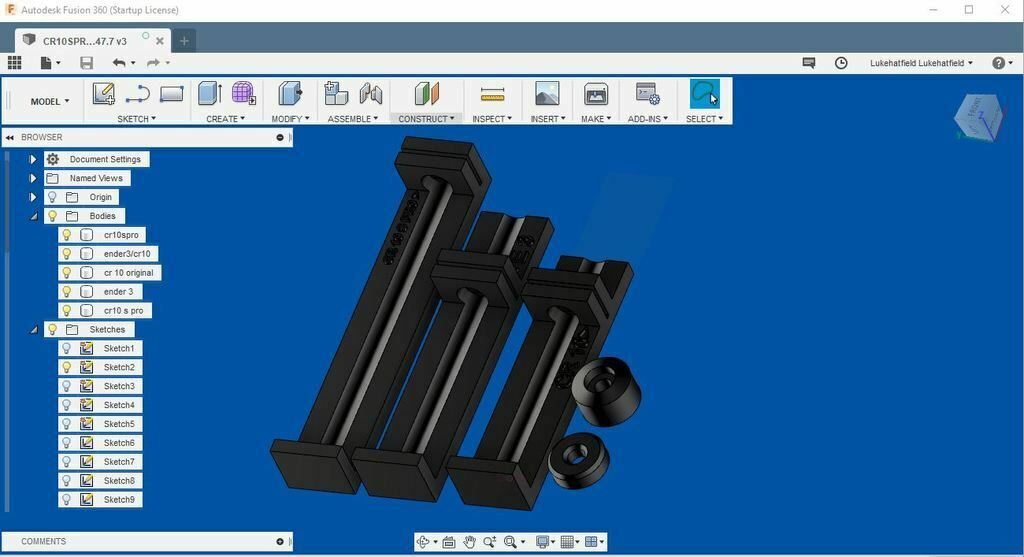

    • CR10SPRO_fixed_ptfe47.7_v17.f3d

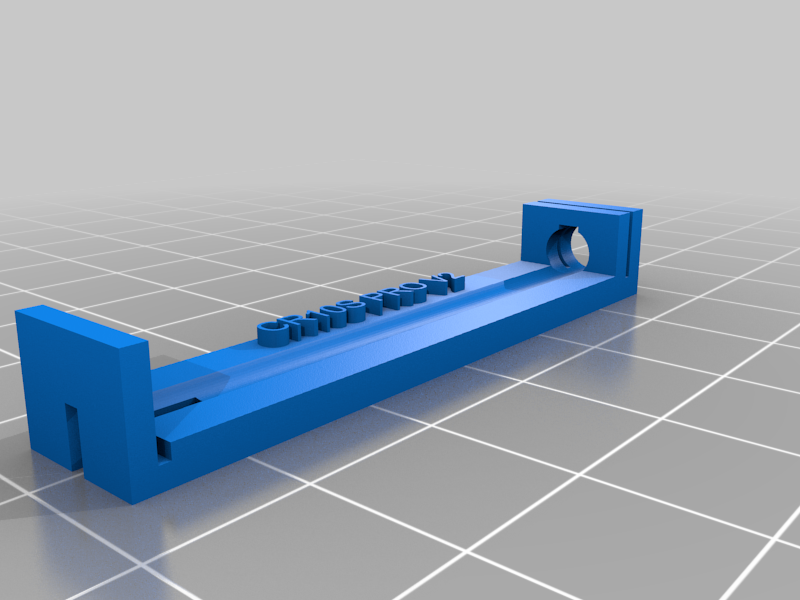

    • CR10S_PROV_V2_CUT.stl
    • CR10_Smart_cut.stl
    • CR10_Smart_spacer.stl
    • CR10_V2.stl
    • CR10_V2_spacer.stl
    • CR10_newer.stl

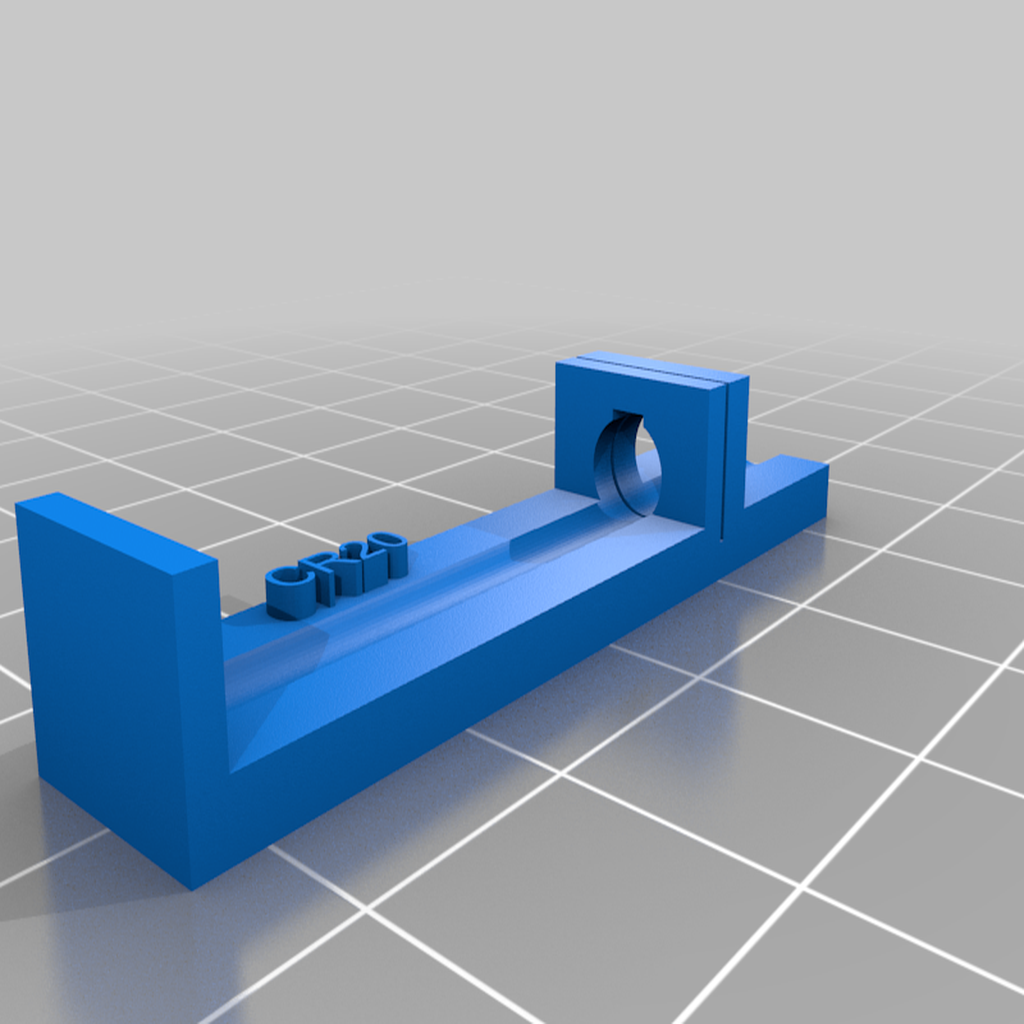

    • CR20_cut.stl

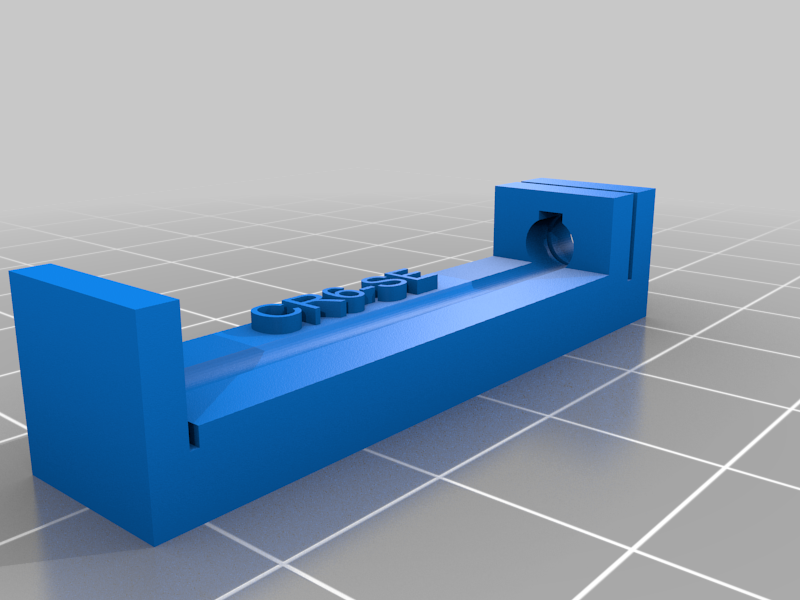

    • CR6_SE_CUT.stl
    • CR6_SE_SPACER.stl
    • Cr10_newer_spacer.stl
    • Cr20_spacer.stl
    • ENDER_3_MAXCUT.stl
    • ENDER_3_MAX_SPACER.stl
    • E_step_setting_and_Flow_rate_tuning.pdf
    • Ender_3_pro_spacer.stl
    • Ender_3_spacer.stl

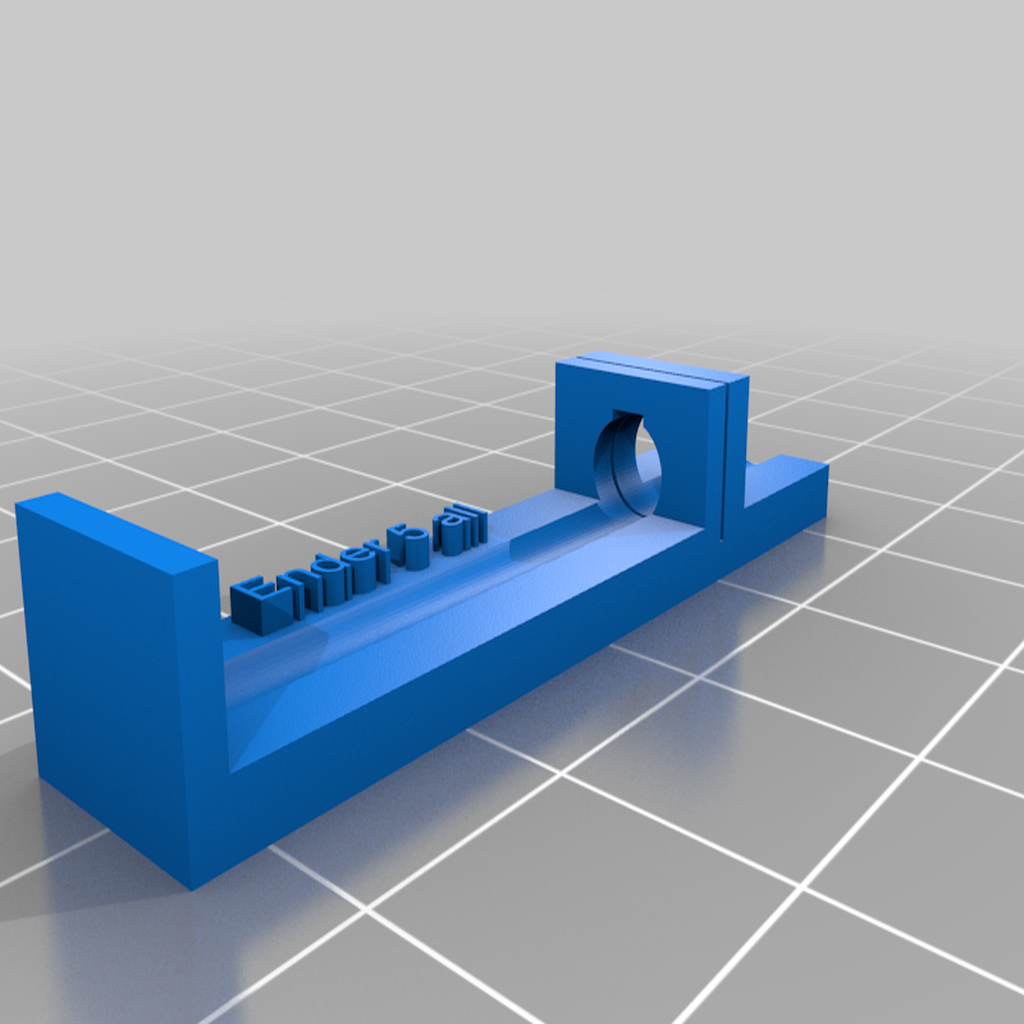

    • Ender_5_all.stl

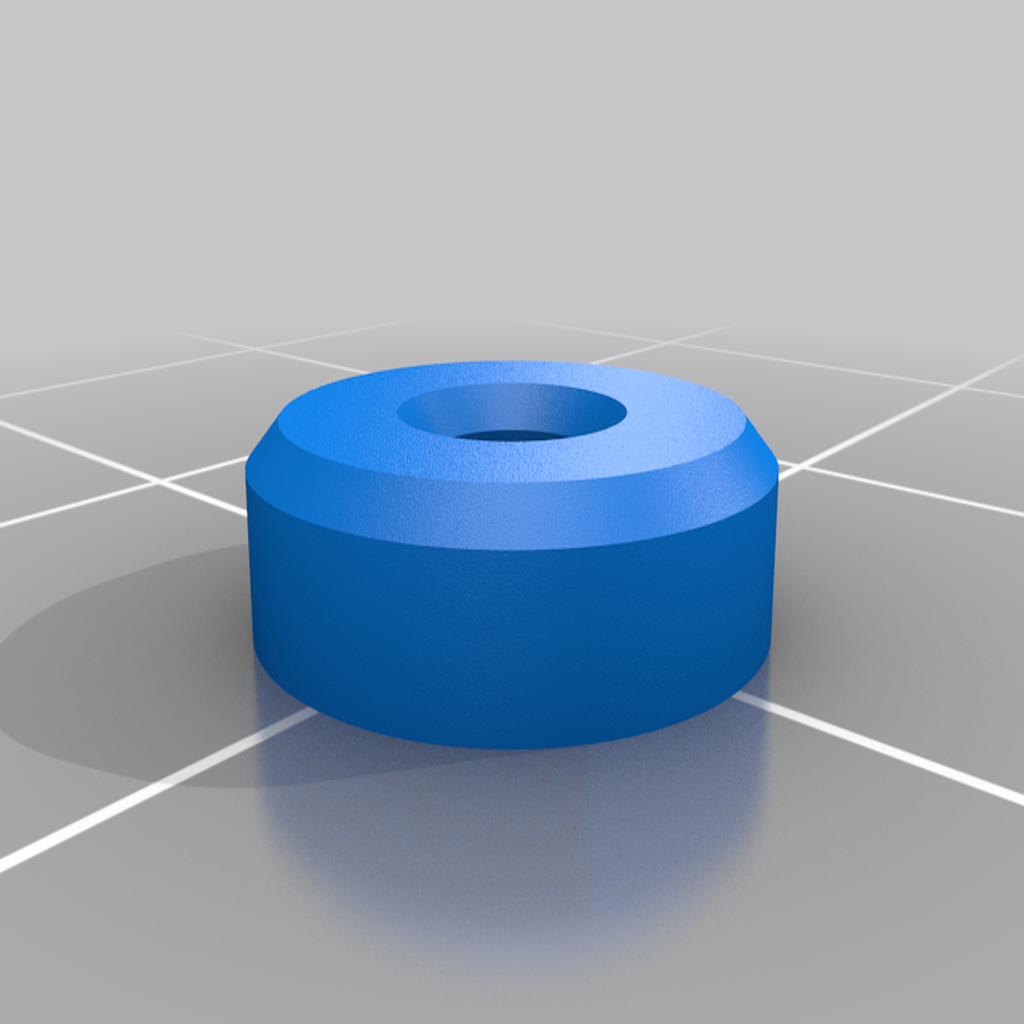

    • Ender_5_spacer.stl
    • JG_Aurora_A1_A3S_A5_A5S.stl
    • NEO_Spacer.stl
    • NEO_hot_end_36.3.stl
    • NEO_hot_end_37.3.stl

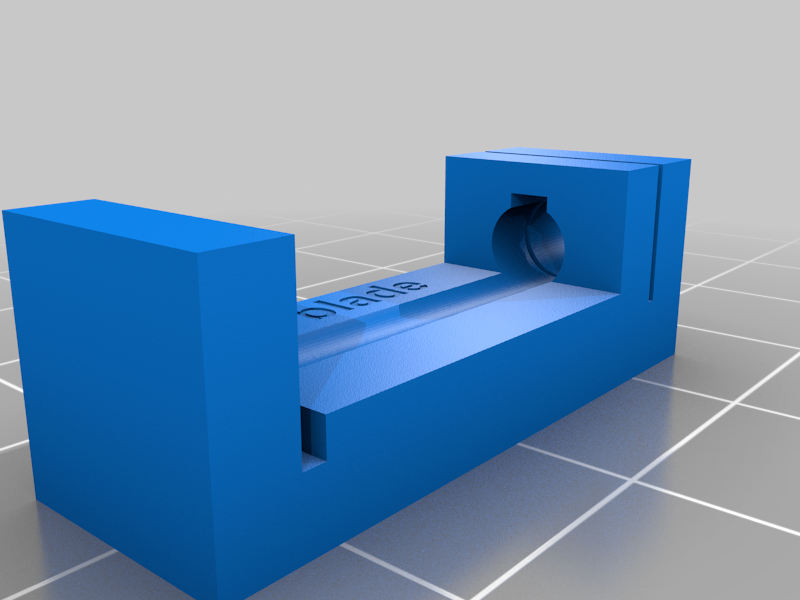

    • Sovol_s4_23mm.stl

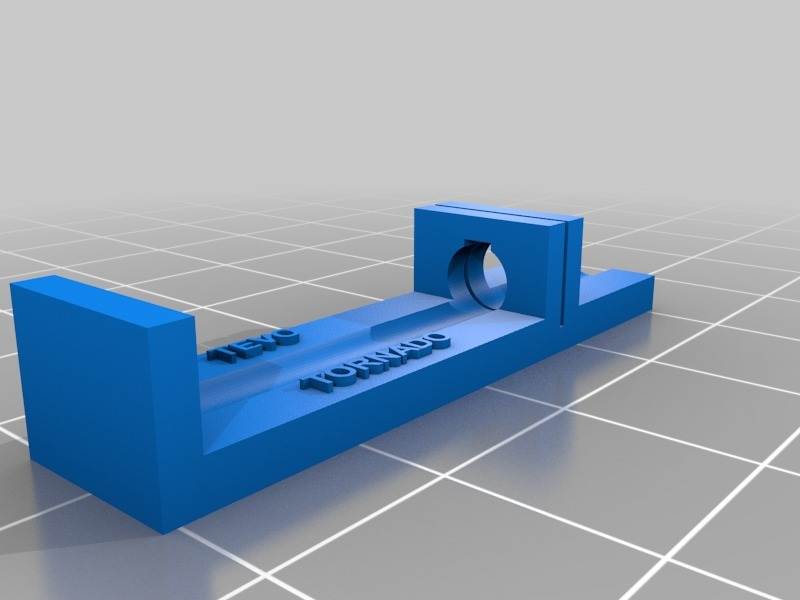

    • Tevo_Tornado_cut.stl
    • Tevo_tornado_spacer.stl
    • Thinker_S._spacer.stl

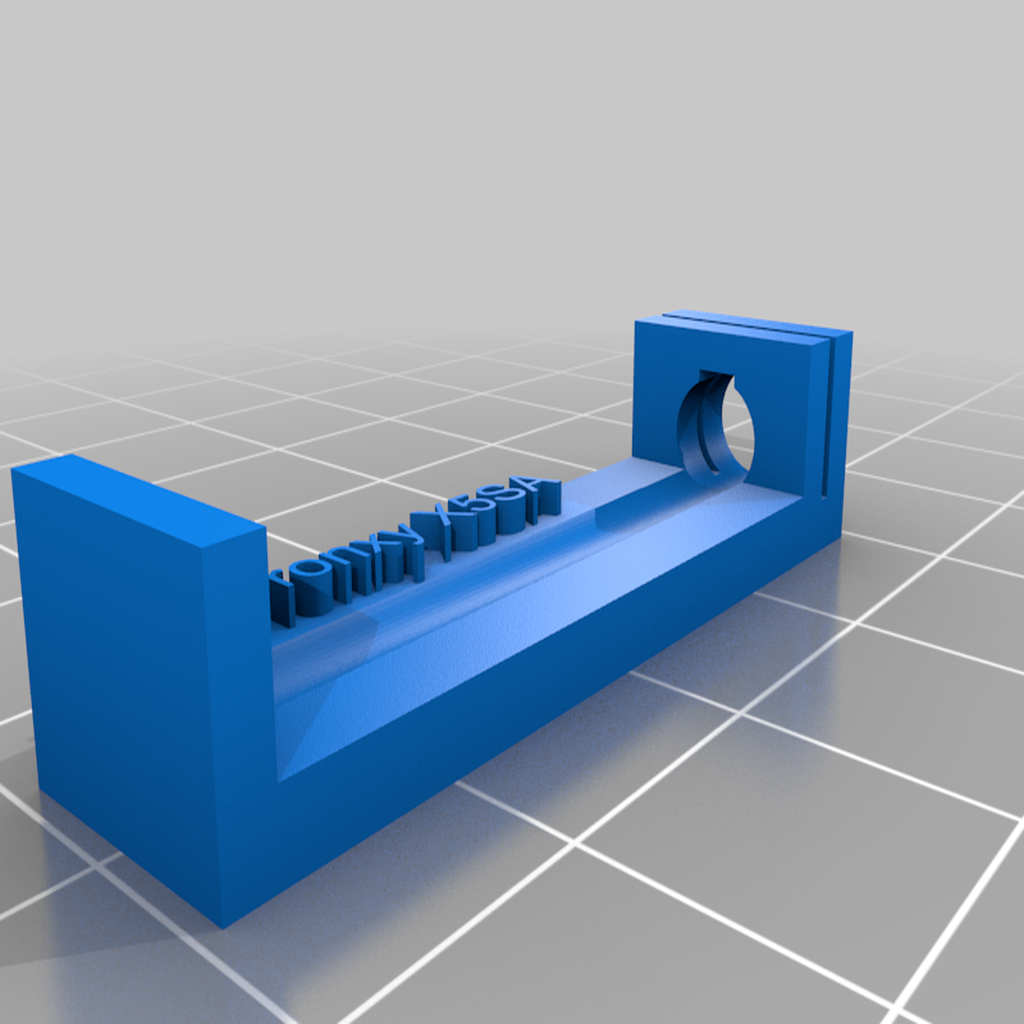

    • TronxyX5SA.stl
    • Tronxy_X5SA_spacer.stl

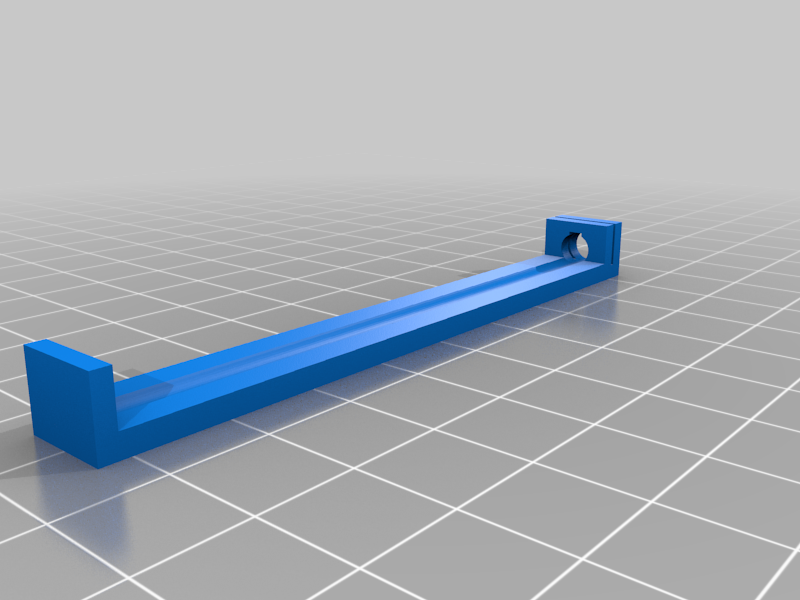

    • cr10_V3_DD.stl
    • cr10_s_pro-max_cut.stl
    • cr10spro-max_spacer.stl

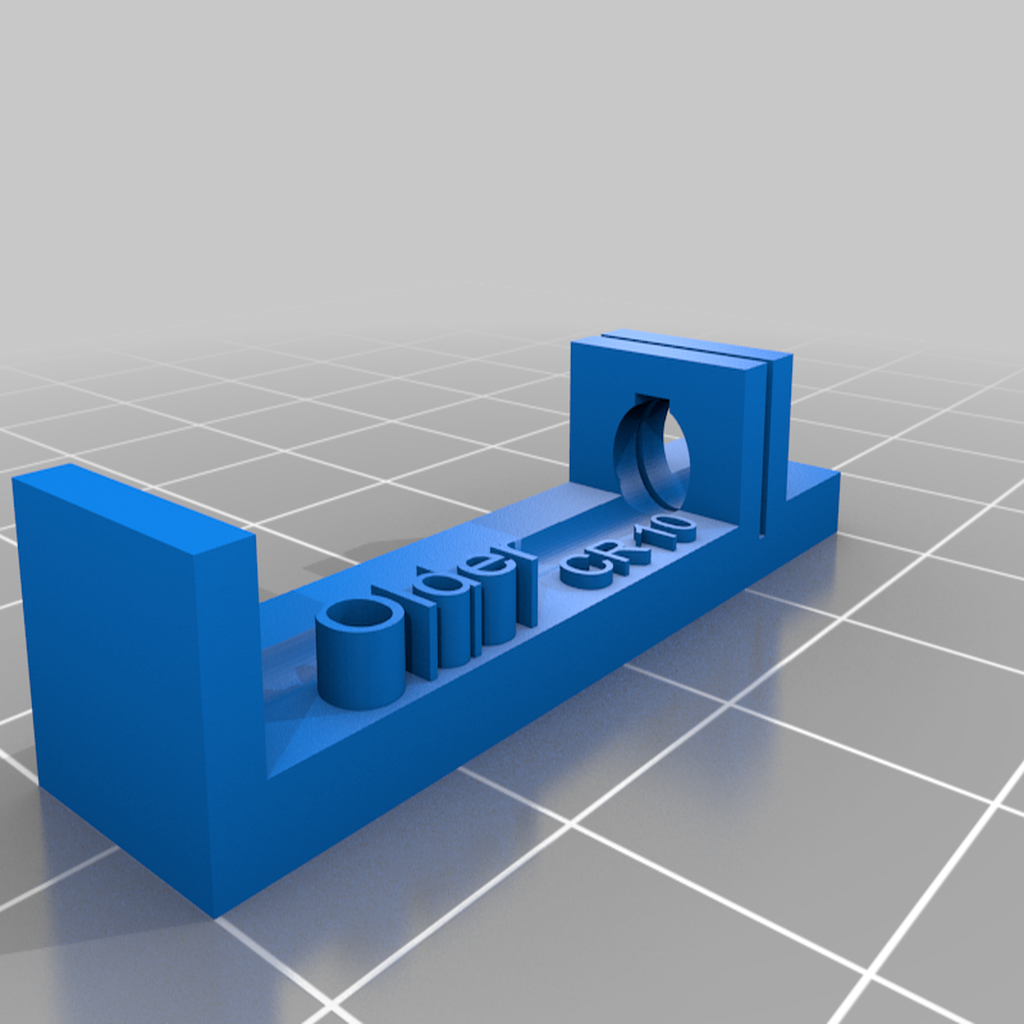

    • cr_10_older.stl
    • ender_3__Pro_cut.stl
    • ender_3__cut.stl
    • eryone_thinker_se_35.75.stl
    • large_id_pc4_m10.stl
    • thick_31.4_.4mm.stl
    • thick_31.4_.6mm.stl

    Learn more about the formats

  • Publication date: 2023-01-28 at 22:51
    Published to Thingiverse on: 2018-11-08 at 20:30
