NG Designs Ender 3 Cable chain connectors

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

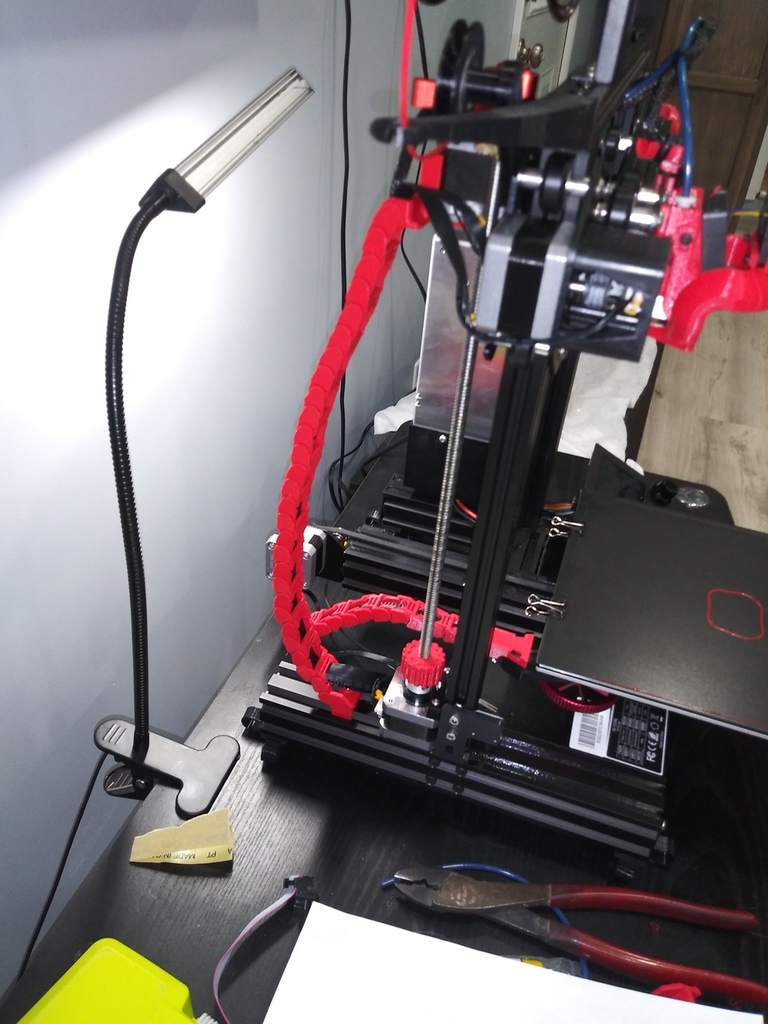

I went with the NG Designs cable chain as I like how lite it was compared to the other.

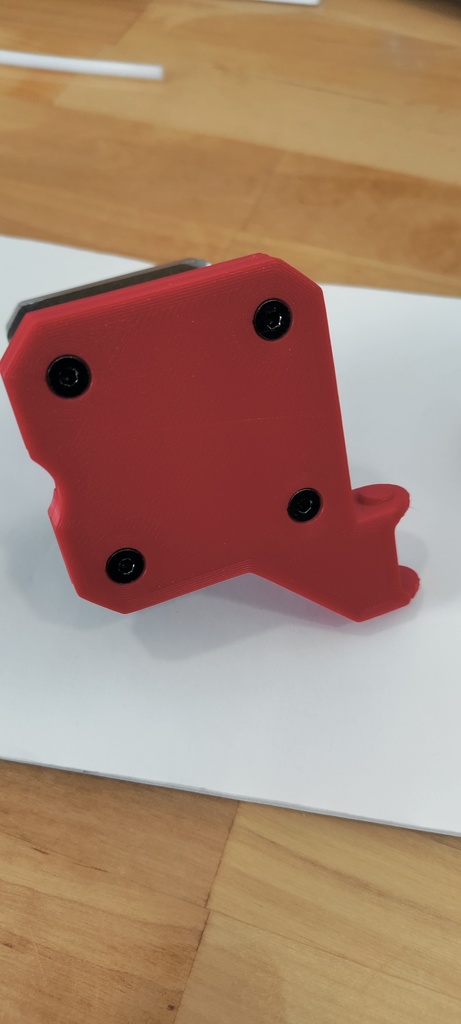

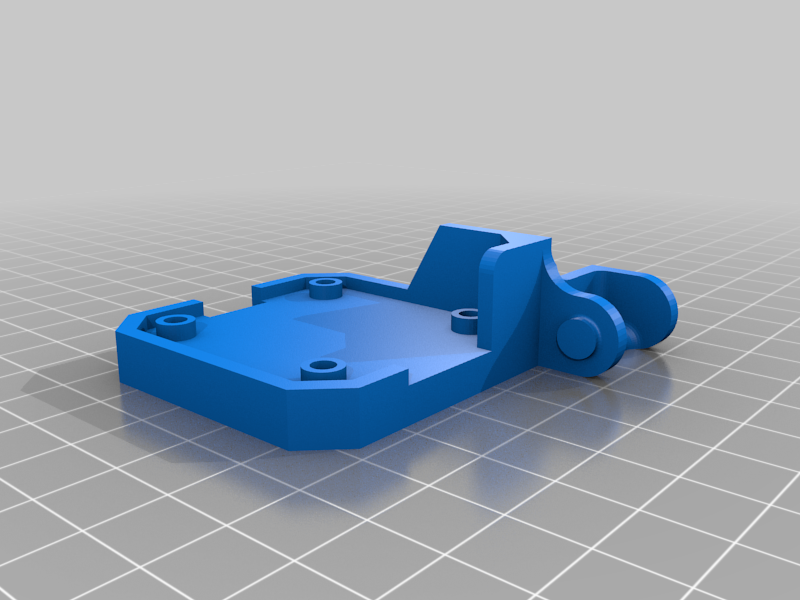

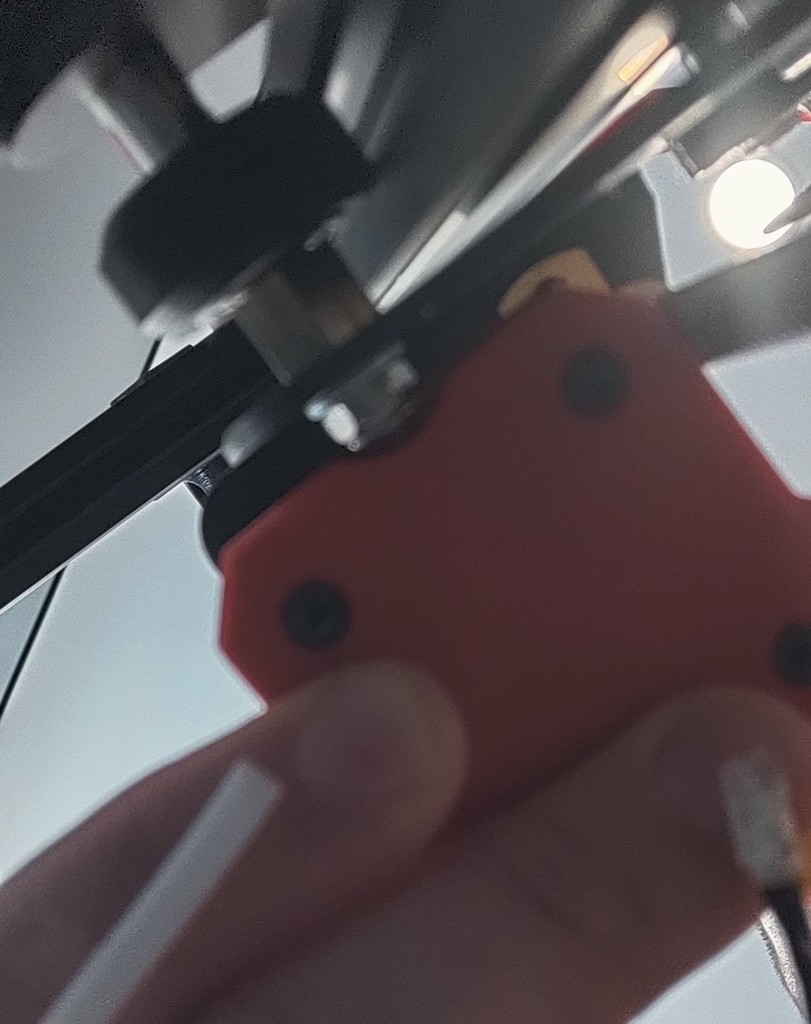

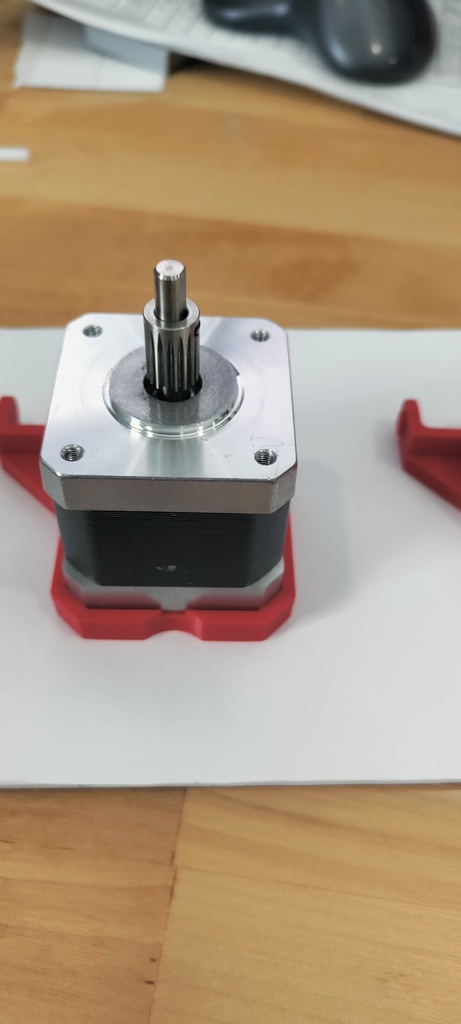

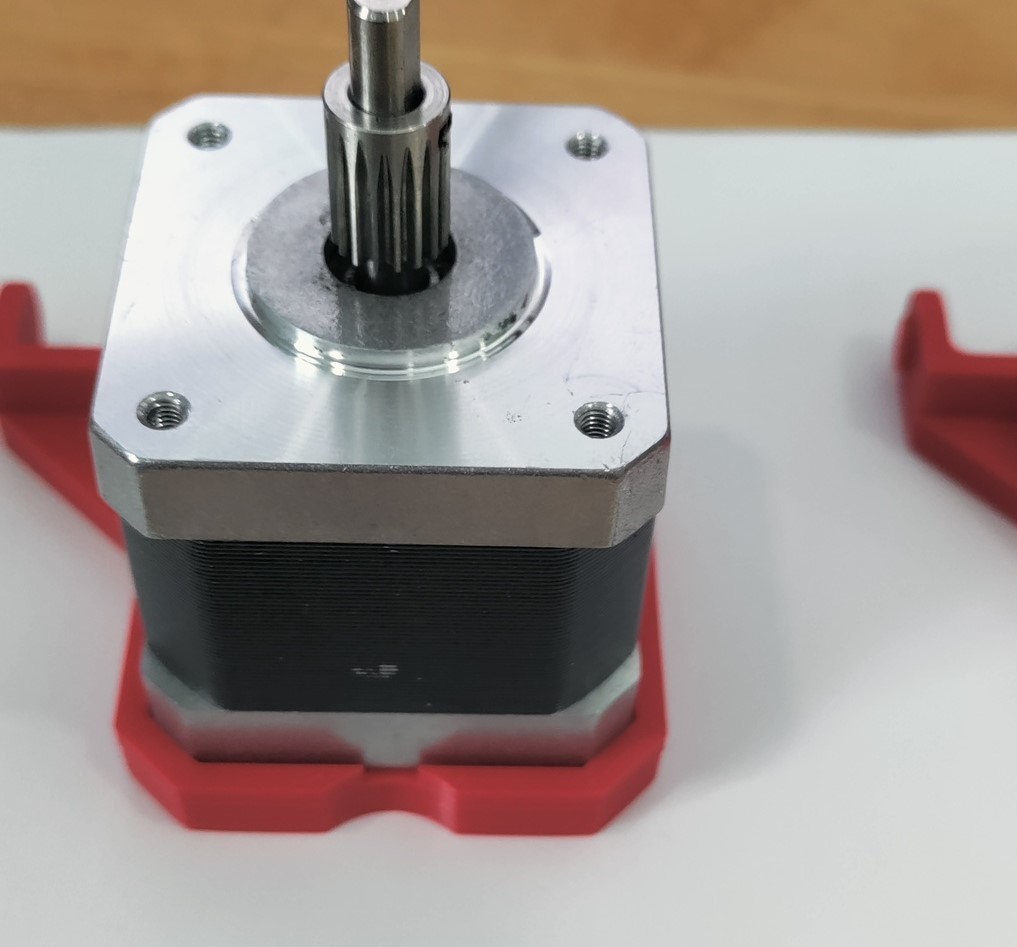

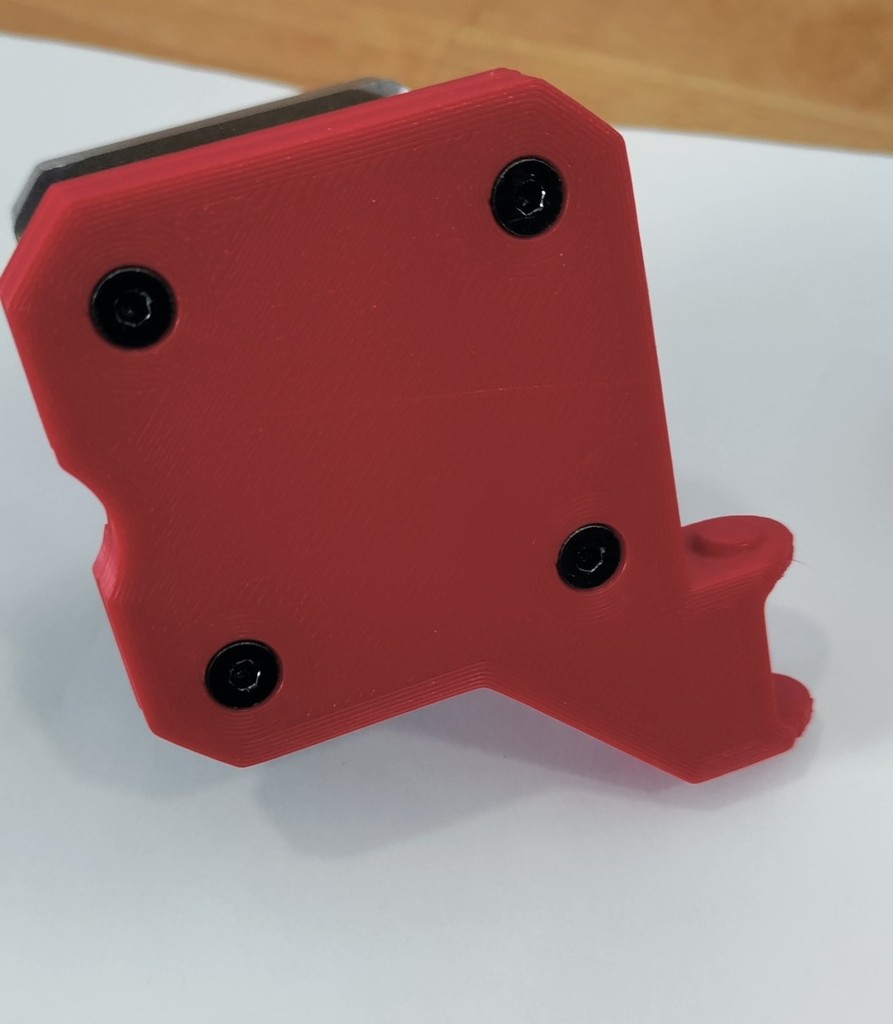

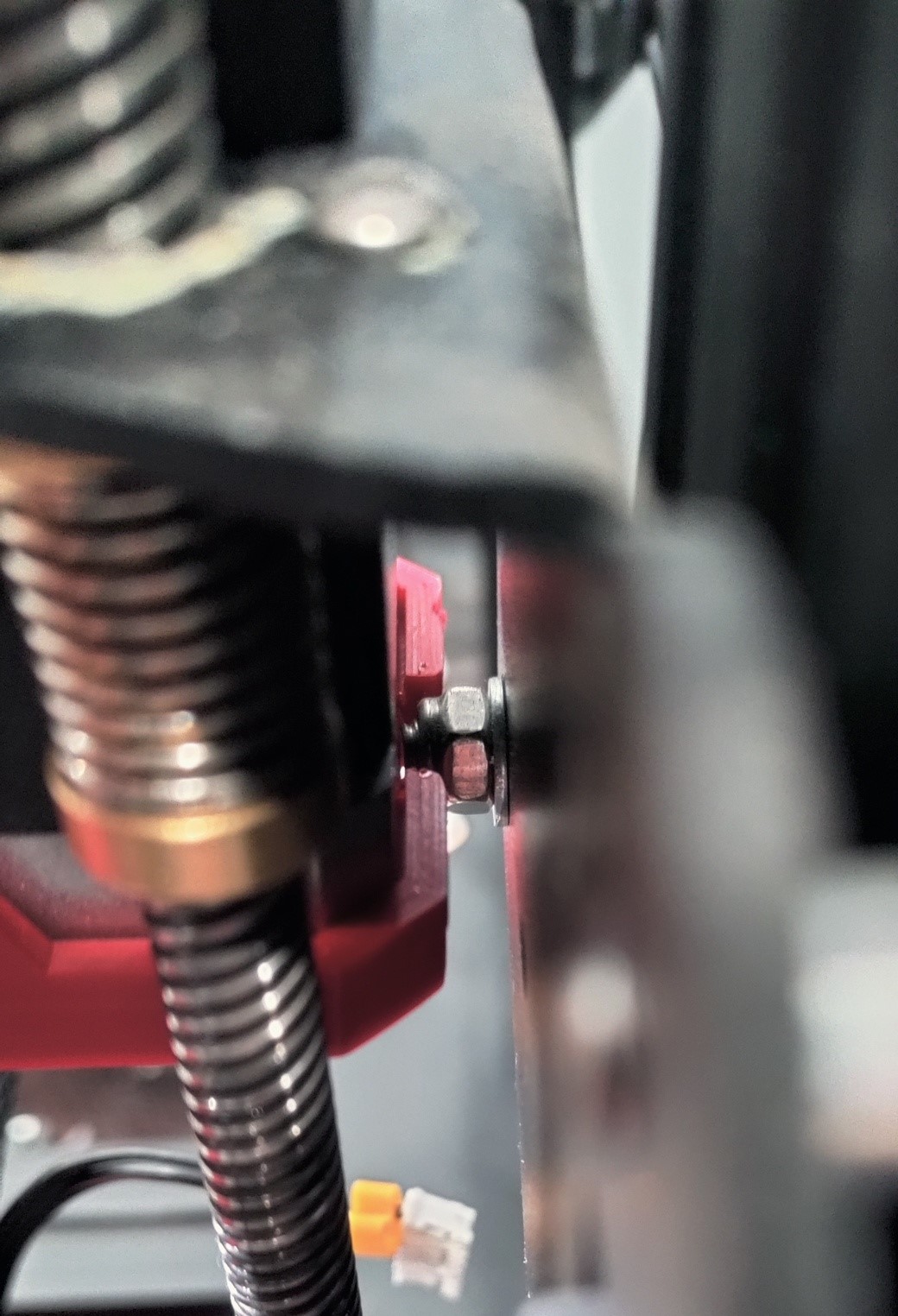

UPDATE 2-4-2022: I have added a bolt on extruder stepper mountedcable chain mount. You will need to remove the (4) Screws on the bottom of the stepper motor and replace with (4) M3 x 50mm long flat head screws. These are available on Amazon as well as McMaster.com. Some hardware stores may have them as well. I also moved the extruder plug location to the back. The NG design is nice, but I have had it fall off to many times. No more!

This "remix" addresses the issues I observed. I reviewed other peoples additions and gave them a try and they all gave me some sort of an issue. So I created my own remix, so some of these items may look like another part but I fully modeled these on my own.

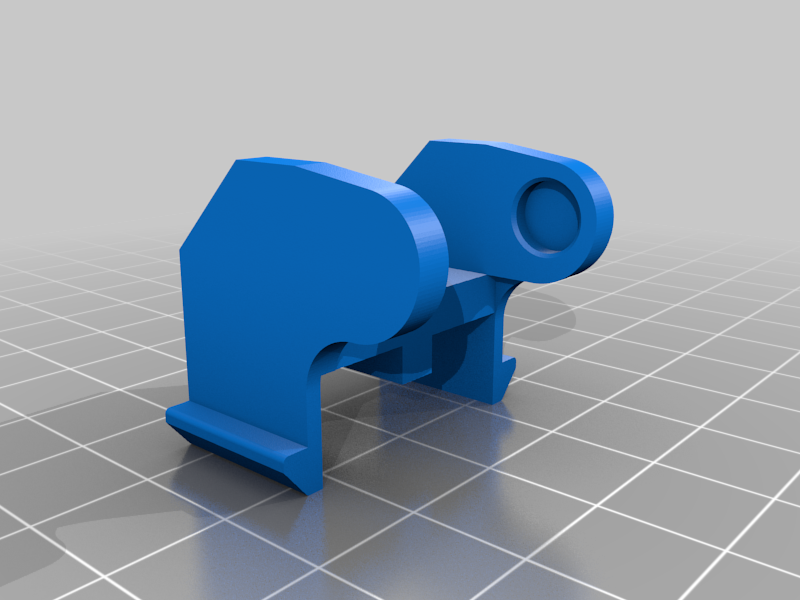

Large Chain anchor V2 was my second attempt. I ended up measuring and modeling the extrusion to create this finalized design. It hugs the extrusion with a light pressure and the cable chain fits well on the top part. To much pressure bows the top open, so beware!

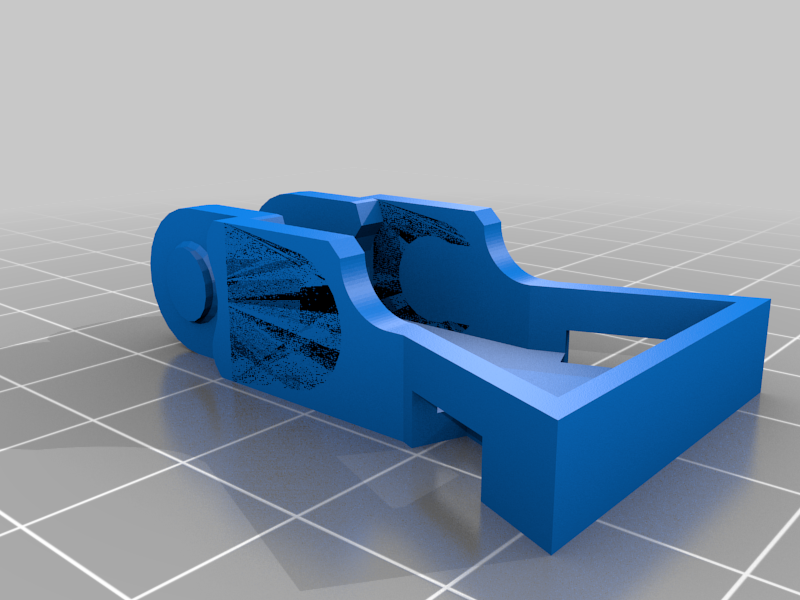

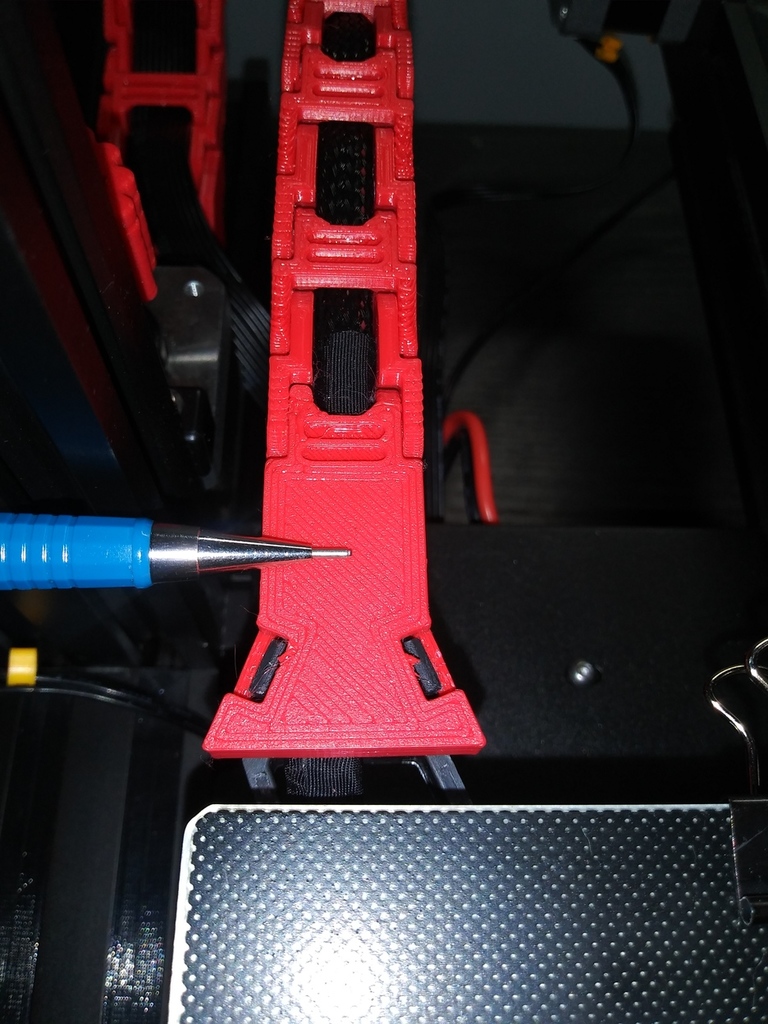

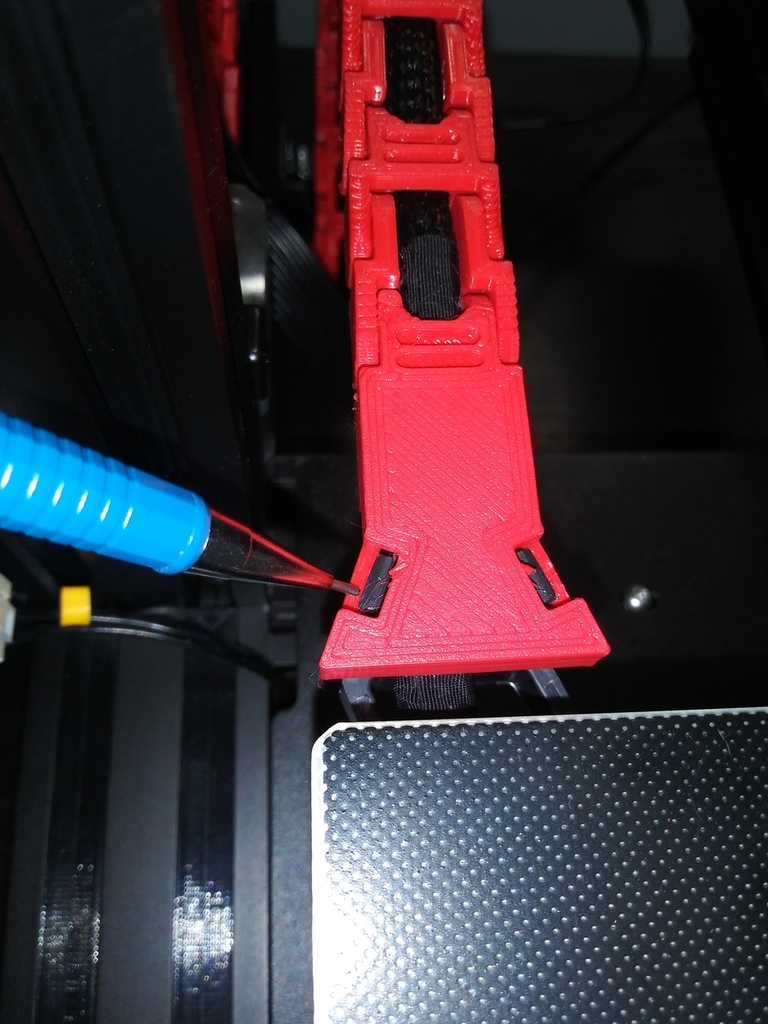

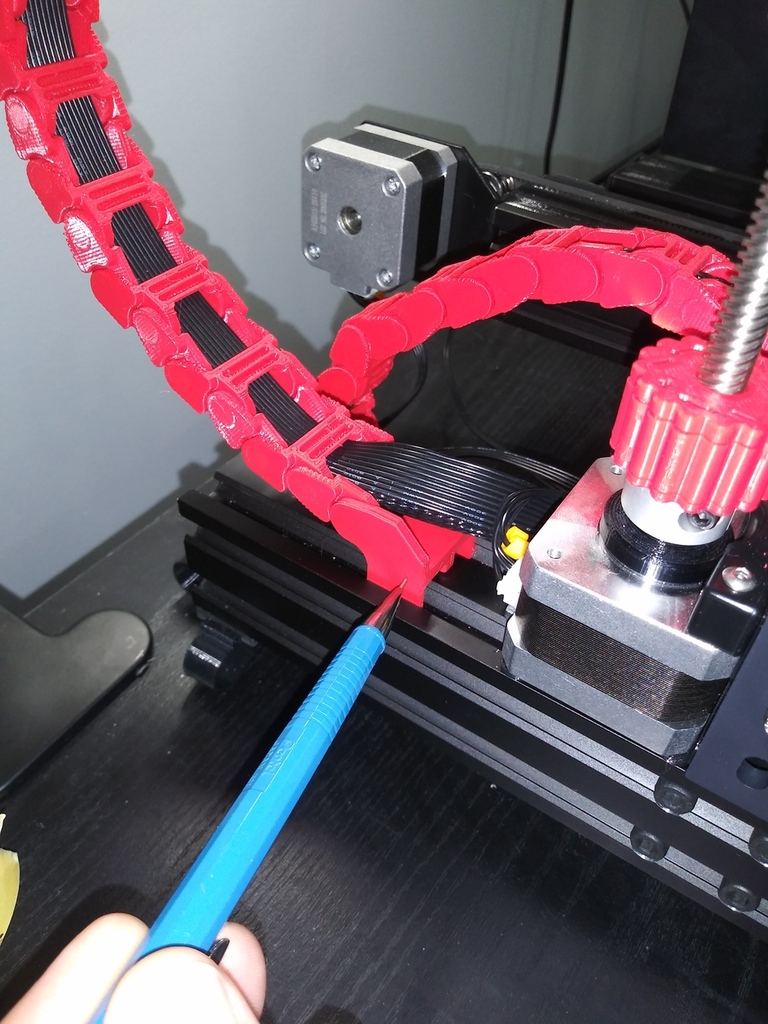

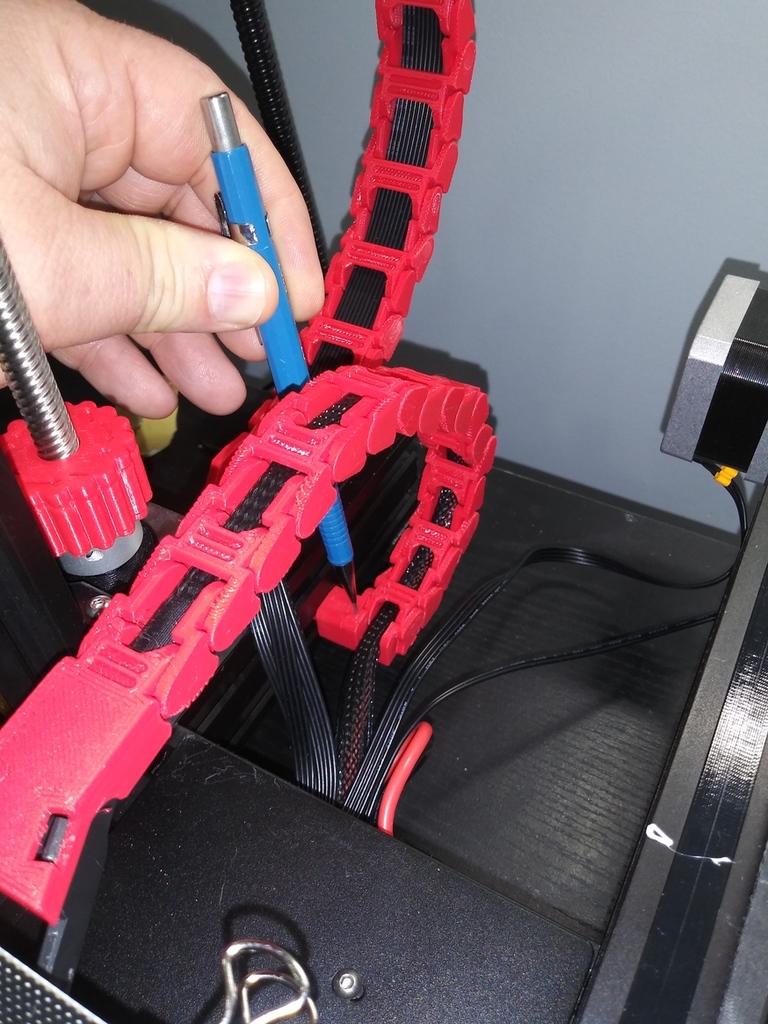

Heat bed cover- this one was frustrating. After multiple trys it finally worked. Beware you may need to do a little sanding/filing where the clip engages, per the picture my pencil tip is pointing to the offending edge.

The above two are loosely based on:
https://www.thingiverse.com/thing:4670366

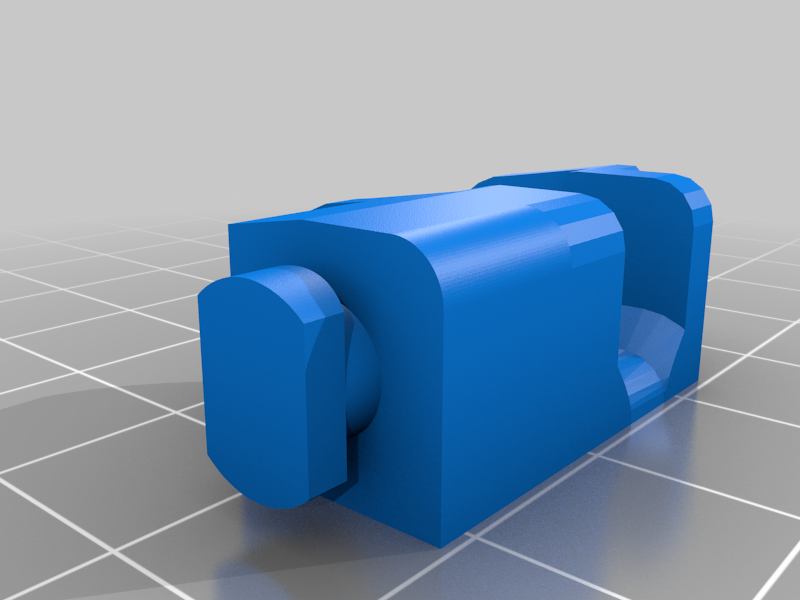

small chain anchor- I like how the original desin anchored, it was just on a scew- so I fixed it. This anchor is 9mm offset and aligns well to the heatbed point.

Check out my other things!


3D printing settings

-

3D printer file information

  • 3D design format: Folder details Close
    • RAH_CABLE_CHAIN_MOUNT.stl
    • heat_bed_cover.stl
    • large_chain_anchor_V2.stl
    • small_chain_anchor.stl

    Learn more about the formats

  • Publication date: 2022-08-10 at 02:49
    ?
    Published to Thingiverse on: 2020-12-24 at 00:50
