NCS Y Axis Leadscrew upgrade kit

Download free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjwDownload free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjwDownload free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjwDownload free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjwDownload free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjwDownload free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjwDownload free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjwDownload free STL file NCS Y Axis Leadscrew upgrade kit • 3D printer object, trentjw

Did you 3D print this model?

3D model description

  1. Steel parts Y axis Leadscrew Upgrade Kit for P3steel Printers
  2. kits for both Free Version NCS and Leonardo type Printers

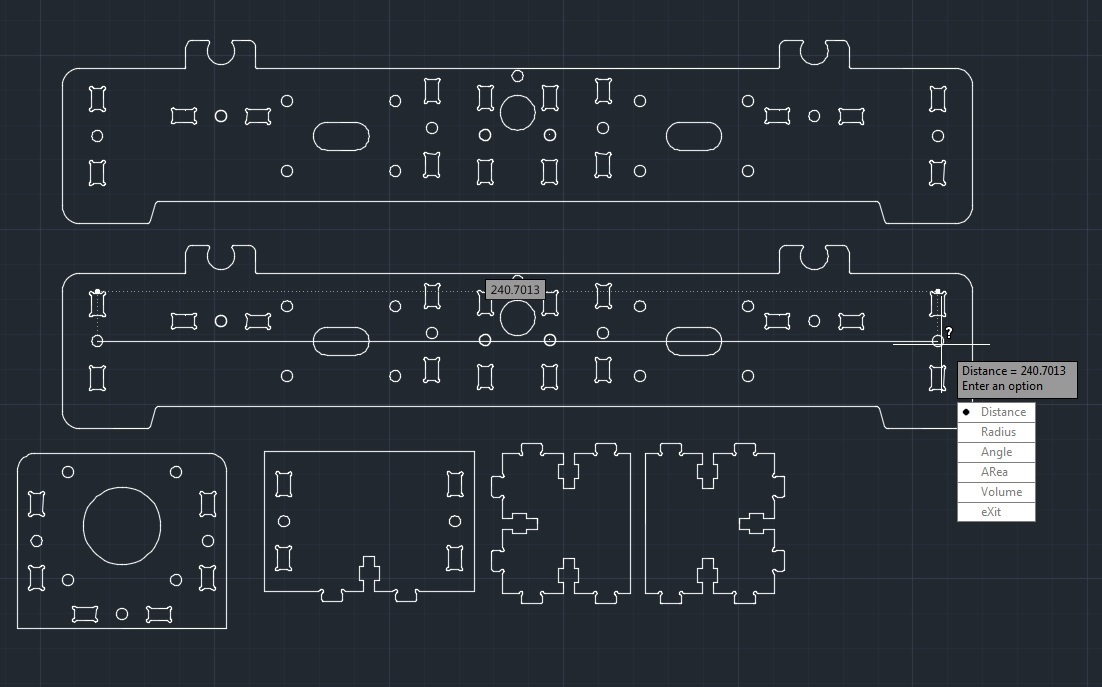

    1 Leonardo type with 240mm hole spacing as in picture

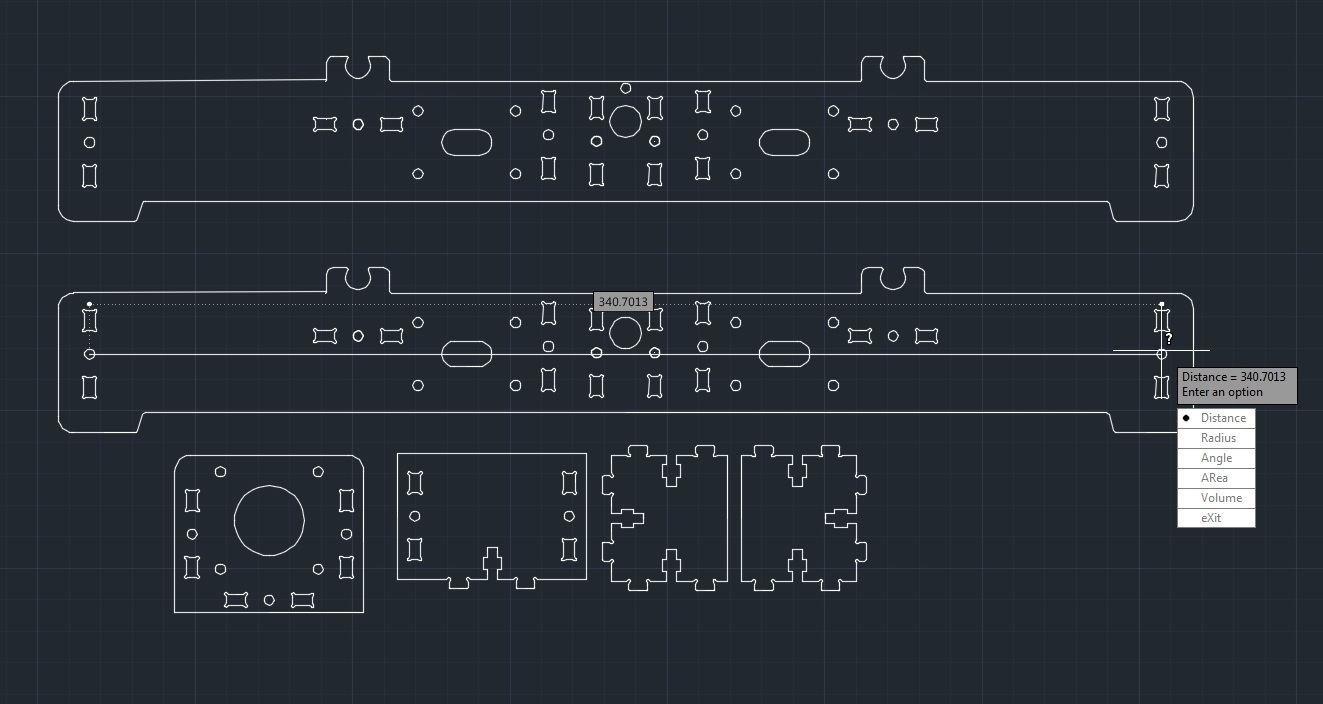

    2 NCS Free version with 340mm hole spacing as in picture
    3 Paid version of NCS Printer already set up for leadscrew upgrade

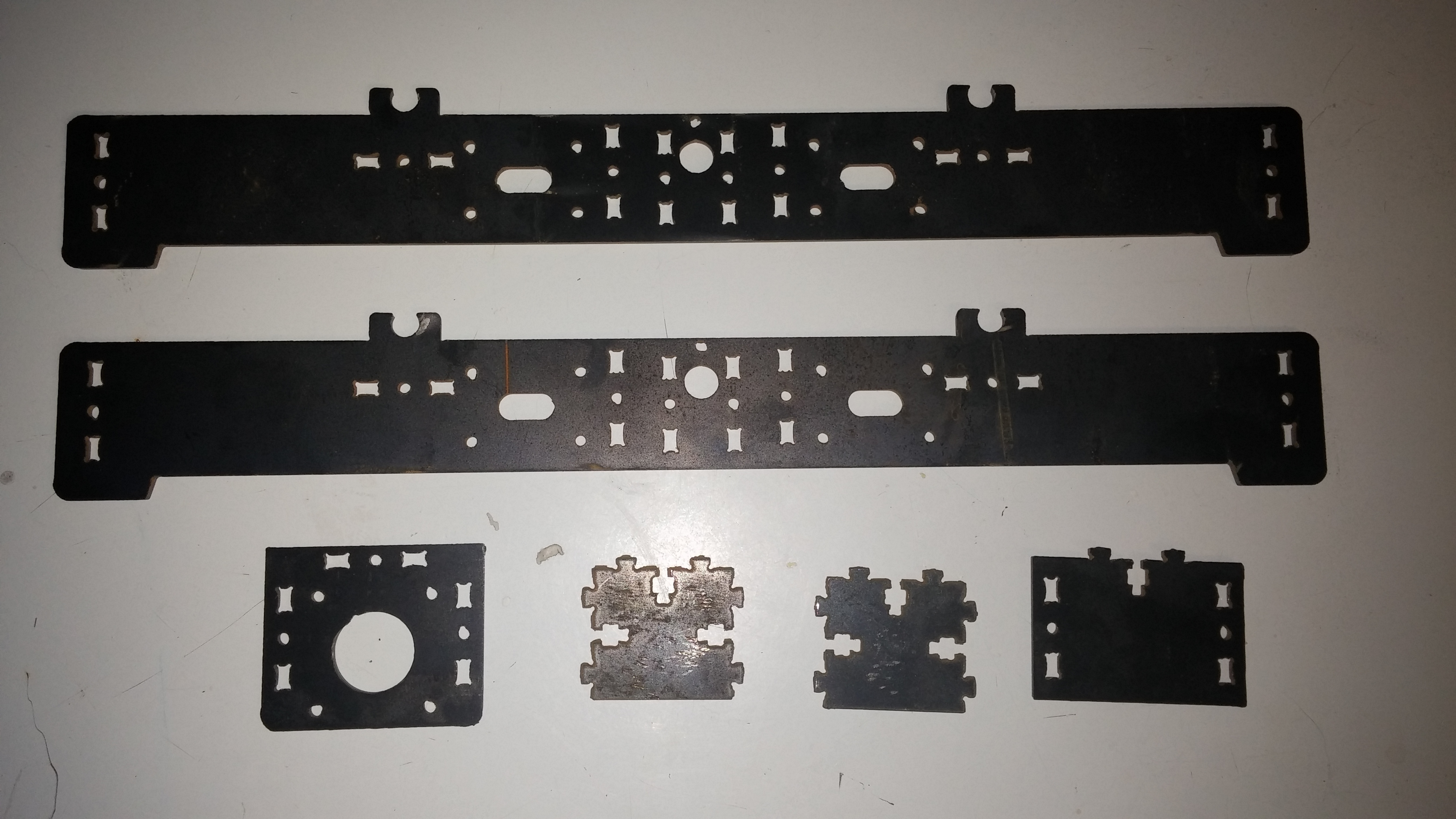

  3. only Steel parts included as in first picture,
  4. Parts need to source for conversion,
    1 Lead Screw 8mm diameter
    2 Stepper motor to Lead screw coupler (5mm * 8mm Flexible Coupling)

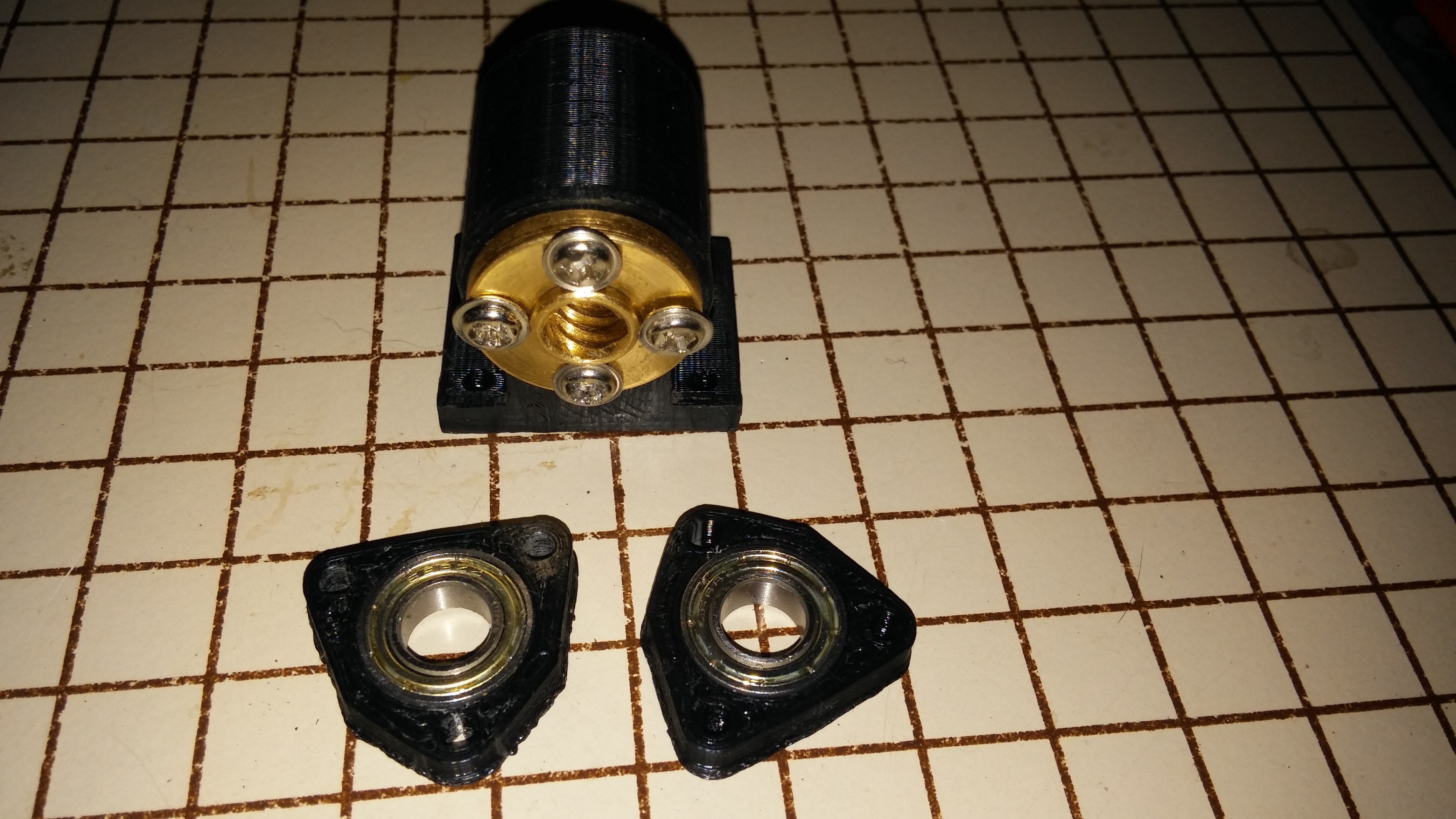

    3 Two bearings (688Z 8x16x5)
    4 Two lock collars (8mm Size )

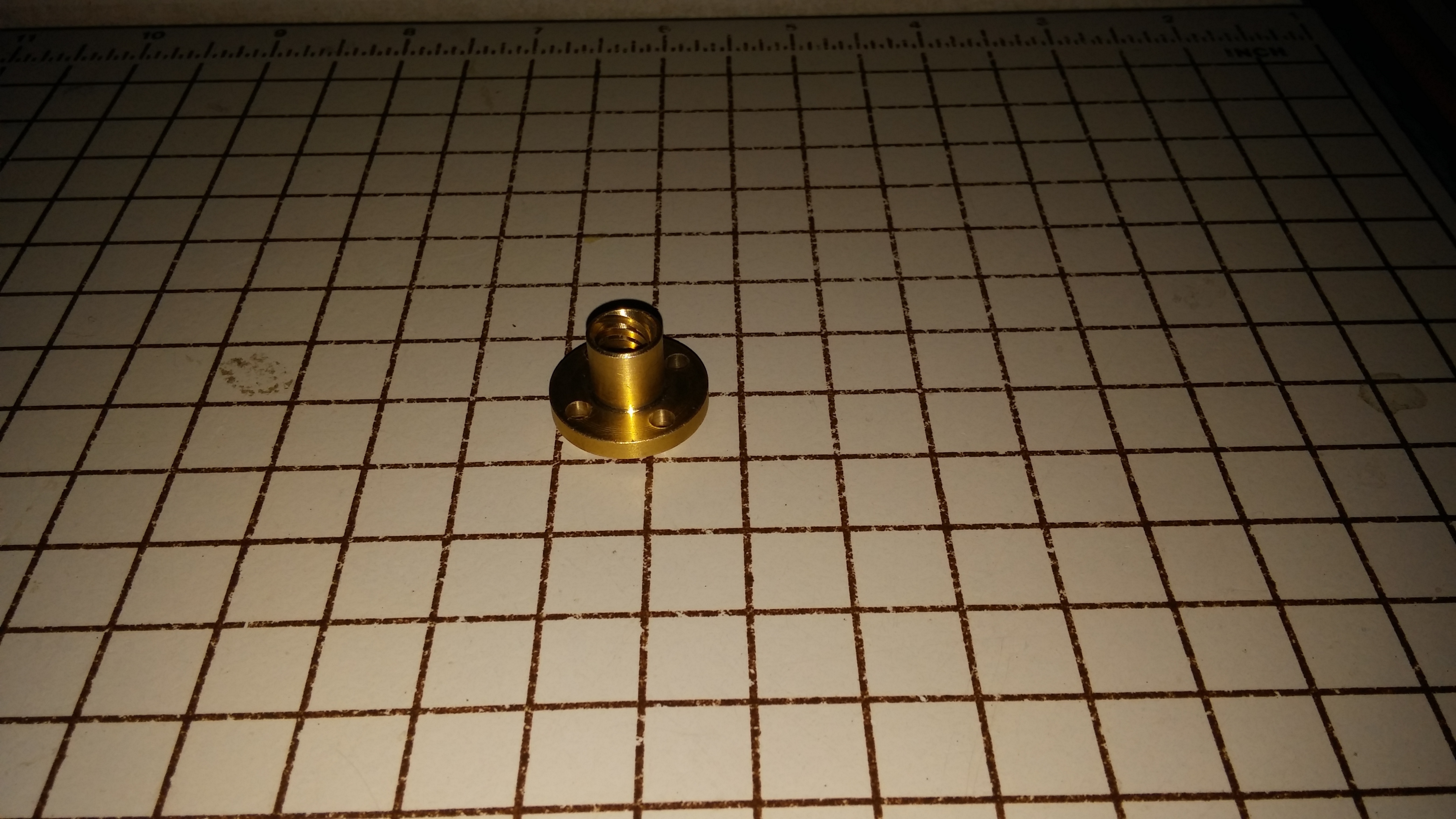

    5 Two Nuts to fit lead screw
    6 Twenty five Screws M3 (Length: 12mm) can reuse some on existing printer
    7 Seventeen Nuts M3

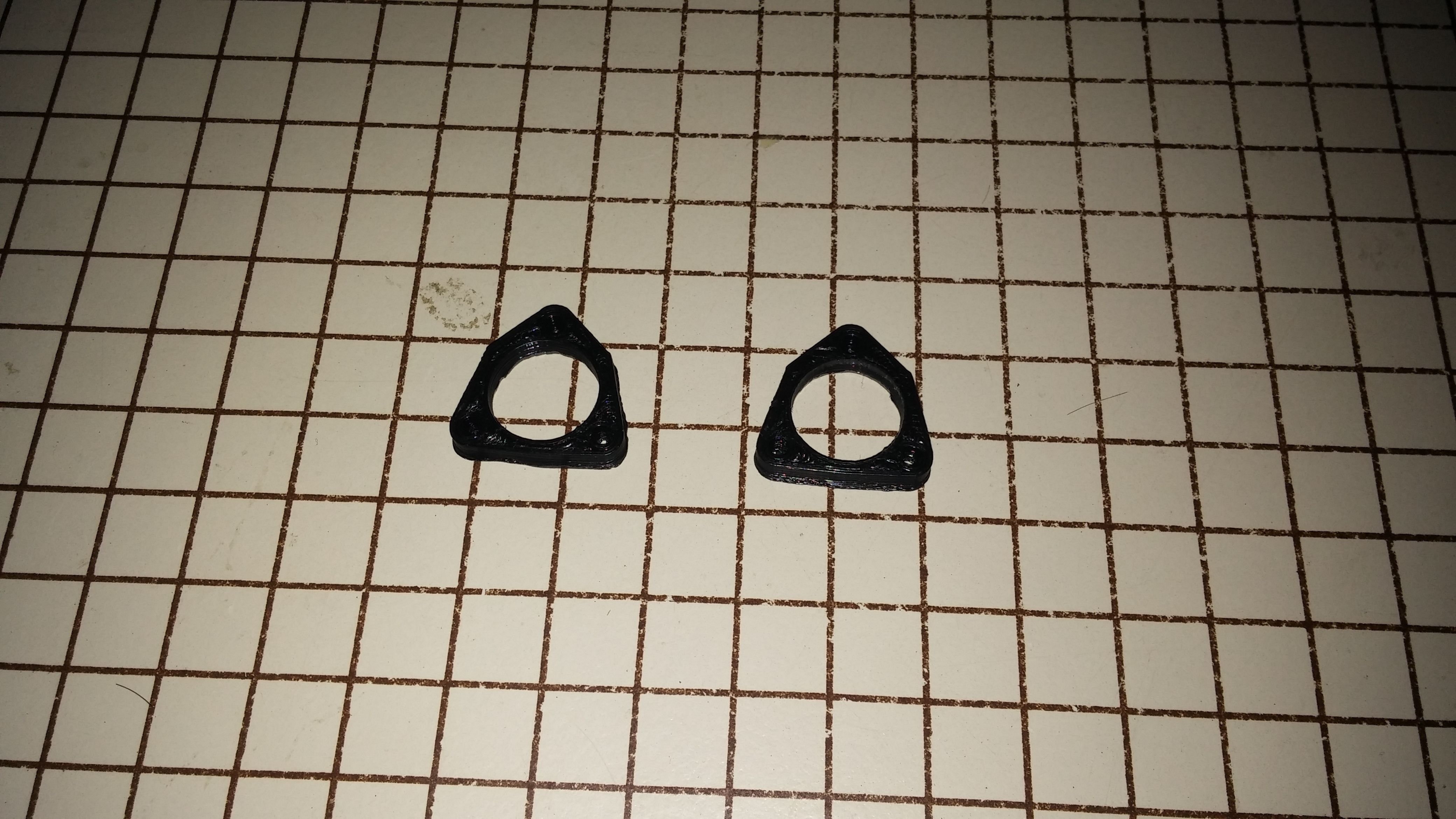

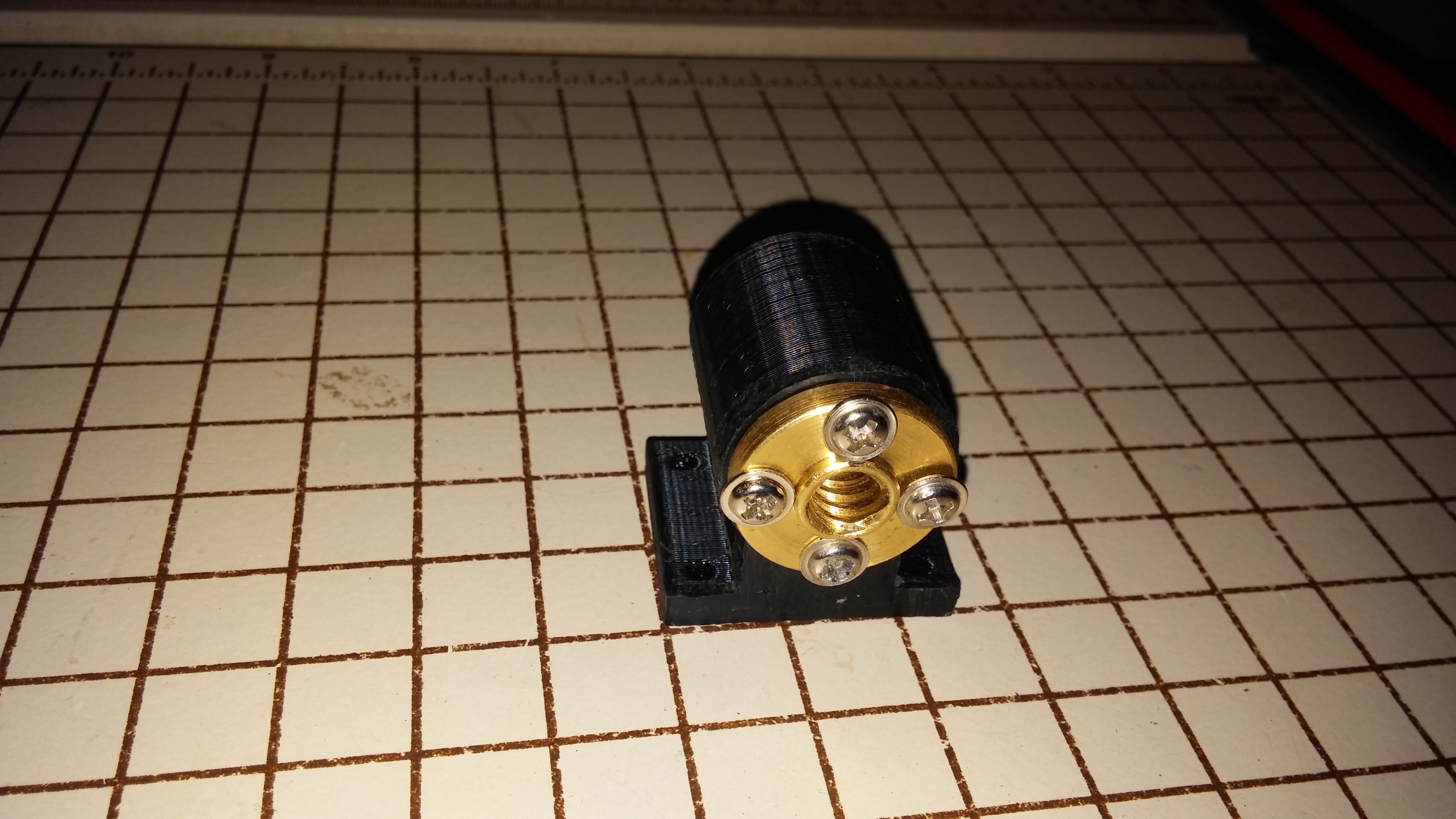

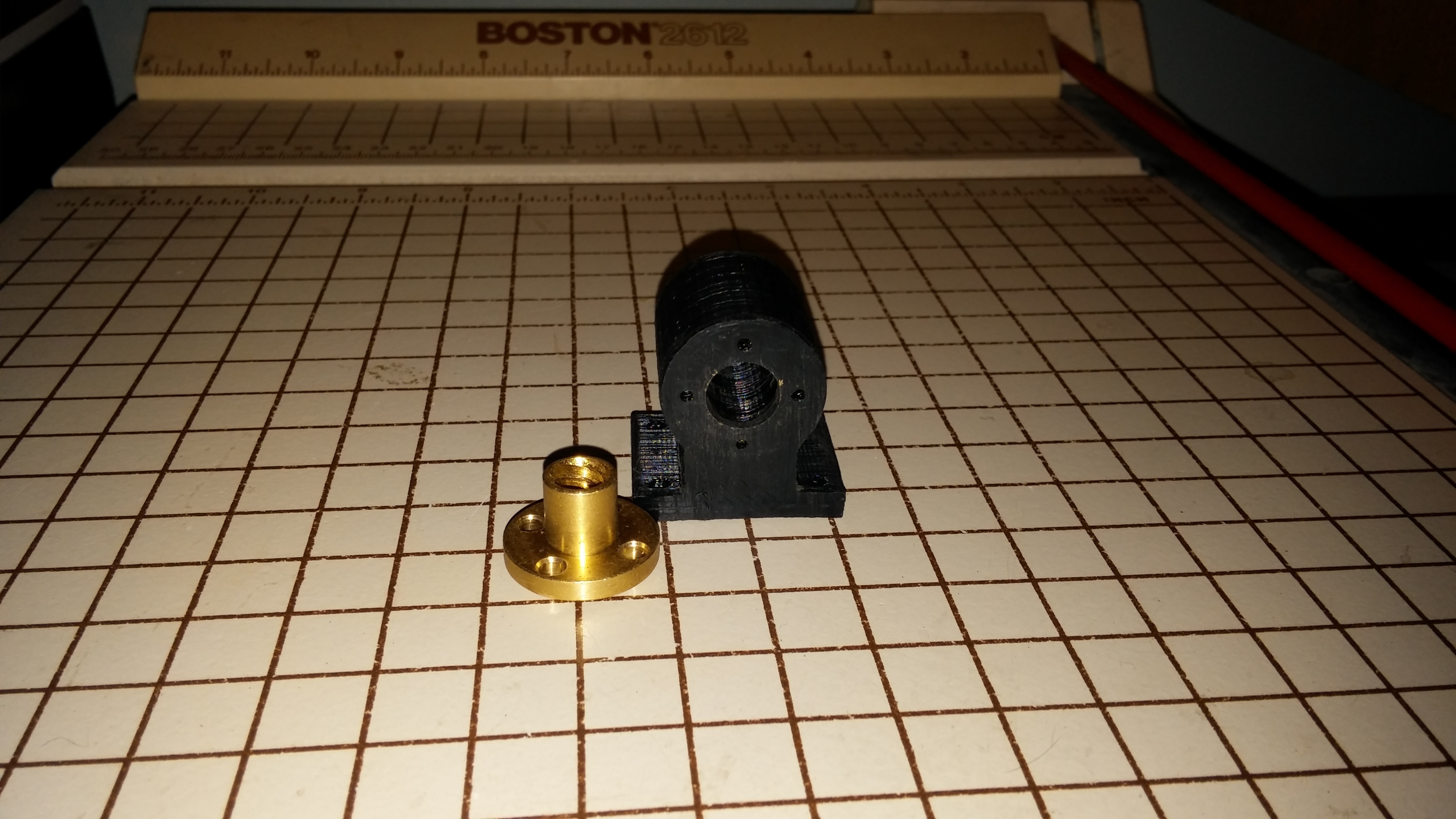

    8 STL files above need to be printed before upgrade
  5. link to web page to purchase steel parts kit http://www.ncspecialties.com/computers/customcomputers/3dprinter/index.htm

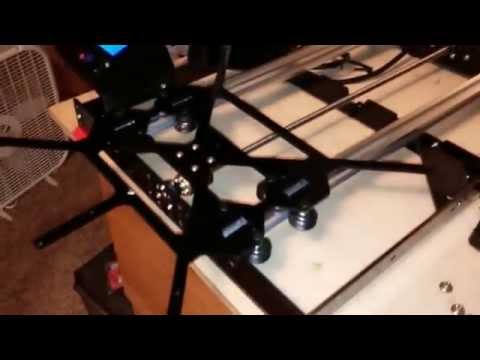

  6. see it work on You tube https://youtu.be/H0lqwyY5ouI

3D printing settings

coming soon

print the printed parts before disassembly of printer for upgrade

tab holes can accept up to 10 gauge Steel will be little loose for 3mm steel should still work fine

can use either smooth rod Guides or V slot guides depending on application

http://www.ncspecialties.com/computers/customcomputers/3dprinter/index.htm

use search word NCS for other NORTH COUNTRY SPECIALTIES recommended prints for the NCS PRUSA i3v Steel
