NCS P3-v Steel to Makerfarm 12 inch bed carriage adapter kit

Did you 3D print this model?

3D model description

  1. This kit allows the NCS bed frame to fit the Maker Farm i3V 12"
  2. Recommend purchasing 4 more wheels for stability
  3. Highly Recommend Printing all the parts before swapping beds
  4. may need additional screw and nuts and possibly couple of longer ones
  5. some drilling is required for adapter
  6. end caps can be used to replace wood caps original rail mounts are intact
  7. leave comment for any changes needed as I don't have a Makerfarm to fit this to

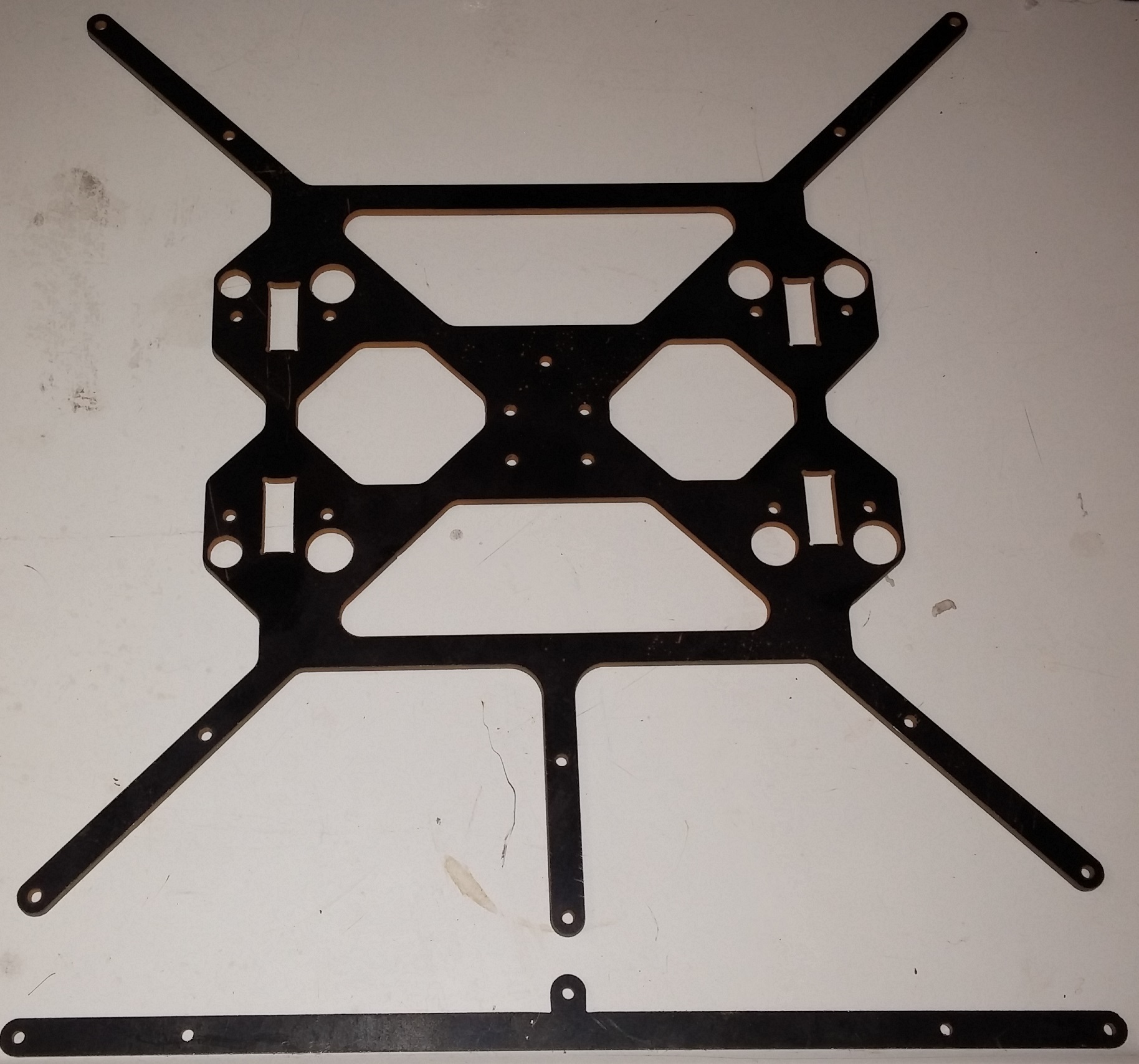

  8. Purchase Steel NCS bed carriage http://ncspecialties.com/computers/customcomputers/3dprinter/bedcarriage/
  9. Cut your own bed by downloading NCS P3steel printer Free DXF and pull the bed from it

3D printing settings

  1. print the printed parts before disassembly of printer for upgrade
  2. due to nature of these parts recommend PLA
  3. Motor mount cap should fit on print bed if place diagonal will not fit smaller print bed to print
  4. use adapter as template to drill the needed holes in main frame
  5. end caps can be used with either bed good for replacing broken parts
  6. wheel screws need to be about 3mm shorter then originals
    1, openbuilds store would have correct screws for mount to 3mm thick material

use search word NCS for other NORTH COUNTRY SPECIALTIES recommended prints for the NCS PRUSA i3v Steel

  • 3D file format: STL
