My Customized Parametric Hinge4mm thick

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 105 views
  • 34 downloads

3D model description

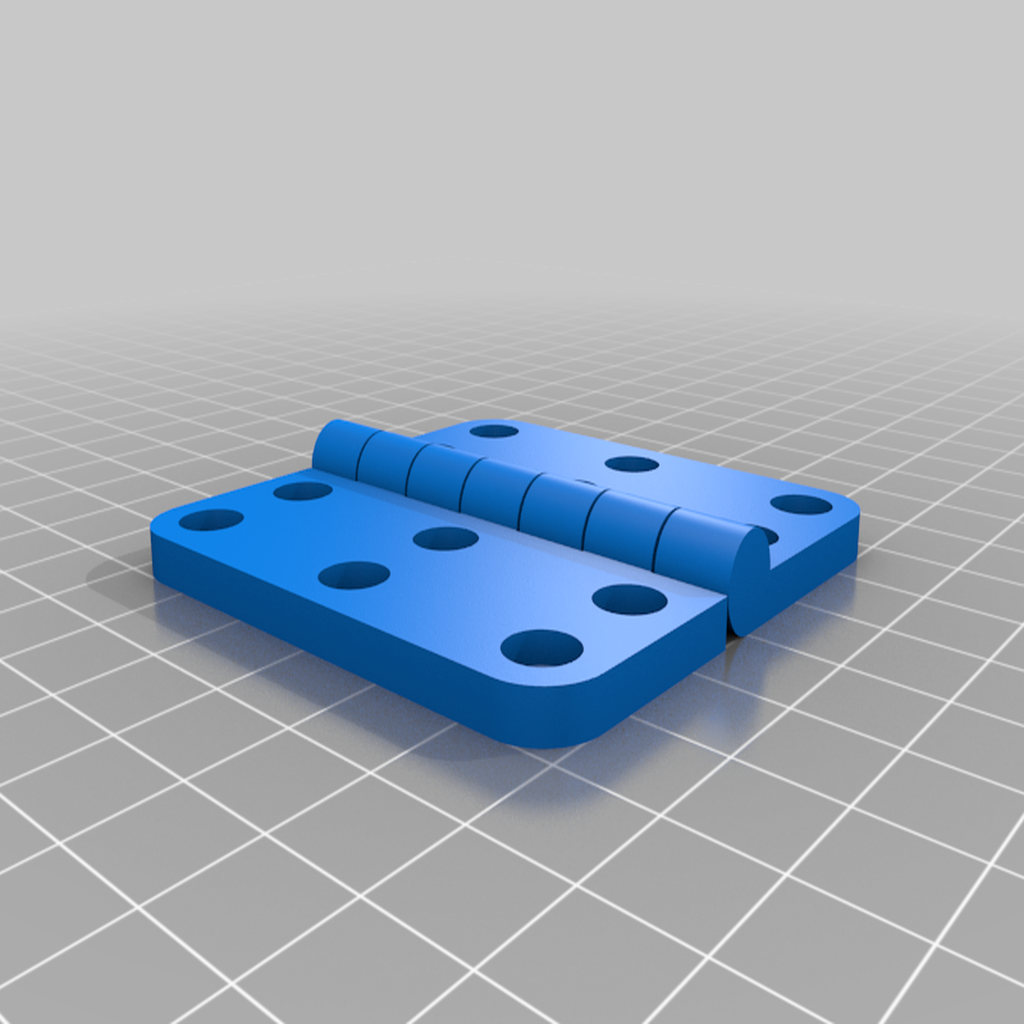

Customized version of https://www.thingiverse.com/thing:2187167
Created by Robin Goslin all credit to him for creating this.

If you want a different size hinge please go to the above thingiverse thing link above.and use the customized.

Created with Customizer! https://www.thingiverse.com/apps/customizer/run?thing_id=2187167

3D printing settings

Using the following options:

enable_male_leaf = 1
enable_female_leaf = 1
enable_fillet = 1
enable_pin = 1
enable_auto_pin_size = 1
enable_pin_shaft_counterbore = 0
enable_fasteners = 1
knuckle_gusset_type = 0
throw_angle = 0
flip_model = 0
resolution = 128
component_color = Silver
hinge_width = 60.0
leaf_height = 60.0
leaf_gauge = 4.0
component_clearance = 0.4
knuckle_count = 7
pin_diameter = 3.0
top_pin_shaft_counterbore_diameter = 6.5
top_pin_shaft_counterbore_depth = 2.5
top_pin_shaft_counterbore_shape = 0
bottom_pin_shaft_counterbore_diameter = 6.0
bottom_pin_shaft_counterbore_depth = 2.5
bottom_pin_shaft_counterbore_shape = 2
fstener_head_type = 0
counter_sink_depth = 2.5
fastener_thread_diameter = 3.5
fastener_head_diameter = 7.0
fastener_count = 6
fastener_column_count = 2
fastener_margin = 3

  • 3D file format: STL
  • 3D model size: X 60 × Y 60 × Z 8 mm
  • Last update: 2021/01/03 at 21:29
  • Publication date: 2020/12/21 at 18:26
