Mounting Bracket for LED Strip Aluminum 45 Degree Channel

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

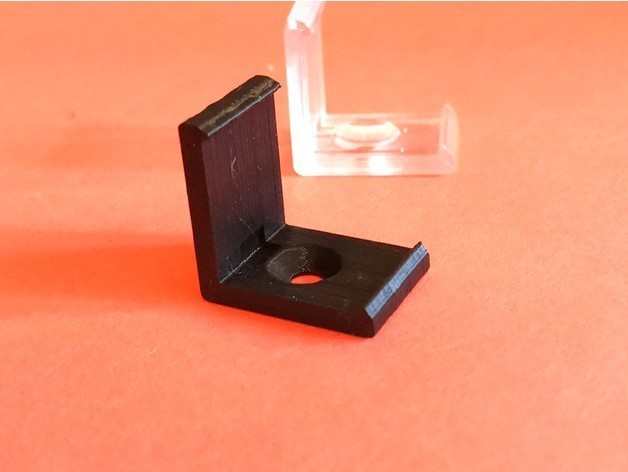

This is a 100% form and function replacement for the clear plastic mounting brackets supplied with:
https://www.amazon.com/dp/B01DM7GBIM/ref=cm_sw_r_cp_dp_T1_TPVpzbHC4Z8ET

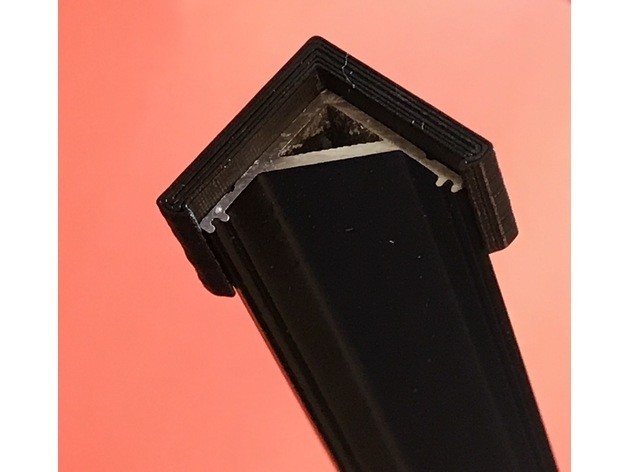

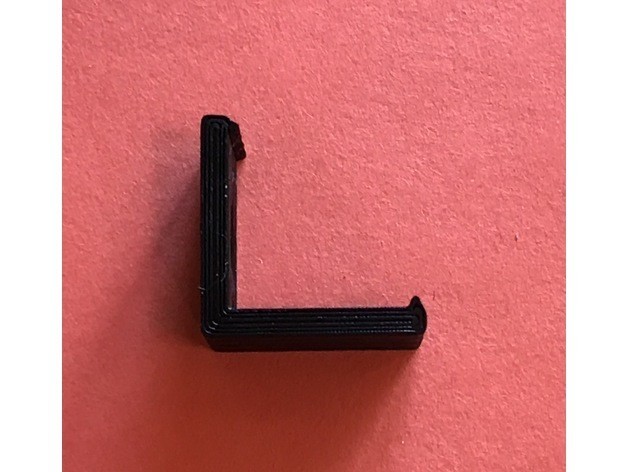

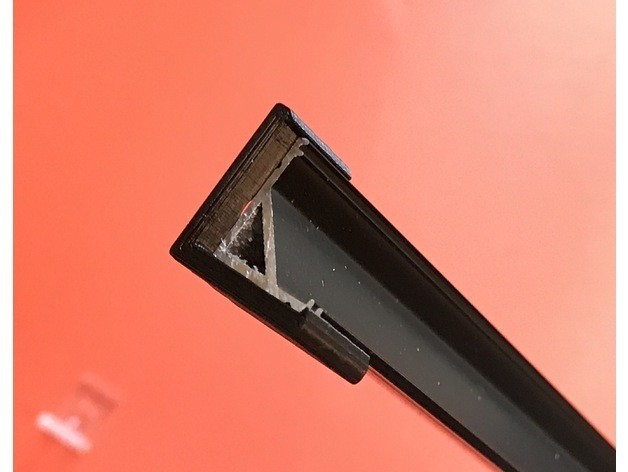

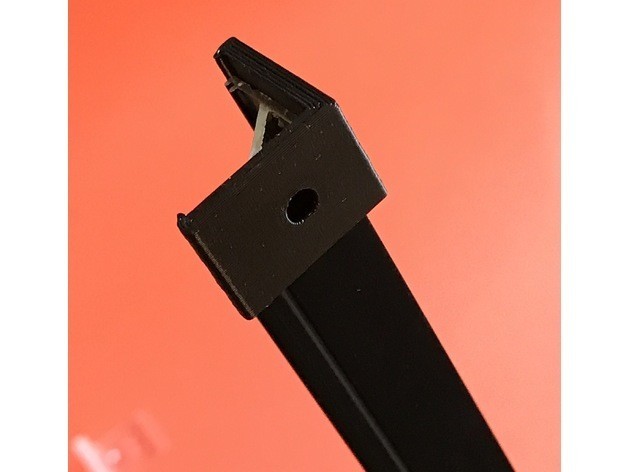

The bracket is screw mounted to a surface such as under a cabinet. LED strip lights are placed into the aluminum channel. The channel snaps into this bracket, aiming the lights at a 45 degree angle relative to the mounting surface.

I updated this model on 2017-10-02 After 6 months of testing, I was having one of my LED strip channels popping out of the original clips. I improved the design to make the clip more secure. I made the nibbs on the ends of the clip more aggressive, and I made the strip sit deeper in the clip. I removed the old model.


3D printing settings

Printer Brand:

Prusa

Printer:

Prusa Mk2

Rafts:

No

Supports:

No

Resolution:

200 um

Infill:

15%

Notes:
I used PLA.

3D printer file information

  • 3D design format: STL Folder details Close
    • ClipStripLED-Bracket45.stl
    • ClipStripLED-Bracket45_20170901.stl

    Learn more about the formats

  • Publication date: 2018-07-05 at 15:11

License

CC BY
