Motor Gearbox Reduction 1:6.5

3D model description

Follow us on Cults3d and on Youtube to get notice of a New Upload!
The first Downloads of every New Upload are free.

how to assemble the gearbox: https://youtu.be/W3gJ8Fz_9Tw

I hope to see a lot of your Makes!

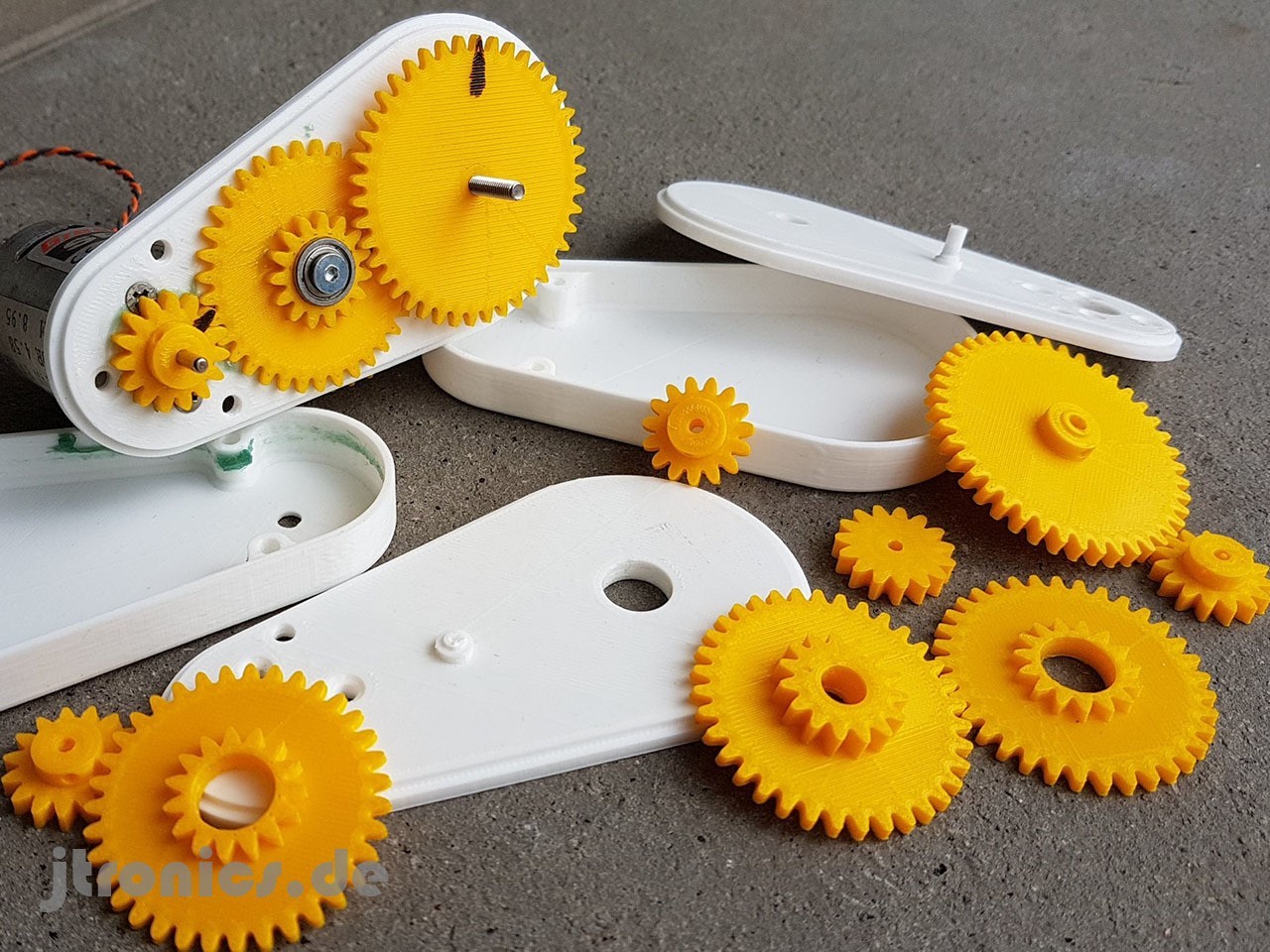

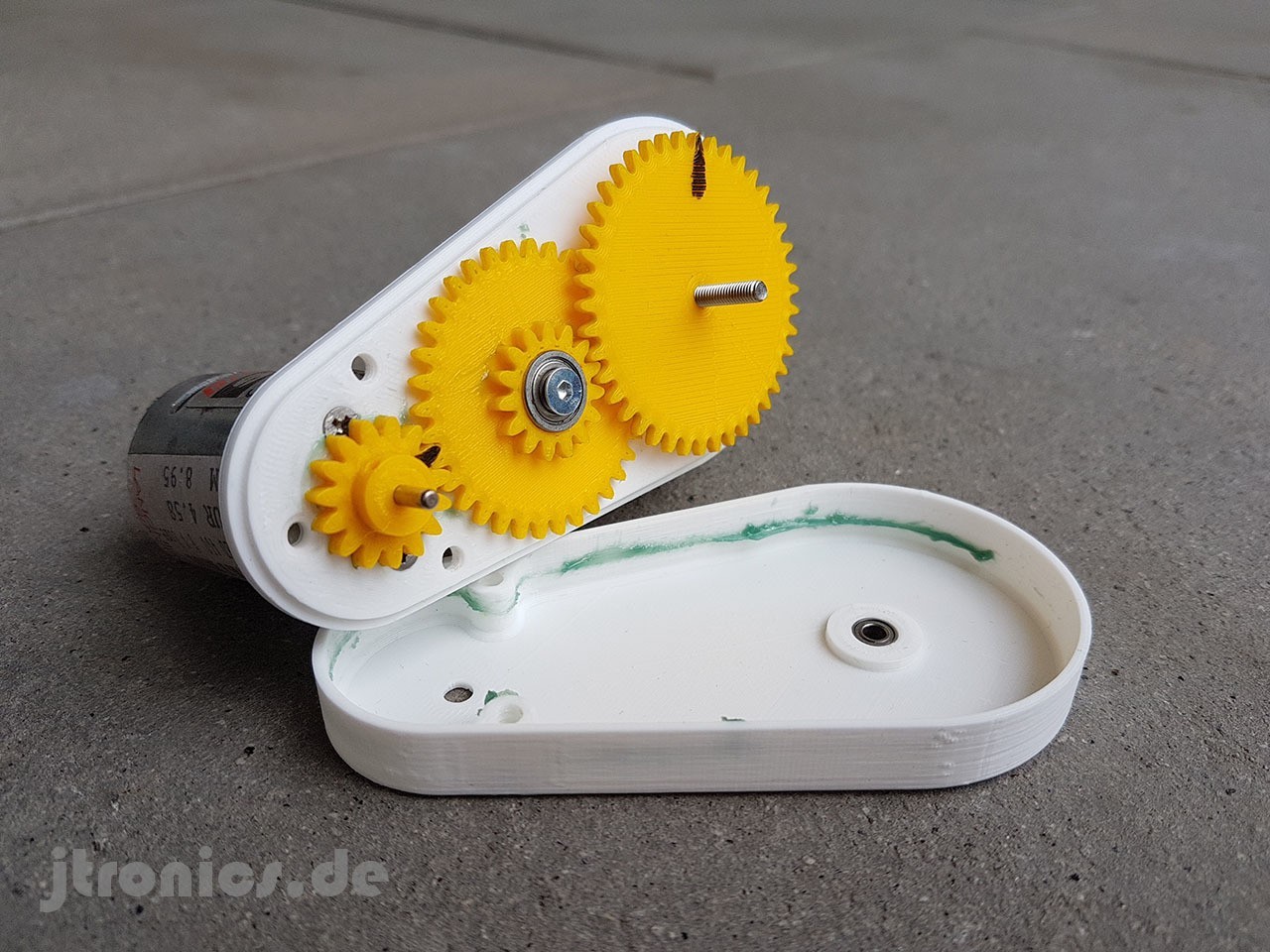

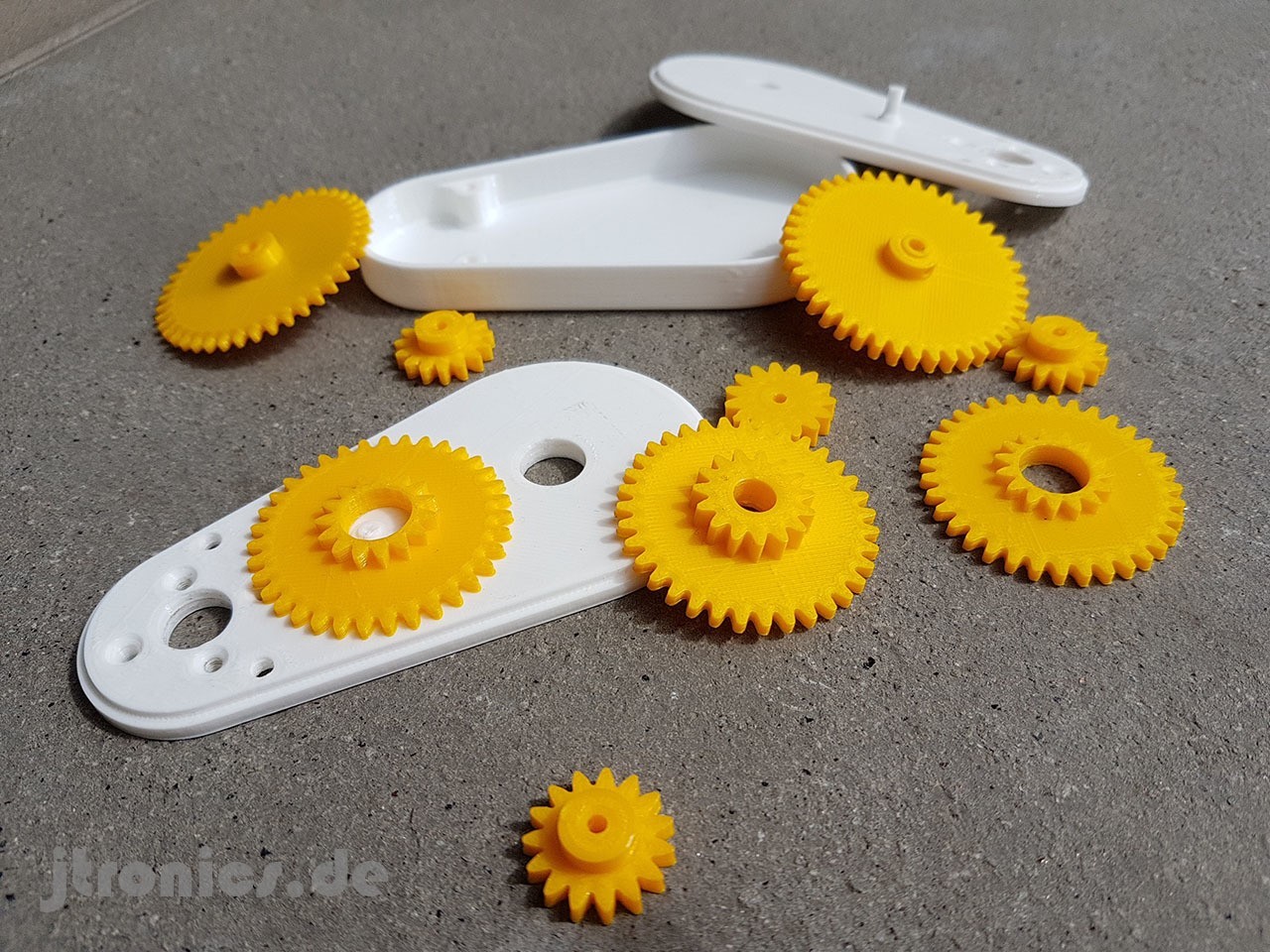

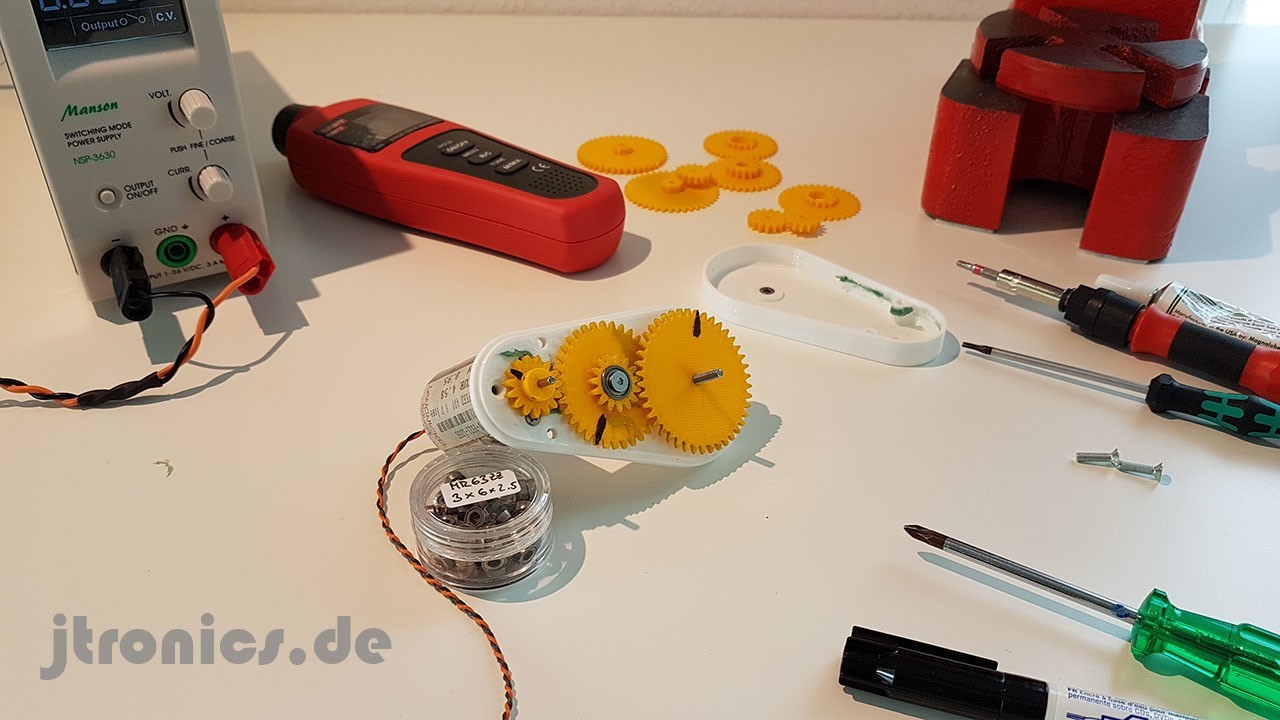

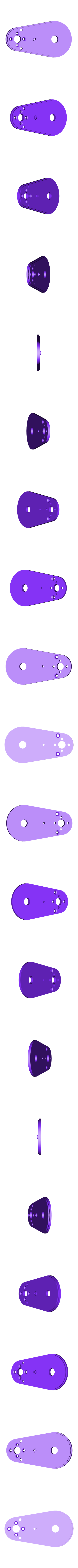

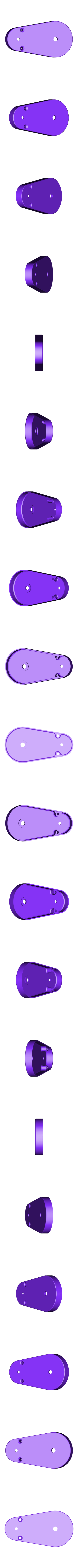

This is a gearbox for various motors. I designed the gearbox to test how durable 3D printed gears are. So the test is a part of a bigger project that I am working on. Maybe someone will find this project usefull. It's Easy to print and assemble and the gearbox runs really good.
The gearbox has a reduction of about 1:6.5. This gives you a higher torque

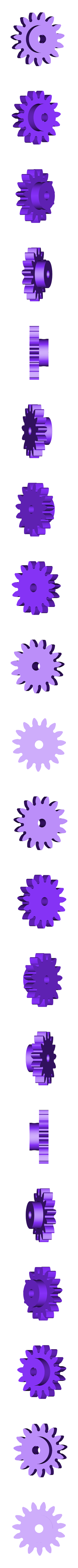

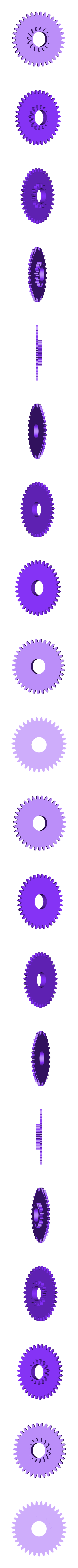

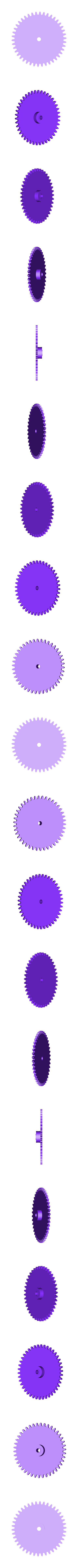

- 1. gearstage 15 to 35 teeths --> ratio of 2.33
- 2. gearstage 15 to 42 teeths --> ratio of 2.80

==> ==> You coud use it with DC or Brushless motors with a mount diagonal of 19mm or 16mm or you could add other holes.

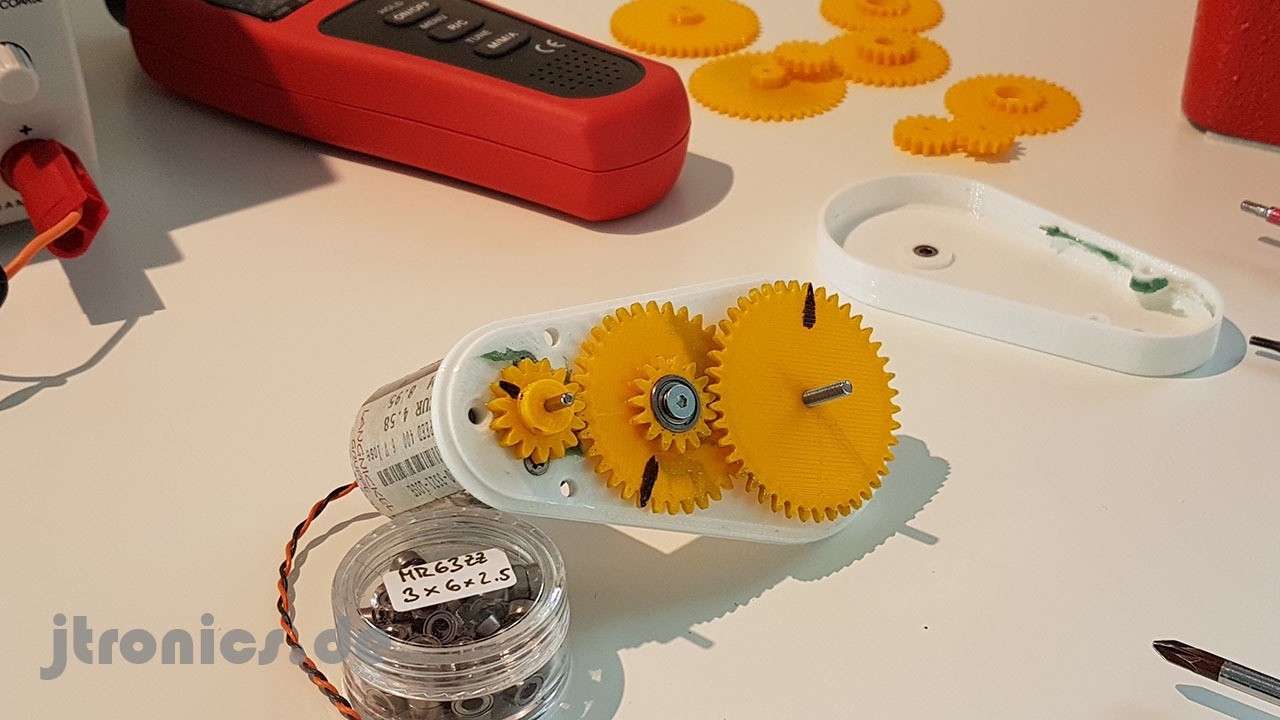

additional parts:
- 1x Motor
- 2x M3 or M2 countersunk screws for motor
- 2x M3x10mm countersunk screws for case
- 1x M2x6mm screw
- 2x M2 screws to fix the gears gear
- 1x 3mm axis or M3x10mm screw
- 2x bearing 623zz 3x10x4mm
- 1x bearing MR63zz 3x6x2.5mm

I hope to see a lot of your Makes!

discover my other jtronics designs on cults3d
————————————————————————————

Website: http://www.jtronics.de/
Instagram: https://www.instagram.com/jtronics.de/
Twitter: Twitter: https://twitter.com/jtronics2
youtube: https://www.youtube.com/jtronicsTV
Facebook: https://www.facebook.com/jtronics.de/
Cults3d: https://cults3d.com/en/users/jtronics

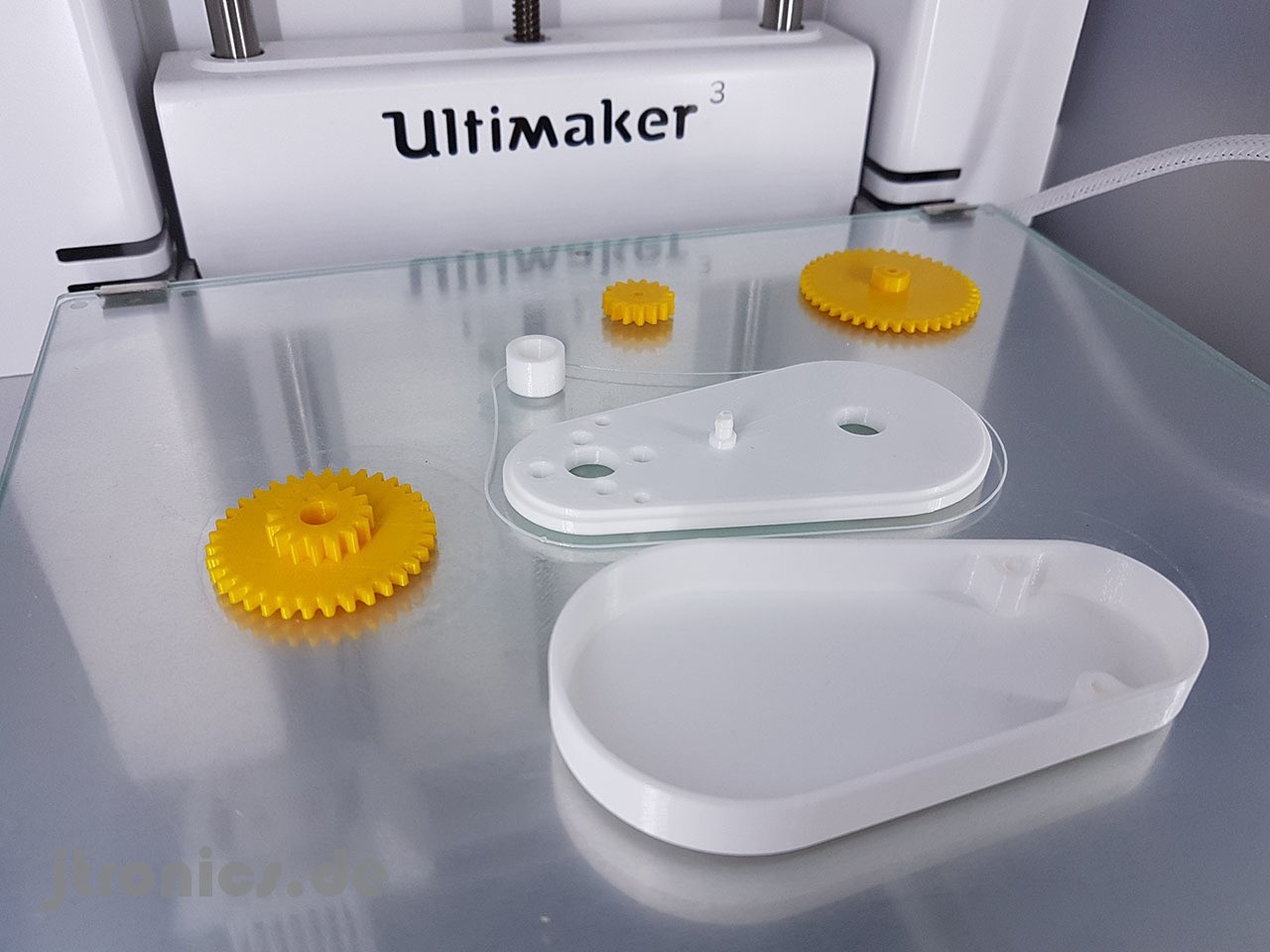

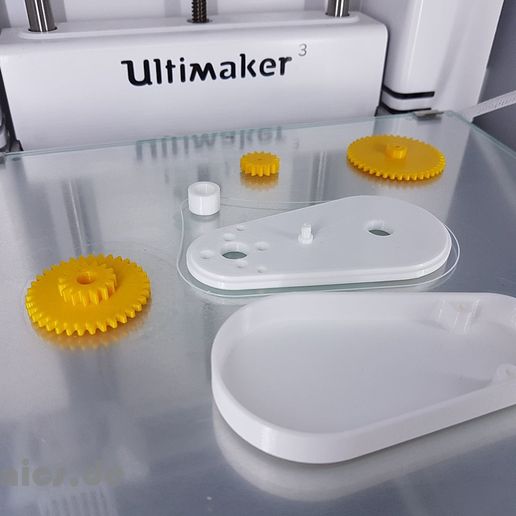

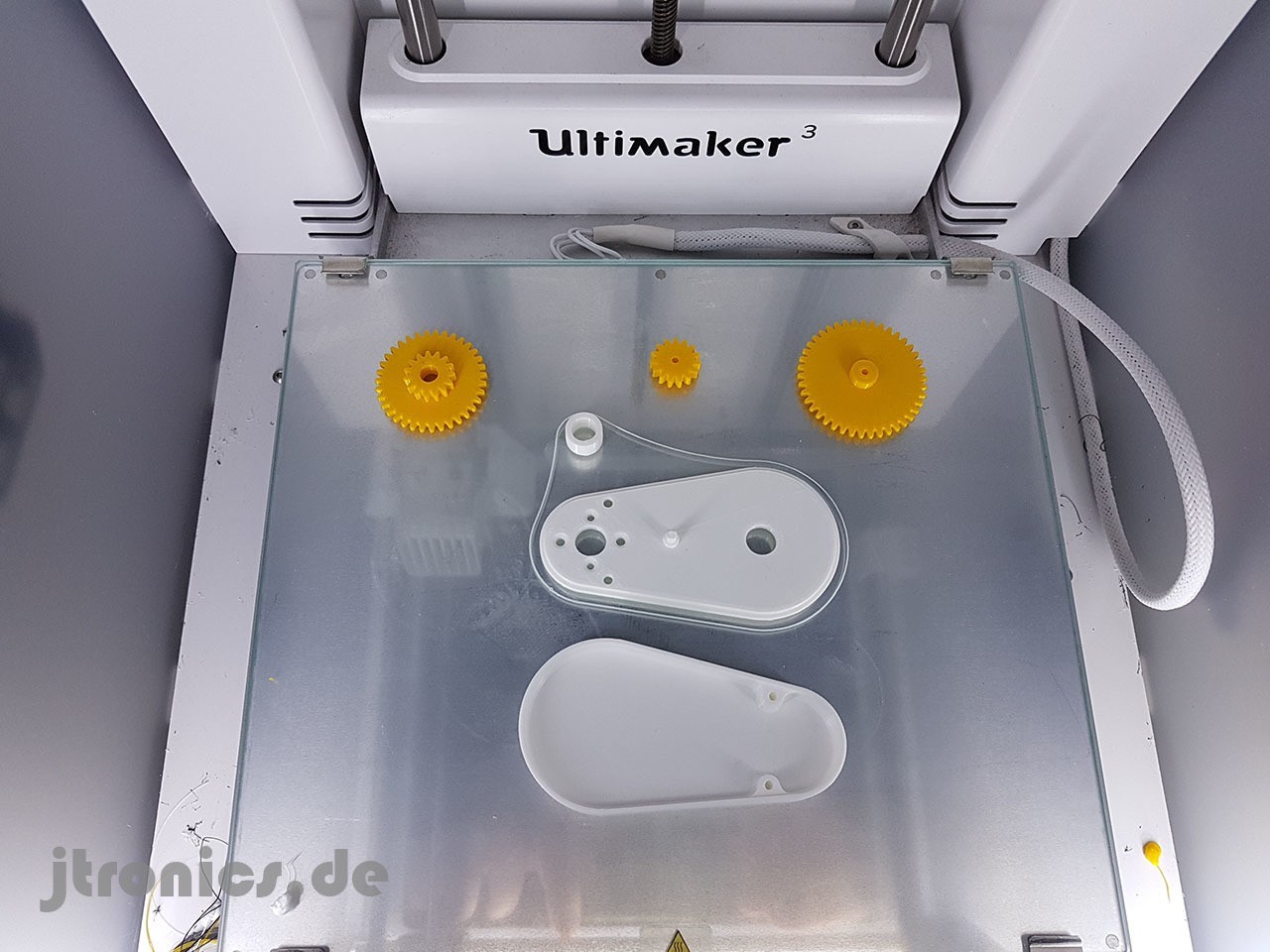

3D printing settings

layer gears: 0.15mm
layer case: 0.20mm

  • 3D model format: STL
